MAS VR4 50 mm Radial Drill Machine

Price 23000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS VR4 50 mm Radial Drill Machine Specification

Condition
New

Machine Type
Radial Drill

Noise Level
Low

Frequency
50 Hz

Diameter
50 mm

Cutting Area
Up to 50 mm diameter

Dimension (L*W*H)
1800 x 950 x 2500 mm

Motor Power
3 HP

Table Size
800 x 630 mm

Features
Heavy Duty Construction, Adjustable Arm, Reliable Performance

Spindle Speed
8 Steps, 50 - 2000 RPM

Product Type
Radial Drill Machine

Material
Cast Iron, Mild Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V

Power
2.2 kW

Power Source
Electric

Weight (kg)
2200 kg

Capacity
50 mm Drilling in Steel

Color
Standard / As per manufacturer

Usage & Applications
Drilling, Boring, Reaming, Tapping in Workshops & Industries

Surface Finish
Machined & Painted

Base Plate Size
1400 x 800 mm

Max. Distance Spindle to Column
1600 mm

Spindle Taper
MT-4

Number of Spindle Speeds
8

Arm Length
1600 mm

Column Diameter
300 mm

Coolant Pump Motor
0.15 HP

Max. Distance Spindle to Base
1300 mm

Min. Distance Spindle to Base
350 mm

Spindle Travel
350 mm

Vertical Travel of Arm
900 mm

Main Drive Motor
3 HP / 1440 RPM

Drilling Capacity in Cast Iron
60 mm

MAS VR4 50 mm Radial Drill Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

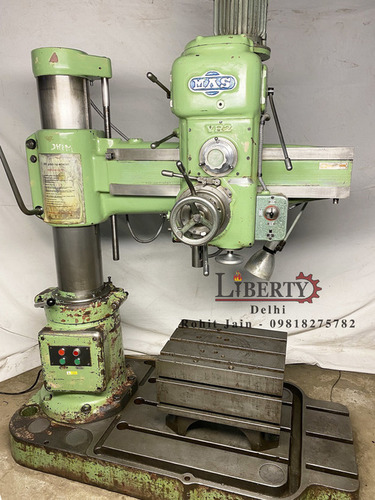

About MAS VR4 50 mm Radial Drill Machine

Make - MAS (Czech Republic)

Model - VR4

Drilling Capacity - 50 mm

Spindle Diameter - 75 mm

Arm Length - 1470 mm

Spindle Speeds - 45 rpm to 2000 rpm

Spindle Taper - MT 4

Spindle Feed Travel - 310 mm

Spindle Feed Rate of Travel - 0.025 mm/rev to 1.58 mm/rev

Vertical Travel of Arm - 680 mm

Table Size - 555 mm x 555 mm

Tilting Angle of Table - 0 degree to 90 degree

Clamping Type - Manual

- Equipped with a Heavy-Duty Tilting Type Cube Table.

- Machine is in excellent working condition.

Video of The Machine-

https://youtu.be/ypMhal7R3M4

Heavy-Duty Precision and Versatile Performance

Designed for industrial environments, the MAS VR4 Radial Drill Machine excels at handling large workpieces and challenging drilling operations. Its adjustable arm, 900 mm vertical travel, and 8 spindle speeds facilitate a wide range of machining processes. The machines sturdy construction and efficient electric drive system ensure stable, low-noise operation, making it suitable for a variety of tasks including drilling, boring, tapping, and reaming.

User-Friendly Operation and Reliable Construction

With its manual control system and semi-automatic grade, the VR4 offers straightforward operation while maintaining high performance. Operators can rely on the machines robust column, spindle, and powerful drive to achieve precise machining. Modern safety and ergonomic features, combined with a machined and painted surface finish, enhance usability and durability, ensuring the machine stands up to intensive use in any workshop setting.

FAQs of MAS VR4 50 mm Radial Drill Machine:

Q: How does the MAS VR4 50 mm Radial Drill Machine enhance drilling processes in workshops?

A: The MAS VR4 offers adjustable arm length, significant spindle travel, and multiple speed settings, allowing users to work efficiently with different material types and thicknesses. These features result in precise, controlled drilling, reducing cycle time and increasing productivity in workshops and industrial settings.

Q: What materials can be processed using the MAS VR4 50 mm Radial Drill Machine?

A: This radial drill machine is engineered to machine materials such as cast iron, mild steel, and other metals, supporting a maximum drilling capacity of 60 mm in cast iron and 50 mm in steel. Its sturdy build handles a variety of industrial applications, including boring, tapping, and reaming.

Q: Where is the MAS VR4 50 mm Radial Drill Machine typically used?

A: The MAS VR4 is widely utilized in manufacturing workshops, machining centers, and industrial plants. Its suitable for metal fabrication, component manufacturing, and repair tasks where reliable, precise drilling on large workpieces is required.

Q: When is it beneficial to use a radial drill machine like the MAS VR4 instead of a standard drill press?

A: A radial drill machine is ideal when working with large or heavy workpieces that require the spindle to move over the work area without shifting the part. The MAS VR4s extended arm length and adjustable height make it beneficial for operations where versatility and reach are crucial.

Q: What is the process for changing spindle speeds on the MAS VR4 Radial Drill Machine?

A: Operators can select from 8 different spindle speeds, ranging from 50 to 2000 RPM, by manually adjusting the speed control system. This enables tailoring the machines operation to match the requirements of the material and the specific drilling or machining process.

Q: How does the machines construction benefit long-term use and reliability?

A: Constructed with heavy-duty cast iron and mild steel, and finished for corrosion resistance, the MAS VR4 provides excellent durability and rigidity. This robust design minimizes vibration and wear even during continuous, heavy workloads, ensuring prolonged machine life and consistent performance.

Q: What is the advantage of the MAS VR4s coolant pump system during operation?

A: The integrated coolant pump (0.15 HP) helps reduce heat buildup and remove chips during deep or prolonged drilling, protecting both the tool and workpiece. This feature enhances machining quality and extends tool life by maintaining optimal temperature and lubrication.
