MAS VR4 50 mm x 1470 mm Arm Radial Drill Machine

Name: MAS VR4 50 mm x 1470 mm Arm Radial Drill Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS VR4 50 mm x 1470 mm Arm Radial Drill Machine Specification

Features
Robust construction, Adjustable radial arm, Easy operation, Provision for coolant system

Noise Level
Low

Machine Type
Radial Arm Type

Motor Power
5 HP

Frequency
50 Hz

Diameter
50 mm

Spindle Speed
50 - 1800 RPM

Condition
New

Cutting Area
Suitable up to 50 mm diameter drill size

Dimension (L*W*H)
2100 mm x 930 mm x 2600 mm

Table Size
530 mm x 400 mm

Product Type
Radial Drill Machine

Material
High Grade Cast Iron & Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V AC

Power
3.7 kW

Power Source
Electric

Weight (kg)
Approx. 1750 kg

Capacity
50 mm Drilling

Color
Standard Machine Grey

Usage & Applications
Heavy Duty Drilling in Metal Fabrication, Workshops, Mechanical Plants

Model Number
VR4

Number of Spindle Speeds
9

Swing
2200 mm

Base Dimensions
1130 mm x 670 mm

Distance from Spindle Center to Column
1470 mm

Distance Spindle to Table
820 mm

Feed Range
0.05 - 0.3 mm/rev

Coolant Pump Motor
0.12 kW

Column Diameter
300 mm

Arm Length
1470 mm

Taper in Spindle
MT5

Max Distance Spindle to Arm
600 mm

Type of Lifting
Electrical Arm Lift

Quill Diameter
75 mm

Vertical Movement of Arm
600 mm

Spindle Travel
250 mm

Max Distance Spindle to Base
1100 mm

MAS VR4 50 mm x 1470 mm Arm Radial Drill Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

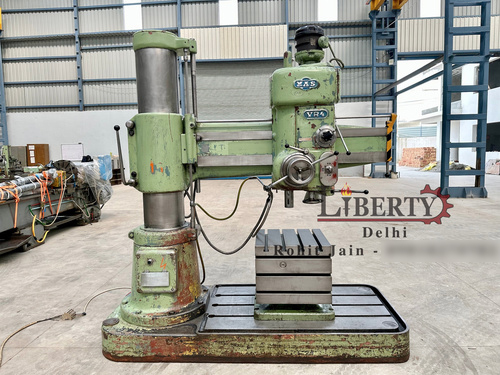

About MAS VR4 50 mm x 1470 mm Arm Radial Drill Machine

Make - MAS (Czech Republic)

Model - VR 4

Drilling Capacity - 50 mm

Spindle Diameter - 75 mm

Arm Length - 1470 mm

Spindle Speeds - 45 rpm to 2000 rpm

Spindle Taper - MT 4

Spindle Feed Travel - 310 mm

Spindle Feed Rate of Travel - 0.025 mm/rev to 1.58 mm/rev

Vertical Travel of Arm - 680 mm

Tilting Cube Table Size - 550 mm x 550 mm

Tilting Angle of Cube Table - 0 to 90 Degree

Clamping Type - Manual

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/8TZ8Cv3tC9Y

Heavy-Duty Performance and Versatility

The MAS VR4 Radial Drill Machine stands out for its 50 mm drilling capacity, high-grade cast iron and steel construction, and extended arm reach of 1470 mm. It supports a wide range of drilling operations on various metal workpieces and is ideal for demanding workshops and industrial applications. Its robust design ensures stable operation even during intensive usage.

User-Friendly Operation and Safety

Equipped with an electrically operated arm lift and a provision for a coolant system, the VR4 prioritizes ease of use and operator safety. The manual control system allows for precise adjustments, while semi-automatic features and low noise ensure a smooth and comfortable working environment. Safety measures are reinforced with its sturdy build quality.

Efficiency Through Innovation

The MAS VR4 offers efficient performance through nine spindle speed options, a 5 HP motor, and convenient maintenance access. Its spacious work area and adjustable elements streamline daily operations, while the reliable electrical system (415 V AC, 50 Hz) supports continuous production. Whether importing, exporting, or supplying, reliability is at the core of every operation.

FAQ's of MAS VR4 50 mm x 1470 mm Arm Radial Drill Machine:

Q: How does the electrical arm lift mechanism improve operational efficiency?

A: The electrical arm lift on the MAS VR4 enables easy and rapid vertical adjustment of the arm, reducing manual effort and setup time. This feature increases productivity by allowing operators to quickly reposition the drill head for different workpiece heights, thus streamlining the drilling process.

Q: What materials can be processed with the MAS VR4 Radial Drill Machine?

A: The MAS VR4 is engineered for heavy-duty drilling on a variety of metals, making it suitable for tasks in fabrication workshops, mechanical plants, and workshops dealing with steel, cast iron, and other robust materials.

Q: When should you use a machine with a 50 mm drilling capacity like the VR4?

A: The MAS VR4 is ideal for situations where large or deep holes (up to 50 mm in diameter) are required in heavy metal workpieces. Common scenarios include manufacturing, metal fabrication, and industrial maintenance operations.

Q: Where is the best place to install the MAS VR4 Radial Drill Machine?

A: For optimal stability and performance, the VR4 should be installed on a reinforced, level workshop floor in an area with sufficient overhead clearance and easy access for loading large metal pieces, typically in workshops or production floors with heavy machinery.

Q: What is the process for changing spindle speeds on this machine?

A: Changing spindle speeds on the MAS VR4 is achieved manually through the control panel, allowing the operator to select from 9 different speeds ranging from 50 to 1800 RPM. Adjusting the speed enables optimized drilling performance based on material type and drill bit size.

Q: How does the built-in coolant system benefit the drilling operation?

A: The integrated coolant pump (0.12 kW) helps dissipate heat generated during drilling, extending tool life and maintaining precise tolerances. This reduces the risk of workpiece damage and ensures cleaner, more accurate holes.
