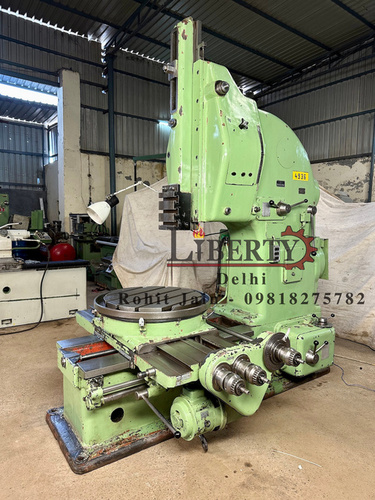

Minganti Slotting Machine

Get a Price/Quote

MOQ : 1 Piece

Minganti Slotting Machine Specification

Features
Sturdy Construction, Smooth Drive, Precision Guideways

Voltage
220V/415V (Single/Three Phase)

Motor Power
1 HP

Drive
V-belt Drive

Frame Type
Rigid Cast Iron Frame

Frequency
50Hz

Cooling System
Provision for Manual/Automatic Coolant

Power Rating
1 HP

Accuracy
0.05 mm

Lubricating System
Manual Lubrication

Model No
Minganti

Machine Type
Conventional Mechanical Slotting

Control System
Manual

Connectivity Options
None (Non-Digital)

Noise Level
Moderate

Production Capacity
Custom/Jobwise

Operating Temperature
Ambient

Product Type
Slotting Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Hand lever operated

Power
0.75 kW - 1.5 kW (Approx. Depend on Model)

Pressure
Manual/Mechanical (Not Hydraulic)

Surface Treatment
Body Painted

Dimension (L*W*H)
Approx. 780mm x 700mm x 1600mm

Weight (kg)
900 kg (Approx.)

Color
Green / Blue (Subject to Stock)

Usage & Applications
Keyway Slotting, Internal Slotting, Grooving in Metal Components

Ram Adjustment
Up to 50 mm

Column Construction
Single Piece Cast Iron

Imported Brand
Minganti

Table Diameter
360 mm (Rotary Table)

Table Travel
230 mm (Cross), 230 mm (Longitudinal)

Max Slotting Stroke
160 mm

Operator Skill Level
Skilled Operator Required

Max Workpiece Height
250 mm

Spindle Speed
3-4 Steps (Varies with Pulley Settings)

Maintenance
Easy Access to Service Points

Safety Features
Overload Cutoff, Mechanical Guards

Chuck Mount
Standard 3 Jaw Chuck (Optional)

Electricals
IS Standard Wiring, Starter Included

Clamping Type
Mechanical / Manual

About Minganti Slotting Machine

Make - G.Minganti (Italy)

Tool Stroke Length - 160 mm

Table Diameter - 500 mm

Longitudinal Travel of Table - 450 mm

Cross Travel of Table - 500 mm

Tool Adjustment - 300 mm

- Automatic Feed movement in Table rotation

- Automatic Feed movement in cross & longitudinal travel of table.

- 4 different speeds of tool stroke.

- Equipped with Taper Slotting Attachment. (Machine can do slotting at an angle).

- Machine is in excellent working condition.

Precision Slotting for Metal Components

Engineered for accuracy and reliability, the Minganti Slotting Machine delivers precise slotting, grooving, and internal cutting for a variety of metal parts. Capable of handling pieces up to 250 mm in height and with a rotary table for added flexibility, it meets the demands of custom jobs and small-batch production where consistency is key.

Robust Construction & Reliable Drive

The slotter features a single-piece, rigid cast iron frame and is powered by a dependable V-belt drive. Its smooth, precision guideways and sturdy mechanical components ensure stable operation even during prolonged usage. Designed for longevity, it provides consistent results in industrial and workshop settings.

User-Friendly & Safe Operation

With manual controls, mechanical/manual clamping, and essential safety features like overload cutoffs and mechanical guards, the Minganti Slotting Machine prioritizes user safety. Its starter, IS standard electricals, and provision for both manual and automatic coolant enhance operator convenience while maintaining safety and machine integrity.

FAQs of Minganti Slotting Machine:

Q: How is workpiece clamping managed on the Minganti Slotting Machine?

A: Clamping on the Minganti Slotting Machine is achieved through a mechanical/manual system, offering secure attachment of workpieces during slotting. An optional standard 3-jaw chuck allows for additional versatility with different shapes and sizes of components.

Q: What types of slotting operations can be performed with this machine?

A: The machine is designed for keyway slotting, internal slotting, and grooving applications in metal components, making it suitable for precision machining tasks demanded in automotive, aerospace, and general metalworking industries.

Q: When should maintenance be performed and how accessible are service points?

A: Routine maintenance should follow the manufacturers guidelines, typically involving regular lubrication and safety checks. All service points are designed for easy access, ensuring that maintenance is straightforward and doesnt require extensive downtime.

Q: Where is this slotting machine best used?

A: This slotting machine excels in workshops, job shops, and small to medium manufacturing units where precision slotting and custom jobs are routine. Its compact footprint also makes it suitable for space-limited production environments.

Q: What benefits does the Minganti Slotting Machine offer over hydraulic models?

A: As a conventional mechanical slotter, it operates without hydraulic pressure systems, resulting in simpler maintenance, fewer potential leak points, and a lower power requirement. Mechanical operation offers smoother control for precise manual slotting tasks.

Q: How does the machine ensure operator safety during use?

A: It incorporates multiple safety features, including mechanical guards, an overload cutoff system, and IS standard wiring. These measures help protect the operator from accidental contact and reduce the risk of electrical or mechanical failures.

Q: What level of operator skill is required to use the Minganti Slotting Machine?

A: A skilled operator is recommended, as manual control and adjustment are key to safe and accurate slotting. Familiarity with conventional mechanical slotter operation ensures the best performance and safety outcomes.
