Misal Italy Automatic Flute and Spline Milling Machine

Name: Misal Italy Automatic Flute and Spline Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Misal Italy Automatic Flute and Spline Milling Machine Specification

General Use

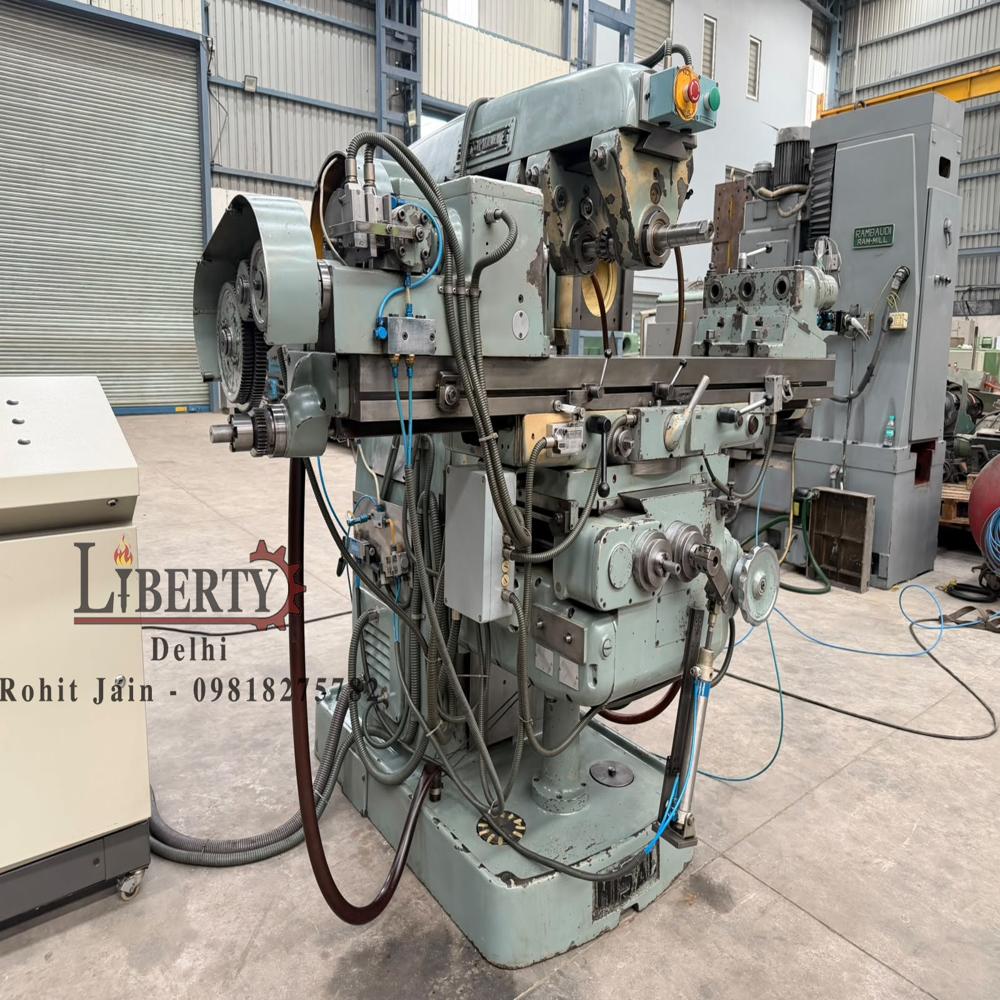

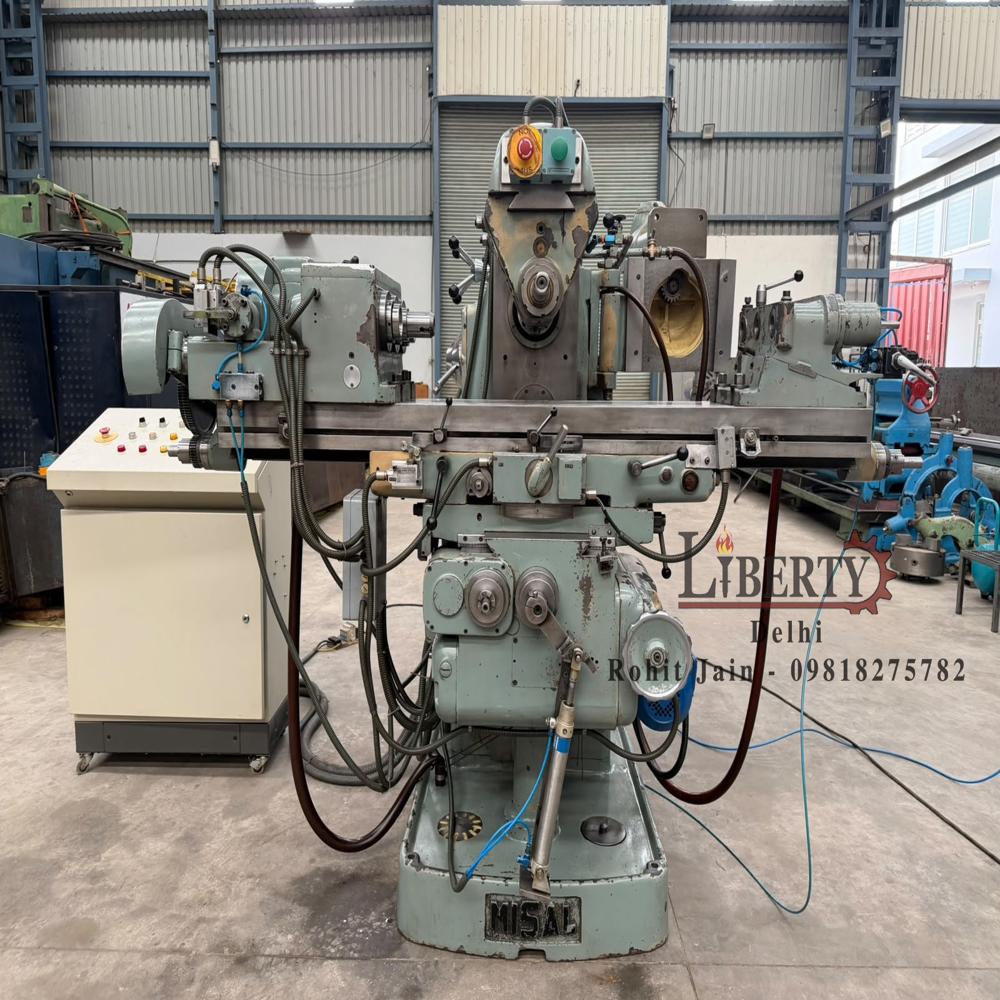

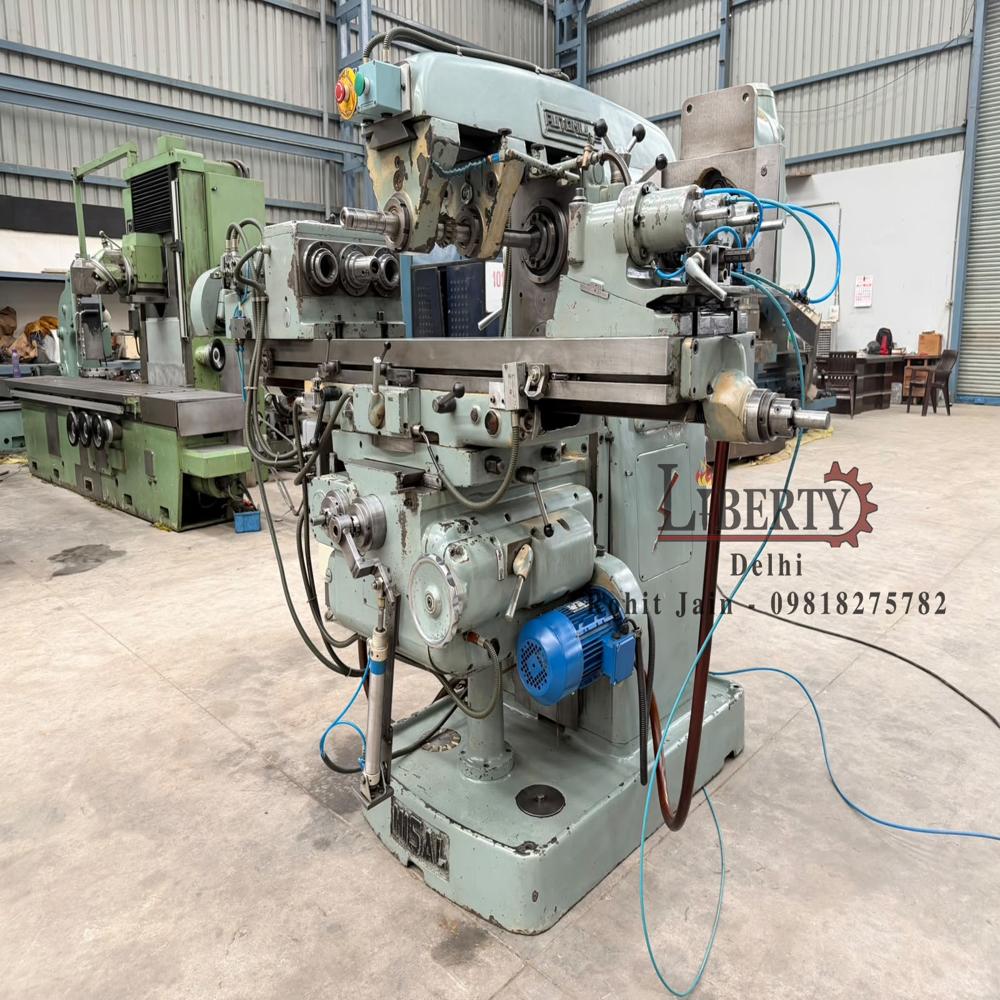

Automatic Flute & Spline Milling Machine made by Misal (Italy), Model Automill-3, available in excellent working condition. The machine is equipped with a 3-Station Automatic Work Head having a Distance Between Centres of 900 mm and a Centre Height of 160 mm, allowing up to three workpieces to be machined simultaneously in a single automatic cycle. It is equipped with an Automatic Dividing Head & Tailstock, making it suitable for automatic production of splines, flutes, serrations, etc. It features a fully automatic operating cycle, including Automatic Indexing, Automatic Vertical Table Movement, Automatic Rapid Return after each cut, and Automatic Machine Stop upon completion of all indexing operations, making it highly suitable for repetitive production work. The unique automatic production cycle significantly increases productivity while maintaining accurate indexing and repeatability. The technical details are as follows -

Misal Italy Automatic Flute and Spline Milling Machine About

Make - Misal (Italy)

Model - Automill-3

Distance between Centres - 900 mm

Centre Height - 160 mm

Table Size - 1700 mm x 355 mm

XYZ Table Travels - 1200 mm x 300 mm x 500 mm

Spindle Taper - ISO-50

Spindle Speeds - 25 to 1500 RPM

Table Feed Travel Rates - 10 mm/min to 684 mm/min

Table Rotation - +45 degree to -45 degree

- 3-Station Work Head allows simultaneous machining of up to three workpieces in a single automatic cycle.

- Fully Automatic Cycle featuring Automatic Indexing, Automatic Vertical Table Movement, Automatic Rapid Return, and Automatic Machine Stop.

- Complete with Vertical Milling Head.

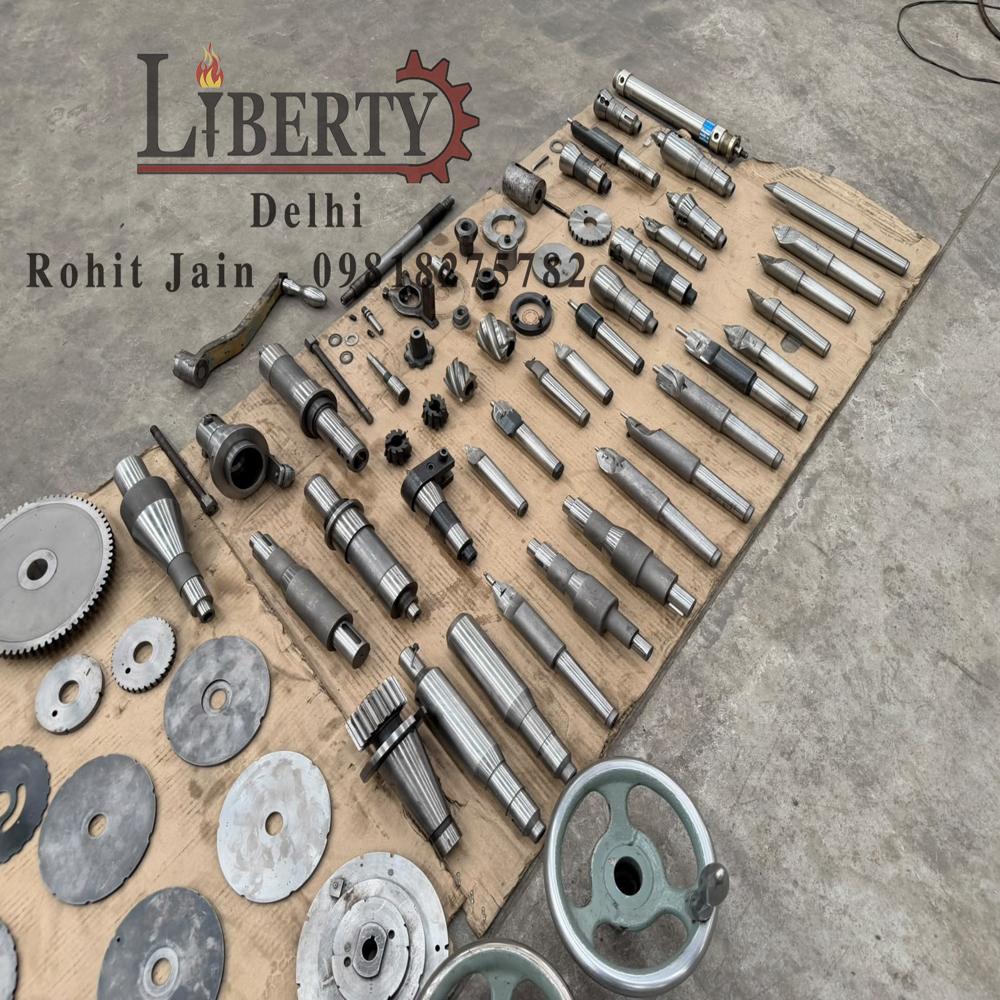

- Complete with Index Plates, Change Gears, Fixtures, and other accessories.

- Automatic Work Head and Tailstock assembly can be removed for conventional Universal Milling operations.

- Suitable for manufacturing splined shafts, fluted cutters, broaches, reamers, serrations, and other indexed components.

- Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/_w2K9E_0YDo

Enhanced Productivity Through Automation

The Automill-3 is engineered to streamline spline and flute milling, featuring a fully automatic operating cycle. This automation reduces manual labor, saving valuable time and increasing throughput for repetitive production tasks. The ability to machine three workpieces simultaneously further boosts productivity, making it an asset for high-volume manufacturers.

Precision and Reliability with Advanced Features

Equipped with an automatic dividing head and tailstock, the machine ensures exceptional accuracy and repeatability in every cycle. The automatic indexing, vertical movements, and rapid return functions significantly minimize errors, delivering consistent results for the most precise applications.

Versatile Machining Capabilities

The Automill-3 is suitable for a wide array of tasks, including the production of flutes, splines, and serrations. Its generous distance between centres and centre height allows handling of various workpiece sizes, accommodating diverse manufacturing needs. The machine's robust construction ensures dependable operation for demanding industrial environments.

FAQ's of Misal Italy Automatic Flute and Spline Milling Machine:

Q: How does the automatic operation of the Automill-3 benefit production processes?

A: The fully automatic cycle of the Automill-3 eliminates manual handling between operations, enabling continuous, uninterrupted machining. This increases efficiency, reduces the likelihood of errors, and significantly boosts overall productivity.

Q: What types of components can be machined on the Misal Automill-3?

A: This machine is designed to cut splines, flutes, and serrations, making it adaptable for manufacturing various components such as shafts, gears, and similar cylindrical workpieces requiring these features.

Q: When is the automatic machine stop function activated?

A: The automatic machine stop engages at the end of all programmed indexing operations, ensuring the machine ceases operation upon completing a machining cycle. This improves safety and prevents unnecessary wear.

Q: Where can the Automill-3 be used most effectively?

A: The Automill-3 excels in manufacturing environments where high-volume, repetitive production of splined or fluted components is required, such as automotive, aerospace, and precision engineering sectors.

Q: What is the process of machining multiple components simultaneously on this machine?

A: Thanks to its 3-station automatic work head, the Automill-3 can hold and machine up to three workpieces at once. The integration of automatic indexing and table movements ensures synchronized machining, greatly accelerating production rates.

Q: How does the automatic dividing head and tailstock contribute to machining accuracy?

A: The automatic dividing head precisely controls rotational positioning, while the tailstock secures workpieces, ensuring consistent axial alignment. Together, they provide reliable, repeatable machining accuracy for every job.
