Pfauter P630 High-Production Gear Hobbing Machine

Send Inquiry

Request To Call Back

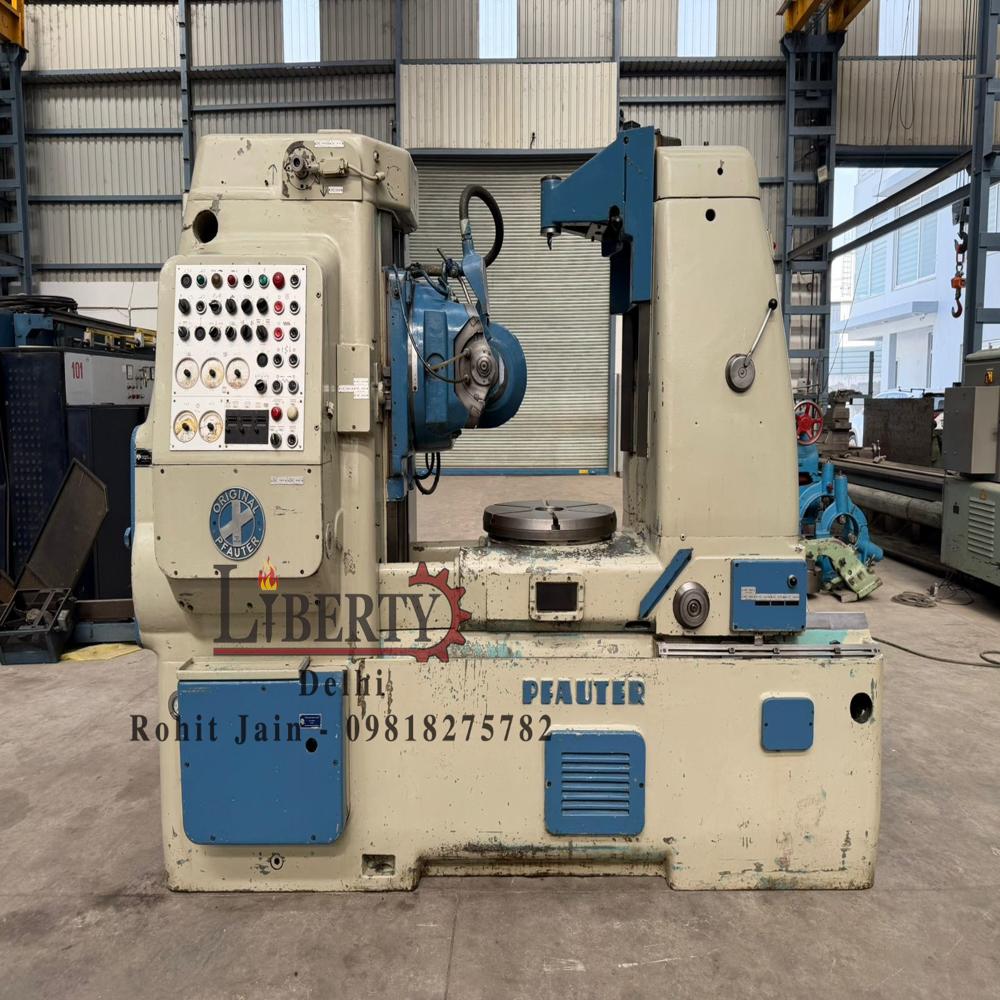

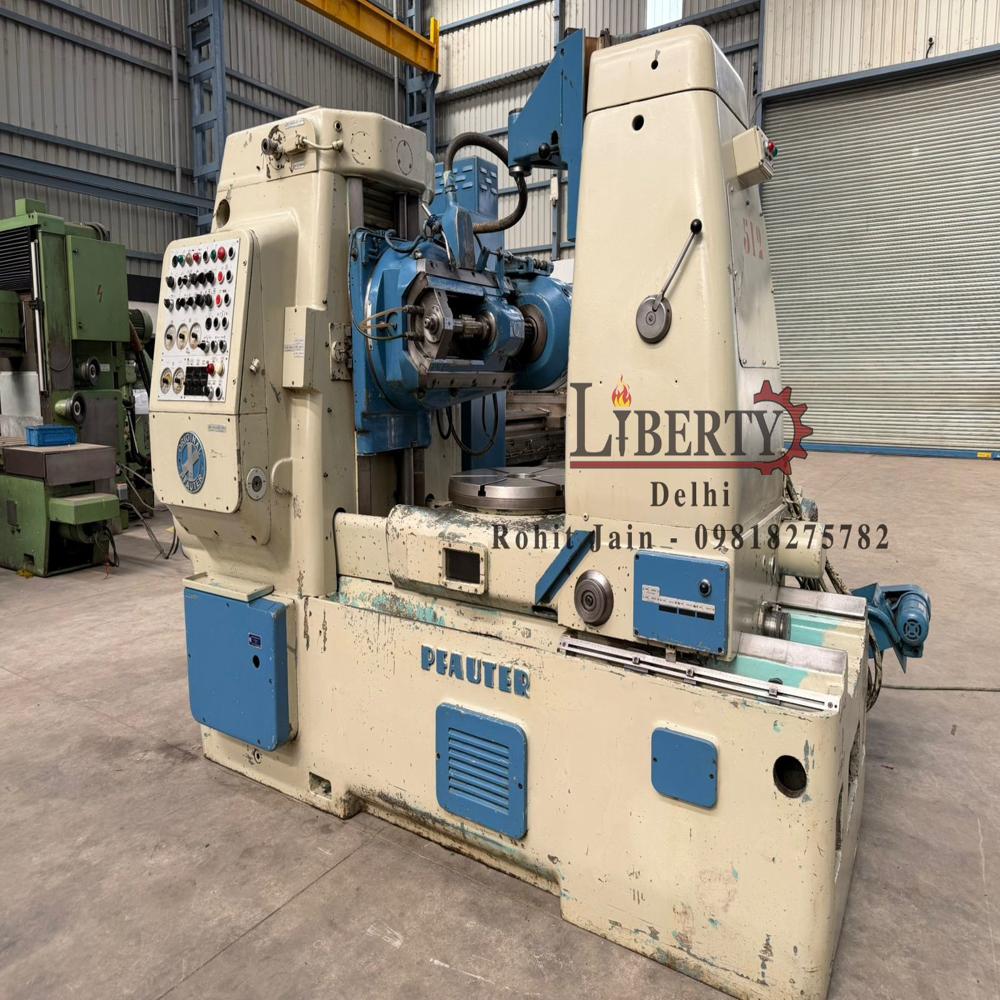

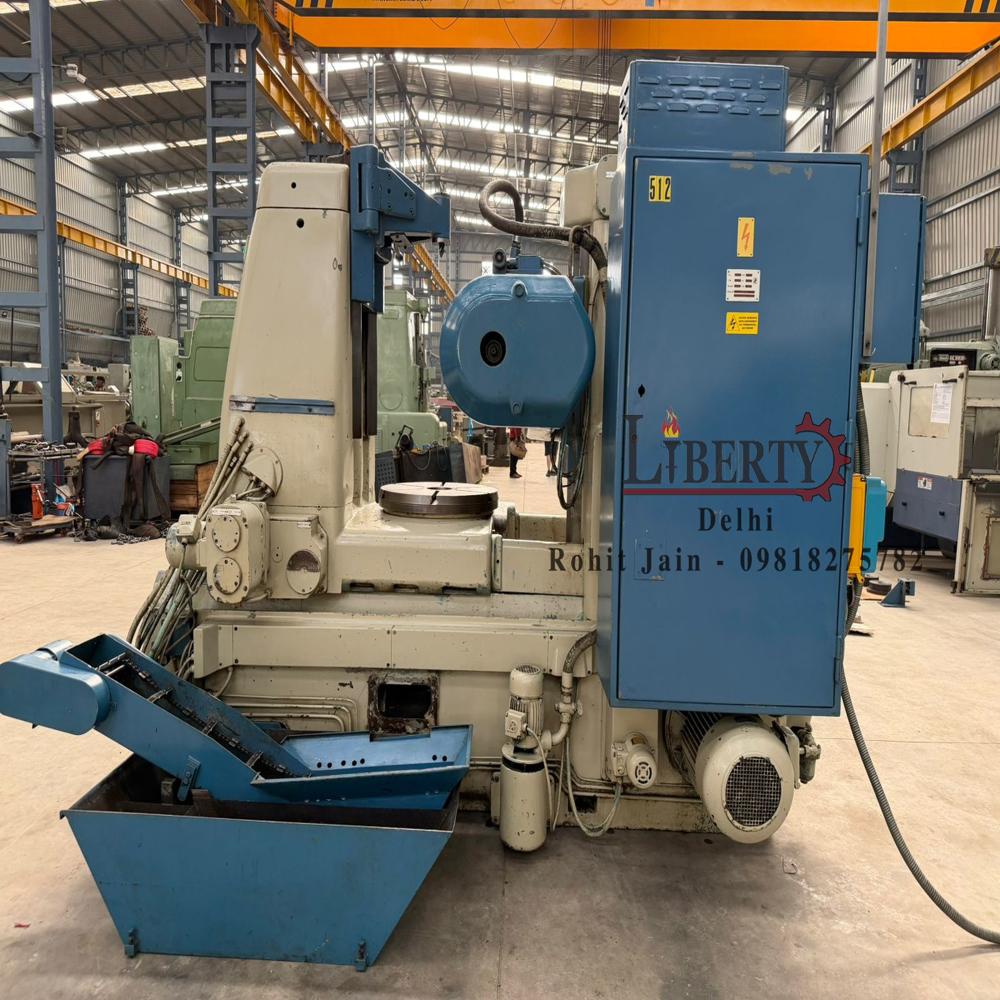

Pfauter P630 High-Production Gear Hobbing Machine

Name: Pfauter P630 High-Production Gear Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pfauter P630 High-Production Gear Hobbing Machine Specification

Machine Type
High-Production Hydraulic Gear Hobbing Machine made by Pfauter (Germany), Model P630, available in excellent working condition. The machine has a Maximum Module Capacity of 10 Modules and can accommodate Gear Diameters up to 630 mm. It is an original Double-Cut Cycle type Gear Hobbing Machine in which the Hob Rotation Speeds and Feed Rates can be independently set differently for the 1st Cut and 2nd Cut, making it suitable for efficient and high-production gear cutting operations. The machine is complete with Change Gears, Arbours, Mandrel, Chip Conveyor, Covers, Splash Guards, Coolant Tank, Coolant Pump, Operating Manual & Electrical Drawings. The technical details are as follows -

About Pfauter P630 High-Production Gear Hobbing Machine

Make - Pfauter (Germany)

Model - P630

Max. Module Capacity - 10 Modules

Max. Gear Diameter - 630 mm

Max. Vertical Travel of Hob Slide - 425 mm

Table Diameter - 550 mm

Max. Hob Cutter Size - 192 mm Diameter 215 mm Length

Max. Hob Shifting - 200 mm

Table Bore Diameter - 125 mm

Max. Height between Table Top & Center - 750 mm

Machine Weight - 9.10 Tons (Approximately)

- Original Double-Cut Cycle Machine in which Hob Rotation Speeds & Feed Rates can be independently set for the 1st & 2nd Cut.

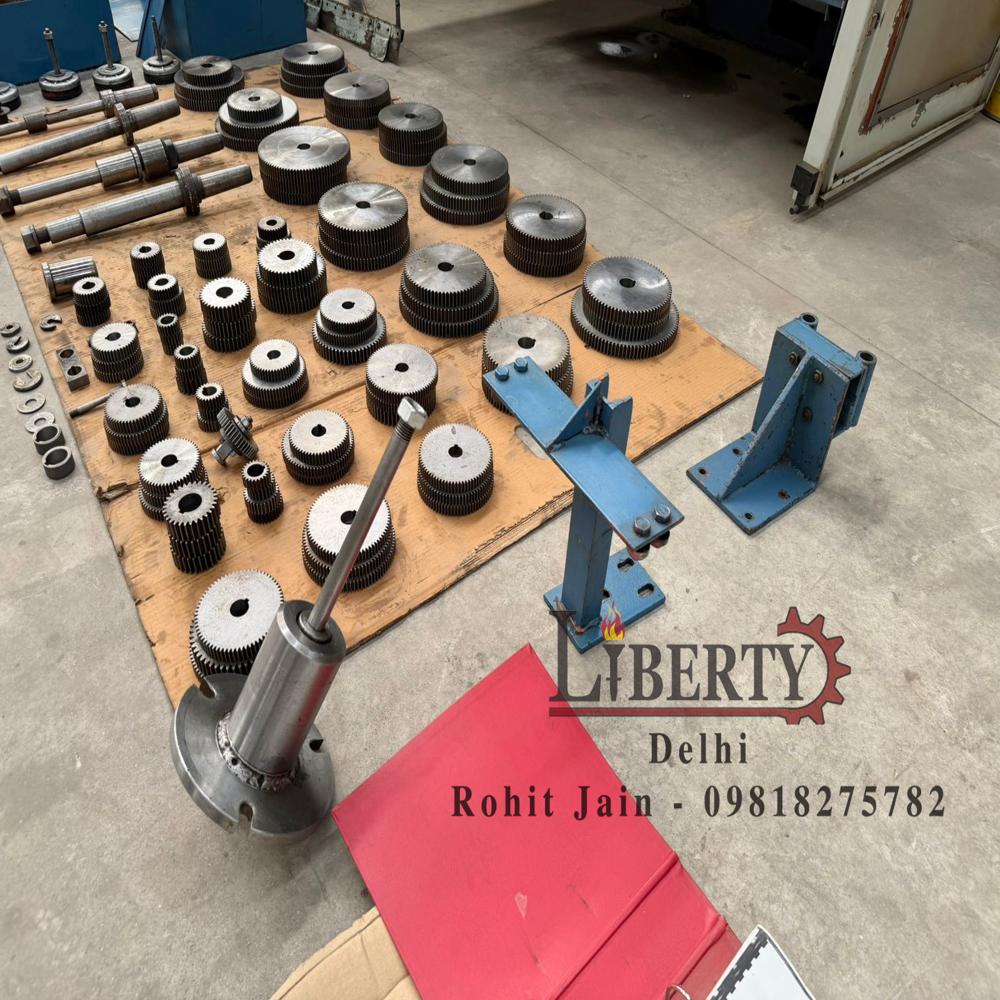

- Complete with Change Gears, Arbours, Mandrels, Chip Conveyor, Coolant Tank & Pump.

- Complete with Covers, Splash Guards & other accessories.

- Operating Manual & Electrical Drawings are available.

- Machine is in Excellent Working Condition.

Video of the Machine -

https://youtu.be/5L02gd35jME

Engineered for High-Volume Precision

Designed to meet the demands of modern gear manufacturing, the Pfauter P630 offers robust construction, advanced hydraulic controls, and a double-cut cycle for high-production environments. Its versatility makes it suitable for both small batch runs and large-scale production lines.

Unmatched Flexibility in Gear Cutting

Thanks to independently adjustable speeds and feeds for each cutting process, users achieve exceptional accuracy and efficiency. The comprehensive accessory package-including change gears, coolant management, and safety guards-ensures smooth, safe operation from day one.

FAQ's of Pfauter P630 High-Production Gear Hobbing Machine:

Q: How does the double-cut cycle enhance the gear hobbing process on the Pfauter P630?

A: The double-cut cycle allows for independent setting of hob rotation speeds and feed rates for both the first and second cuts. This feature improves material removal rates, accuracy, and surface finish, contributing to higher productivity and consistent gear quality.

Q: What accessories are provided with the Pfauter P630 Gear Hobbing Machine?

A: The machine comes complete with essential accessories such as change gears, arbors, mandrel, chip conveyor, covers, splash guards, a coolant tank and pump, as well as an operating manual and electrical drawings for convenient setup and maintenance.

Q: Where can the Pfauter P630 be installed for best performance?

A: The machine is designed for manufacturing facilities involved in gear production. It excels in environments prioritizing high output and precision, such as automotive, heavy equipment, and machinery manufacturing plants.

Q: What is the process of setting different speeds for the first and second cuts?

A: Operators can independently program the hob rotation speed and feed rate for each cut cycle using the machine's controls. This customization optimizes the cutting action and enhances the gear's overall accuracy and finish.

Q: When is it beneficial to use the independent cut settings available on this machine?

A: Independent cut settings are especially useful when a job requires different levels of precision or material removal in each pass, allowing users to tailor the process for complex or high-tolerance gears, reducing production time and improving final quality.

Q: How does the chip conveyor benefit the gear hobbing operation?

A: The integrated chip conveyor efficiently removes metal shavings from the work area, ensuring cleaner operations, reducing downtime, and maintaining optimal working conditions for both the machine and the operator.
