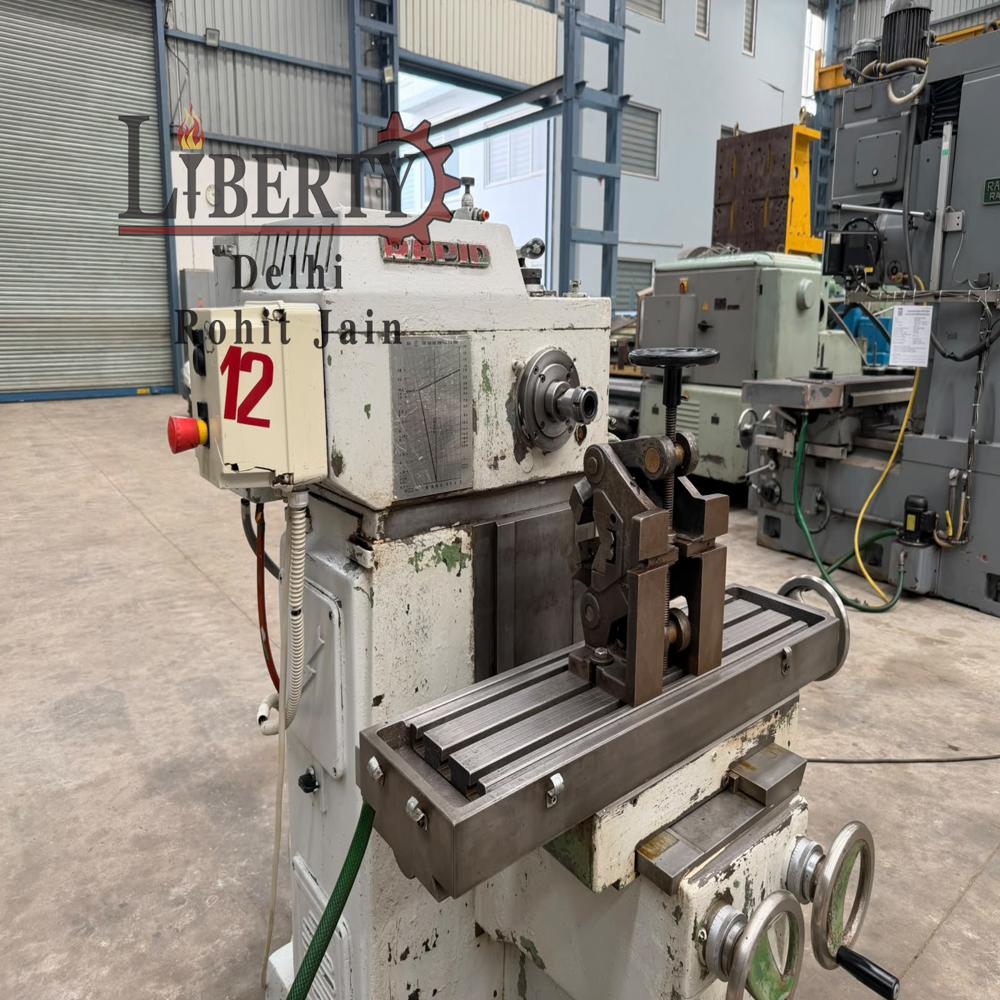

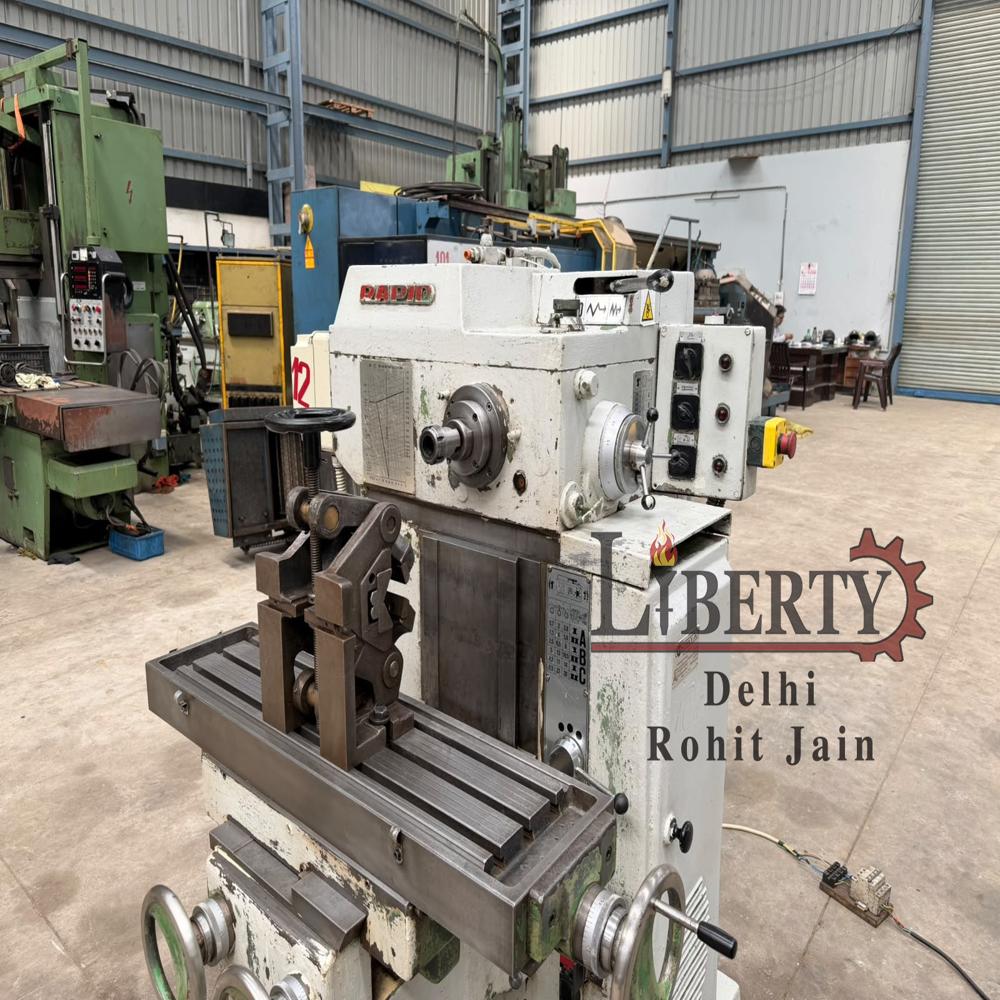

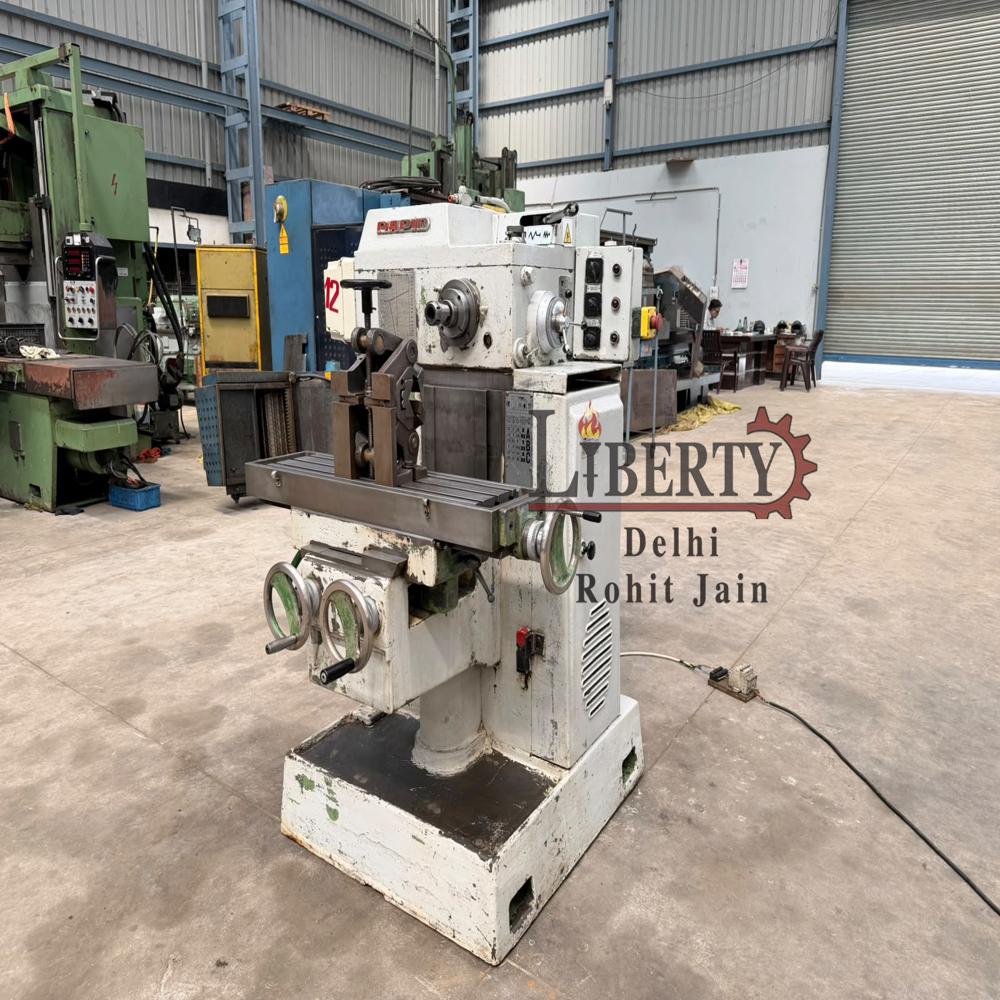

Rapid Italy 200NK Automatic Slot and Keyway Milling Machine

Name: Rapid Italy 200NK Automatic Slot and Keyway Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rapid Italy 200NK Automatic Slot and Keyway Milling Machine Specification

General Use
Automatic Horizontal Slot Milling Machine manufactured by Rapid (Italy), Model 200NK, available in excellent working condition. It is a High-Production Auto-Cycle machine designed for automatic horizontal milling of keyways, slots, notches, grooves, and similar profiles. The machine features Automatic Depth Increase, ensuring efficient, accurate, and repeatable machining operations. It has a Maximum Slot Width of 25 mm and a Maximum Slot Length of 200 mm + Tool Diameter. The technical details are as follows -

About Rapid Italy 200NK Automatic Slot and Keyway Milling Machine

Make Rapid (Italy)

Model 200NK

Max. Slot Width 25 mm

Max. Slot Length 200 mm + Tool Diameter

Max. Slot Depth 50 mm

Max. Slot Length using Table Travel 600 mm

Table Size 850 mm x 220 mm

XYZ Table Travels 400 mm x 200 mm x 300 mm

Spindle Speed Range 250 RPM to 2000 RPM

Quill Diameter 100 mm

Automatic Depth Feed Rate 0.05 mm/stroke to 0.7 mm/stroke

Milling Head Stroke Rate 0.7 to 28 strokes/min

- High-Production Auto-Cycle Operation with Automatic Depth Increase.

- Suitable for Milling Keyways, Slots, Notches, Grooves, and similar profiles.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/YTk6UCLmGbU

Automated Precision for Keyway and Slot Milling

The Rapid 200NK brings seamless automation to horizontal slotting and keyway machining. Its high-production auto-cycle system allows for continuous operation, boosting output and reducing manual intervention. Built for accuracy and durability, this machine is well-suited for both batch and high-volume manufacturing environments, delivering consistent results every time.

Versatile and Consistent Machining Results

Capable of handling a variety of profiles, the 200NK excels at milling keyways, notches, grooves, and similar features. Its automatic depth increase guarantees repeatable machining, minimizing errors and maximizing uniformity. With robust build quality and premium Italian engineering, users benefit from efficient operation and long-lasting performance.

FAQ's of Rapid Italy 200NK Automatic Slot and Keyway Milling Machine:

Q: How does the Rapid 200NK ensure precise slot and keyway milling?

A: The Rapid 200NK features an automatic depth increase function, which delivers accurate, repeatable cutting depths on every cycle. This eliminates manual adjustments and greatly enhances consistency during high-production runs.

Q: What types of machining operations can this machine perform?

A: This model is designed for automatic horizontal milling of keyways, slots, notches, grooves, and similar profiles. Its versatile capabilities make it suitable for a wide range of industrial machining requirements.

Q: When is the Rapid 200NK most beneficial in a production process?

A: The machine is ideal for environments where high-volume, repeatable, and precise slotting or keyway operations are essential. It is especially beneficial in scenarios where minimizing setup and cycle times is crucial.

Q: Where can the Rapid 200NK be installed and used?

A: The Rapid 200NK is suited for installation in manufacturing plants, machining workshops, and other industrial settings. Its robust construction and automatic features make it adaptable for various-sized facilities.

Q: What is the process for operating the Rapid 200NK machine?

A: Operation involves setting up the workpiece, calibrating for the required slot dimensions, and starting the automatic cycle. The machine manages the horizontal milling operation, depth increments, and cycle repetition with minimal need for manual adjustments.

Q: What benefits does the automatic cycle feature provide?

A: The high-production auto-cycle feature reduces operator intervention, decreases production time, and ensures uniform quality in each machined piece, thus improving overall productivity and efficiency.
