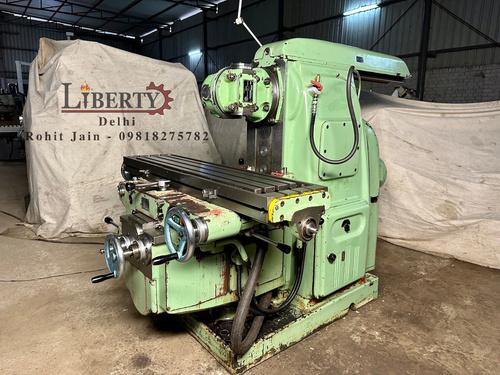

WMW Heckert Vertical and Horizontal Milling Machine

Price 75000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW Heckert Vertical and Horizontal Milling Machine Specification

Model
WMW Heckert

Rotation
Spindle rotation reversible

Product Type
Universal Milling Machine

General Use
Industrial metalworking and precision machining

Material
Cast Iron and Steel

Type
Vertical & Horizontal

Capacity
Heavy Duty / High Load

Weight (kg)
3500 kg approx.

Computerized
No

Automatic
No

CNC Or Not
Not CNC; Manual Operation

Control System
Manual

Table Size
1350 mm x 320 mm

Table Slide Way
Box type

Floor Space
2800 mm x 2100 mm approx.

Spindle Speed
40 - 1800 rpm (variable)

Power
7.5 kW

Voltage
380/415 V

Dimension (L*W*H)
2800 mm x 2100 mm x 1850 mm

Feature
Universal function, gear-driven, rigid construction

Color
Factory Standard / Green

Coolant System
Included

Feed Range (Longitudinal/Cross/Vertical)
Manual/Power

Table Travel (Vertical)
430 mm

Number of T-slots
3

Table Travel (Cross)
325 mm

Milling Head
Swiveling (universal)

Lubrication
Centralized system

Spindle Motor
7.5 kW

Max Distance Spindle to Table
450 mm

T-slot Size
18 mm

Max Workpiece Height
450 mm

Working Speed
Manual feed and rapid traverse

Max Workpiece Width
350 mm

Table Travel (Longitudinal)
950 mm

Spindle Taper
ISO 50

WMW Heckert Vertical and Horizontal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About WMW Heckert Vertical and Horizontal Milling Machine

Make - WMW-Heckert (Germany)

Model - FQ 400

Table Size - 1800 mm x 480 mm

XYZ Travel - 1400 mm x 480 mm x 525 mm

Spindle Taper - ISO 50

Spindle Speeds - 35.5 rpm to 1800 rpm

Feed Rates of Travel - 16 mm/min to 800 mm/min

- Double Swivel type Vertical Milling Head (2 different spindles).

- Vertical Milling Head can be removed to do Horizontal Milling.

- It is a Heavy Duty type Horizontal & Vertical Milling Machine.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/sLnKtx2jmfc

Precision Machining for Heavy-Duty Applications

Designed for demanding industrial settings, the WMW Heckert milling machine offers a large, stable table and robust spindle motor. Its universal swiveling head allows for both vertical and horizontal operations, enabling users to tackle diverse metal projects and achieve precise results with every use.

Durability Meets Versatility

Constructed from high-grade cast iron and steel, this machine guarantees a long service life and reliability. Its gear-driven system, adjustable spindle speed, and reversible spindle rotation provide flexibility in machining processes. Operators benefit from centralized lubrication and efficient coolant management, resulting in smoother operations and prolonged machine efficiency.

FAQs of WMW Heckert Vertical and Horizontal Milling Machine:

Q: How does the swiveling universal milling head enhance machining versatility?

A: The swiveling universal head allows operators to change the milling orientation between vertical and horizontal, making the WMW Heckert suitable for a variety of applications and complex machining angles, improving overall machining flexibility.

Q: What types of materials and workpieces can be machined with this model?

A: The WMW Heckert is designed to machine a wide range of metals, including steel and cast iron, and can accommodate workpieces up to 450 mm in height and 350 mm in width. It excels in heavy-duty and high-load industrial metalworking tasks.

Q: Where is this milling machine manufactured and who typically uses it?

A: This milling machine is manufactured in Germany and is utilized by industrial manufacturers, exporters, importers, suppliers, and traders involved in precision metalworking and fabrication industries.

Q: What are the main benefits of the machines gear-driven and rigid box-type slideway design?

A: The gear-driven mechanism and sturdy box-type slideways ensure stable, vibration-free movement and high repeatability, which are essential for achieving precision in heavy-duty machining operations.

Q: How is the lubrication and cooling system arranged in this machine?

A: The WMW Heckert milling machine features a centralized lubrication system for key moving parts and an integrated coolant system, both of which help maintain optimal machine performance and thermal control during intensive machining processes.

Q: What is the process for adjusting spindle speed and feed rate on this machine?

A: Spindle speed is adjustable within a range of 40 to 1800 rpm via manual controls, while feed rates for longitudinal, cross, and vertical movements can be selected either manually or by engaging the power feed mechanism, offering users flexibility for precise material removal.
