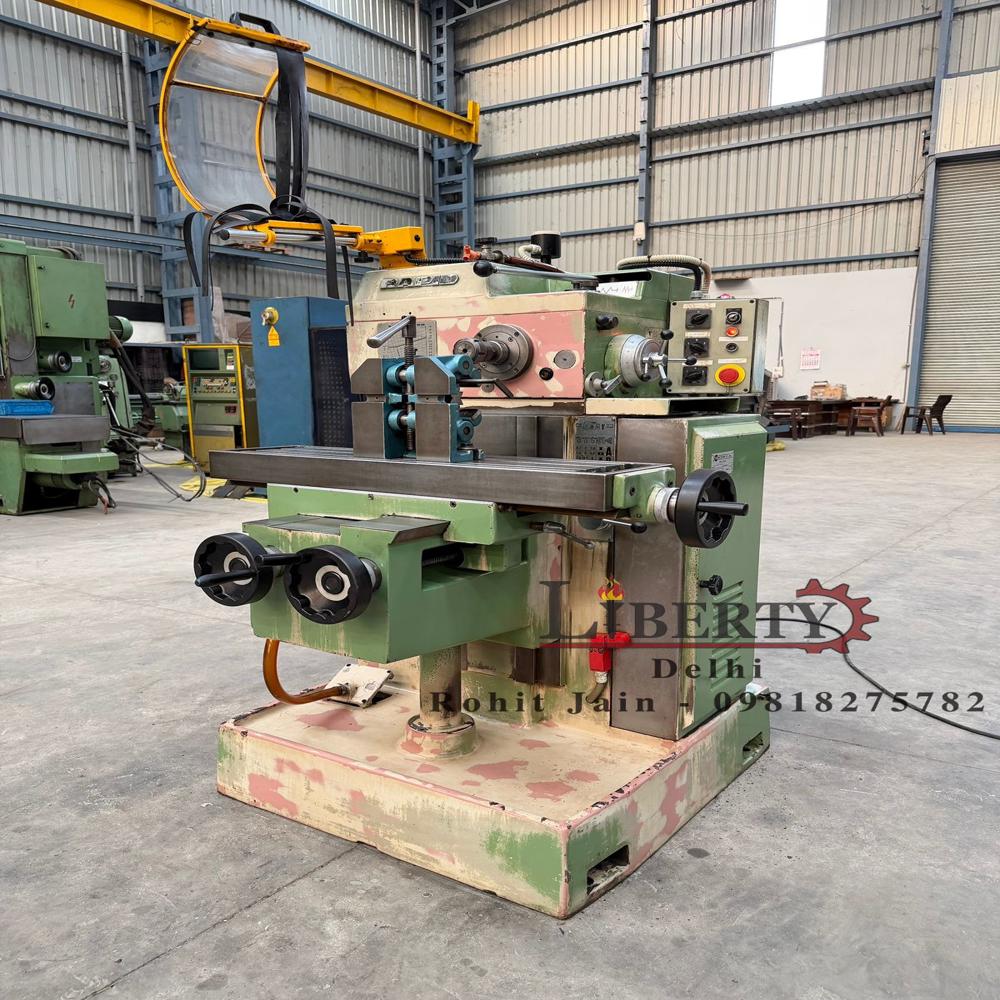

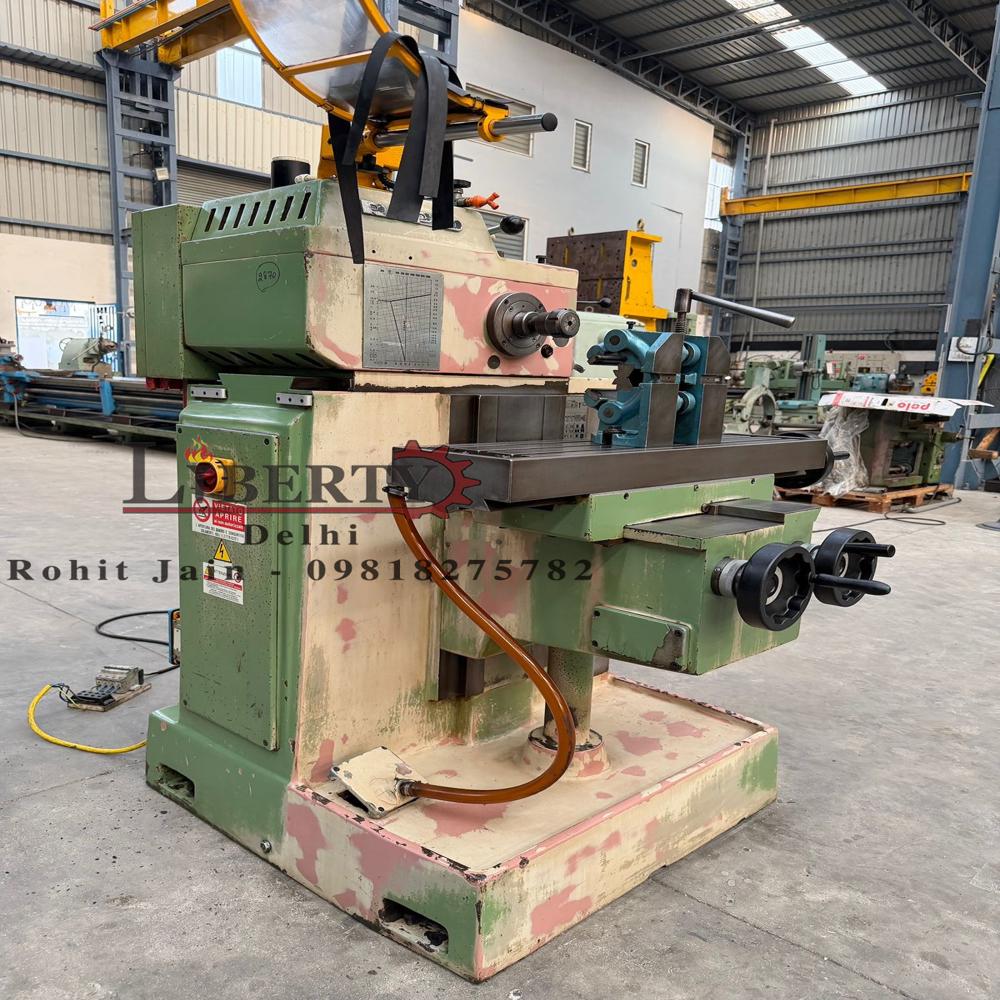

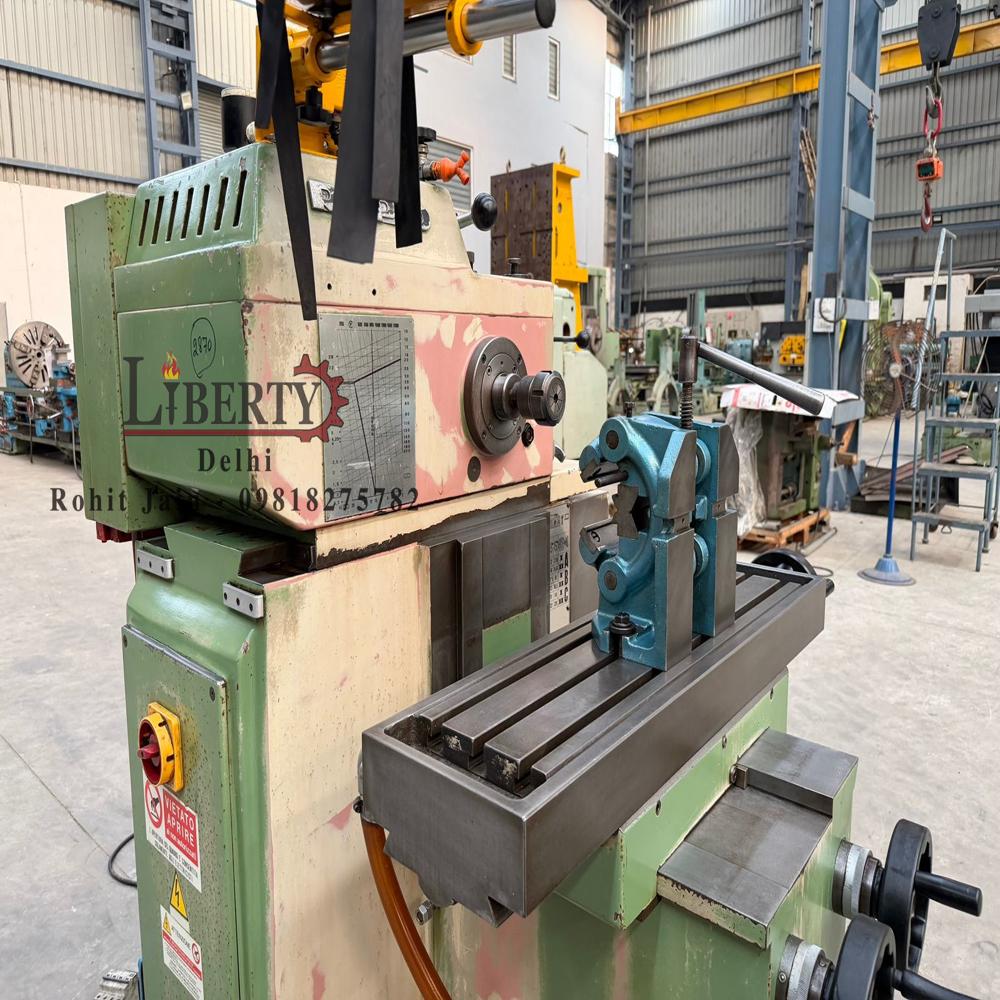

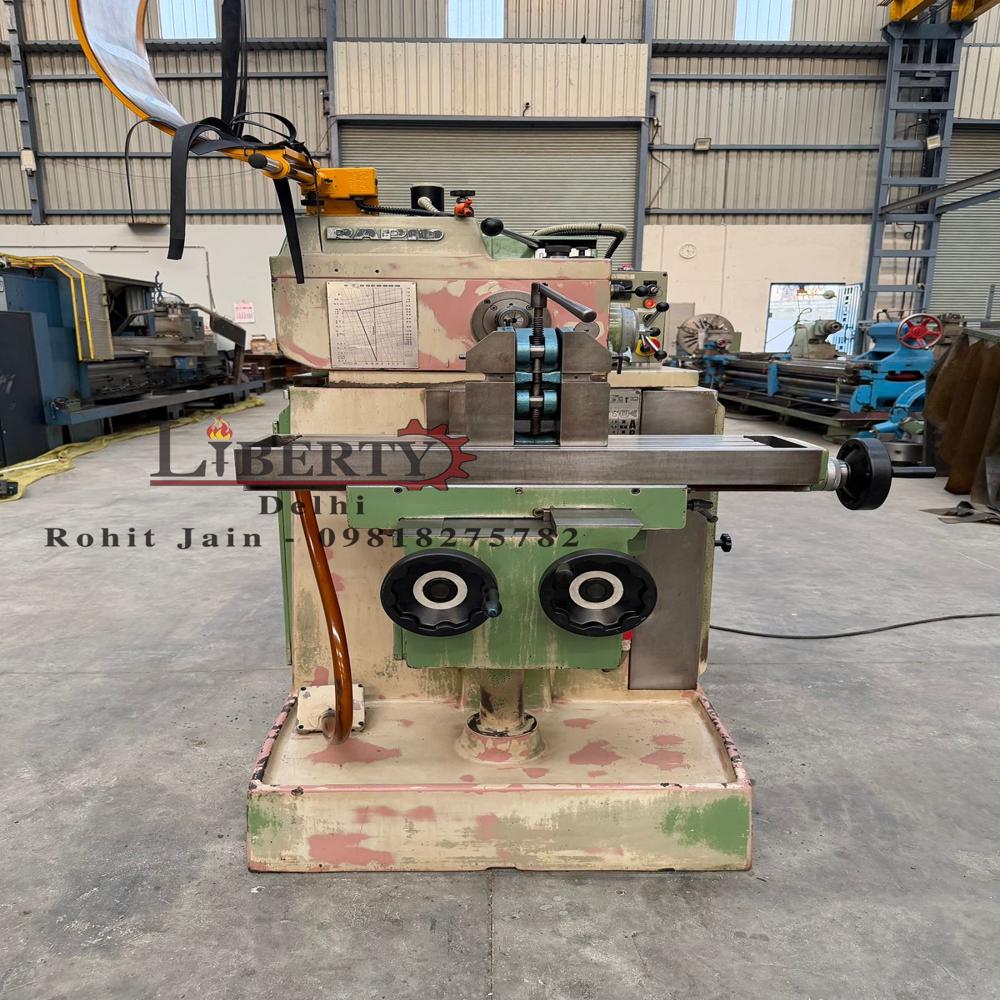

Rapid Italy 200NK Horizontal Slot Milling Machine

Get a Price/Quote

MOQ : 1 Piece

Rapid Italy 200NK Horizontal Slot Milling Machine Specification

General Use
Rapid (Italy) make Automatic Horizontal Slot Milling Machine, Model 200NK, available in excellent working condition. This is an Auto-Cycle machine suitable for automatic horizontal milling of keyways, slots, notches, grooves, and similar profiles, featuring automatic depth increase for efficient and repeatable machining operations. The technical details are as follows -

About Rapid Italy 200NK Horizontal Slot Milling Machine

Make - Rapid (Italy)

Model - 200NK

Max. Slot Width - 25 mm

Max. Slot Length - 200 mm + Tool Diameter

Max. Slot Depth - 50 mm

Max. Slot Length using Table Travel - 600 mm

Table Size - 850 mm 220 mm

XYZ Travel of Table - 400 mm 200 mm 300 mm

Spindle Speed Range - 250 RPM to 2000 RPM

Quill Diameter - 100 mm

Automatic Depth Feed Rate - 0.05 mm/stroke to 0.7 mm/stroke

Milling Head Travel Rate - 0.7 strokes/min to 28 strokes/min

- Auto-Cycle Working with Automatic Depth Increase.

- Suitable for Milling Keyways, Slots, Notches, Grooves, etc.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/fz_iKrENMzk

Automated Efficiency for Repetitive Milling Tasks

The Rapid 200NK's automatic cycling and depth adjustment minimizes manual intervention, significantly increasing productivity, especially in environments requiring frequent and repeatable slot or groove milling. Its design focuses on both operator convenience and consistent output.

Versatility in Profile Machining

Engineered to handle a variety of profiles, including keyways, slots, notches, and grooves, this machine suits the diverse needs of modern manufacturing. Its adaptability enables operators to tackle a wide range of components and projects with reliable precision.

FAQ's of Rapid Italy 200NK Horizontal Slot Milling Machine:

Q: How does the automatic cycle feature work on the Rapid 200NK Horizontal Slot Milling Machine?

A: The automatic cycle function enables the machine to perform milling operations continuously without manual reset. By automating the cut process and depth increments, it enhances efficiency and operator productivity for high-volume or repetitive jobs.

Q: What profiles can be machined with the Rapid 200NK?

A: The 200NK is suitable for a range of profiles, such as keyways, slots, notches, grooves, and similar features, making it a versatile choice for various manufacturing and fabrication needs.

Q: When is it most beneficial to use the 200NK Slot Milling Machine?

A: The Rapid 200NK is ideal when precise, repeatable horizontal slot milling is required, particularly for production runs that need automated operations for consistent results and reduced cycle times.

Q: Where can this machine be effectively utilized?

A: It is suitable for use in machine shops, manufacturing facilities, and fabrication plants by exporters, importers, manufacturers, suppliers, and traders seeking robust and reliable slot milling solutions.

Q: What is the process for setting up a job on the 200NK?

A: Operators secure the workpiece, select the appropriate cutting tool, and configure the machine's automatic cycle and depth settings. The auto-cycle then manages the repetitive milling operation according to the set specifications.

Q: What are the main benefits of using the Rapid 200NK Horizontal Slot Milling Machine?

A: Key benefits include automated cycles for increased productivity, consistent and accurate machining due to automatic depth adjustment, and the ability to handle various profile shapes efficiently.
