Ribon Italy RUR-1500 Universal Cylindrical Grinding Machine

Send Inquiry

Request To Call Back

Ribon Italy RUR-1500 Universal Cylindrical Grinding Machine

Name: Ribon Italy RUR-1500 Universal Cylindrical Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Ribon Italy RUR-1500 Universal Cylindrical Grinding Machine Specification

Product Type

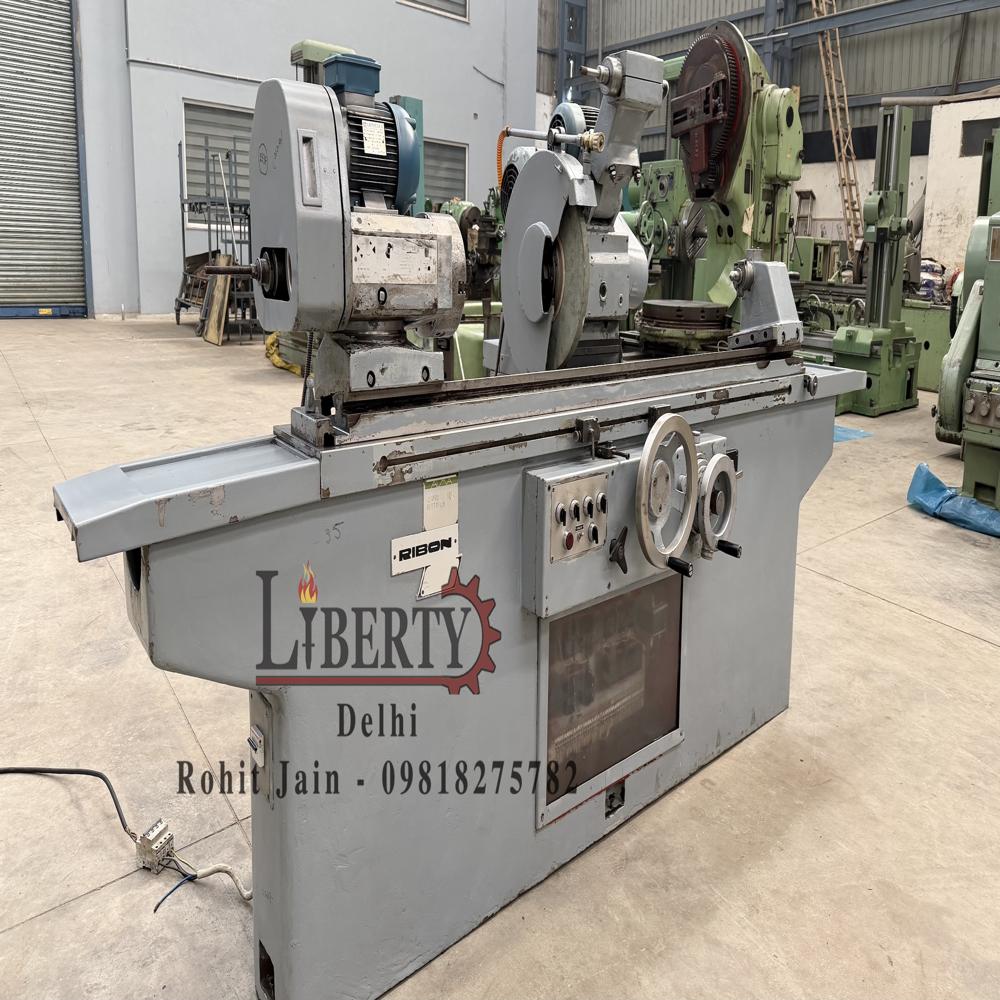

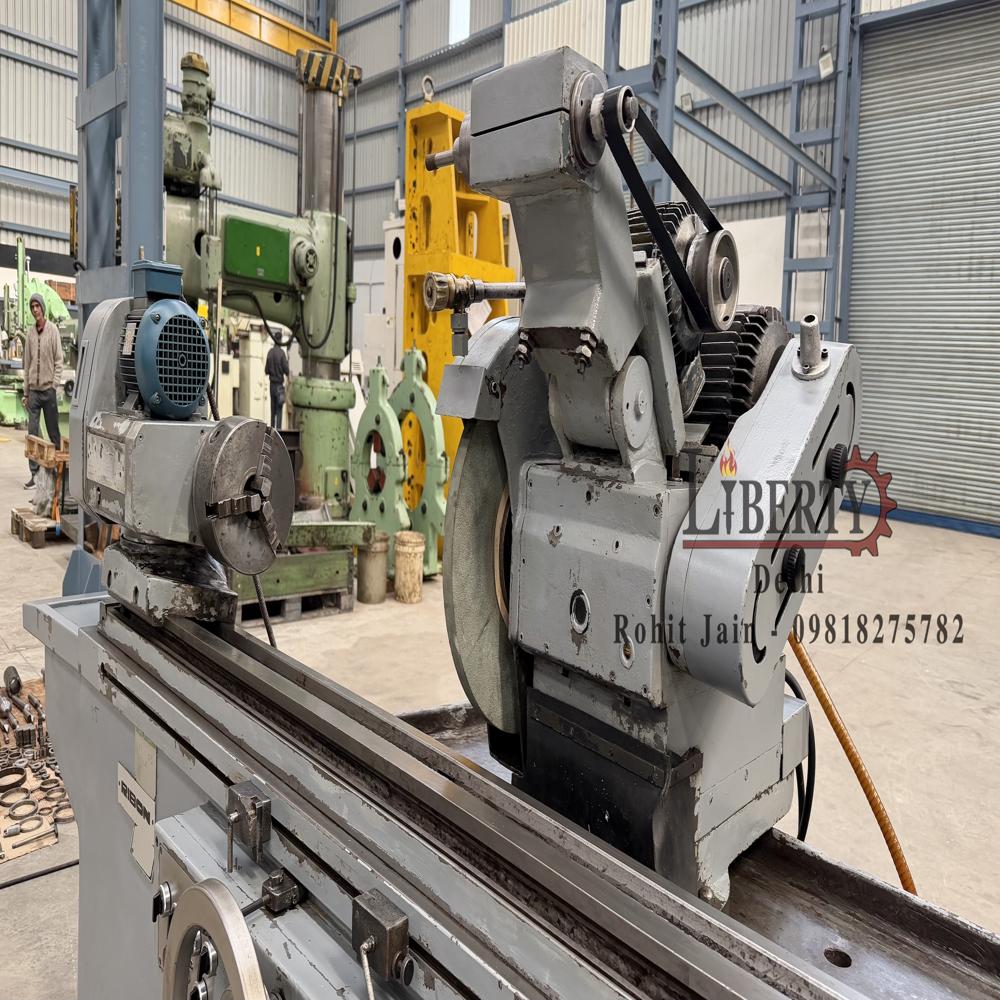

Ribon (Italy) make Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is RUR-1500 and the Max. Length of Job is 1500 mm. The machine is equipped with its Internal Grinding Attachment and is complete with many accessories. It is a Semi-Hydraulic type machine having Motorised Table Travels and Hydraulic Rapid Wheel-Head Travels. The Least Count of the machine is 2 Microns (0.002 mm). The technical details are as follows -

General Use
Precision external and internal cylindrical grinding operations for industrial applications

Material
Heavy-duty cast iron and steel

Type
Semi-Hydraulic Universal Cylindrical Grinding Machine

Capacity
Maximum job length 1500 mm

Weight (kg)
Approximately 4000 kg

Computerized
No

Automatic
Semi-automatic

Control System
Manual with semi-hydraulic and motorized table travels

Drive Type
Belt driven, hydraulic assistance for rapid wheel-head

Grinding Diameter
370 mm (max external diameter) / 200 mm (max internal diameter)

Grinding Length
1500 mm

Spindle Speed
30-3000 RPM (variable)

Grinding Wheel Size
400 mm (diameter) x 50 mm (width) x 203 mm (bore)

Voltage
380 V / 415 V, 3 Phase, 50Hz

Dimension (L*W*H)
3800 mm x 1800 mm x 1600 mm

Feature
Comes with internal grinding attachment, motorized table travel, hydraulic rapid wheel-head travel, high precision least count of 0.002 mm, and a range of accessories

Color
Industrial green

Wheel-head Traverse (Cross Travel)
260 mm

Hydraulic System
For rapid traverse of wheel-head

Least Count
2 Microns (0.002 mm)

Model
RUR-1500

Table Swivel (Max)
+/- 9°

Table Travel (Longitudinal)
1600 mm

Condition
Excellent working condition, pre-owned

Chuck Size
Standard fitting as per job requirement

Make
Ribon

Accessories
Supplied with multiple standard and special accessories

Internal Grinding Attachment
Yes, included

Table Speed
Variable, motorized

Motor Power
Main drive 5.5 kW, Hydraulic 1.1 kW

Tailstock Quill Travel
50 mm

About Ribon Italy RUR-1500 Universal Cylindrical Grinding Machine

Make - Ribon (Italy)

Model - RUR 1500

Center Height - 180 mm

Max. Length of Job - 1500 mm

Max. Diameter of Job - 360 mm

Grinding Wheel Size - Diameter 400 mm x 40 mm Width

Least Count of Wheel-Head - 2 Microns (0.002 mm)

Work-Head Speeds - 35 rpm to 310 rpm

Table Swivel Angle - +4 degree to -4 degree

Type - Motorised Table Travels ; Hydraulic Wheel Head Travels.

- Equipped with Internal Grinding Attachment.

- Feature of Rapid & Automatic Feed Travels on the Wheel-Head.

- With lots of spare Centers, many Job Carriers and other accessories.

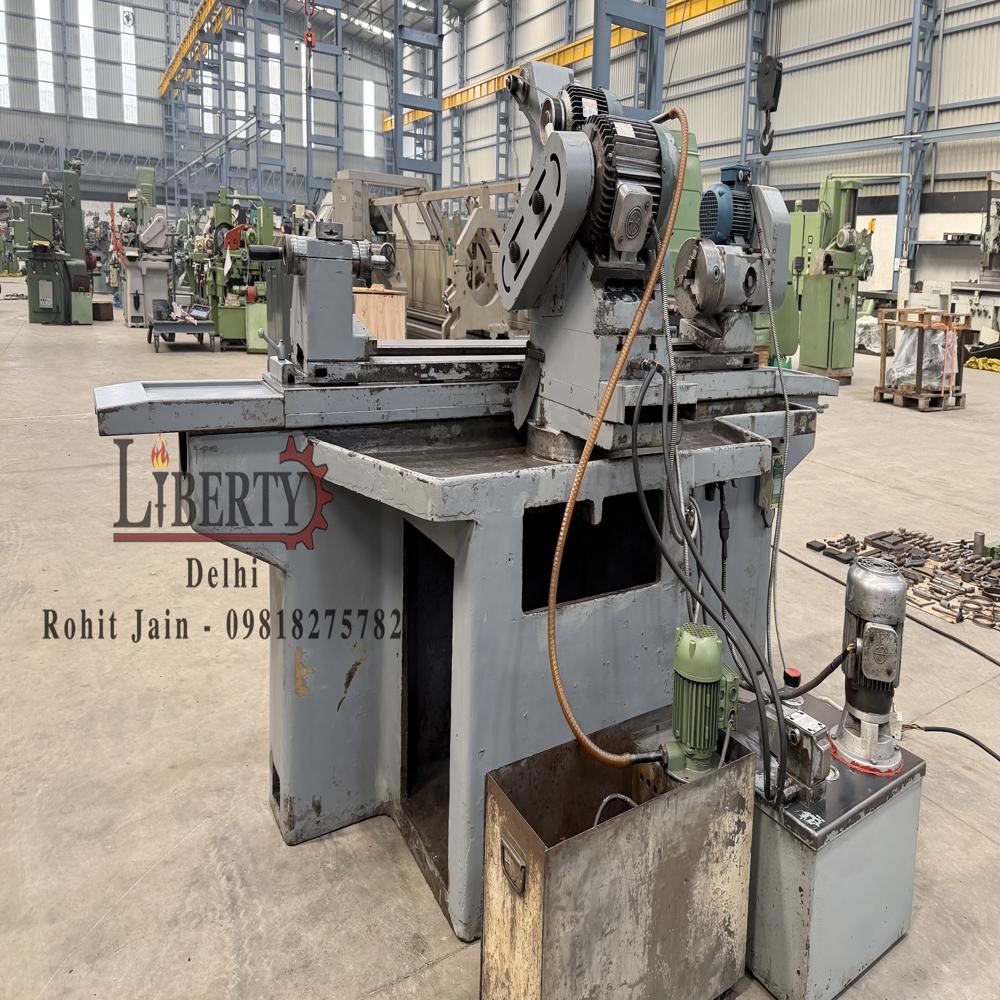

- Complete with Coolant Tank and Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Nu8OIQmGuoo

Precision Grinding for Industrial Excellence

The Ribon RUR-1500 is engineered for top-tier precision in both external and internal cylindrical grinding. Its heavy-duty build, high least count, and flexible setup make it ideal for demanding applications across various industrial sectors. The availability of rapid hydraulic movement and variable speeds enables unparalleled efficiency and accuracy for users.

Comprehensive Features and Accessories

Supplied with multiple standard and special accessories, the RUR-1500 can be customized for virtually any cylindrical grinding scenario. With an internal grinding attachment, motorized table travel, and hydraulic wheel-head traverse, this machine is suited for both standard and unique grinding requirements while supporting a wide variety of components.

User-Friendly and Reliable Operation

Operators appreciate the RUR-1500's semi-automatic controls and robust manual interface. Its semi-hydraulic mechanisms and precise adjustments reduce manual effort, while the sturdy cast iron construction ensures longevity and smooth performance, even under heavy and continuous workloads.

FAQ's of Ribon Italy RUR-1500 Universal Cylindrical Grinding Machine:

Q: How does the RUR-1500 Universal Cylindrical Grinding Machine enhance machining precision?

A: This machine achieves high-precision grinding with a least count of 2 microns (0.002 mm) and stable construction. Its hydraulic system and variable speeds also allow for fine adjustments, ensuring consistently accurate results across various materials.

Q: What types of grinding applications is the Ribon RUR-1500 suitable for?

A: The RUR-1500 is designed for both external and internal cylindrical grinding, supporting industrial production needs. Its internal grinding attachment and wide range of accessories enable handling complex profiles and diverse job requirements.

Q: When should I use the internal grinding attachment supplied with the machine?

A: Use the internal grinding attachment when you need to grind internal diameters or bores of components. The attachment is included to expand the machine's versatility, making it suitable for precision work inside cylinders or hollow parts.

Q: Where can the RUR-1500 be installed and operated?

A: This machine is intended for use in industrial workshops, manufacturing plants, or toolrooms with access to a 380/415V, 3-phase, 50Hz power supply. Its robust build allows it to handle demanding environments reliably.

Q: What is the process for changing grinding wheels or accessories?

A: Grinding wheels and accessories can be changed using standard mechanical methods. Always consult the user manual for safe wheel replacement and accessory installation, and ensure the machine is powered off during the procedure.

Q: How does the semi-hydraulic system benefit grinding operations?

A: The semi-hydraulic system enables rapid wheel-head traverse and easier table movement, significantly reducing manual effort during adjustments and allowing quicker setup and cycle times for repetitive tasks.

Q: What are the main benefits of choosing a pre-owned Ribon RUR-1500 in excellent working condition?

A: Opting for this well-maintained, pre-owned unit combines cost savings with proven reliability. Its excellent operational status and included accessories provide immediate value and flexible capability right out of the box.
