Rigiva Italy RS-100 Universal Toolroom Milling Machine

Name: Rigiva Italy RS-100 Universal Toolroom Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rigiva Italy RS-100 Universal Toolroom Milling Machine Specification

General Use

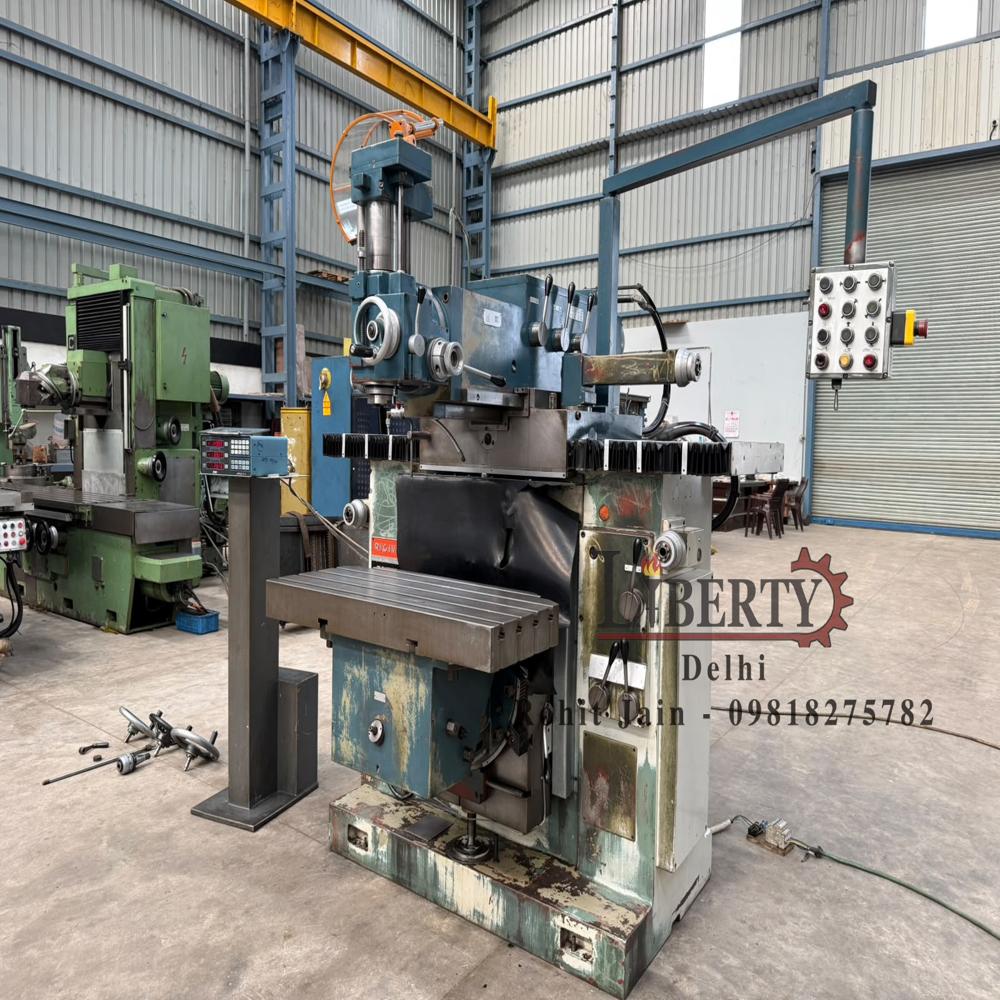

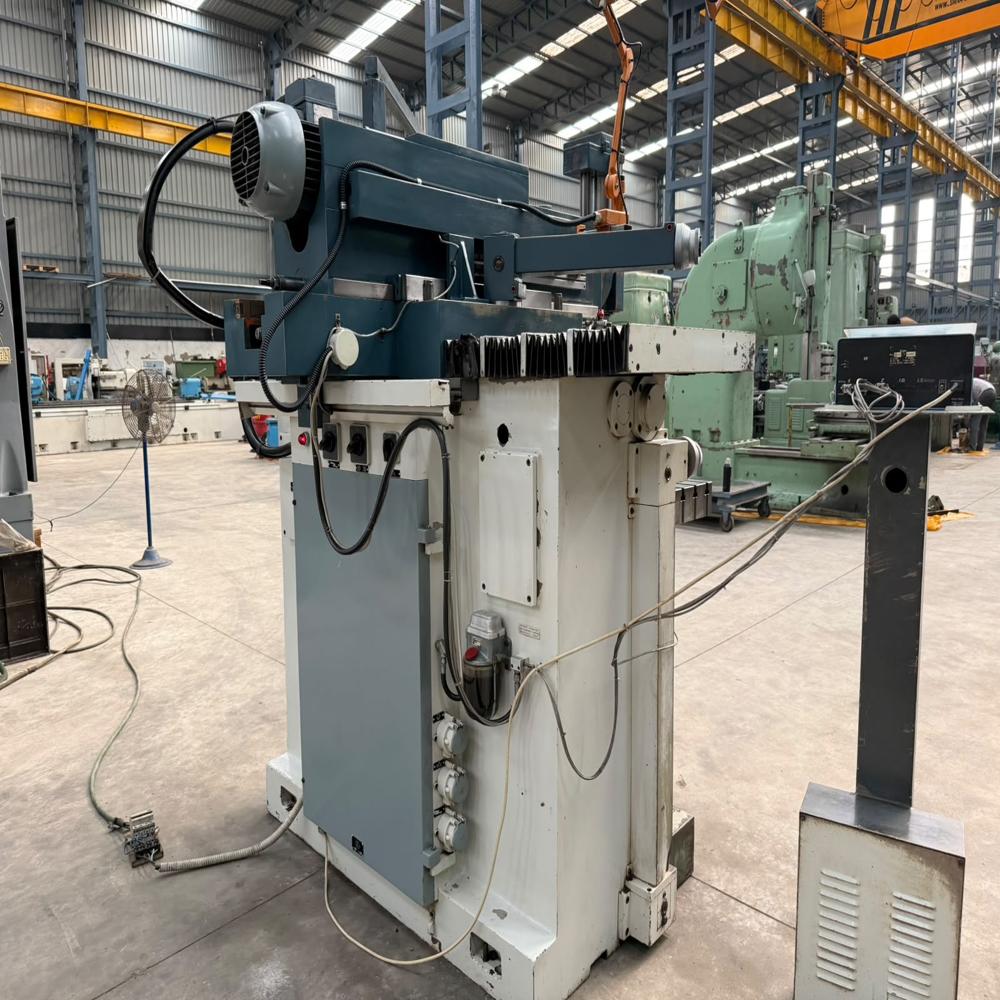

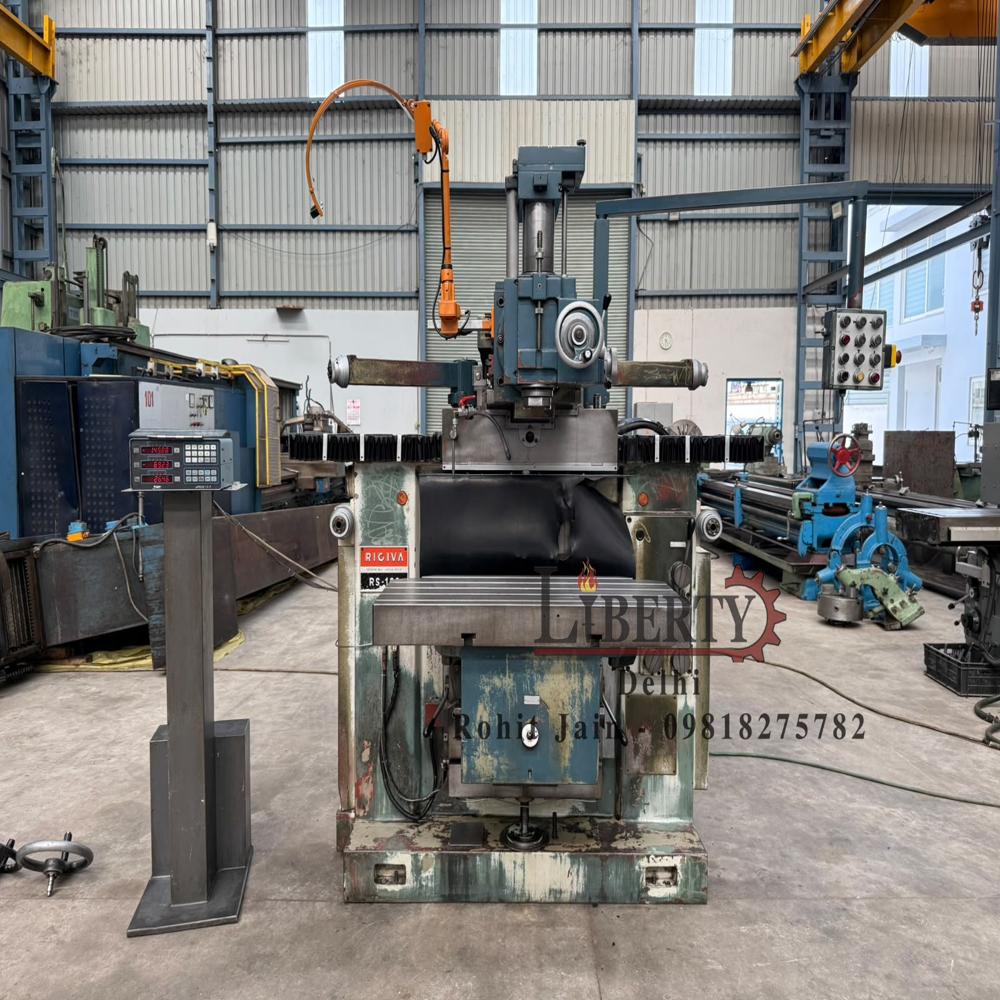

Universal Toolroom & Diesinking Milling Machine made by Rigiva (Italy), Model RS-100, available in excellent working condition. This is a highly versatile toolroom milling machine suitable for Horizontal Milling, Vertical Milling, Angular Milling, Boring, and Drilling operations. The machine is complete with two Vertical Milling Heads one Heavy-Duty Face Milling Head and one Boring & Drilling Head allowing it to perform a wide range of machining operations. It is also complete with the Horizontal Milling Bracket, Bracket Support, and Arbor. The Universal Table can be rotated, swivelled, and inclined by 30 , enabling complex angular machining and allowing multiple faces of a component to be machined without intermediate resetting. The machine is suited for Toolroom, Diesinking, Die & Mould, Prototype machining, and other similar work. The technical details are as follows -

About Rigiva Italy RS-100 Universal Toolroom Milling Machine

Make - Rigiva (Italy)

Model - RS-100

Table Size - 1000 mm x 450 mm

XYZ Travel - 670 mm x 500 mm x 550 mm

Spindle Speeds - 50 to 1500 RPM

Spindle Taper - ISO-40

Feed Rates of Travel - 10 to 500 mm/min

Vertical Spindle Travel - 150 mm

Vertical Clamping Area - 600 mm x 475 mm

Table Rotating Range - +30 degree to -30 degree

Table Swivel (Left / Right) - +30 degree to -30 degree

Table Inclination (Front / Rear) - +30 degree to -30 degree

Approx. Machine Weight - 3.62 Tons

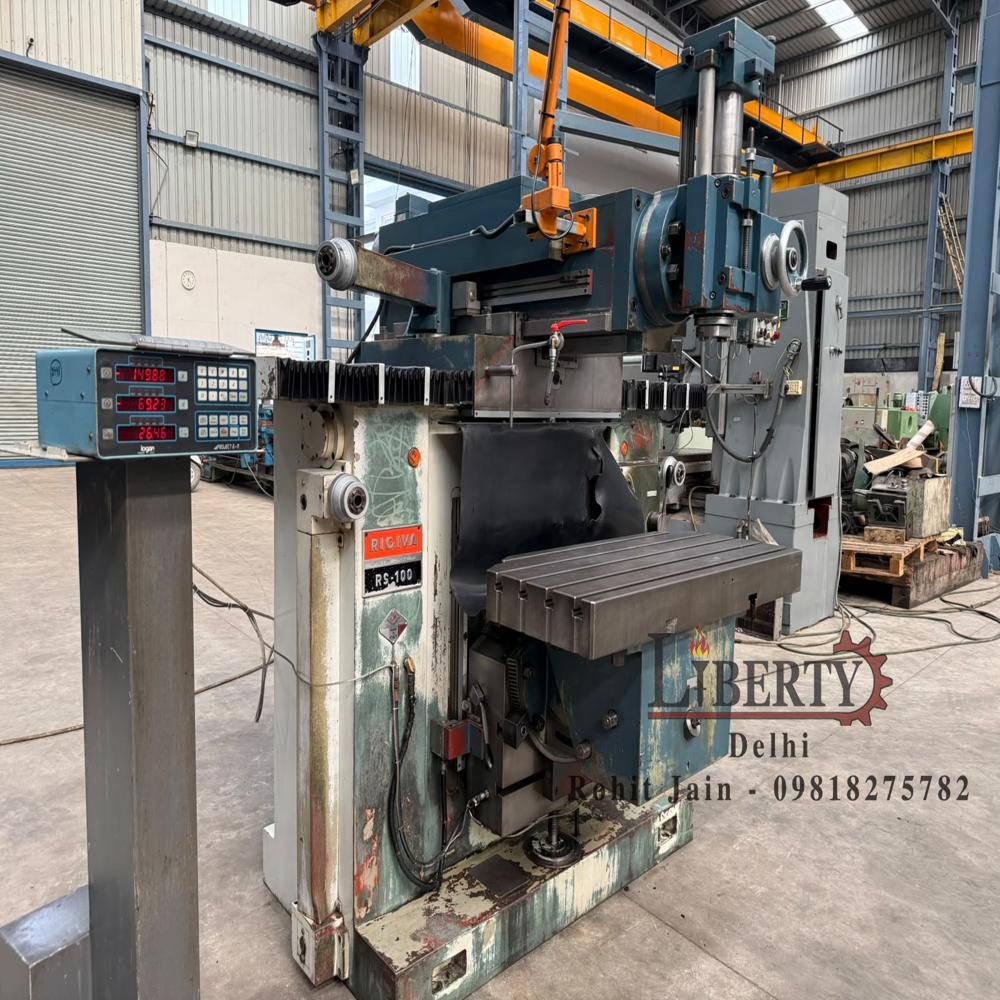

- Equipped with a 3-Axis DRO.

- Complete with Heavy-Duty Vertical Face Milling Head.

- Complete with Vertical Precision Boring & Drilling Head.

- Complete with Horizontal Milling Bracket, Bracket Support, and Arbor.

- Equipped with a Universal Table for complex angular and multi-face machining.

- The Vertical Milling Head can be removed for Horizontal Milling operations.

- Table can be removed for direct clamping of workpieces on the vertical clamping surface.

- Suitable for Toolroom, Diesinking, Die & Mould, Prototype Machining, and other similar work.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/NDtMKohaWVM

Multi-Functional Machining Capability

The RS-100 milling machine is designed for maximum versatility, supporting a wide range of machining operations such as horizontal, vertical, and angular milling, alongside drilling and boring. This multifaceted approach optimizes workflow, enabling users to complete various processes on a single machine setup.

Universal Table for Complex Operations

The universal table of the RS-100 can be rotated, swiveled, and inclined up to 30, allowing precision machining of multiple sides or complex angles without the need to reset components. This feature is invaluable for prototype, diesinking, and mould-making work where accuracy and efficiency are essential.

Comprehensive Accessory Kit Included

Supplied with two specialized vertical heads, a horizontal milling bracket, bracket support, and arbor, the RS-100 arrives ready for a spectrum of machining tasks. The combination of standard and specialized accessories allows users to take on challenging operations from the outset.

FAQ's of Rigiva Italy RS-100 Universal Toolroom Milling Machine:

Q: How does the universal table enhance machining flexibility on the RS-100?

A: The universal table of the Rigiva RS-100 can be rotated, swiveled, and inclined by 30, enabling users to machine multiple faces or complex angles of a component without resetting. This reduces setup time and increases precision for intricate parts.

Q: What types of operations can the RS-100 milling machine perform?

A: The RS-100 is capable of horizontal milling, vertical milling, angular milling, boring, and drilling. With its interchangeable heads and comprehensive accessory kit, it handles a wide range of tasks for toolrooms, diesinking, and prototype production.

Q: When should I use the heavy-duty face milling head versus the boring & drilling head?

A: Use the heavy-duty face milling head for large surface machining and rapid material removal, while the boring & drilling head is specifically designed for precise drilling and boring operations that require accuracy and fine control.

Q: Where is the Rigiva RS-100 most suitably used?

A: This machine is ideally used in toolrooms, die and mould fabrication facilities, prototype workshops, and engineering research labs requiring high-precision and versatile milling capability.

Q: What processes are streamlined by using the included accessories with the RS-100?

A: The included horizontal milling bracket, bracket support, and arbor enable seamless transitions between horizontal and vertical milling, making it easy to adapt the machine for various processes such as slotting, keyway cutting, boring, and drilling.

Q: What are the primary benefits of choosing the RS-100 for toolroom environments?

A: The RS-100 offers exceptional versatility, precision, and efficiency. Its adaptable setup reduces downtime between operations, supports complex angular machining, and provides a robust solution for diverse machining needs in demanding toolroom scenarios.
