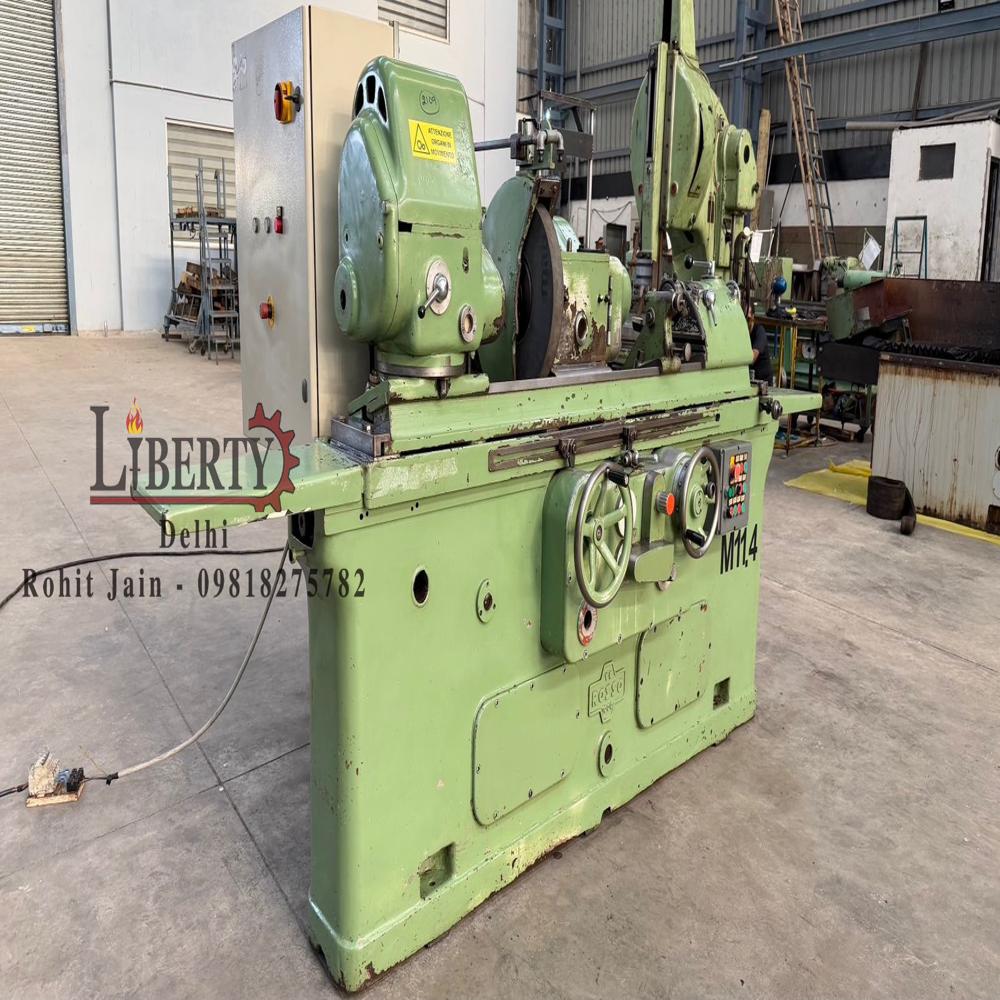

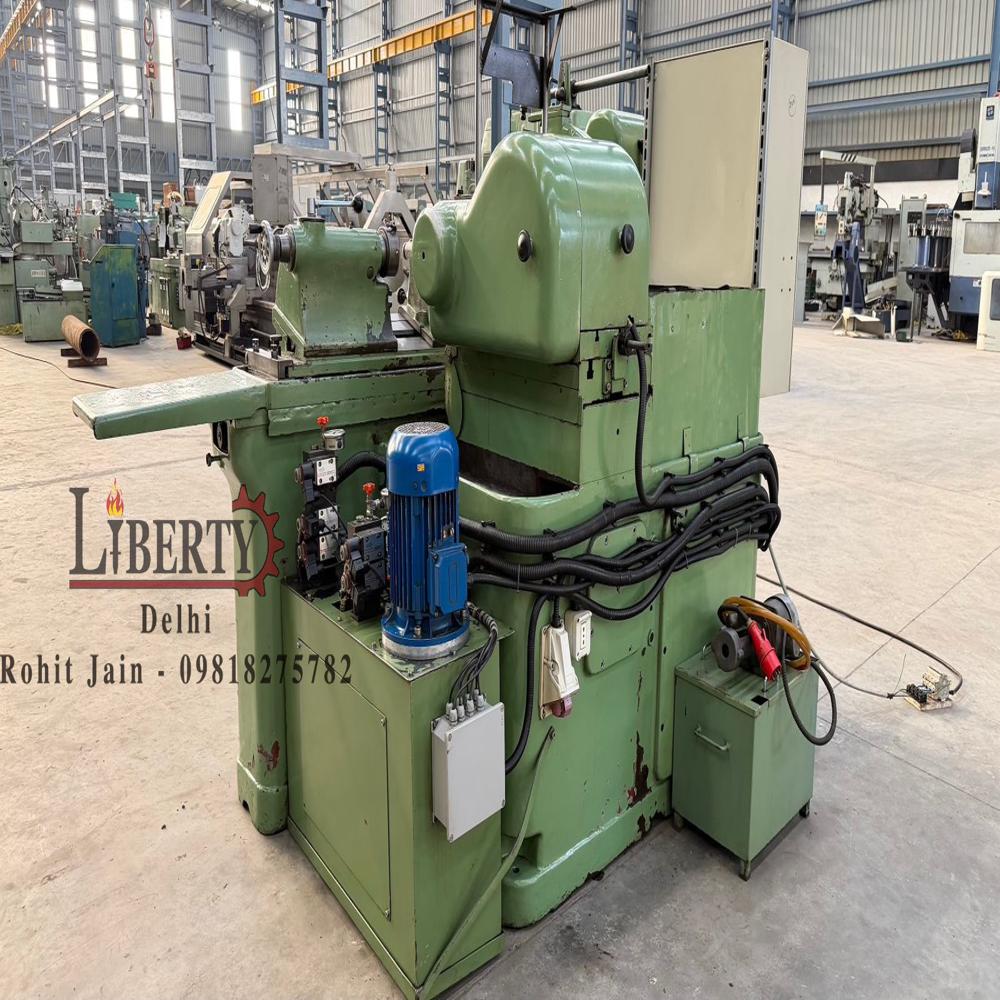

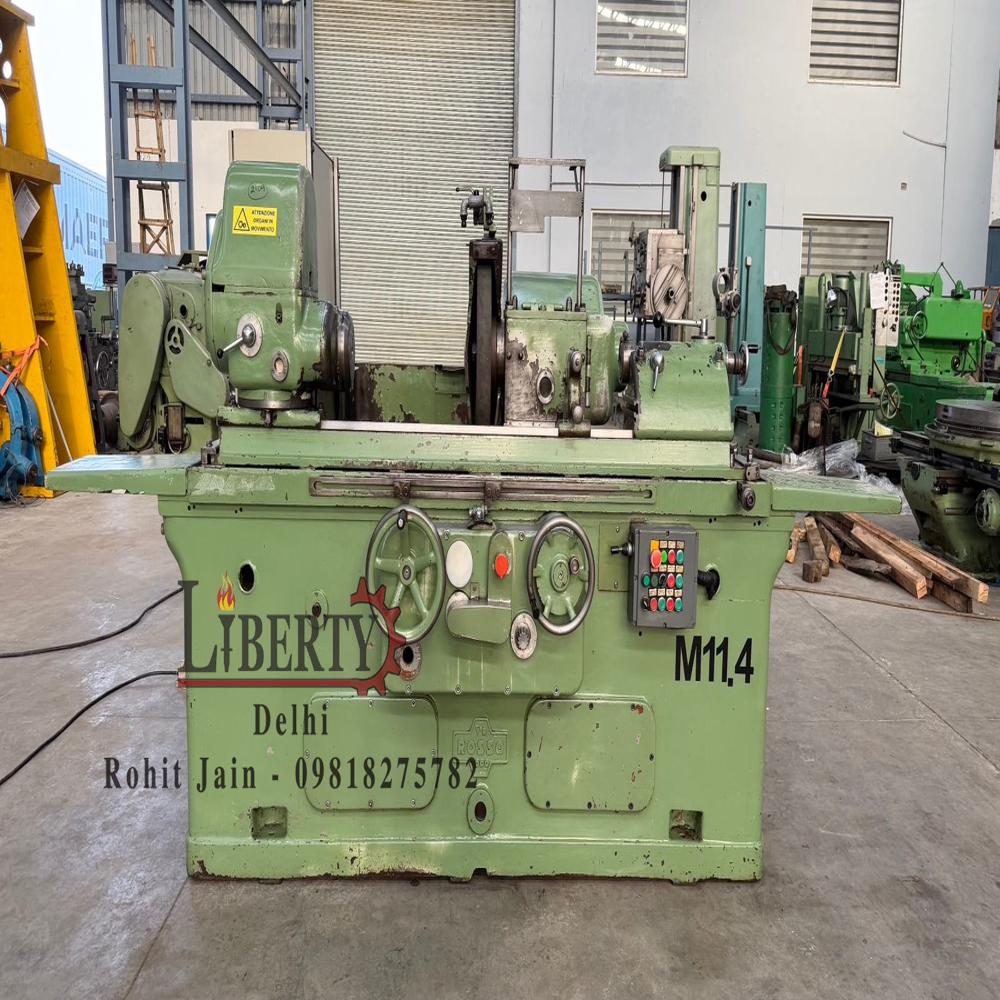

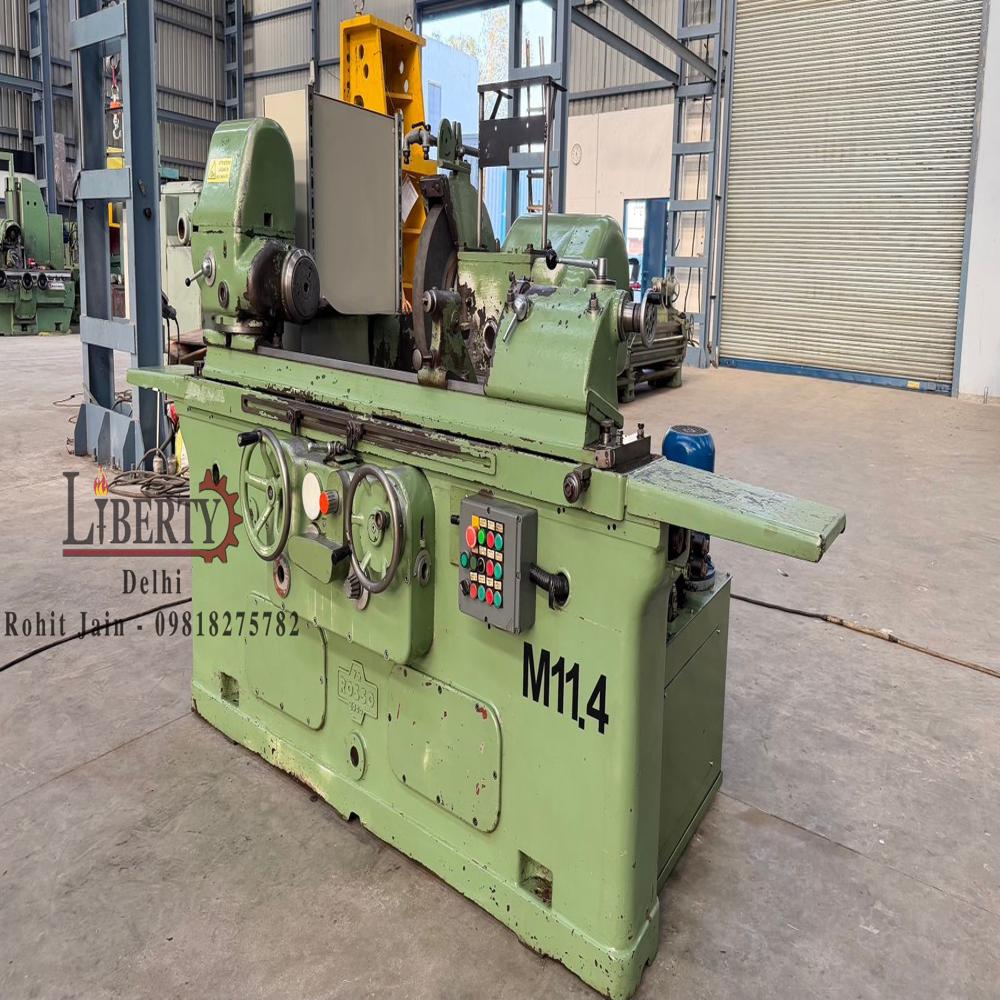

Rossa Italy VR-1000 Cylindrical Grinding Machine

Send Inquiry

Request To Call Back

Rossa Italy VR-1000 Cylindrical Grinding Machine

Name: Rossa Italy VR-1000 Cylindrical Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rossa Italy VR-1000 Cylindrical Grinding Machine Specification

Product Type
Rosso (Italy) make External Cylindrical Grinding Machine in very good working condition. The model of the machine is VR-1000 and the Max. Length of Job is 1000 mm. The technical details are as follows -

General Use
Precision external and internal grinding of cylindrical and shaft components

Material
High-grade cast iron and alloy steel

Type
Hydraulic cylindrical grinder

Capacity
1000 mm between centers

Weight (kg)
Approx. 2500 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual and push button panel

Drive Type
Belt drive

Grinding Diameter
Max. 250 mm

Grinding Length
Max. 1000 mm

Spindle Speed
Variable, up to 1800 rpm

Grinding Wheel Size
400 mm diameter x 50 mm width

Voltage
415V, 3-phase, 50Hz

Dimension (L*W*H)
Approx. 2500 x 1400 x 1600 mm

Feature
Heavy-duty design, high rigidity, automatic feeds, coolant system, rapid table traverse

Color
Industrial Green

Coolant System
Integrated Coolant Tank and Pump

Wheelhead Movement
Manual/Automatic

Surface Finish Achievable
Up to 2 microns

Tailstock
Manual Adjustable

Application
Cylindrical, Shaft and Roll Grinding

Model
VR-1000

Lubrication
Centralized Lubrication System

Bed Type
Heavy-Duty Rigid Structure

Workpiece Mounting
Between Centers or Chuck

Table Traverse
Automatic Longitudinal Feed

Rossa Italy VR-1000 Cylindrical Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Rossa Italy VR-1000 Cylindrical Grinding Machine

Make - Rosso (Italy)

Model - VR-1000

Center Height - 180 mm

Max. Job Diameter - 350 mm

Max. Length of Job - 1000 mm

Grinding Wheel Size - Diameter 500 mm x 50 mm Width

Work-Head Speeds - 40 rpm to 250 rpm

- Complete with Coolant Tank & Pump.

- Machine is in very good working condition.

Video of The Machine -

https://youtu.be/cNl2XVucgb4

High-Precision Grinding for Versatile Applications

The VR-1000 excels in precision grinding of cylindrical and shaft components, with a maximum grinding diameter of 250 mm and length up to 1000 mm. Its variable spindle speed up to 1800 rpm, hydraulic operations, and rigid construction make it suitable for tool rooms, manufacturing, and repair shops that demand accurate surface finishes and efficient workflows.

Operator-Friendly Features and Construction

Engineered for ease of use and reliability, the VR-1000 combines manual control with semi-automatic features. Operators benefit from rapid table traverse, automatic feeds, and user-centric controls. The centralized automatic lubrication system and integrated coolant ensure smooth operation, extended tool life, and consistent performance, even during continuous operations.

FAQ's of Rossa Italy VR-1000 Cylindrical Grinding Machine:

Q: How does the VR-1000 ensure precise grinding results?

A: The VR-1000 features heavy-duty construction for maximum rigidity, variable spindle and table speeds for optimal adjustment, and a centralized automatic lubrication system. These attributes provide minimal vibration, consistent feeds, and stable grinding conditions, ensuring high-precision results every cycle.

Q: What materials can be processed on the VR-1000 Cylindrical Grinding Machine?

A: The machine is designed to work with high-grade cast iron, alloy steel, and similar materials used in the production of cylindrical and shaft components, offering flexibility for a wide range of industrial parts.

Q: When is internal grinding possible with this machine?

A: Internal grinding can be performed by equipping the optional internal grinding attachment. This upgrade allows for precision finishing of internal bores and features, expanding the machine's application range.

Q: Where is the VR-1000 commonly used?

A: The VR-1000 is commonly utilized in industrial workshops, maintenance facilities, and manufacturing plants where precision cylindrical and shaft grinding is essential, such as automotive, aerospace, and machinery sectors.

Q: What is the process for setting up workpieces on this grinder?

A: Workpieces up to 120 kg and 1000 mm length are mounted between centers using the provided chucks and steadies. Operators adjust the table traverse and wheel head swivel, set feed rates, and choose spindle speed via the manual or push button controls for optimal grinding cycles.

Q: How can users benefit from the machine's semi-automatic operation?

A: Semi-automatic operation allows for rapid table traverse, consistent feed rates, and reduced manual intervention, increasing safety and productivity while maintaining precise control over grinding parameters.
