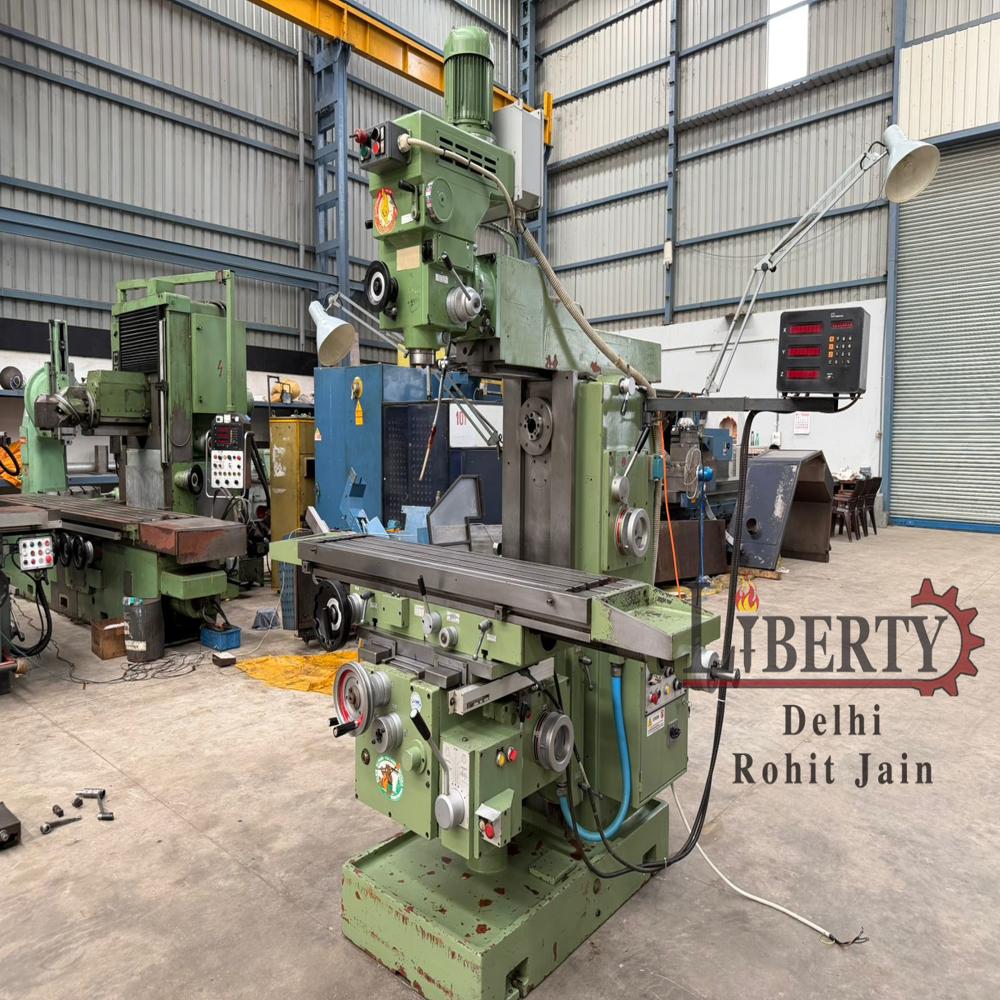

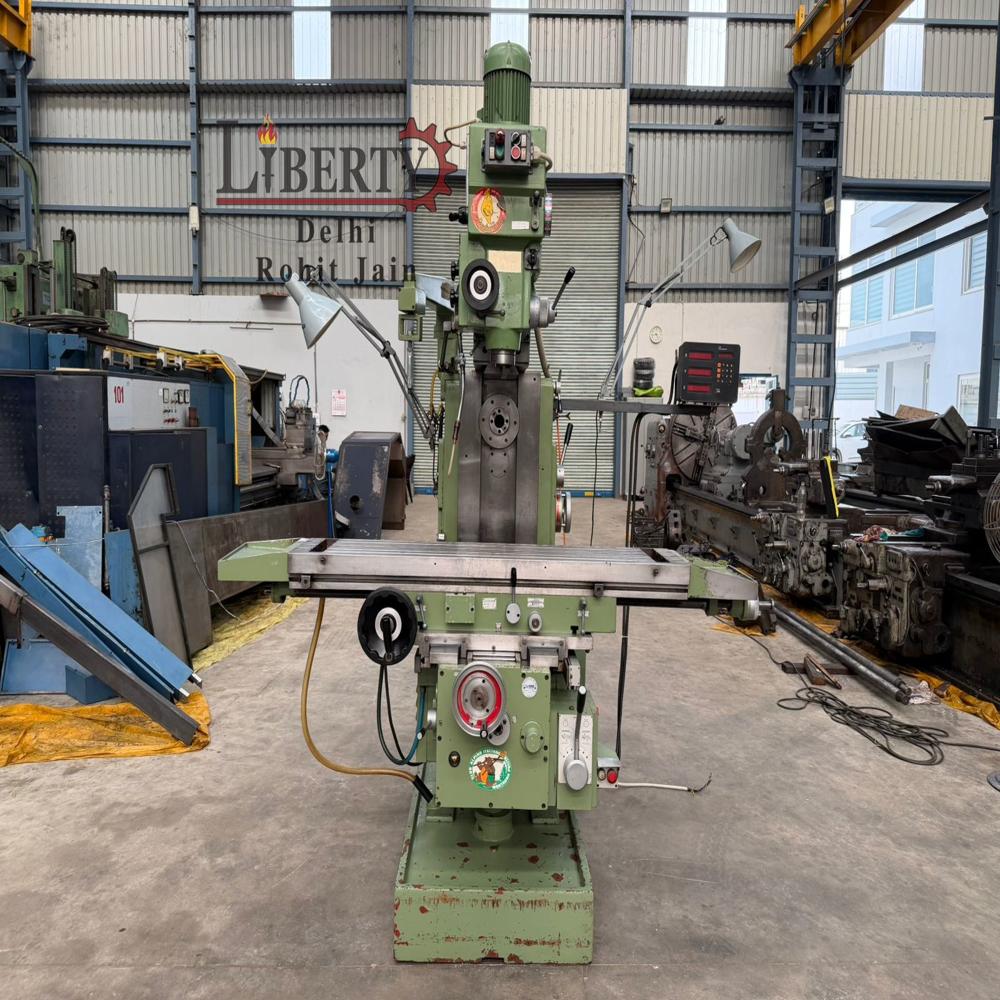

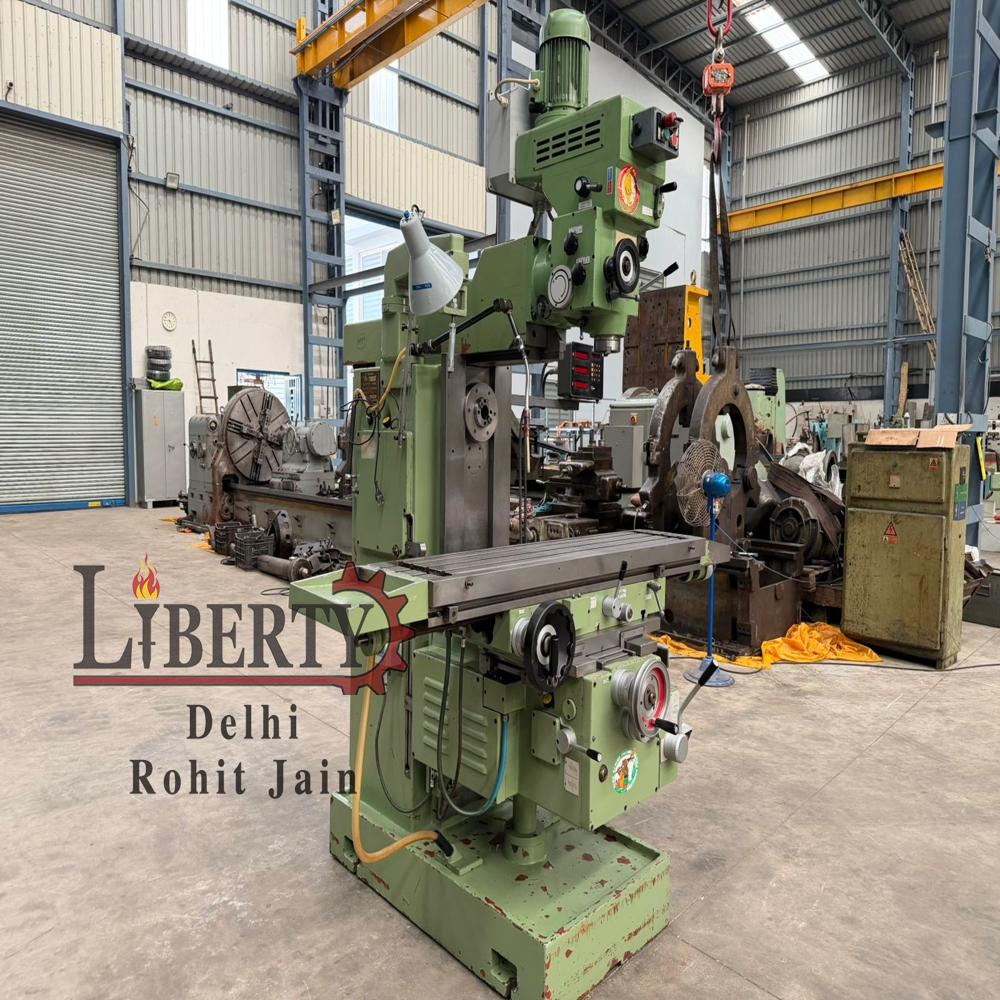

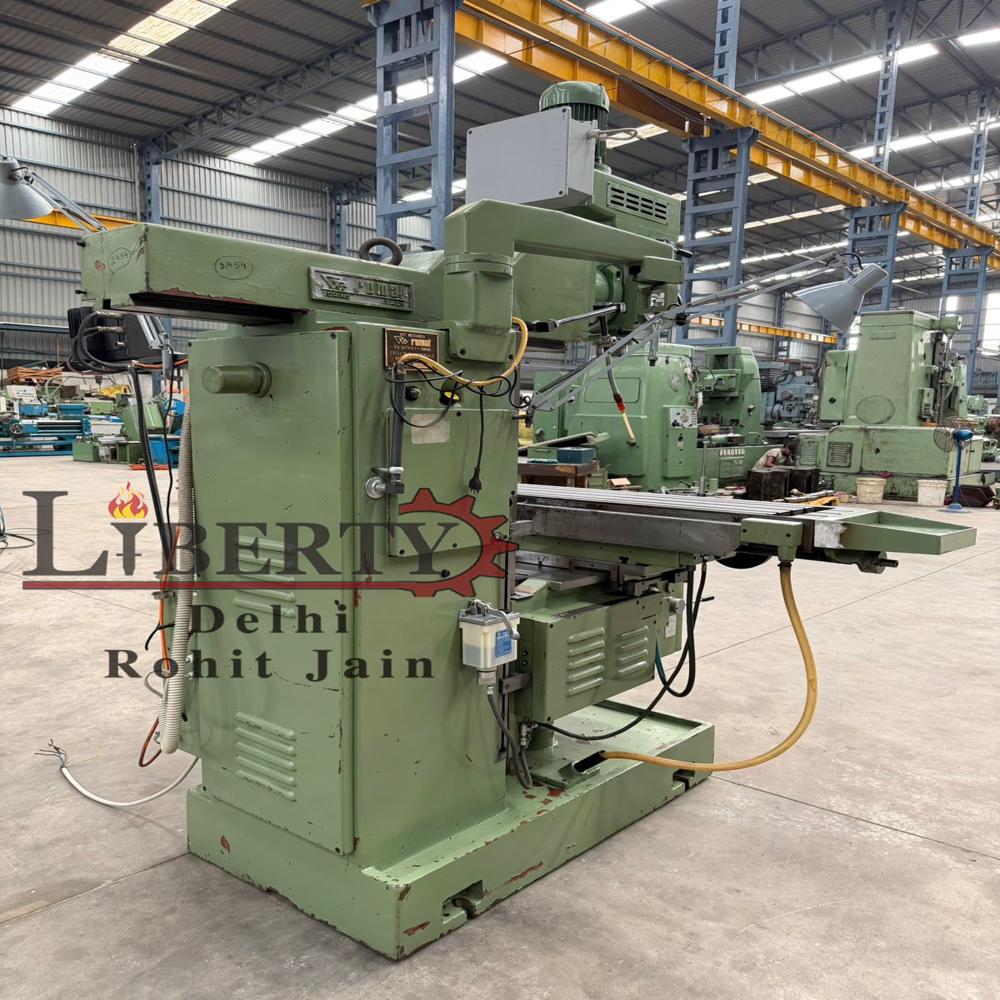

Rumat Italy FUR-3 Double Spindle Universal Milling Machine

Name: Rumat Italy FUR-3 Double Spindle Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 75000.0 INR
Availability: InStock

Price 75000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rumat Italy FUR-3 Double Spindle Universal Milling Machine Specification

General Use
Double-Spindle Universal Milling Machine manufactured by Rumat (Italy), Model FUR-3, available in excellent working condition. This is a highly versatile milling machine equipped with separate Horizontal and Vertical Spindles, allowing both Horizontal and Vertical Milling operations without the need to mount or remove the Vertical Milling Head. The machine features manually adjustable Forward / Backward Travel of the Vertical Milling Head Overarm, allowing greater flexibility when machining wider workpieces. It is suitable for Horizontal Milling, Vertical Milling, Vertical Boring, Vertical Drilling, and other similar machining operations. The machine is also equipped with a 2-Axis DRO for accurate positioning and is complete with a Vice and other accessories. The technical details are as follows -

About Rumat Italy FUR-3 Double Spindle Universal Milling Machine

Make - Rumat (Italy)

Model - FUR-3

Table Size - 1430 mm 320 mm

XYZ Travel - 1000 mm 325 mm 475 mm

Feed Travel Rates - 10 to 840 mm/min

Horizontal Spindle Speed Range - 24 to 1200 RPM

Horizontal Spindle Taper - ISO-40

Vertical Spindle Speed Range - 80 to 3700 RPM

Vertical Spindle Taper - ISO-40

Vertical Spindle Travel - 130 mm

Vertical Spindle Feed Rate - 0.04 to 0.14 mm/rev

Maximum / Minimum Height between Table and Vertical Spindle - 625 mm / 0 mm

Maximum / Minimum Height between Table and Horizontal Spindle Centre - 475 mm / 0 mm

Approx. Machine Weight - 2.50 Tons

- Equipped with a 2-Axis DRO.

- Equipped with a Swivelling Universal Table.

- Features Manually Adjustable Forward / Backward Travel of the Vertical Milling Head Overarm.

- Complete with Vice and other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/XYU1UwmaIlk

Unmatched Machining Versatility

The double spindle configuration of the FUR-3 by Rumat allows users to seamlessly switch between horizontal and vertical milling without any time-consuming setup changes. This flexibility is beneficial for workshops handling a variety of materials and machining requirements, enhancing productivity and reducing downtime.

Precision and Ease of Operation

Equipped with a 2-Axis DRO system, the FUR-3 provides accurate position tracking for complex jobs. The adjustable overarm with manual forward and backward travel extends the milling reach, allowing the operator to machine larger or wider components with ease and consistency.

FAQ's of Rumat Italy FUR-3 Double Spindle Universal Milling Machine:

Q: How does the double spindle design of the FUR-3 benefit users during machining operations?

A: The dual spindle system allows both horizontal and vertical milling tasks to be performed without needing to mount or remove the vertical milling head, saving setup time and enhancing efficiency during machining projects.

Q: What machining processes can be performed on the Rumat FUR-3 milling machine?

A: The machine is suitable for a wide variety of processes, including horizontal and vertical milling, vertical boring, vertical drilling, and other similar machining operations require precise and flexible spindle orientation.

Q: When would you use the adjustable overarm feature on this machine?

A: The forward and backward travel of the vertical milling head overarm is especially useful when working with wider or unconventional workpieces, allowing greater flexibility and reach during machining.

Q: Where is this double spindle milling machine most suited for use?

A: Due to its versatility and robust construction, the FUR-3 is ideal for tool rooms, manufacturing units, and workshops that require frequent switching between different milling and drilling operations.

Q: What role does the 2-Axis DRO play in the operation of the FUR-3?

A: The 2-Axis Digital Readout (DRO) enhances accuracy by enabling precise measurement and positioning of the milling head, which is vital for achieving high-quality machining results consistently.

Q: How should operators maintain the Rumat FUR-3 to ensure long-term performance?

A: Regular cleaning, proper lubrication, and periodic inspection of vital components (including spindles, DRO, and overarm mechanisms) will ensure the machine remains reliable and delivers consistent results over time.
