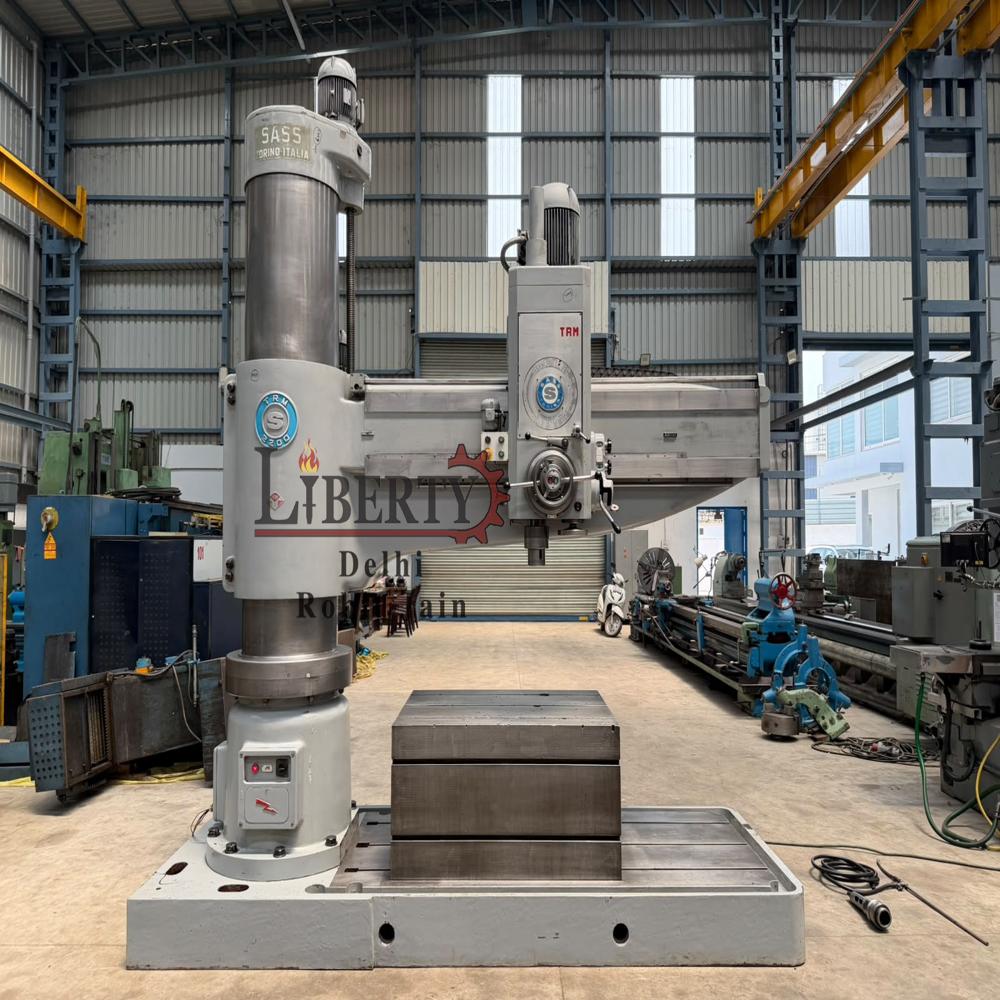

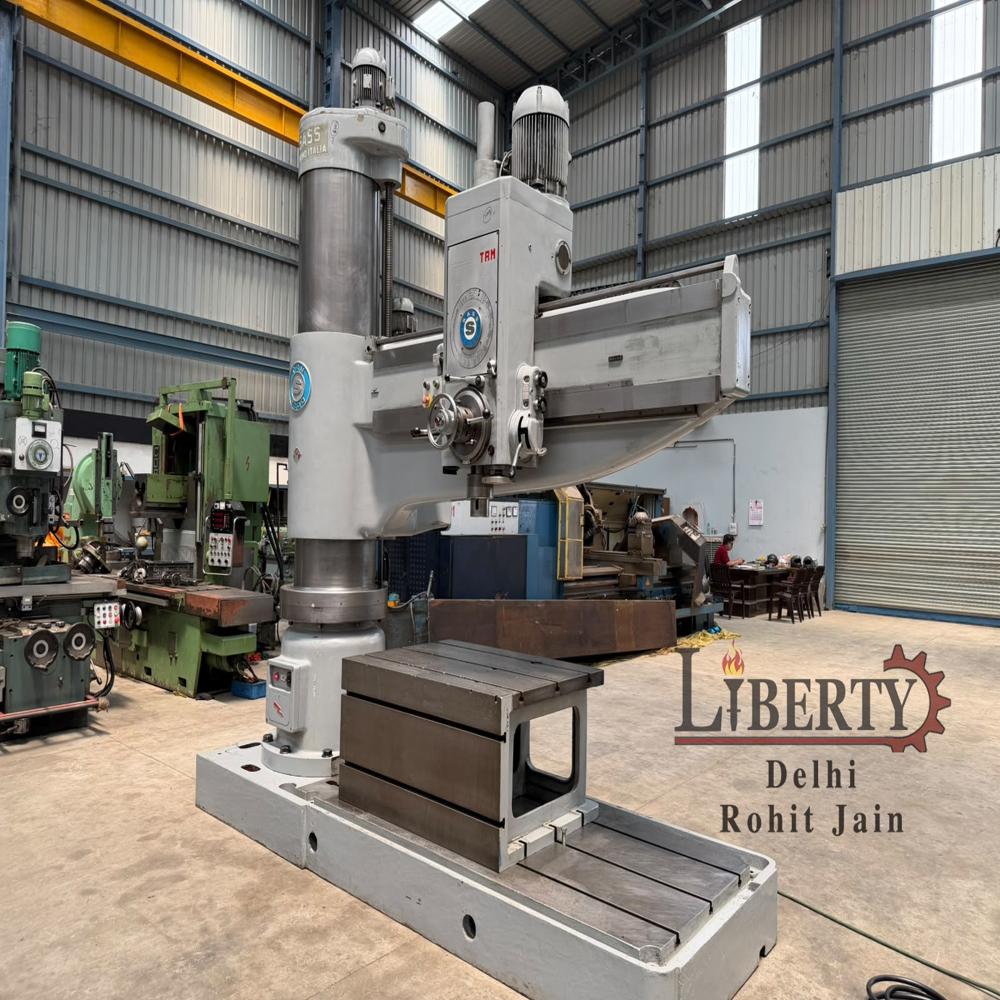

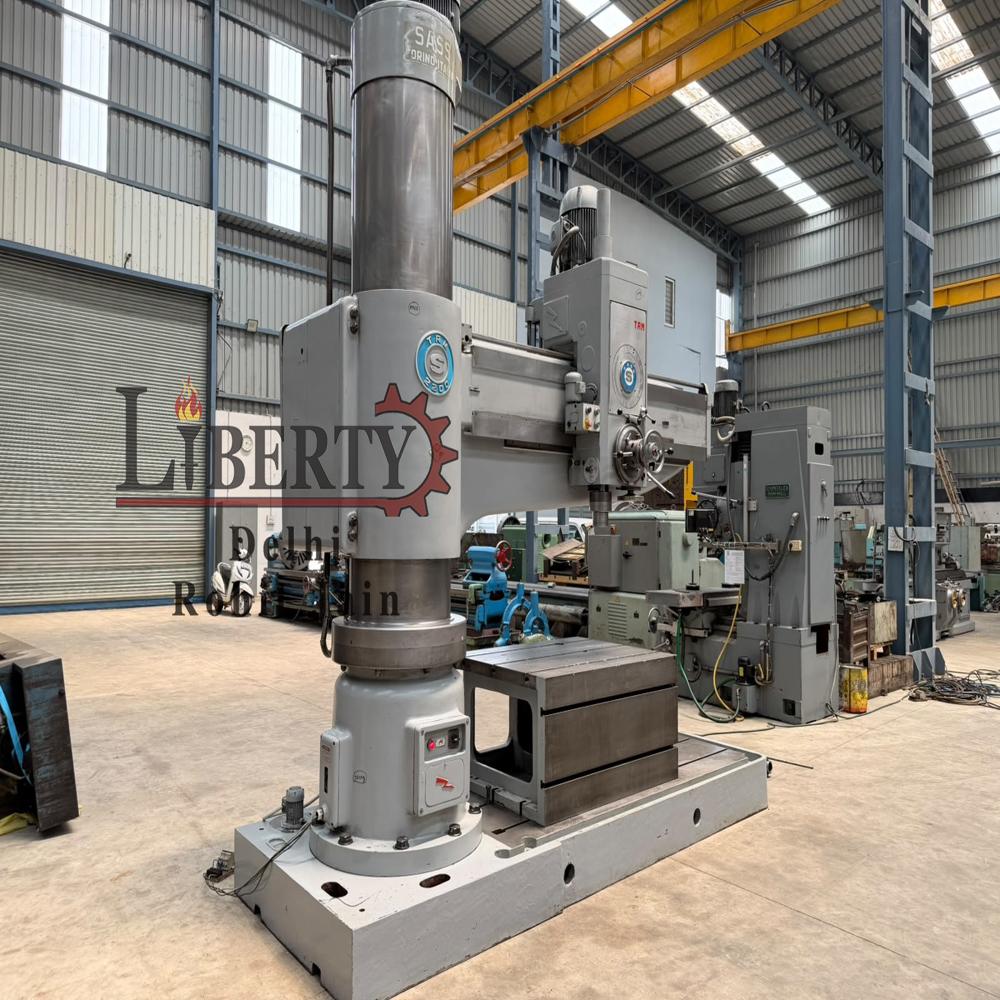

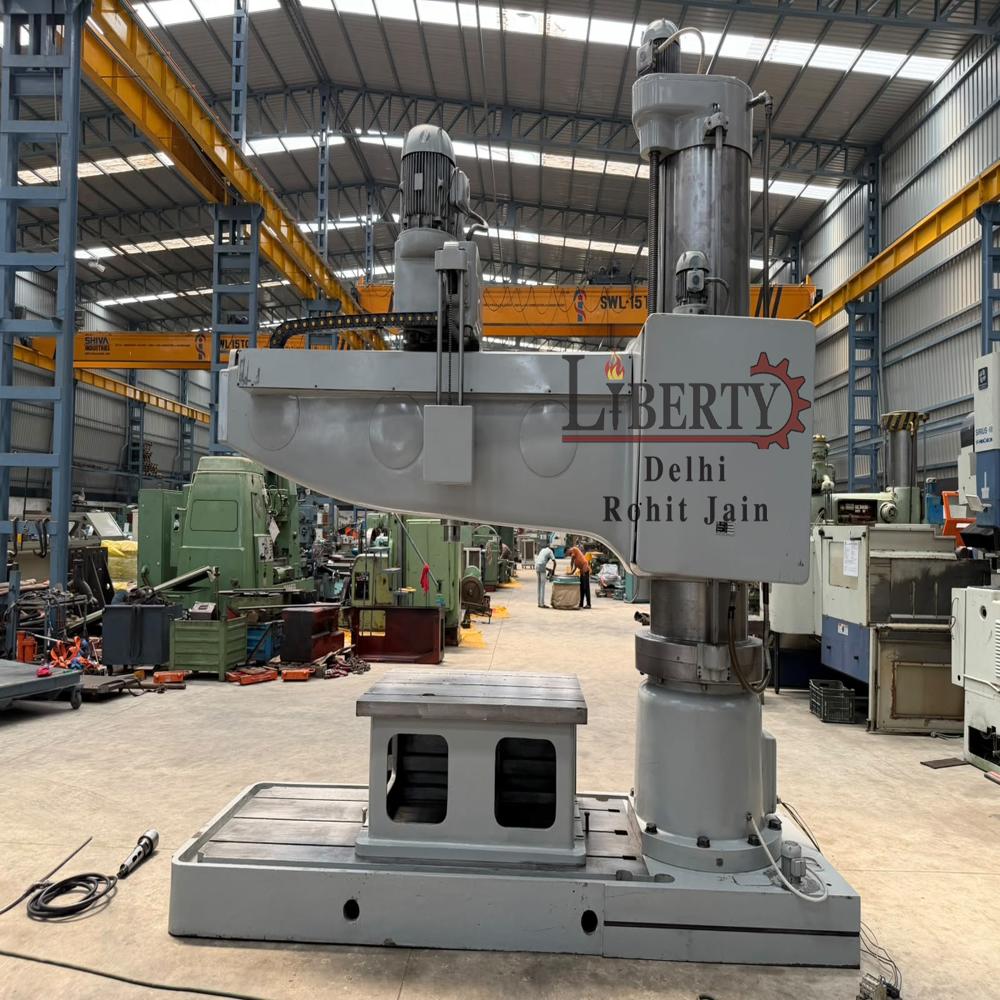

SASS Italy 100 mm x 2400 mm Radial Drilling Machine

Name: SASS Italy 100 mm x 2400 mm Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 170000.0 INR
Availability: InStock

Price 170000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SASS Italy 100 mm x 2400 mm Radial Drilling Machine Specification

Features
High accuracy, heavy construction, smooth spindle movement, reliable bearings

Frequency
50 Hz

Table Size
Approx 1200 x 1000 mm

Condition
Used / Excellent working condition

Motor Power
8-12 HP

Machine Type
Radial Arm Drilling Machine

Diameter
100 mm (drilling capacity)

Spindle Speed
20 to 1600 rpm (variable steps)

Noise Level
Low; designed for industrial environments

Dimension (L*W*H)
Approx. 4000 x 2000 x 3500 mm

Cutting Area
Max Radial Arm Reach: 2400 mm

Product Type
Heavy-Duty Radial Drilling Machine manufactured by SASS (Italy), Model TRM-2200, available in excellent working condition. The machine has a Drilling Capacity of 100 mm and a Radial Arm Length of 2400 mm, making it suitable for heavy-duty Drilling, Tapping, Reaming, and Boring applications. It features Automatic Motorised Travel of the Drilling Head along the Radial Arm and is equipped with Automatic Hydraulic Clamping for both the Radial Arm and the Drilling Head, ensuring quick positioning and rigid locking. The technical details are as follows -

Material
Cast Iron / Heavy Duty Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V

Power
8-12 kW (depending on model & motor)

Power Source
Electric

Weight (kg)
Approximately 8000-12000 kg

Capacity
100 mm drilling diameter in steel

Color
Grey/Silver

Usage & Applications
Heavy-duty drilling in steel and large fabrication workshops

Vertical Travel of Drilling Head
1200 mm

Lubrication System
Centralized

Spindle Taper
MT 6

Vertical Movement of Arm
Approx. 1500 mm

Coolant System
Integrated

Spindle Centre to Base Min.
500 mm

Spindle Centre to Column Max.
2400 mm

Max Spindle Travel
Approx. 500 mm

Clamping Type
Hydraulic clamping

Base Plate Size
Approx. 2200 x 1300 mm

Main Drive Type
Electric motor with gear transmission

Floor Space Required
4200 x 2100 mm

Column Diameter
About 500 mm

Spindle Feed
Automatic and manual

About SASS Italy 100 mm x 2400 mm Radial Drilling Machine

Make - SASS (Italy)

Model - TRM-2200

Drilling Capacity - 100 mm

Spindle Diameter - 110 mm

Arm Length - 2400 mm

Spindle Speed Range - 14 to 1275 RPM

Spindle Taper - MT-6

Spindle Feed Travel - 520 mm

Spindle Feed Rate Range - 0.075 to 2.52 mm/rev

Vertical Travel of Radial Arm - 1000 mm

Maximum Height from Spindle to Top of Base - 2050 mm

Cube Table Size - 1245 mm x 905 mm

Spindle Motor Power - 11 kW

Clamping Type - Automatic Hydraulic

Approx. Machine Weight - 11.0 Tons

- Features Automatic Motorised Travel of the Drilling Head along the Radial Arm.

- Complete with Coolant Pump and Quick-Change Tool Holder.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/ElqcPxPj5eQ

Exceptional Drilling Capacity and Range

Engineered for industrial efficiency, this machine accommodates workpieces requiring up to 100 mm diameter drilling in steel, with a remarkable 2400 mm radial arm reach. The robust column and solid base plate ensure maximum stability, while variable spindle speeds and effortless clamping provide versatility for different materials and tasks.

Reliable Performance for Heavy-Duty Applications

The SASS Radial Drilling Machine integrates high-quality bearings, hydraulic clamping, and a centralized lubrication system, all ensuring smooth operations, reduced maintenance, and extended machine life. Designed to minimize vibration and noise, it brings a quieter, more efficient workflow to large fabrication shops and heavy-steel industries.

FAQ's of SASS Italy 100 mm x 2400 mm Radial Drilling Machine:

Q: How does the SASS Italy 100 mm x 2400 mm Radial Drilling Machine ensure precise drilling?

A: The machine provides high accuracy through its heavy construction, reliable bearings, hydraulic clamping, and smooth spindle movement. These features, combined with variable spindle speeds and an integrated coolant system, enable precision even during prolonged, large-scale drilling operations.

Q: What types of materials can this radial drilling machine process?

A: This machine is ideal for heavy-duty drilling in steel and suitable for a range of fabrication workshop applications, thanks to its 100 mm drilling capacity, sturdy cast iron/steel build, and robust spindle performance.

Q: When should I choose this model over other drilling machines?

A: Select this model when you require drilling capacities up to 100 mm, large arm reach (2400 mm), or are working with oversized steel structures. Its durability and semi-automatic operation make it well-suited for continuous use in industrial environments.

Q: Where can the SASS radial drilling machine be installed safely?

A: It requires a floor space of approximately 4200 x 2100 mm and is best positioned in spacious, well-ventilated industrial workshops with access to a 415 V power supply, ensuring safe and efficient utilization.

Q: What is the setup and usage process for this machine?

A: After installation on a stable foundation, connect to the electric source and verify proper lubrication and coolant levels. The arm, drilling head, and spindle are manually or semi-automatically adjusted as required, with workpieces clamped hydraulically. Spindle speeds and feeds are selected based on material and drilling requirements.

Q: How does the integrated coolant and lubrication system benefit users?

A: The centralized lubrication ensures all moving parts operate smoothly, minimizing wear and maintenance needs. The integrated coolant system keeps drilling temperatures manageable, prolonging tool life and delivering clean, accurate holes.
