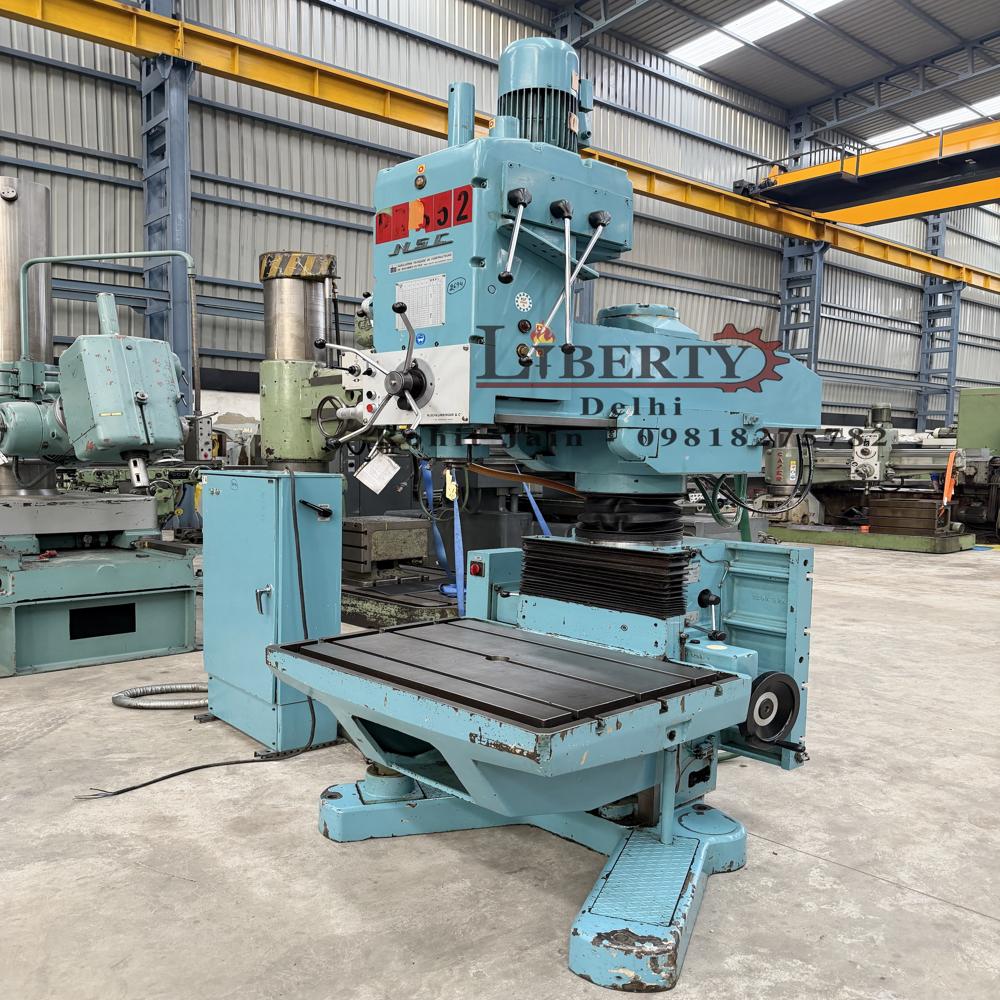

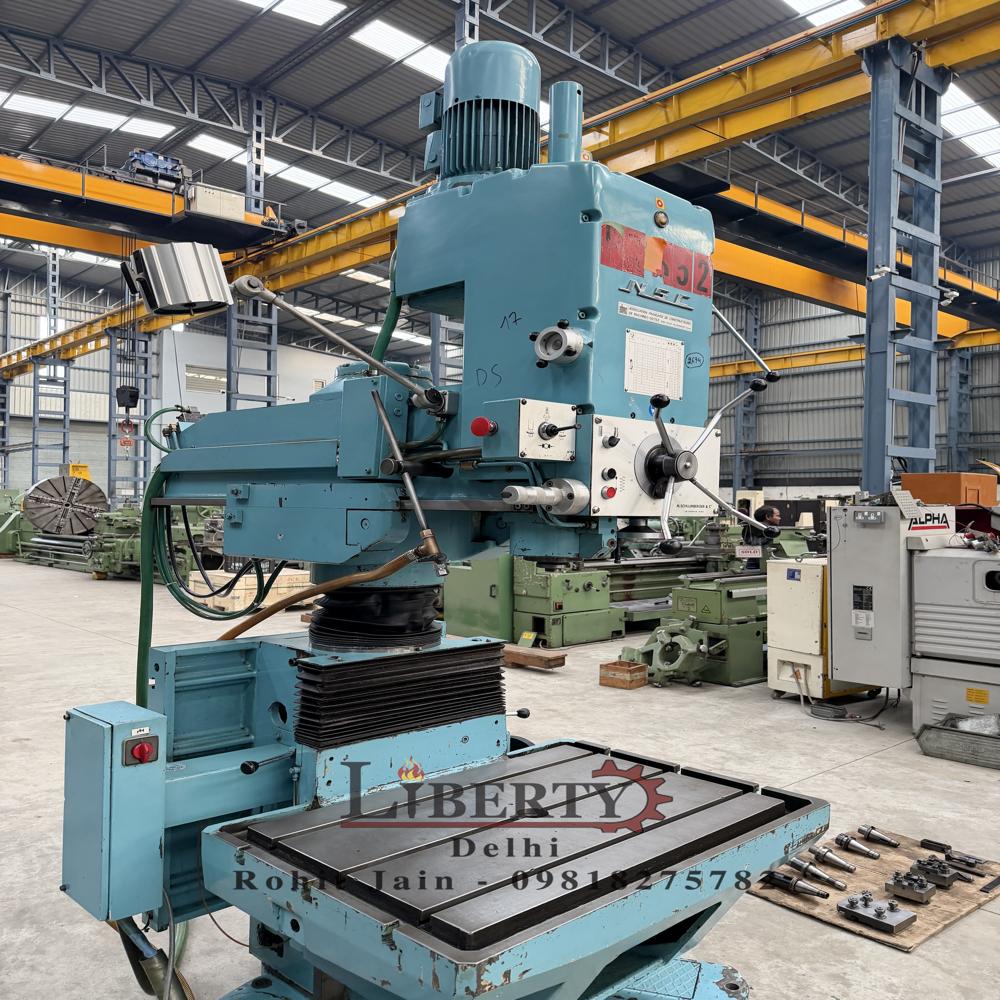

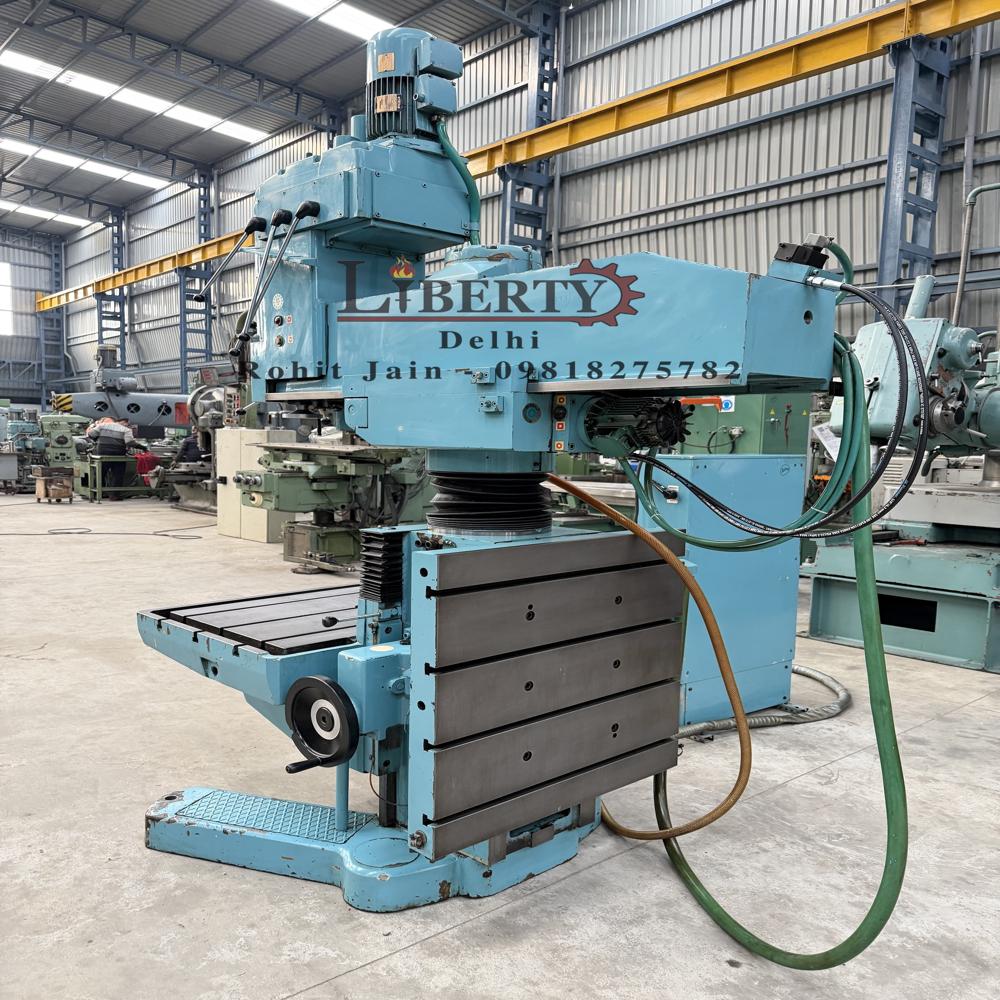

Schlumberger RF-6 Radial Drilling & Tapping Machine

Name: Schlumberger RF-6 Radial Drilling & Tapping Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Schlumberger RF-6 Radial Drilling & Tapping Machine Specification

Condition
Used/Second Hand

Table Size
600 x 450 mm

Spindle Speed
Multiple Speeds, typically 40-1800 RPM

Diameter
Max. drilling diameter 32 mm, max. tapping diameter 25 mm

Machine Type
Radial Drill

Features
Heavy-duty column, adjustable arm, robust construction, separate control panel, easy operation

Cutting Area
Suitable for medium and large workpieces

Dimension (L*W*H)
1650 x 1050 x 2200 mm

Frequency
50 Hz

Noise Level
Standard Industrial, <80 dB

Motor Power
3 HP

Product Type
Radial Drilling and Tapping Machine made by Schlumberger (France) in excellent working condition. The model of the machine is RF-6 and the Drilling Capacity is 50 mm. Due to its unique design the machine is suitable for small sized jobs as well as large sized jobs and as compared to a normal design radial drill machine the setting time is comparatively lesser in this machine. The machine can do Drilling as well as Tapping operations. The technical details are as follows -

Material
Cast Iron and Steel Construction

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
Not CNC

Control System
Manual Controls with Electrical Panel

Voltage
415 V

Power
3 HP

Power Source
Electric

Weight (kg)
Approx. 1200 kg

Capacity
Drilling up to 32 mm, Tapping up to 25 mm

Color
Machine Blue/Green

Usage & Applications
Drilling and Tapping holes in heavy and medium-sized workpieces, metalworking industries

Vertical Movement of Arm
400 mm (approximate)

Coolant System
Integrated Electric Pump

Brand/Model
Schlumberger RF-6

Number of Speeds
8 Steps

Arm Length
1000 mm (approximate)

Table Travel
Longitudinal 300 mm, Cross 300 mm (approximate)

Tapping Capacity
25 mm

Electrical Protection
Overload protection relay, emergency stop

Quill Travel
Approx. 200 mm

Spindle Taper
MT 4 (Morse Taper #4)

Swing
900 mm (approximate)

Spindle Feed
Manual & Power

Base Dimensions
Approx. 900 mm x 650 mm

Schlumberger RF-6 Radial Drilling & Tapping Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Schlumberger RF-6 Radial Drilling & Tapping Machine

Make - Schlumberger (France)

Model - RF 6

Drilling Capacity - 50 mm

Spindle Diameter - 90 mm

Spindle Speeds - 35 rpm to 1800 rpm

Spindle Taper - BT-40

Max. Height between Spindle to Table Top - 940 mm

Min. Distance between Spindle Center to Pillar - 130 mm

Max. Distance between Spindle Center to Pillar - 900 mm

Table Size - 1000 mm x 650 mm

Vertical Clamping Table Size - 800 mm x 800 mm

Spindle Feed Rate - 0.06 mm/min to 0.60 mm/min

Spindle Feed Travel - 350 mm

Head Rotation - 360 degree

Tool Clamping - Automatic ; Hydraulic

Arm Clamping Type - Automatic ; Hydraulic

- With Automatic Tapping Feature.

- Complete with many Tool Holders & Coolant Pump.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/twiLRpUmVME

Heavy-Duty Performance for Industrial Demands

Built for rigorous metalworking applications, the RF-6 offers a heavy-duty column and adjustable arm designed to handle medium and large workpieces. The robust construction guarantees lasting stability and precision, making it ideal for exporters, manufacturers, and suppliers handling diverse fabrication tasks.

Versatile Drilling and Tapping Capabilities

Equipped to drill holes up to 32 mm in diameter and tap threads up to 25 mm, the RF-6 can tackle a wide range of drilling and tapping projects-making it especially useful in machinery, fabrication, and repair shops where flexibility and adaptability are essential.

User-Centric Features and Controls

The RF-6 incorporates manual controls through an accessible electrical panel, allowing operators to select from six feed rates and eight spindle speeds. Its 360-degree rotating work table and built-in coolant pump facilitate hassle-free operation, while noise levels remain within a standard industrial range (<80 dB) for worker comfort.

FAQ's of Schlumberger RF-6 Radial Drilling & Tapping Machine:

Q: How does the Schlumberger RF-6 radial drilling & tapping machine accommodate different workpiece sizes?

A: The adjustable arm, extended vertical travel (600 mm), and 360-degree manual rotating work table allow the RF-6 to handle a variety of workpiece sizes, from medium to large, ensuring flexible positioning and easy access during drilling and tapping operations.

Q: What types of materials can be processed using this machine?

A: With its heavy-duty cast iron and steel construction, the RF-6 is designed for drilling and tapping in metal materials, making it highly suitable for a wide spectrum of metalworking industries.

Q: When is it beneficial to use the built-in coolant pump?

A: The built-in coolant pump should be used during prolonged or heavy-duty drilling and tapping, as it helps reduce tool wear, prevent overheating, and maintain a smooth cutting process, especially when working with tougher metals.

Q: Where is this machine typically used?

A: The RF-6 is commonly found in metal fabrication shops, manufacturing units, repair workshops, and other industrial settings where precise and high-capacity drilling or tapping is necessary.

Q: What is the process for changing spindle speeds and feeds on this machine?

A: The operator manually adjusts spindle speeds and feed rates using the control levers and electrical panel. Eight spindle speeds and six feeds are pre-configured for easy adjustment to match the material and application requirements.

Q: How does manual control benefit operators in a semi-automatic environment?

A: Manual control allows operators to quickly adapt machine settings for unique jobs, ensuring flexibility, easy maintenance, and immediate intervention when needed for complex or custom metalworking tasks.
