MAS 35 mm Radial Drilling Machine

Name: MAS 35 mm Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS 35 mm Radial Drilling Machine Specification

Frequency
50 Hz

Cutting Area
375 x 300 mm (Table)

Noise Level
Low

Spindle Speed
105 - 1600 RPM (8 Steps)

Diameter
35 mm (Max. drilling capacity)

Table Size
375 mm x 300 mm

Machine Type
Radial Drilling

Condition
New

Dimension (L*W*H)
1450 mm x 800 mm x 2200 mm

Motor Power
2 HP

Features
Adjustable arm, Power feed, High rigidity, Versatile operations

Product Type
Radial Drilling Machine

Material
Heavy-duty Cast Iron, Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V

Power
1.5 kW (2 HP)

Power Source
Electric

Weight (kg)
Approx. 900 kg

Capacity
Drilling up to 35 mm diameter in steel

Color
Blue & White (As shown)

Usage & Applications
Precision drilling, tapping, reaming in metal and fabrication industries

Number of Spindle Speeds
8

Spindle Taper
MT-4

Drilling Head Travel
710 mm

Arm Length
1000 mm

Column Diameter
170 mm

Coolant System
Provided

Feed Range
0.08 - 0.32 mm/rev

Distance from Spindle to Column
900 mm (maximum)

Spindle Travel
250 mm

Distance from Spindle to Base
1000 mm (maximum)

Base Plate Size
900 mm x 600 mm

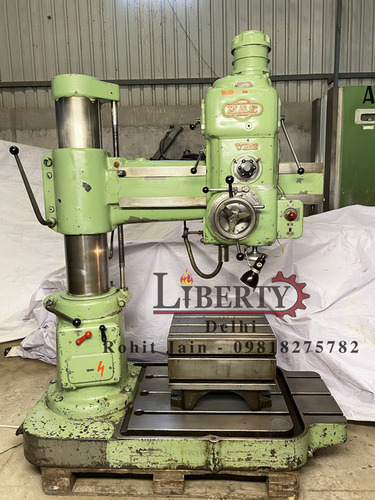

About MAS 35 mm Radial Drilling Machine

Make - MAS (Czech Republic)

Model - VR 2

Drilling Capacity - 35 mm

Spindle Diameter - 60 mm

Arm Length - 1000 mm

Spindle Speeds - 90 rpm to 4500 rpm

Spindle Taper - MT 3

Spindle Feed Travel - 220 mm

Vertical Travel of Arm - 515 mm

Spindle Feed Travel Rates - 0.03 mm/rev to 0.30 mm/rev

Table Size - 530 mm x 400 mm

Clamping Type - Manual

- Machine is in excellent working condition.

Video link - https://youtu.be/Da7LI0Z0ULA

Precision Engineering for Demanding Tasks

The MAS 35 mm Radial Drilling Machine is purpose-built for high-precision drilling, tapping, and reaming in steel and other metals. Its rigid frame and adjustable arm enable operators to achieve accurate results, while the semi-automatic controls facilitate easy operation. The robust spindle mechanism and heavy-duty materials guarantee long-term reliability.

Versatile & User-Friendly Design

This radial drilling machine is equipped with an adjustable arm and an eight-speed spindle, allowing users to tailor cutting conditions precisely to each material. The large worktable and extended spindle travel offer flexibility for a range of component sizes, making it a valuable addition to any metalworking or fabrication workshop.

Efficient & Safe Operation

Operator safety and productivity are prioritized with the MAS 35 mm Radial Drilling Machine. Its built-in coolant system reduces thermal stress on components, while the quiet motor ensures a comfortable working environment. Manual yet straightforward controls put precision in the users hands for both small-scale and heavy-duty projects.

FAQs of MAS 35 mm Radial Drilling Machine:

Q: How does the adjustable arm of the MAS 35 mm Radial Drilling Machine enhance its usability?

A: The adjustable arm provides the flexibility to position the drilling head at varying heights and distances from the workpiece. This enables precise drilling operations on a wide range of component sizes and shapes, improving the ease of setup and accommodating diverse fabrication requirements.

Q: What materials can be efficiently worked with using this radial drilling machine?

A: This machine is constructed from heavy-duty cast iron and steel, making it suitable for drilling, tapping, and reaming operations in tough metals, including steel and various fabrication materials. Its robust design supports industrial-grade applications with consistent results.

Q: When should I use the coolant system during operation?

A: The integrated coolant system should be engaged during sustained or heavy drilling processes. It helps dissipate heat, protects the cutting tool from premature wear, and ensures smoother finishes on workpieces, especially when working with metals like steel.

Q: Where is the MAS 35 mm Radial Drilling Machine typically utilized?

A: This machine is commonly employed in metalworking shops, fabrication plants, and manufacturing environments that require precision drilling, tapping, and reaming in medium to heavy workpieces.

Q: What are the benefits of the machines semi-automatic operation?

A: Semi-automatic operation combines manual flexibility with easier feed control and arm adjustment. Operators can achieve greater precision while working efficiently, as features like power feed and speed selection streamline repetitive or complex tasks.

Q: How do I select the appropriate spindle speed for different operations?

A: You can choose from eight spindle speed settings (105 to 1600 RPM) to match the material and tool diameter. Lower speeds are suitable for larger-diameter drills or tougher materials, while higher speeds are used for smaller bits or softer metals, enhancing both tool life and work quality.
