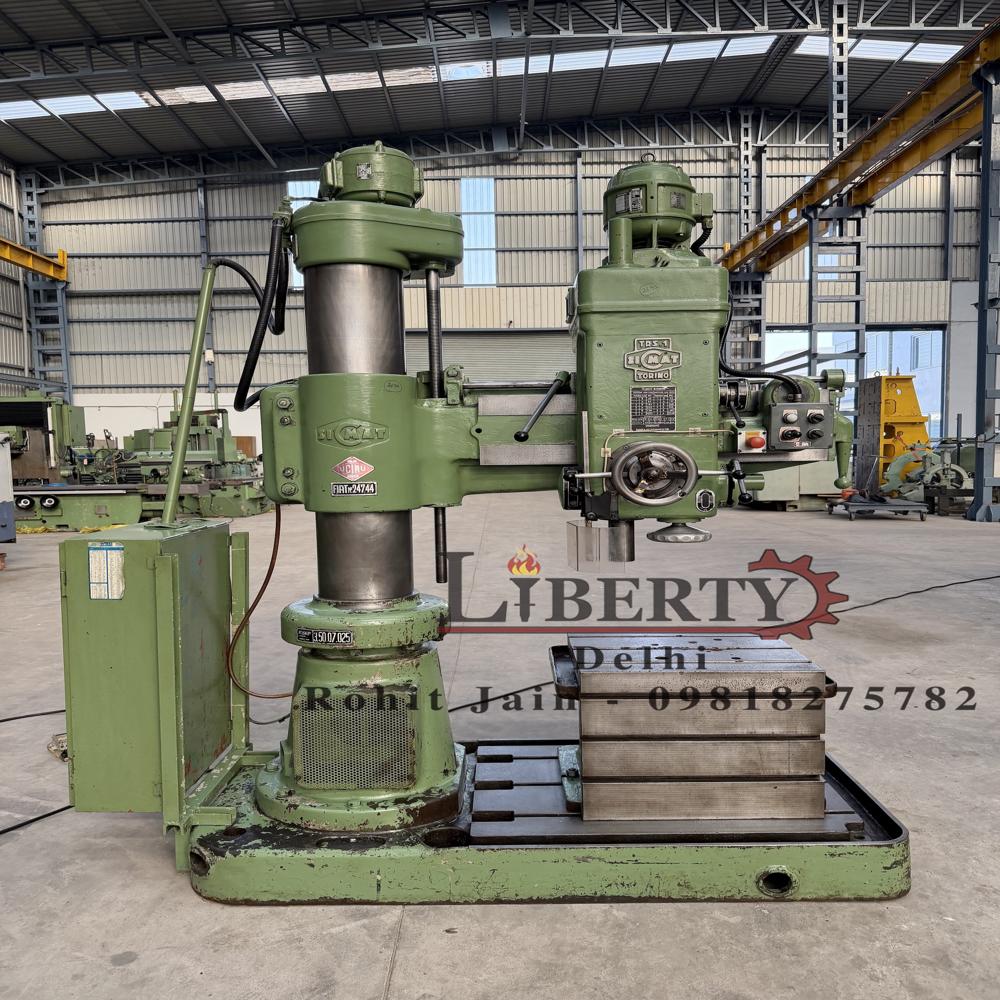

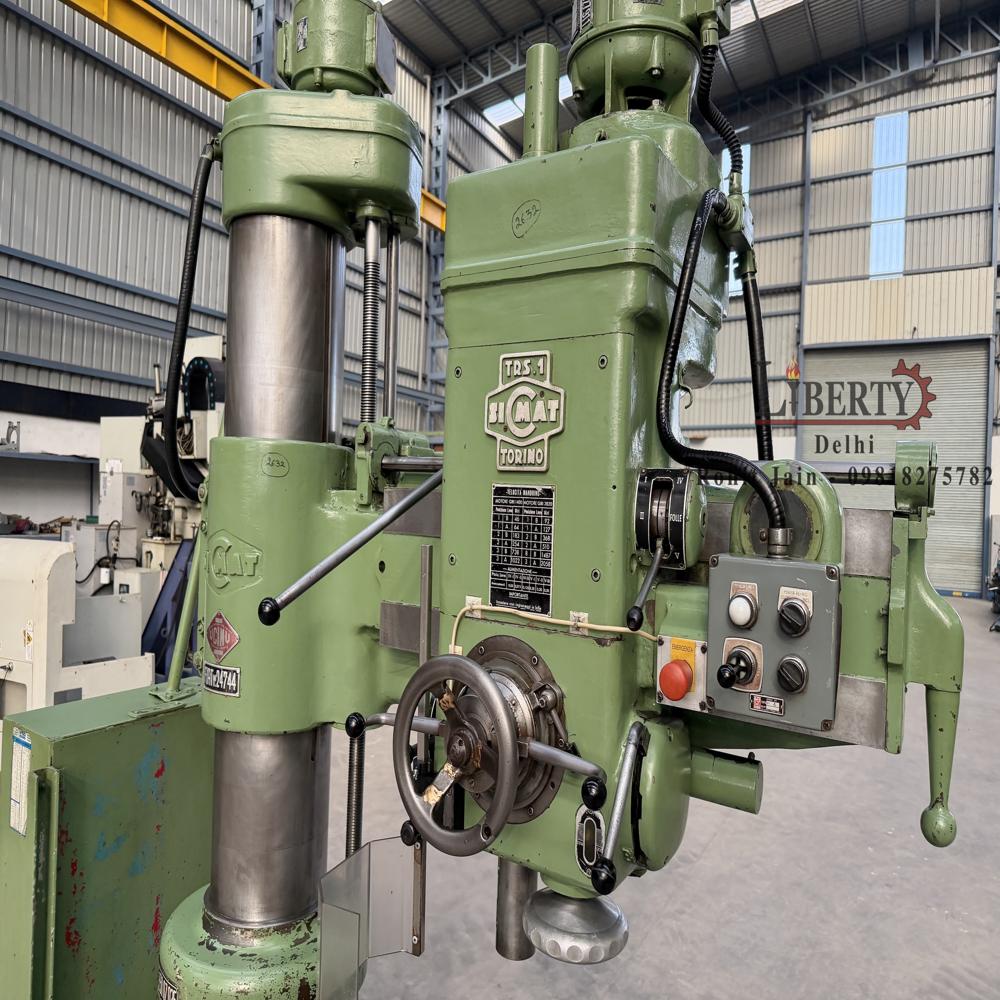

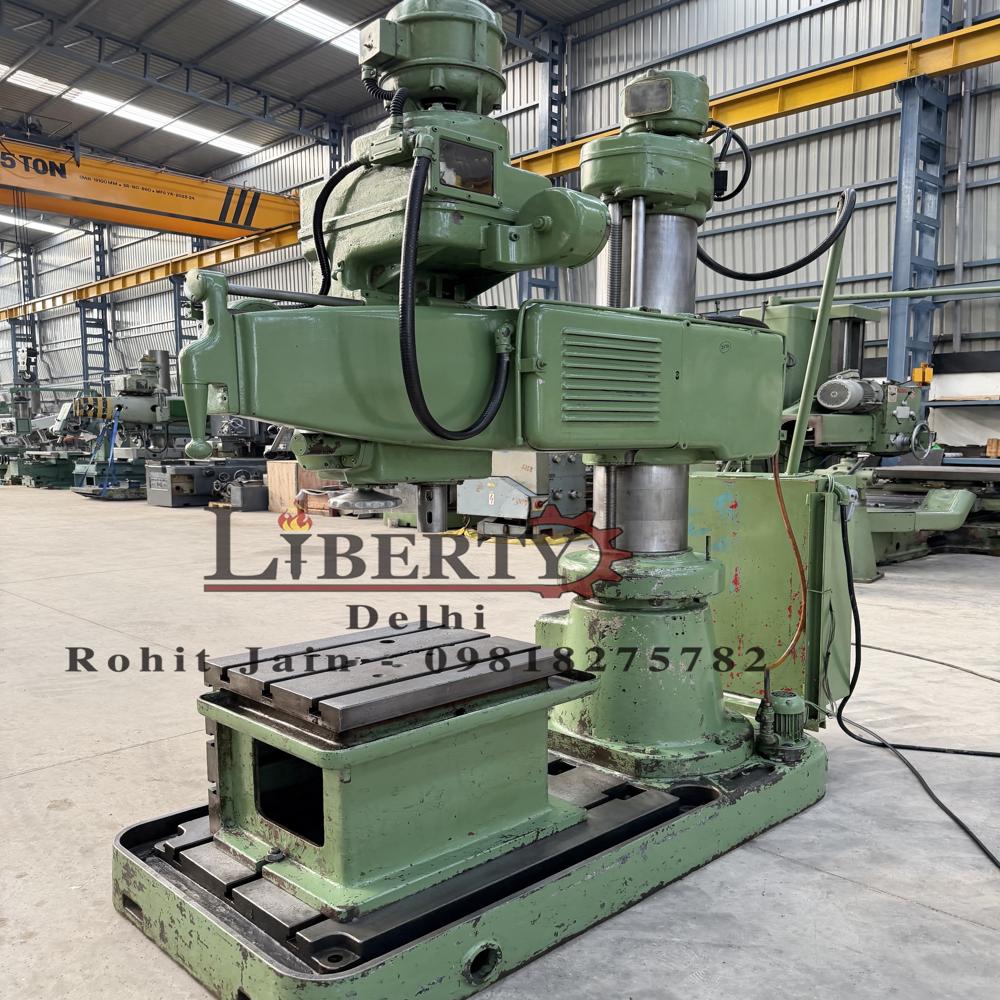

SICMAT Italy 40 mm Capacity Radial Drilling Machine

Name: SICMAT Italy 40 mm Capacity Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SICMAT Italy 40 mm Capacity Radial Drilling Machine Specification

Diameter
40 mm

Condition
Used/Good Working Condition

Dimension (L*W*H)
Approx. 2200 x 950 x 2500 mm

Machine Type
Radial Arm Type

Spindle Speed
65 to 2000 rpm

Motor Power
3 HP

Cutting Area
40 mm Max Drilling Diameter

Noise Level
Low

Features
Robust Construction, Precision Drilling, Easy Operation

Frequency
50 Hz

Table Size
600 x 450 mm

Product Type
SICMAT (Italy) make Radial Drilling Machine in excellent working condition. The machine's model is TRS-1. The Drilling Capacity in Steel is 40 mm and the Arm Length is 950 mm. The technical details are as follows -

Material
Cast Iron

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Hand Lever Mechanical

Voltage
415 V

Power
3 kW

Power Source
Electric

Weight (kg)
Approx. 1800 kg

Capacity
40 mm

Color
Blue/Grey

Usage & Applications
Metal Drilling, Heavy Engineering Workshops, Fabrication

Year of Manufacture
As per stock

Number of Spindle Speeds
8

Taper in Spindle
MT4

Work Table Movement
Vertical & Rotational

Distance Spindle to Base
300 - 1250 mm

Spindle Travel
250 mm

Base Plate Size
1000 x 700 mm

Drilling Arm Length
1300 mm

Distance Spindle to Column
325 - 1325 mm

Coolant Pump
Provided

About SICMAT Italy 40 mm Capacity Radial Drilling Machine

Make - SICMAT (Italy)

Model - TRS-1

Drilling Capacity (in Steel) - 40 mm

Spindle Diameter - 70 mm

Arm Length - 950 mm

Spindle Speeds - 46 rpm to 2058 rpm

Spindle Taper - MT-4

Spindle Feed Travel - 310 mm

Spindle Feed Rate of Travel - 0.05 mm/rev to 0.50 mm/rev

Vertical Travel of Arm - 630 mm

Cube Table Size - 505 mm x 605 mm

Max. Height between Top of Base to Spindle - 1175 mm

Clamping Type - Manual

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/KmSFd3cogXg

Precision and Power Combined

Experience efficiency with a 40 mm drilling capacity and a powerful 3 HP motor. The SICMAT radial drilling machine guarantees accurate hole-making, supported by its robust cast iron frame and spindle speed range from 65 to 2000 rpm. This design ensures smooth drilling operations in even the most demanding workshop environments.

Effortless Adjustability and Operation

Versatility is at the core, thanks to the 1300 mm arm, variable spindle-to-column distance (325-1325 mm), and multi-directional work table movement. The mechanical hand lever system provides simple and precise control for operators, ensuring ease in handling diverse drilling tasks while maintaining consistent results.

FAQ's of SICMAT Italy 40 mm Capacity Radial Drilling Machine:

Q: How can the SICMAT 40 mm Radial Drilling Machine be operated effectively?

A: This machine uses a hand lever mechanical control system, making it straightforward to operate by adjusting the spindle, table, and arm to secure the workpiece and position the drill precisely. Operators can set the desired spindle speed from the eight options to suit various materials and tasks.

Q: What materials and applications is this radial drilling machine suitable for?

A: The machine is ideal for metal drilling operations in heavy engineering workshops, fabrication units, and maintenance departments. Its robust design and 40 mm drilling diameter make it suitable for a wide range of metalworking and fabrication projects.

Q: When should users perform maintenance on the SICMAT radial drill?

A: Regular maintenance is advised, such as cleaning the machine, lubricating moving parts, and checking the coolant pump after each use, with comprehensive checks recommended every few months or as directed by your facility's maintenance schedule.

Q: Where can this radial drilling machine be installed for optimal performance?

A: The machine should be installed in a level, well-ventilated area of an industrial workshop or fabrication facility with access to a 415 V, 50 Hz power source. Ensuring adequate space around the machine (dimensions: approximately 2200 x 950 x 2500 mm) allows for safe operation and movement of large workpieces.

Q: What is the process of changing spindle speeds on this machine?

A: Switching between the eight mechanical spindle speeds is achieved by adjusting the lever controls according to the desired rpm, allowing you to tailor the speed for specific drilling requirements and material hardness.

Q: How does the work table enhance usability and benefit operators?

A: The vertical and rotational movement of the work table allows users to position and align workpieces with ease. This flexibility increases efficiency and precision, reducing setup times and improving the quality of drilled holes.

Q: What are the main benefits of choosing the SICMAT 40 mm radial drill machine?

A: Key advantages include robust construction, precision drilling capabilities, user-friendly operation, low noise levels, and reliability. The included coolant pump enhances drill bit life and work quality, while the machine's used/good working condition offers cost savings for industrial buyers.
