SIP Hydroptic 6A High-Precision Jig Boring Machine

Name: SIP Hydroptic 6A High-Precision Jig Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIP Hydroptic 6A High-Precision Jig Boring Machine Specification

Machine Type

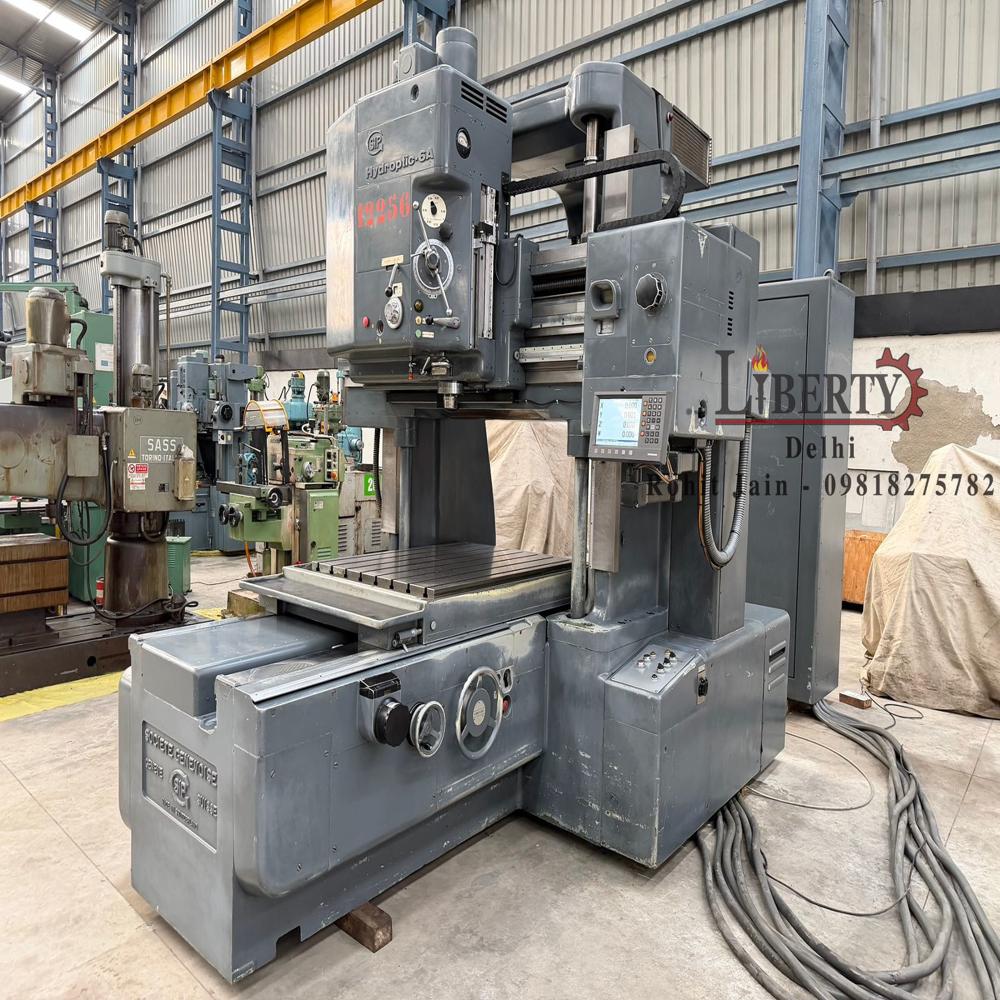

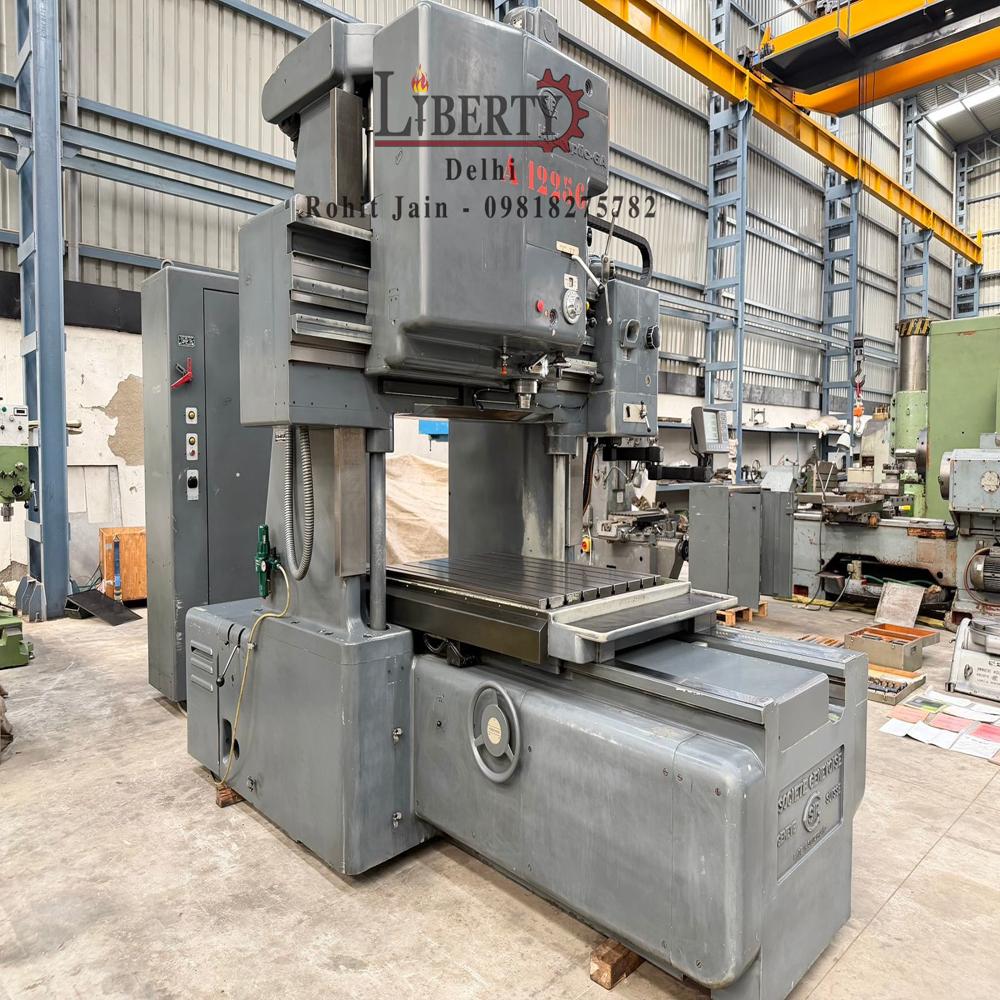

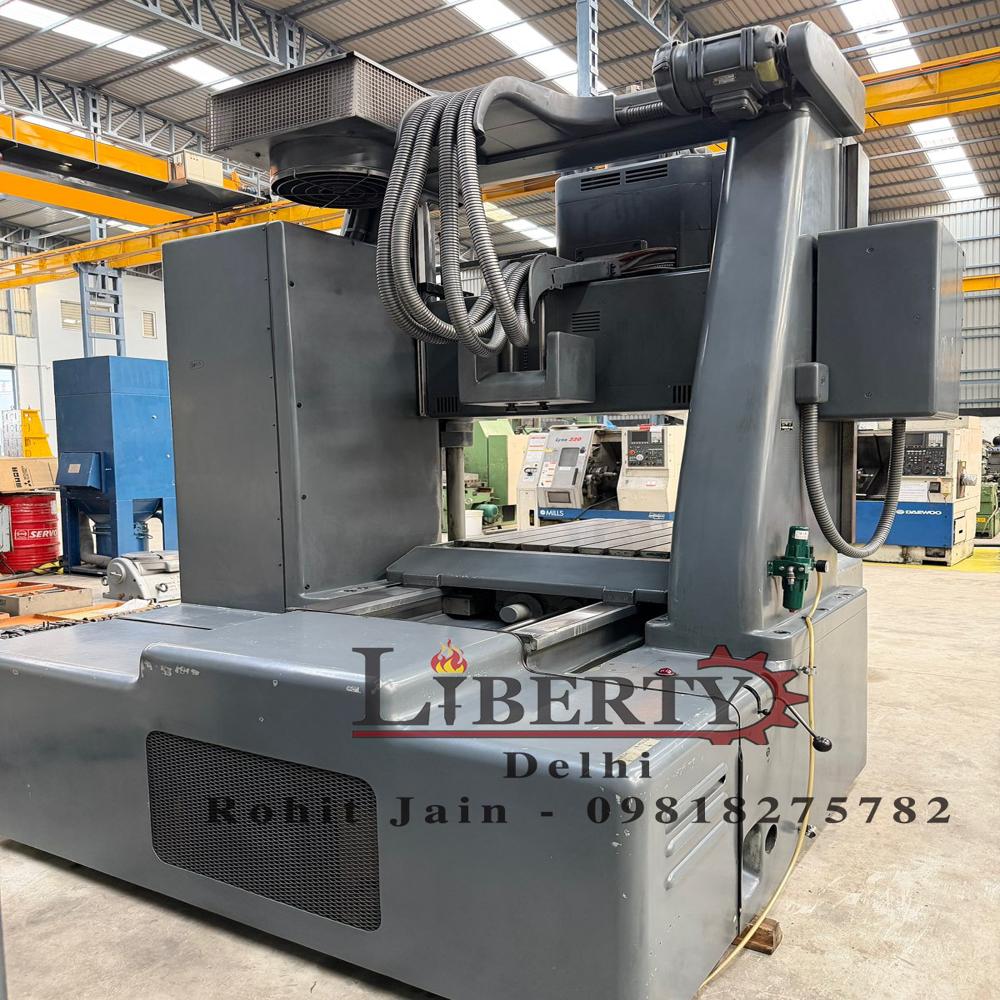

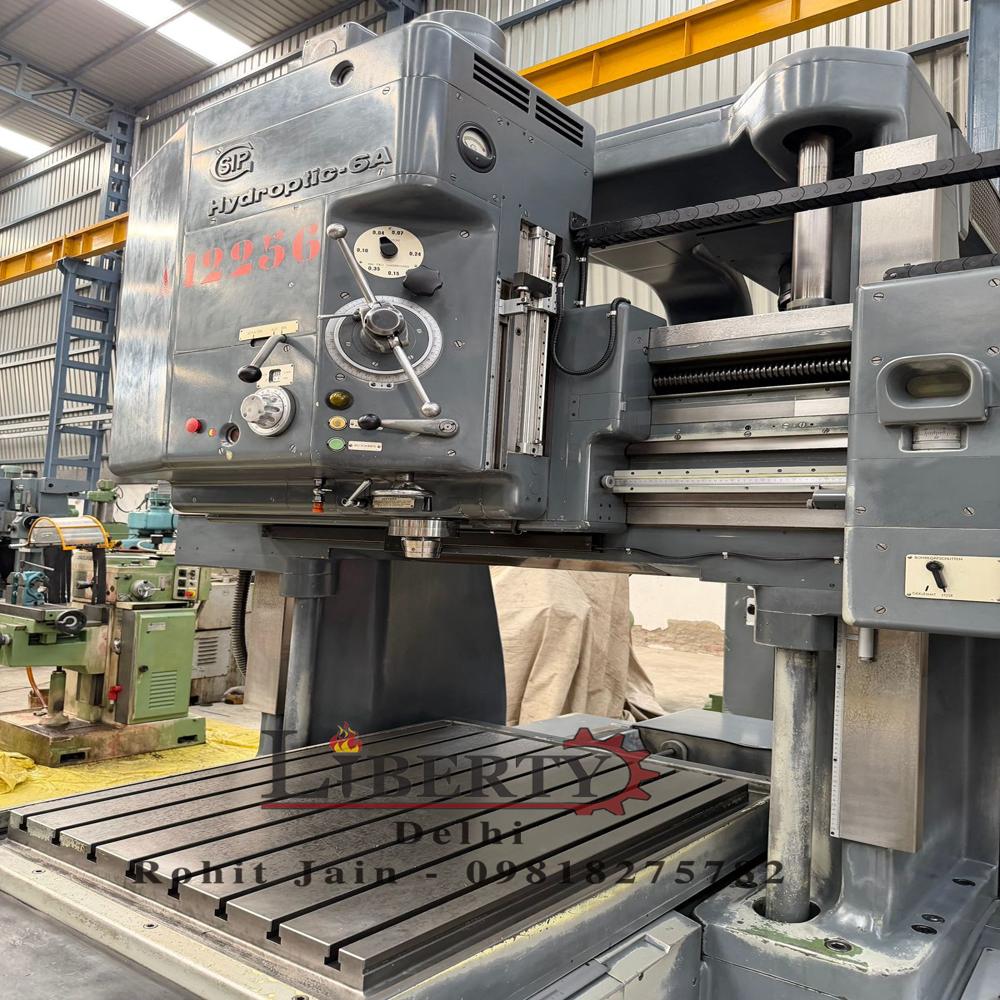

High-precision Jig Boring Machine made by SIP (Switzerland), Model Hydroptic 6A, available in excellent working condition. Machines from SIP (Soci t Genevoise d Instruments de Physique) are globally renowned for their ultra-high accuracy and precision, making them ideal for tool rooms, die & mould work, precision hole location, and coordinate boring applications. The Hydroptic series is specifically designed for fine boring, drilling, and precision machining, where accuracy is critical. This machine is supplied as a complete, well-equipped package, including - SIP PI-5 Tilting & Rotary Table (Diameter 450 mm), 4-Axis Heidenhain DRO system, Multiple SIP micro-boring heads, Assorted tools, drills, and original SIP clamping instruments, Operating manual, electrical drawings, and technical documentation. The technical details are as follows -

About SIP Hydroptic 6A High-Precision Jig Boring Machine

Make - SIP (Switzerland)

Model - Hydroptic 6A

Table Size - 1100 mm x 842 mm

Longitudinal Travels - 1000 mm

Transversal Travels - 700 mm

Distance between Columns - 1100 mm

Max. Height between Spindle to Table - 1000 mm

Spindle Feed Travel - 300 mm

Spindle Speeds - 40 to 2000 rpm

Spindle Taper - Morse No. 4

Spindle Feed Rate - 0.04 mm/rev to 0.35 mm/rev

Spindle Diameter - 135 mm

Table Weight Load Capacity - 1000 kg

- Equipped with 4-Axis Heidenhain DRO.

- Complete with SIP PI-5 Rotating & Tilting type Table (Diameter 450 mm).

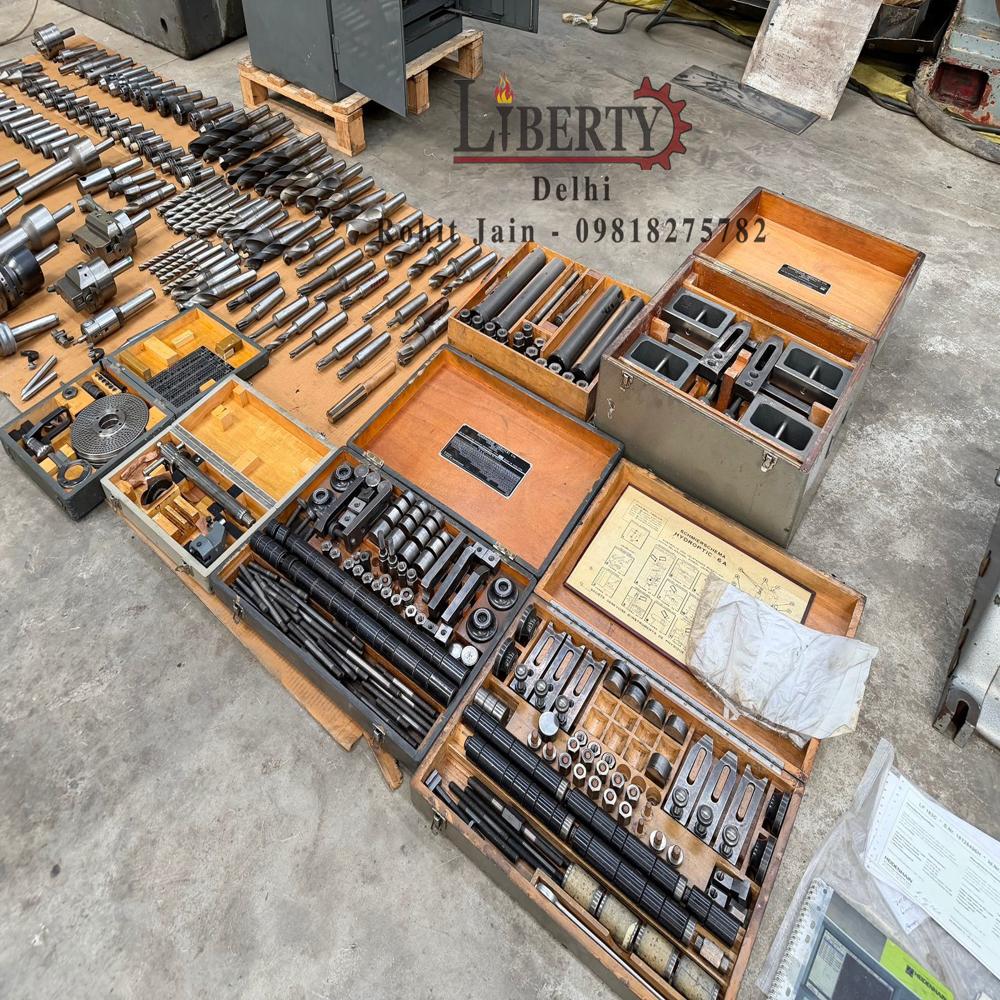

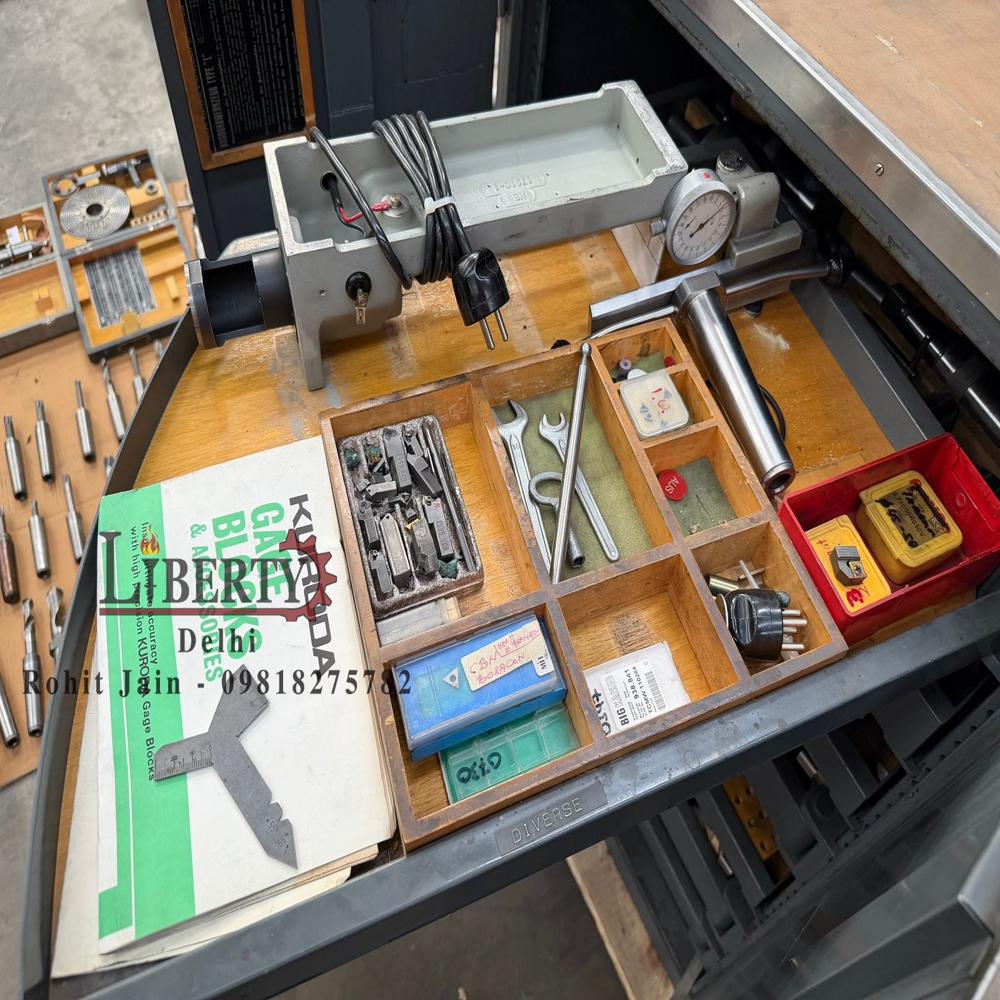

- Complete with multiple SIP micro-boring heads, assorted tools, drills & accessories

- Complete with Operating Manual, Electrical Drawings & other technical documentation.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/BtLfEMGjaFY

Reliable Swiss Precision for Complex Machining

Built by SIP (Societe Genevoise d'Instruments de Physique), the Hydroptic 6A stands as a benchmark in the field of high-precision jig boring. Ideal for critical tasks in tool rooms and precision engineering, it guarantees accurate hole locations and fine finishing with remarkable repeatability. The complete package, including accessories and original documentation, delivers unmatched performance for complex projects.

All-Inclusive Setup Ready for Immediate Use

This machine is supplied in a well-equipped state, featuring a high-quality tilting & rotary table alongside versatile micro-boring heads and original SIP clamping tools. The inclusion of a 4-axis Heidenhain DRO system ensures easy, intuitive operation, while the technical documents provide full support for installation, setup, and ongoing maintenance.

FAQ's of SIP Hydroptic 6A High-Precision Jig Boring Machine:

Q: How does the SIP Hydroptic 6A achieve such high levels of precision?

A: The SIP Hydroptic 6A is engineered with ultra-rigid components and precision-ground guideways, complemented by a state-of-the-art 4-axis Heidenhain DRO system. These factors, paired with SIP's legendary Swiss manufacturing standards, ensure consistently accurate boring and drilling results.

Q: What applications are best suited for the Hydroptic 6A Jig Boring Machine?

A: This machine excels in tool rooms, die & mould manufacturing, and any scenario where coordinate boring or precision hole location is crucial. Its capabilities also make it highly effective for fine boring and detailed machining tasks that demand exceptional accuracy.

Q: When should I consider using a high-precision jig borer like the Hydroptic 6A?

A: You should choose the SIP Hydroptic 6A when your project requires precision beyond what conventional milling or drilling machines can provide, such as in the machining of complex templates, dies, jigs, and moulds that necessitate tight tolerances and accurate hole placement.

Q: Where is the SIP Hydroptic 6A manufactured and why is that significant?

A: This machine is manufactured in Switzerland by SIP, a company globally recognized for its commitment to quality and ultra-precise engineering. Swiss-made equipment from SIP is synonymous with long-lasting reliability and accurate performance in demanding environments.

Q: What process is involved in setting up and operating the machine?

A: The Hydroptic 6A comes complete with an operating manual, electrical diagrams, and technical documentation, which guide users through installation and setup. The 4-axis DRO system and intuitive controls enable straightforward alignment, measurement, and machining of workpieces.

Q: How can the included accessories benefit my machining operations?

A: Accessories such as the PI-5 Tilting & Rotary Table and multiple SIP micro-boring heads greatly expand the machine's versatility, allowing users to perform complex, multi-axis operations with ease while ensuring optimal clamping and repeatability for high-quality results.
