Stanko Russia 5350 Spline Shaft Hobbing Machine

Name: Stanko Russia 5350 Spline Shaft Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Stanko Russia 5350 Spline Shaft Hobbing Machine Specification

Feature
Robust construction, precision machining

Weight
Approx. 3500 kg

Capacity
Handles shaft diameters up to 250 mm

Used For
Hobbing splines, gears, and shafts

Power
7.5 kW

Machine Type

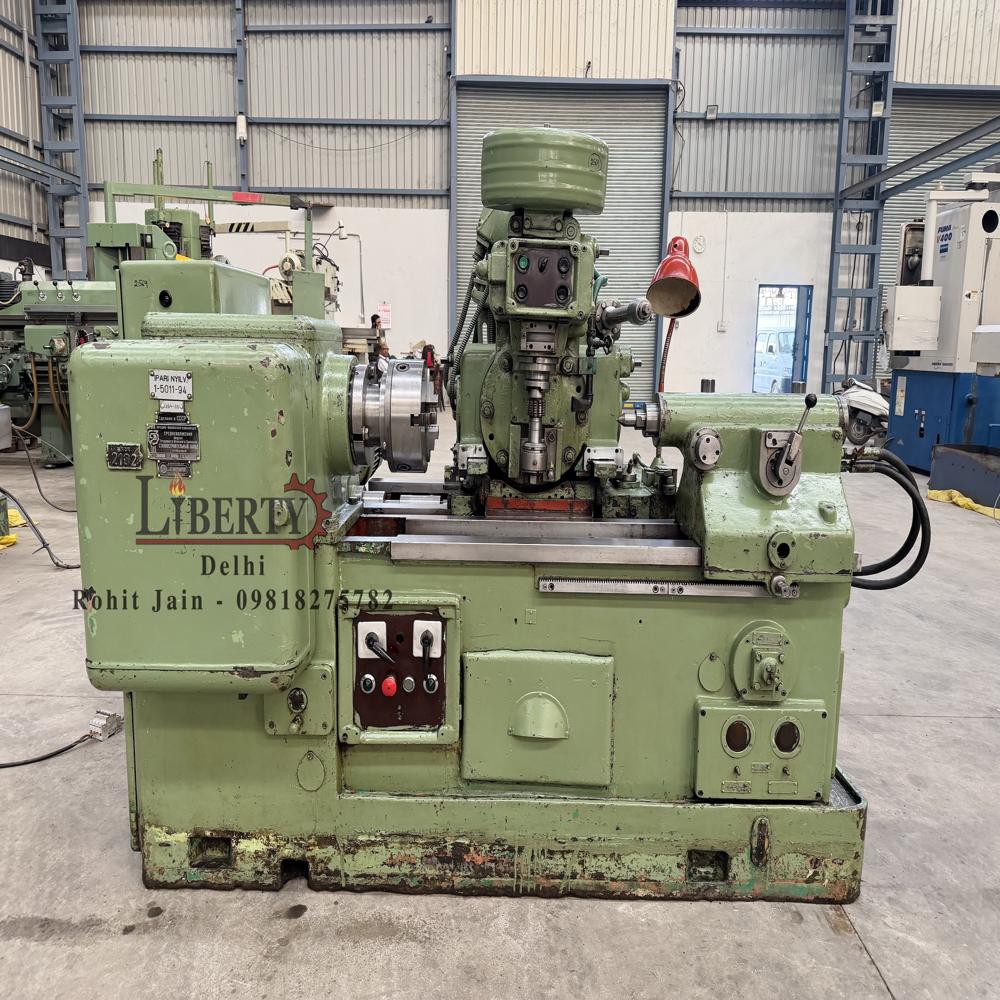

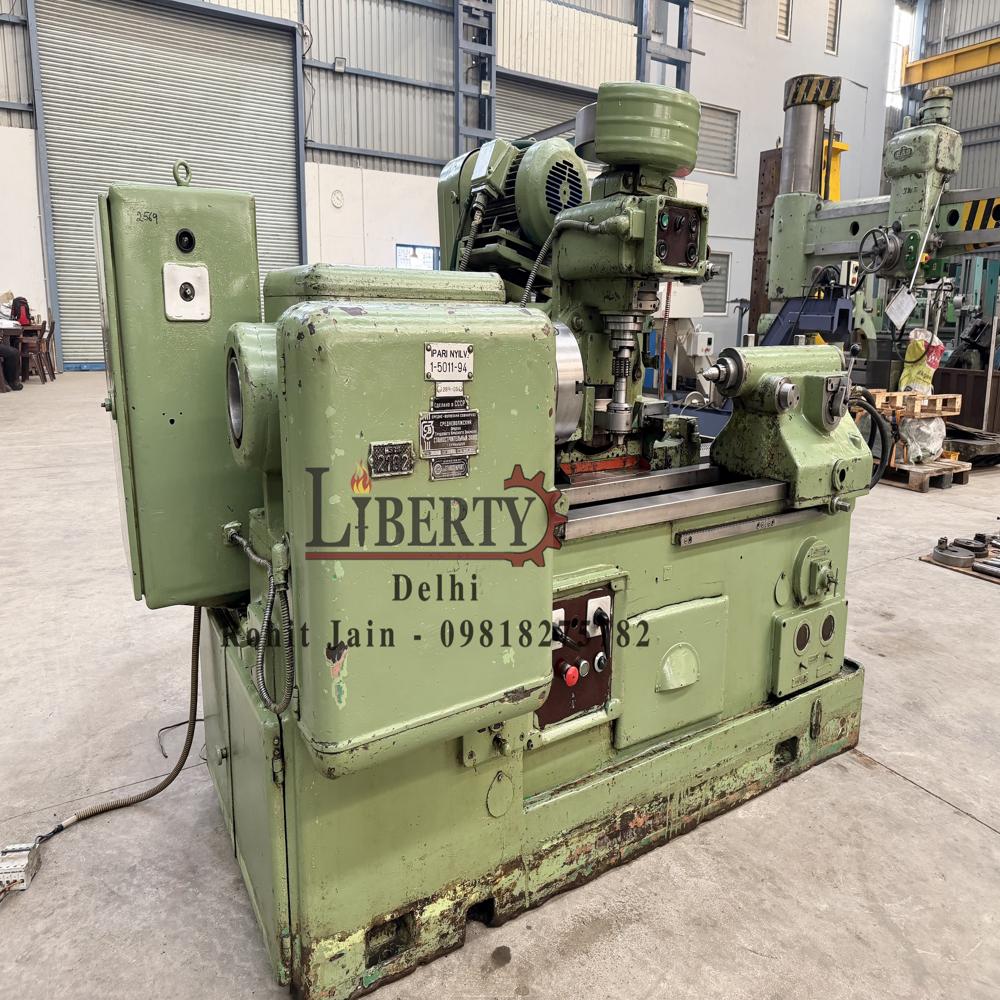

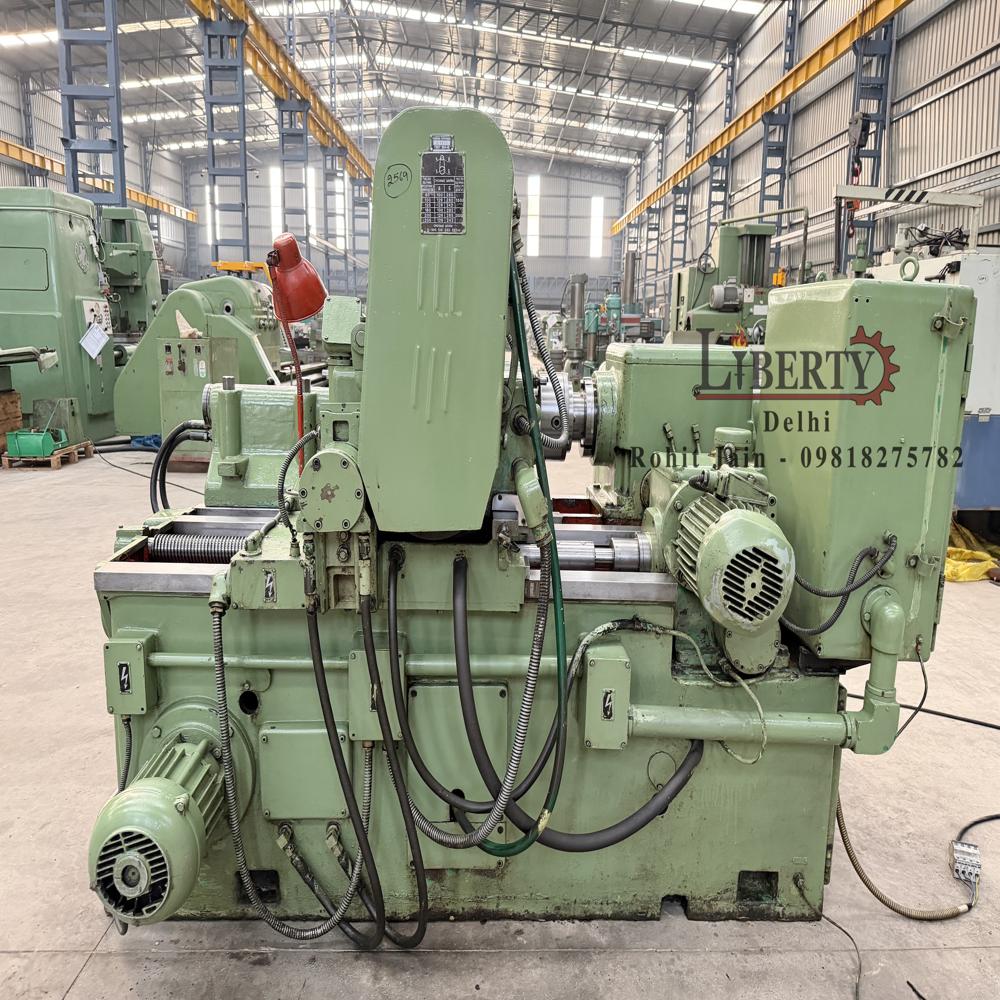

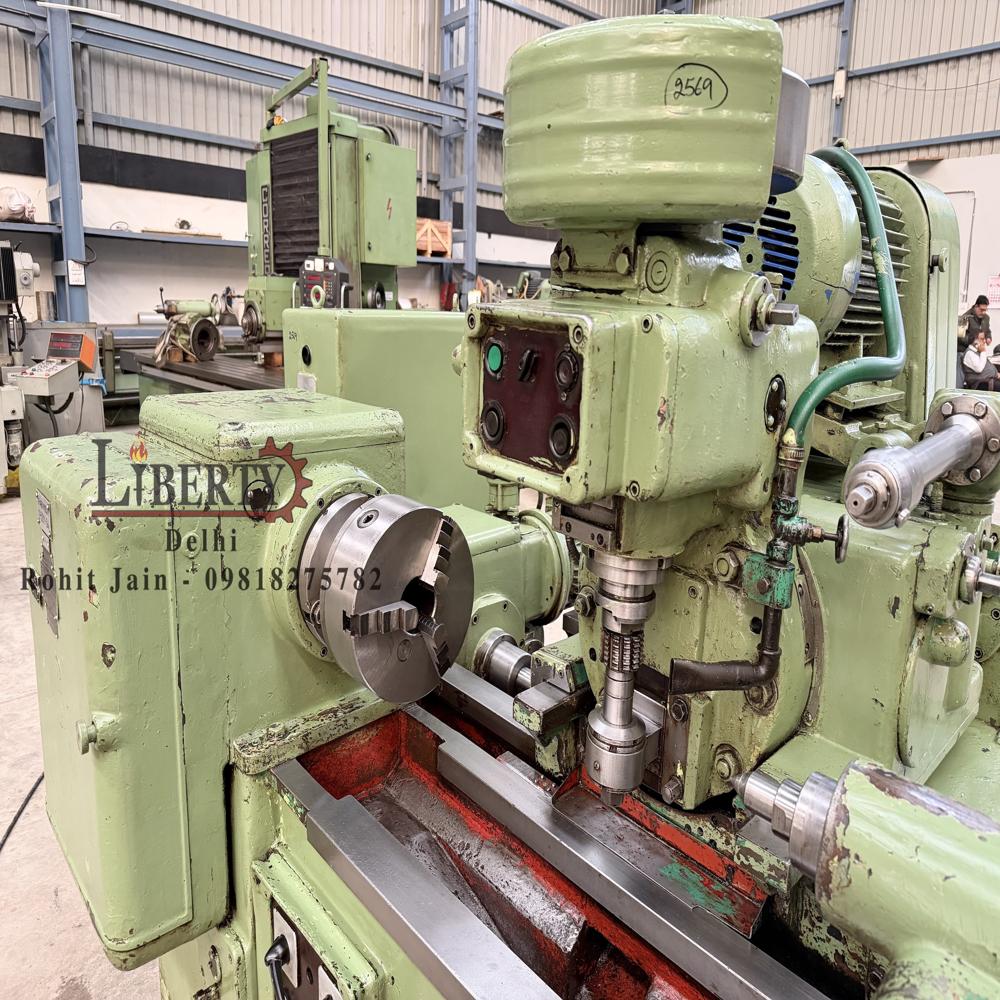

Stanko (Russia) make Spline Shaft Hobbing Machine, model 5350, in excellent working condition. This is a horizontal type machine, ideally suited for spline shaft hobbing as well as for machining gears that are integrated with shafts. The technical details are as follows -

Voltage
415 V, 3 Phase

Output
Capable of cutting various spline profiles

Condition
Used

Color
Industrial Green

Dimension (L*W*H)
Approx. 2500 x 1200 x 1600 mm

Application
Automotive, manufacturing, heavy machinery, and gear production industries

Max Workpiece Diameter
Approx. 180 mm

Drive
Electric motor drive

Number of Feeds
Stepless feed adjustment

Country of Supply
India (imported used machinery market)

Lubrication
Centralized automatic lubrication

Control Type
Conventional Mechanically Operated

Model
Stanko 5350

Table Hole Diameter
Approx. 110 mm

Max Hobbing Length
1000 mm (approximate, varies by setup)

Hob Diameter
Up to 160 mm

Work Table Speed Range
Variable, typically 10-100 RPM

Max Workpiece Length
Approx. 1500 mm

Coolant System
Integrated

Hob Head Swivel Angle
45

Stanko Russia 5350 Spline Shaft Hobbing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Stanko Russia 5350 Spline Shaft Hobbing Machine

Make - Stanko (Russia)

Model - 5350

Max. Module Capacity - 6 Modules

Max. Hobbing Length - 500 mm

Max. Gear Cutting Diameter - 150 mm

Max. Distance between Centers - 750 mm

Spindle Bore - 105 mm

Hob Cutter Rotation Speeds - 80 rpm to 250 rpm

No. of Teeth - 4 to 36

Max. Swing Diameter over Bed - 500 mm

Max. Swing Diameter over Hob-Cutter Slide - 300 mm

- Equipped with Hydraulic Tail-Stock & complete with many accessories.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/RBCzKYIQDU4

Precision Spline and Gear Hobbing

Engineered for excellence, the Stanko 5350 hobbing machine specializes in cutting splines and gears, particularly those that are integrated into shafts. Combining precise table indexing and selectable feed rates, it delivers exceptional accuracy and repeatability for demanding industrial applications. Its integrated coolant and lighting systems enhance operator comfort and machining consistency.

Versatile Application Across Sectors

This machine excels in automotive, heavy engineering, and general industrial settings. Its ability to handle lengthy and substantial workpieces makes it well-suited for manufacturing diverse shaft and gear profiles. The machine's robust 7.5 kW power output and industrial-grade design ensure consistent, high-capacity performance for a range of production requirements.

FAQ's of Stanko Russia 5350 Spline Shaft Hobbing Machine:

Q: How do I operate the Stanko Russia 5350 hobbing machine for spline and gear cutting?

A: Operation is manual, involving secure clamping of the workpiece, selecting the desired feed rate, and setting the spindle speed between 40 and 300 RPM. The process is streamlined with indexed table movement up to 360, allowing precise positioning for successive cuts.

Q: What workpiece dimensions can this machine accommodate?

A: The Stanko 5350 can handle workpieces of up to 800 mm in length and diameters up to 250 mm, making it suitable for a variety of shaft and gear sizes commonly used in industrial and automotive settings.

Q: When is it beneficial to use this machine over other types of hobbing machines?

A: This machine is particularly advantageous when working with long shafts or when precise spline or integrated gear profiles are required. Its robust construction and precise feed controls offer reliable performance for both one-off and batch productions.

Q: Where can the Stanko 5350 be effectively utilized?

A: The machine is ideal for use in production workshops within automotive, heavy engineering, and general manufacturing sectors, where durable hobbing and consistent results for shafts, splines, and gears are essential.

Q: What is the process for changing feed rates or spindle speeds?

A: Feed rates are selectable via the machine's manual controls, allowing the operator to tailor the cutting speed and feed according to material and job requirements. Spindle speeds can be adjusted between 40-300 RPM to suit different cutting operations.

Q: How does the integrated coolant and lighting system benefit the user?

A: The built-in coolant system helps maintain appropriate temperatures during cutting, preserving tool life and workpiece quality. The integrated work lamp ensures clear visibility of the machining area, promoting accuracy and safety.

Q: What tooling and accessories are included with the machine?

A: Standard tooling required for spline and gear hobbing accompanies the machine, enabling immediate operation. However, no additional or extra accessories are included beyond the standard configuration.
