Stanko Russia 570 mm Stroke Heavy Duty Vertical Slotting Machine

Name: Stanko Russia 570 mm Stroke Heavy Duty Vertical Slotting Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Stanko Russia 570 mm Stroke Heavy Duty Vertical Slotting Machine Specification

Machine Type
Vertical Slotting Machine

Voltage
415V, 3 Phase (Standard for industrial machines in India)

Model No
Stanko Russia 570 mm Stroke

Control System
Manual and Mechanical Control Levers

Features
Heavy-duty construction, large rotary table, rigid column, cross and longitudinal feed

Accuracy
High for heavy-duty slotting operations

Frame Type
Heavy Cast Iron Frame

Connectivity Options
Not Digital; traditional manual controls

Operating Temperature
Ambient Industrial (5C to 45C)

Noise Level
Typical industrial (approx. 75-85 dB under loaded running)

Cooling System
Provision for Flood Coolant System

Plastic Processed
Not Applicable (for Metals only)

Lubricating System
Centralized lubrication (manual or automatic as fitted)

Frequency
50 Hz

Power Rating
7.5 kW

Drive
Mechanical Gear Drive

Production Capacity
Heavy-duty, suitable for thick workpieces

Motor Power
Approx. 7.5 kW (10 HP)

Product Type
Vertical Slotting Machine

Technology
Mechanical Heavy Duty

Power Source
Electric

Operating Type
Semi-Automatic / Manual Controls

Power
Approx. 7.5 kW (10 HP) (Typical for this class of machine)

Pressure
Not Applicable (Heavy Duty Mechanical Slotting)

Surface Treatment
Painted

Dimension (L*W*H)
Approx. 2200 x 1600 x 2800 mm

Weight (kg)
Estimated 4000-5000 kg

Color
Beige and Blue

Usage & Applications
Slotting / Keyway Cutting / Grooving in heavy-duty workpieces

Maximum Table Load
Up to 1200 kg (Typical for this size)

Feed Type
Mechanical hand feed for table movements

Rotary Table Diameter
Approx. 800 mm

Safety Features
Emergency stop, belt guards

Operator Skill Level
Skilled machinist recommended

Longitudinal Travel of Table
Approx. 900 mm

Maximum Stroke Length
570 mm

Cross Travel of Table
Approx. 800 mm

Legacy/Make
Original Stanko (Russian origin, heavy-duty legacy type)

Maintenance
Periodic lubrication and checks on wear surfaces

Maximum Height Under Ram
Approx. 850 mm

Coolant Pump Motor
Standard: 0.25-0.37 kW

Tool Head Adjustment
Manual Swivel Head

Main Spindle Speed
Variable, stepped via gearbox

Number of Speeds
Stepped (Usually 6-8 speeds)

Installation Requirement
Level floor, industrial 3-phase power

Application Industries
Heavy Engineering, Gear manufacturing, Machine building, Maintenance workshops

Suitable Material
Steel, Cast Iron, Alloys, Non-ferrous metals

Table Indexing
Manual or Power driven

Ram Type
Heavy box-section ram

About Stanko Russia 570 mm Stroke Heavy Duty Vertical Slotting Machine

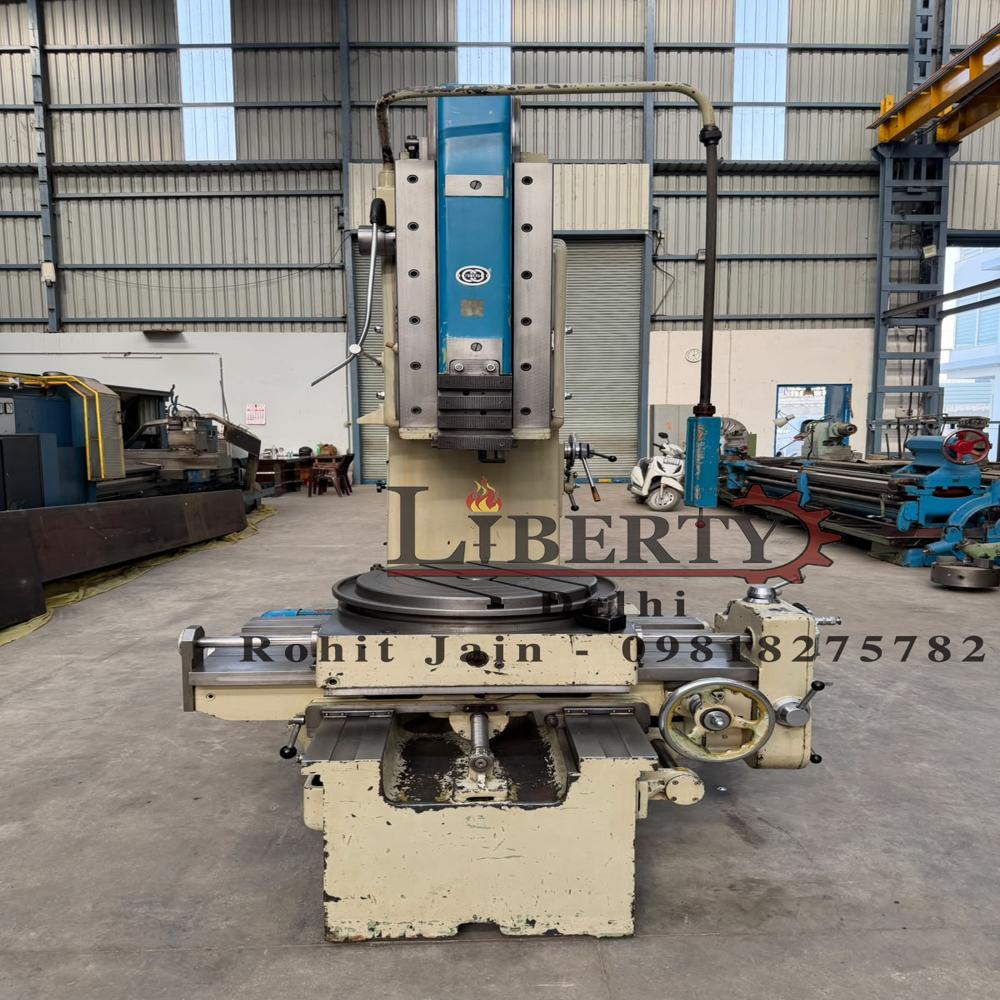

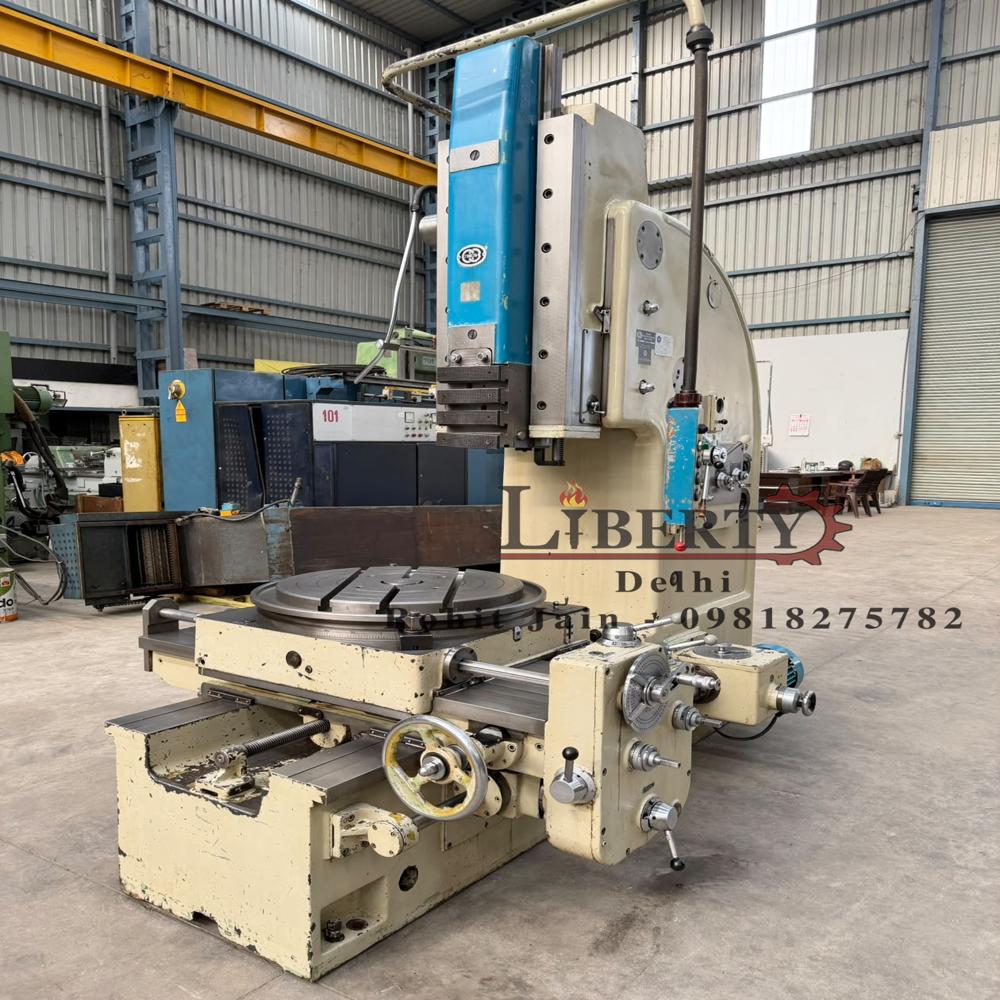

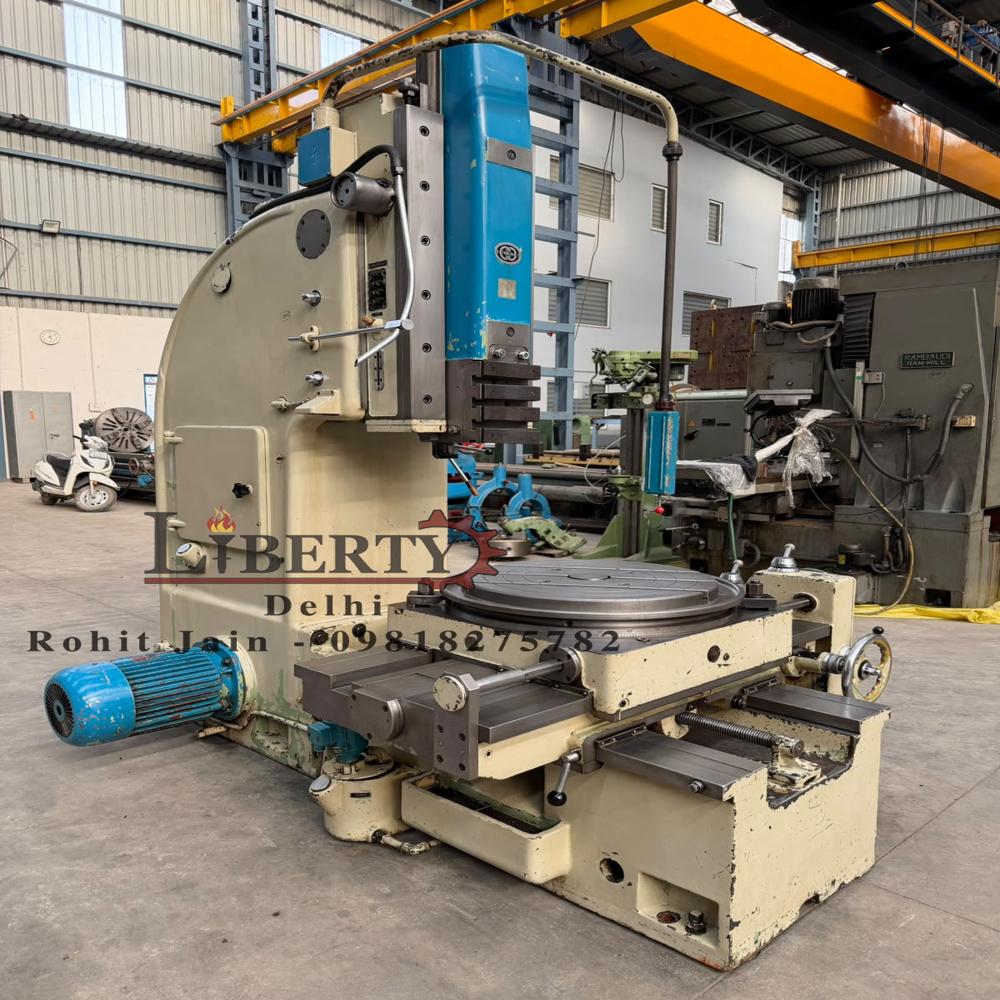

Heavy Duty Vertical Slotting Machine made by Stanko (Russia), Model 7M430, available in excellent working condition. The machine features Automatic Feed and Rapid Travels on all three table movements - Longitudinal, Cross and Rotary Table - making it highly suitable for heavy-duty production slotting operations. It has a Maximum Stroke Length of 570 mm. The Slotting Head is tiltable up to 10 degree, making it suitable for taper slotting and angular slotting operations. The technical details are as follows -

Make - Stanko (Russia)

Model - 7M430

Max. Stroke Length - 570 mm

Table Diameter - 630 mm

Longitudinal Travel - 650 mm

Cross Travel - 510 mm

Height between Table and Machine Body - 475 mm

Distance between Toolhead Edge to Column - 600 mm

Max. Distance between Table Center to Column - 1100 mm

Feed Rates - 0 to 2.4 mm/stroke

Head Tilting Range - 0 degree to 10 degree

Machine Weight - 5.50 Tons (Approximately)

- Automatic Feed & Rapid Travels on Rotary Table, Cross and Longitudinal Movements.

- Electrical Drawings & Operating Manuals are available.

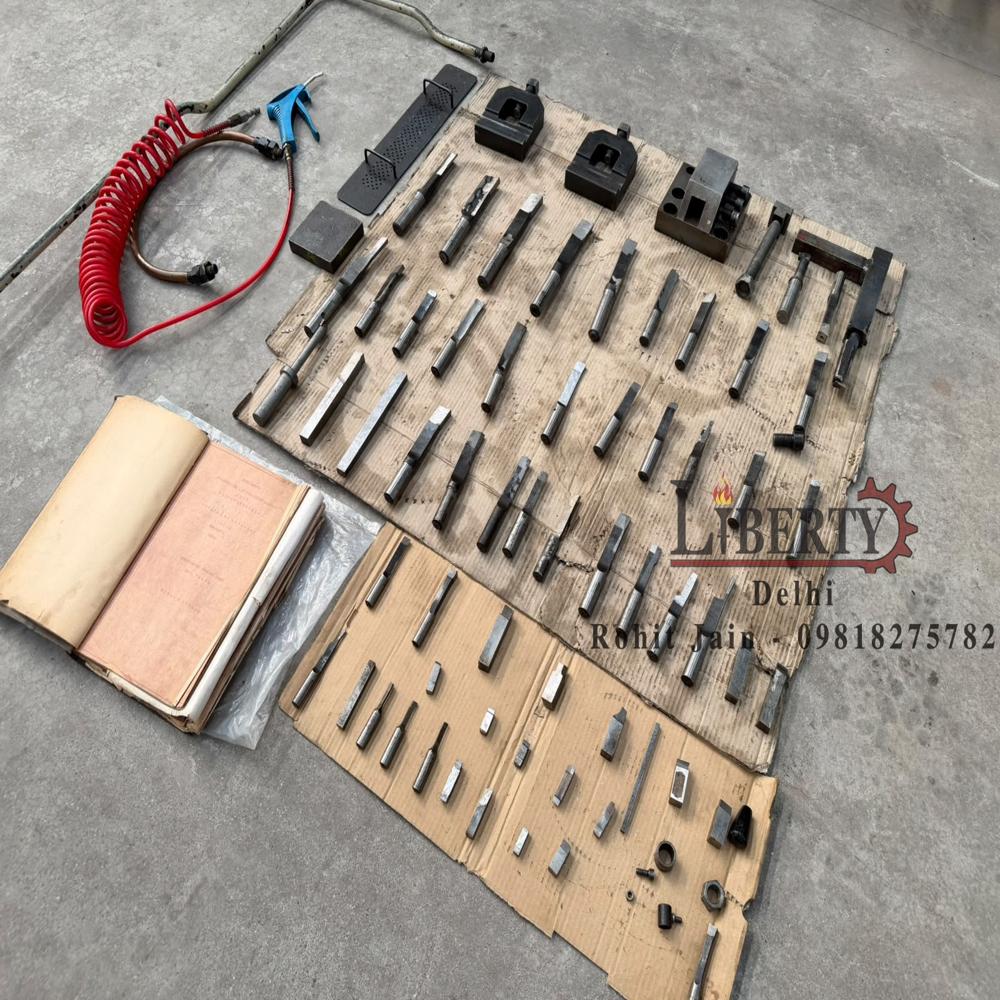

- Complete with Tool Holders and various Slotting Tools.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/l-yLj21lVS8

Engineered for Heavy-Duty Industrial Demands

The Stanko Russia 570 mm Stroke Vertical Slotting Machine stands out for its exceptional durability and precision, suitable for demanding sectors such as heavy engineering, gear manufacturing, and maintenance workshops. Its rugged cast iron frame and large rotary table make this slotter reliable for thick workpiece operations, ensuring consistent quality and minimal downtime during intensive industrial tasks.

Superior Performance & User-Focused Operation

Designed with the machinist in mind, this slotting machine combines robust mechanical controls, manual and power-driven indexing options, as well as a versatile swivel head for tool adjustment. Operating efficiently on a 415V, 3-phase power supply, it features effective lubrication and cooling systems, essential for prolonged use with tough metals. With its semi-automatic/manual controls, skilled operators can achieve precise slotting and keyway cutting every time.

FAQ's of Stanko Russia 570 mm Stroke Heavy Duty Vertical Slotting Machine:

Q: How is the Stanko Russia 570 mm Stroke Vertical Slotting Machine operated?

A: The machine is operated manually using mechanical control levers and feed mechanisms. Table movements are achieved with hand feeds, while spindle speeds are selected through a stepped gearbox. Both manual and power-driven table indexing are available for enhanced flexibility during slotting operations.

Q: What materials can be processed with this slotting machine?

A: This vertical slotter is suitable for working with steel, cast iron, various alloys, and non-ferrous metals. It is designed specifically for metal machining and is not suitable for plastics or non-metallic materials.

Q: When should maintenance be performed on the machine?

A: Routine maintenance should include periodic lubrication, inspection of wear surfaces, and checks on the mechanical and safety systems. Regular care ensures long-term reliability and maintains high accuracy during heavy-duty slotting operations.

Q: Where is the ideal environment to install the slotting machine?

A: Installation is recommended on a stable, level floor within an industrial setting equipped with a standard 415V, 3-phase power supply. Ambient industrial temperatures between 5C and 45C are optimal for safe operation.

Q: What is the process for cutting keyways or slots on this machine?

A: Mount the workpiece on the rotary table, secure the tool, and select the desired spindle speed. Use manual or power-driven indexing to position the table, then operate the ram to cut keyways or grooves in controlled, precise strokes. Coolant and lubrication systems should be engaged as needed.

Q: How does this machine benefit heavy engineering companies?

A: The Stanko Russia slotting machine delivers robust performance, high accuracy, and adaptability for diverse tasks such as slotting, keyway cutting, and grooving in large, heavy components. Its heavy-duty build ensures durability and productivity, supporting continuous operations in industrial environments.
