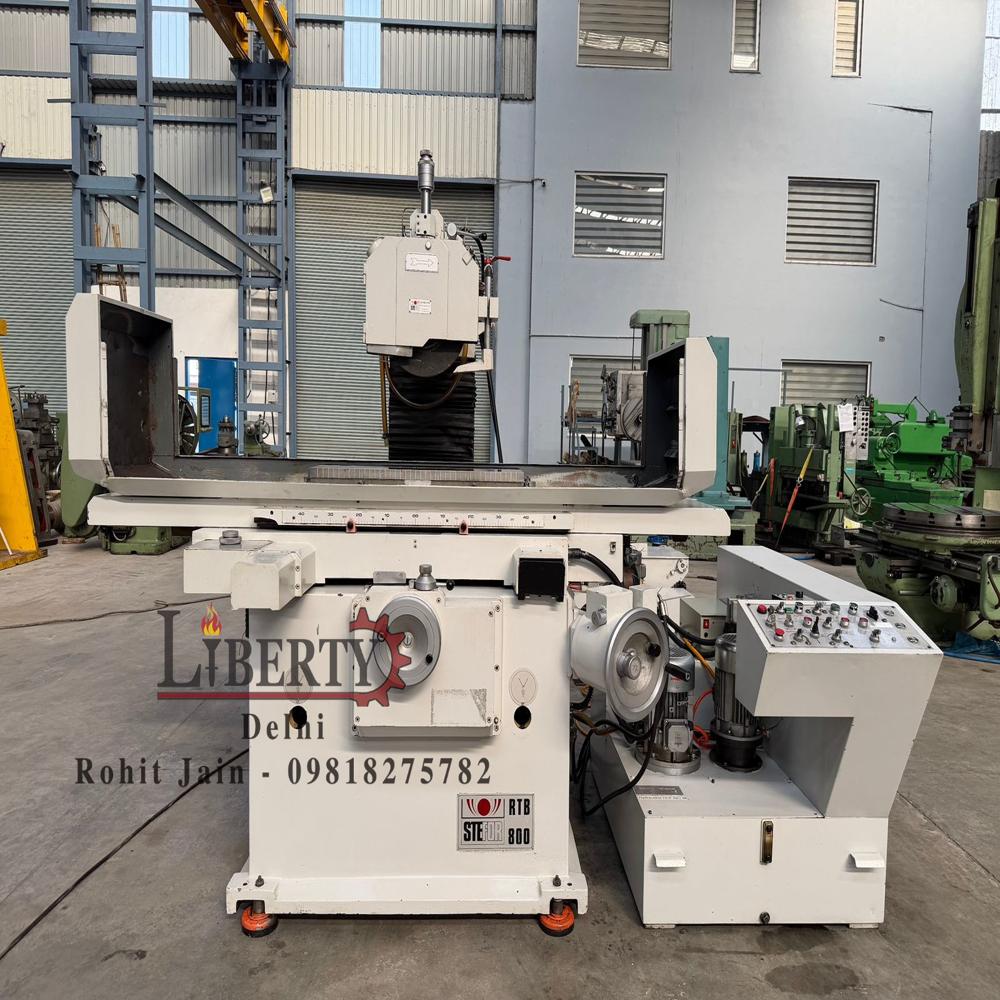

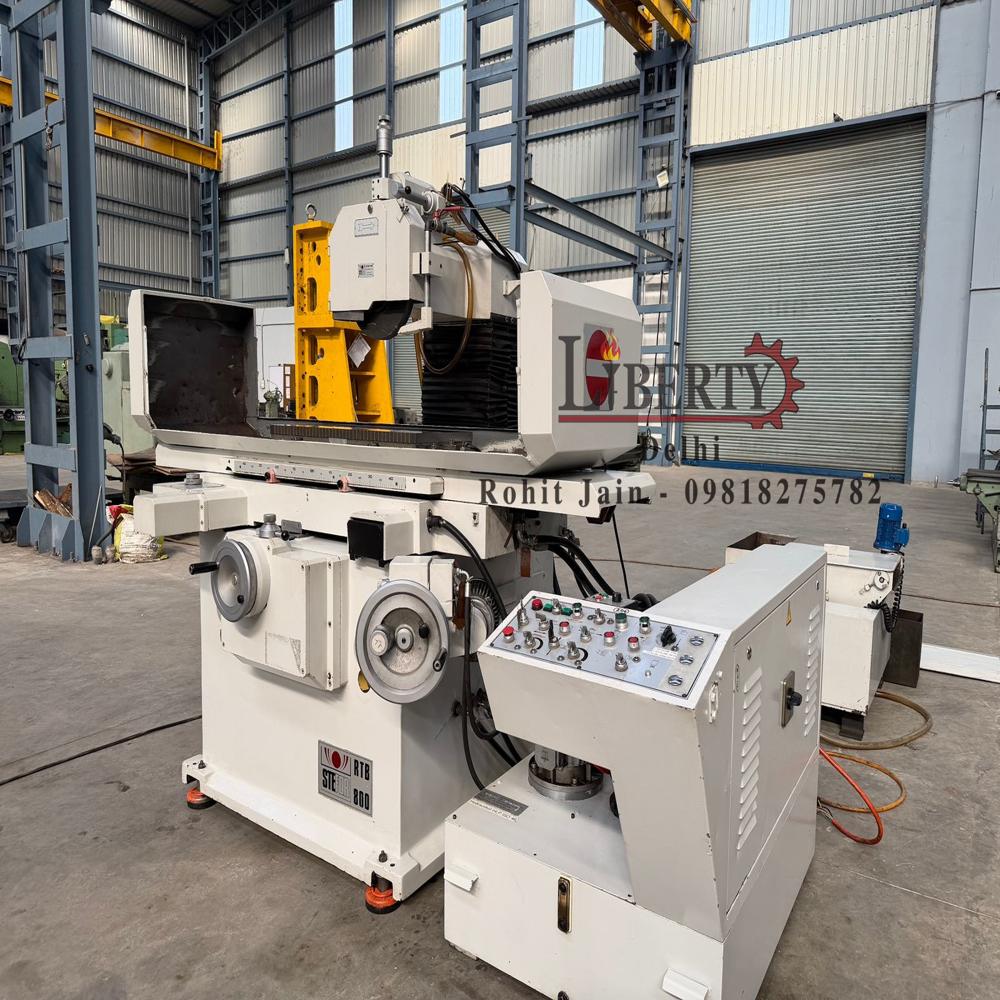

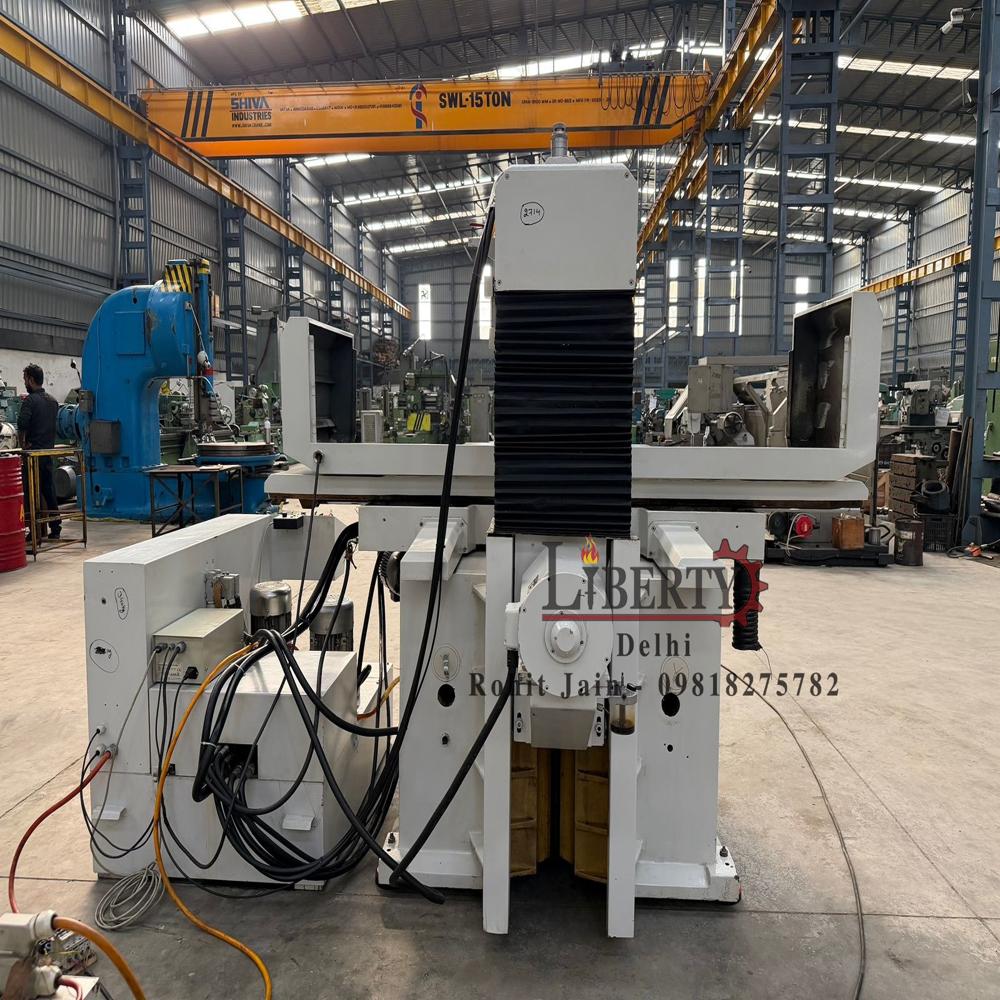

Stefor Italy RTB-800 Surface Grinding Machine

Send Inquiry

Request To Call Back

Stefor Italy RTB-800 Surface Grinding Machine

Name: Stefor Italy RTB-800 Surface Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Stefor Italy RTB-800 Surface Grinding Machine Specification

General Use
Stefor (Italy) make High-Precision Surface Grinding Machine in excellent working condition. The model of the machine is the RTB-800 and the Magnet Size is 350 mm x 800 mm. The machine has Micro-Feed Travels on both the Cross Travels and on the Vertical Travels. The machine is complete with Hydraulic Wheel Dresser, Coolant Filtration Unit, Coolant Tank, Pump, Spare Wheel Flange, Splash Guards, Wheel-Balancing Shaft etc. It is a Fully Automatic type machine with features of Automatic Depth Adjustment "Auto-Cut" and Plunge Grinding. The technical details are as follows -

Stefor Italy RTB-800 Surface Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Stefor Italy RTB-800 Surface Grinding Machine

Make - Stefor (Italy)

Model - RTB-800

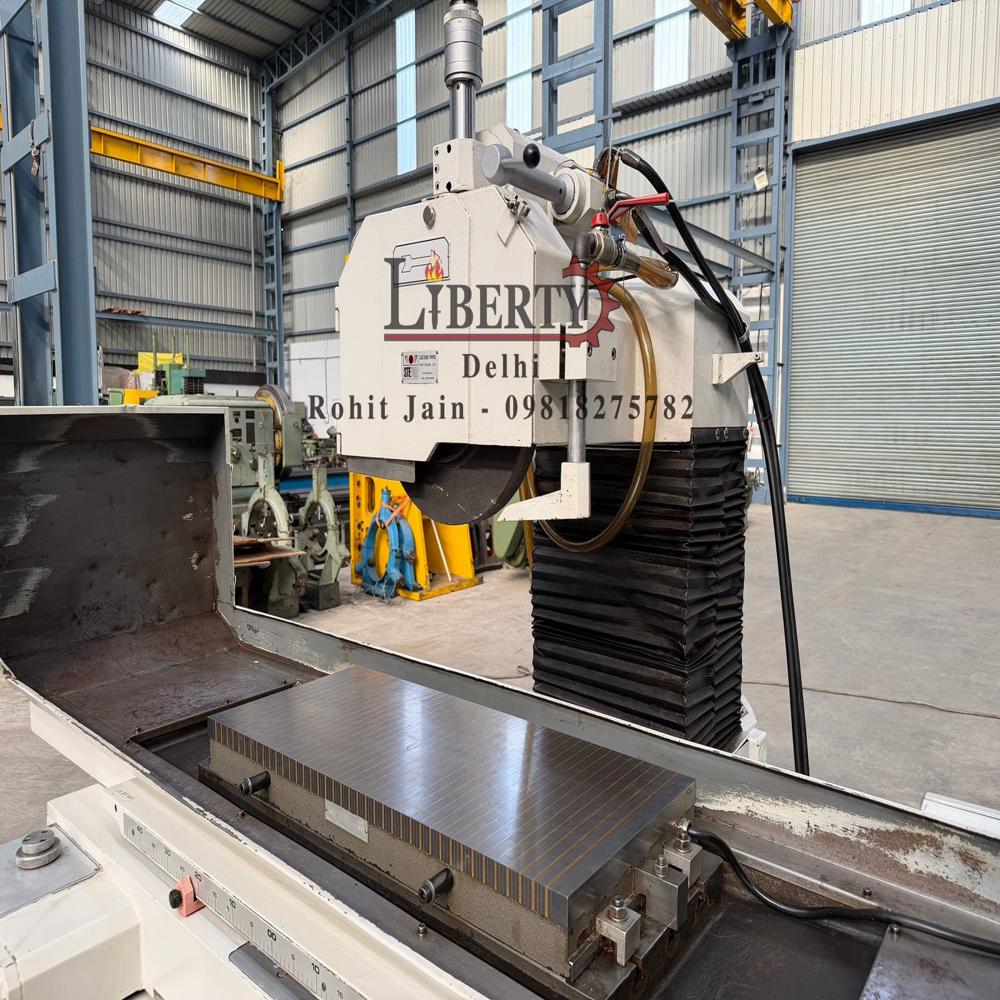

Magnet Size - 350 mm x 800 mm

Longitudinal Travels - 925 mm

Cross Travels - 450 mm

Grinding Wheel Size - Diameter 400 mm x 50 mm Width

Max. Height between Magnet Top to Wheel Center - 445 mm

Least Count of Vertical Travel - 2 Microns (0.002 mm)

Least Count of Cross Travel - 1 Micron (0.001 mm)

- Equipped with a Wheel-Top Mounted Hydraulic Wheel Dresser.

- Features of Automatic Depth Adjustment, Automatic Plunge Grinding, etc.

- Micro-Feed Adjustments in Vertical Travels and also in Cross Travels.

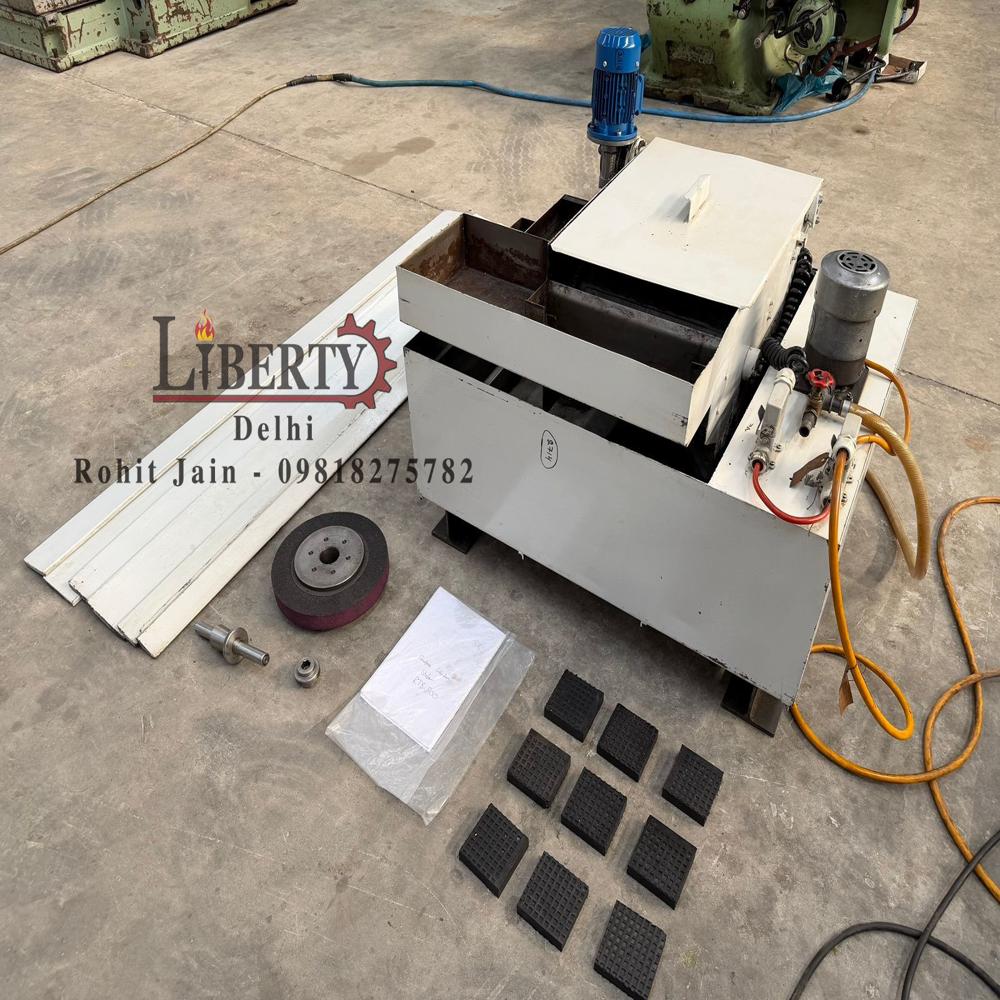

- Complete with spare Wheel Flange, Wheel-Balancing Shaft, Splash Guards etc.

- Complete with Coolant Filtration Unit, Coolant tank & Coolant Pump.

- Electrical Drawings of the Machine is available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/qQOycfxybhQ

Engineered for Precision

The RTB-800 boasts micro-feed controls on both the cross and vertical axes, enabling users to fine-tune material removal for high-precision components. With automatic depth adjustment and plunge grinding, the machine ensures consistent finishes and efficient workflows.

Comprehensive Accessory Package

This grinder arrives fully equipped-hydraulic wheel dresser, coolant tank and pump, splash guards, spare flanges, and more. The included coolant filtration system helps maintain a clean workspace and prolongs machine life, supporting continuous industrial use.

FAQ's of Stefor Italy RTB-800 Surface Grinding Machine:

Q: How does the Automatic Depth Adjustment feature benefit operators using the RTB-800?

A: The Automatic Depth Adjustment (Auto-Cut) ensures that the machine precisely controls grinding depth, minimizing manual input and reducing the risk of errors, which leads to consistent, high-quality surface finishes and improved productivity.

Q: What grinding processes can the Stefor RTB-800 perform?

A: This model supports both standard surface grinding and plunge grinding, making it versatile for various applications ranging from component smoothing to material removal with controlled accuracy.

Q: When should coolant and filtration units be maintained on the RTB-800?

A: Regular maintenance of the coolant tank, filtration unit, and pump should be conducted as part of routine operational checks-typically after extended use or whenever coolant quality decreases-to ensure optimal performance and prolong machine lifespan.

Q: Where is the Stefor RTB-800 best utilized?

A: The RTB-800 is ideally employed in manufacturing plants, workshops, or export facilities requiring high-precision surface finishing for parts, including suppliers, traders, and manufacturers working with metals or engineered materials.

Q: What is the process for changing the grinding wheel on this machine?

A: To change the grinding wheel, use the provided spare wheel flange and wheel-balancing shaft for safe removal and replacement. Follow manufacturer guidelines for securing the new wheel and rebalancing to maintain smooth, accurate operation.

Q: How does micro-feed adjustment enhance surface grinding outcomes?

A: Micro-feed controls on both the cross and vertical travels allow minute, precise movement adjustments. This ensures accurate material removal and uniform surface finish, especially critical in tolerance-sensitive operations.

Q: What safety features are included with the RTB-800 Surface Grinding Machine?

A: The RTB-800 comes standard with splash guards and a hydraulic wheel dresser, which help to protect the operator and maintain a clean environment during grinding operations.
