Send InquiryStefor Italy RTS-1100 Automatic Surface Grinding Machine
Price 100000.0 INR/ Piece
MOQ : 1 Piece
Stefor Italy RTS-1100 Automatic Surface Grinding Machine Specification
- General Use
- Automatic Surface Grinding Machine manufactured by Stefor (Italy), Model RTS-1100, available in excellent working condition. The machine has a Grinding Capacity of 500 mm x 1100 mm and is equipped with a 400 mm x 810 mm Magnetic Chuck. It is a High-Precision Hydraulic Surface Grinding Machine featuring Automatic Plunge Grinding and Automatic Depth Adjustment (Auto-Cut). It offers Micro-Feed Adjustment in the Cross Travel with a Least Count of 1 Micron (0.001 mm). It is also equipped with a Top-Mounted Hydraulic Wheel Dresser featuring Automatic Depth Increase. The machine is complete with a Coolant Filtration Unit, Coolant Tank, Coolant Pump, Splash Guards, Spare Wheel Flange, Wheel Balancing Shaft, and other accessories. The technical details are as follows -
About Stefor Italy RTS-1100 Automatic Surface Grinding Machine
Make - Stefor (Italy)
Model - RTS-1100
Grinding Capacity - 500 mm x 1100 mm
Magnetic Chuck Size - 400 mm x 810 mm
Grinding Wheel Size - 400 mm Diameter x 75 mm Width
Maximum Height between Table and Wheel Centre - 640 mm
Longitudinal Travel - 1200 mm
Cross Travel - 600 mm
Least Count of Cross Travel - 1 Micron (0.001 mm)
Least Count of Vertical Travel - 5 Microns (0.005 mm)
Spindle Motor Power - 12 HP
- Equipped with a Top-Mounted Hydraulic Wheel Dresser featuring Auto-Depth Increase.
- Features Automatic Plunge Grinding and Automatic Depth Adjustment (Auto-Cut).
- High-Precision Micro-Feed Adjustment on the Cross Travel.

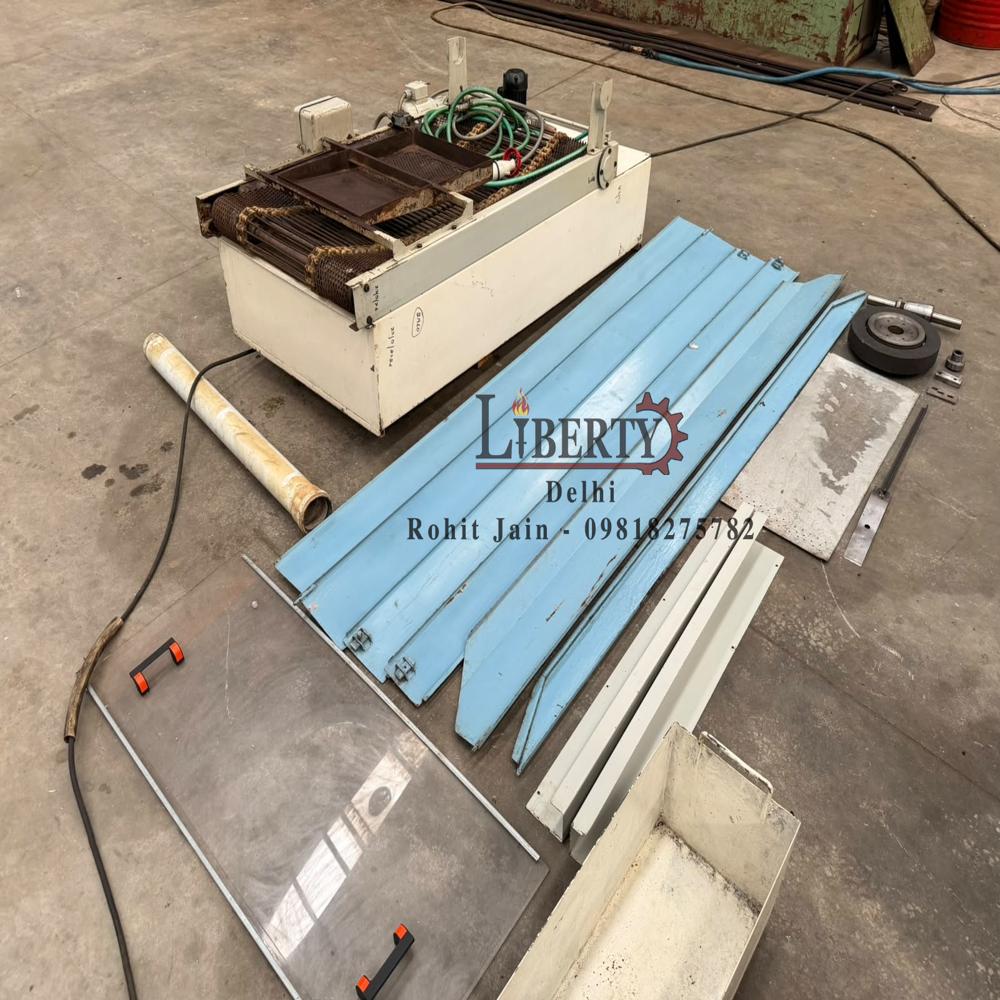

- Complete with Coolant Filtration Unit, Coolant Tank, Coolant Pump, Splash Guards.
- Complete with Spare Wheel Flange, Wheel Balancing Shaft, and other accessories.
- Machine is in excellent working condition.
Video of the Machine -
