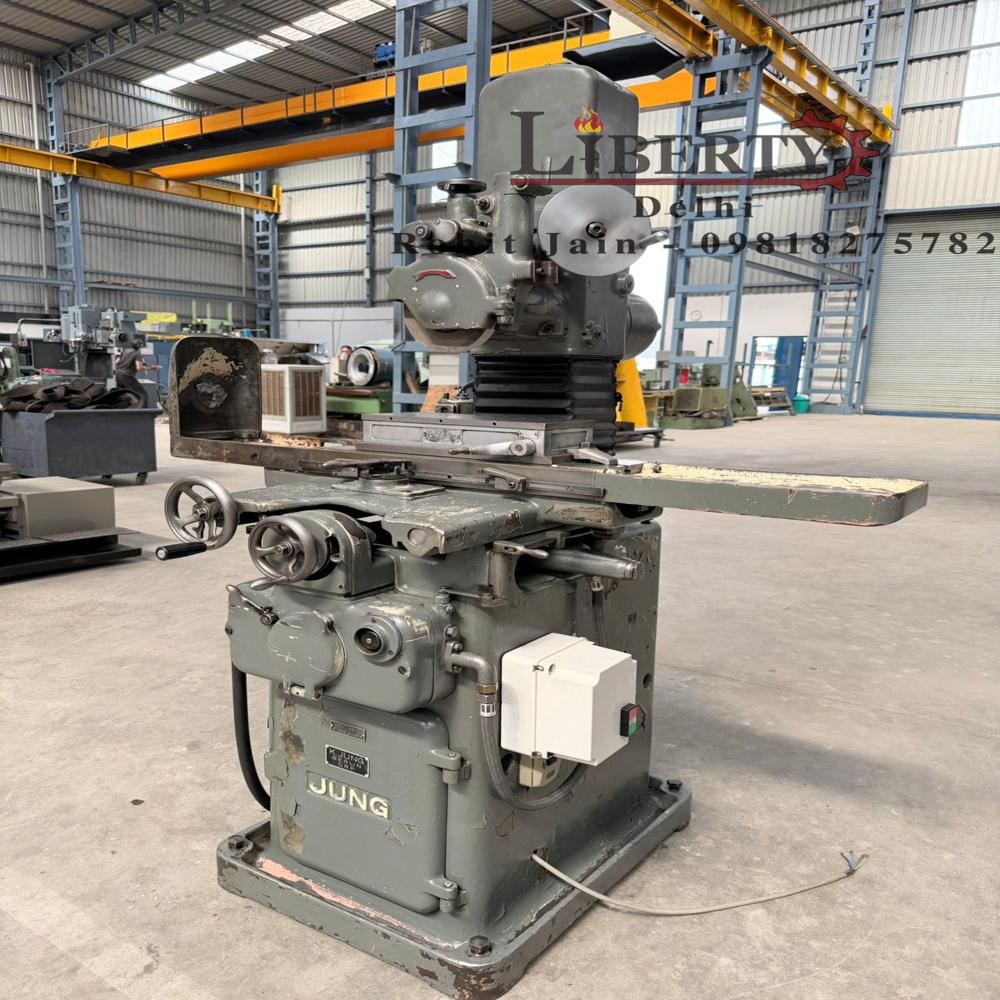

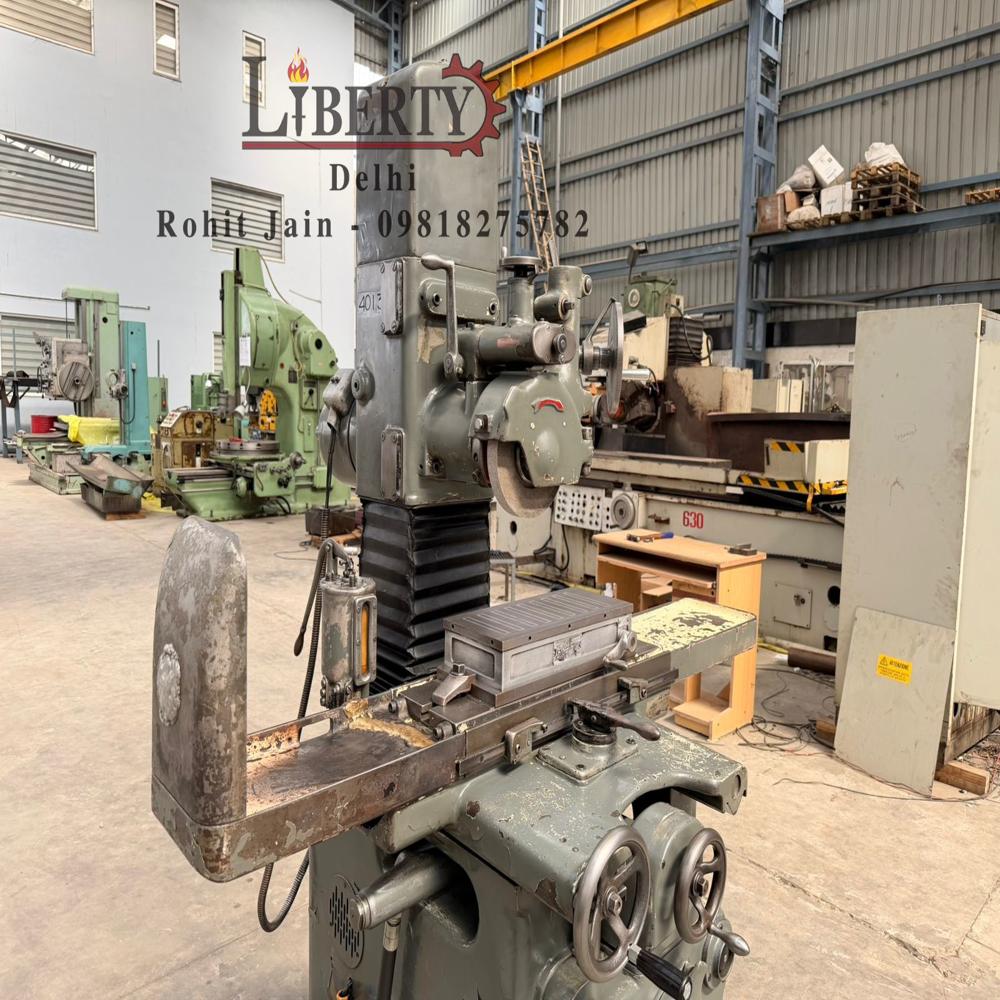

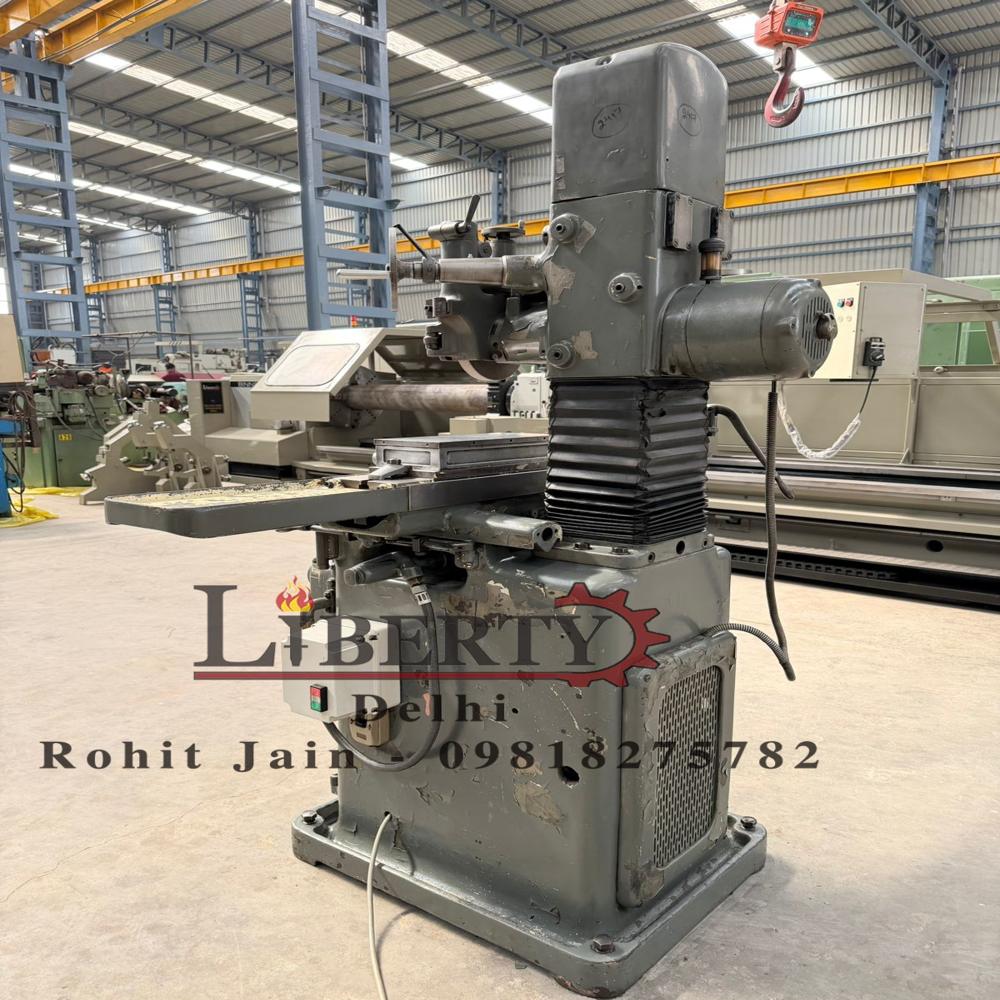

Jung Germany G-40 Hydraulic Surface Grinder

Name: Jung Germany G-40 Hydraulic Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jung Germany G-40 Hydraulic Surface Grinder Specification

Rotation
Clockwise

Model
G-40

Product Type
Hydraulic Surface Grinder

General Use
Hydraulic Surface Grinding Machine made by Jung (Germany), Model G-40, available in excellent working condition. The Grinding Capacity of the machine is 150 mm x 400 mm and the currently equipped Magnet Size is 150 mm x 355 mm. The technical details are as follows -

Material
Cast Iron Structure

Type
Surface Grinder

Capacity
Medium Duty

Weight (kg)
Approx. 1200 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC

Control System
Hydraulic

Table Size
400 x 200 mm

Table Slide Way
V & Flat guideways

Magnetic Chuck Size
400 x 200 mm

Grinding Wheel Size
200 x 20 x 51 mm

Grinding Wheel Speed
2800 RPM

Grinding Length
400 mm

Floor Space
1300 x 1200 mm

Fuel Tank Capacity
50 Liters

Spindle Speed
2800 RPM

Power
3 HP

Voltage
415 V

Dimension (L*W*H)
1300 x 1200 x 1800 mm

Feature
High Accuracy, Durable Build, Easy Operation

Color
Standard (Machine Grey)

Application
Tool Room, Die Shop, Production Grinding

Safety
Overload Protection

Chuck Magnetism
Powerful Electromagnetic

Coolant System
Integrated with recirculation

Maximum Height Under Wheel
300 mm

Working Speed
12-20 m/min

Cross Feed Graduation
0.02 mm

Table Travel
450 mm

Vertical Feed Graduation
0.005 mm

Noise Level
Low

Lubrication
Centralized automatic

Jung Germany G-40 Hydraulic Surface Grinder Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
10-15 Days

About Jung Germany G-40 Hydraulic Surface Grinder

Make - Jung (Germany)

Model - G-40

Grinding Capacity - 150 mm x 400 mm

Longitudinal Travel - 465 mm

Cross Travel - 175 mm

Equipped Magnet Size - 150 mm x 355 mm

Grinding Wheel Size - Diameter 180 mm x 25 mm Width

Max. Height between Magnet & Wheel Center - 220 mm

- Hydraulic Table Movement for Precision Grinding Operations.

- Features Automatic Cross Feed Travels.

- Equipped with a Top Mounted Wheel Dresser.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/QNeW8XdtOKU

Precision Engineering for Professional Results

The Jung G-40 Surface Grinder is engineered with high-accuracy controls and durable V & Flat guideways, ensuring consistently precise surface finishes for a variety of workpieces. Its robust cast iron structure reduces vibrations, contributing to greater dimension accuracy and surface integrity. Operators benefit from simple, intuitive controls and smooth table movement.

Efficient Operation with Integrated Features

Featuring a hydraulic control system and centralized automatic lubrication, the G-40 minimizes downtime while optimizing operational efficiency. The integrated coolant system circulates and recycles coolant, preventing heat build-up during prolonged grinding sessions. Overload protection and electromagnetic chuck technology ensure safe and reliable performance.

Ideal for Diverse Industrial Needs

Suitable for tool rooms, die shops, and small-to-medium scale production, this grinder handles a wide range of components. Its medium-duty capacity, semi-automatic operation, and ergonomic design allow both seasoned machinists and new operators to achieve quality results on various metals and shapes.

FAQ's of Jung Germany G-40 Hydraulic Surface Grinder:

Q: How does the Jung G-40 Hydraulic Surface Grinder ensure precise grinding accuracy?

A: The G-40 is designed with high-precision cross feed (0.02 mm) and vertical feed (0.005 mm) graduations, combined with sturdy V & Flat guideways and a powerful electromagnetic chuck, allowing for stable and accurate grinding throughout each operation.

Q: What safety features are incorporated in the G-40 Surface Grinder?

A: The machine is equipped with overload protection to safeguard against excessive loads, as well as a centralized automatic lubrication system to minimize wear. The electromagnetic chuck securely holds workpieces in place, reducing the risk of accidents during operation.

Q: When should the coolant system be utilized during the grinding process?

A: The integrated coolant system should be used whenever the machine is grinding to manage heat, promote a smoother finish, and extend both wheel and machine life. Its recirculation feature ensures efficient cooling throughout prolonged use.

Q: Where is the Jung G-40 Hydraulic Surface Grinder typically used?

A: This grinder is commonly used in tool rooms, die shops, and production environments where precision surface finishing is required. Its versatility also makes it suitable for general workshop applications demanding high accuracy.

Q: What is the recommended process for operating the G-40 Surface Grinder?

A: Begin by securely clamping the workpiece using the electromagnetic chuck, set the desired feed graduations, ensure proper coolant flow, and adjust the hydraulic table speed between 12-20 m/min. Monitor the process for consistent results and use overload protection as needed.

Q: How does the automatic lubrication system benefit the machine's operation?

A: The centralized automatic lubrication system consistently delivers oil to all moving components, reducing friction and wear, enhancing machine longevity, and minimizing the need for frequent manual maintenance.

Q: What are the key benefits of choosing the Jung G-40 Surface Grinder for your shop?

A: Key benefits include reliable high-accuracy performance, easy operation, robust build quality, integrated safety and coolant features, and the capability to handle medium-duty grinding tasks efficiently, leading to improved productivity and lower maintenance requirements.
