STUDER RHU-750 High Precision Universal Cylindrical Grinder

Name: STUDER RHU-750 High Precision Universal Cylindrical Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

STUDER RHU-750 High Precision Universal Cylindrical Grinder Specification

Product Type

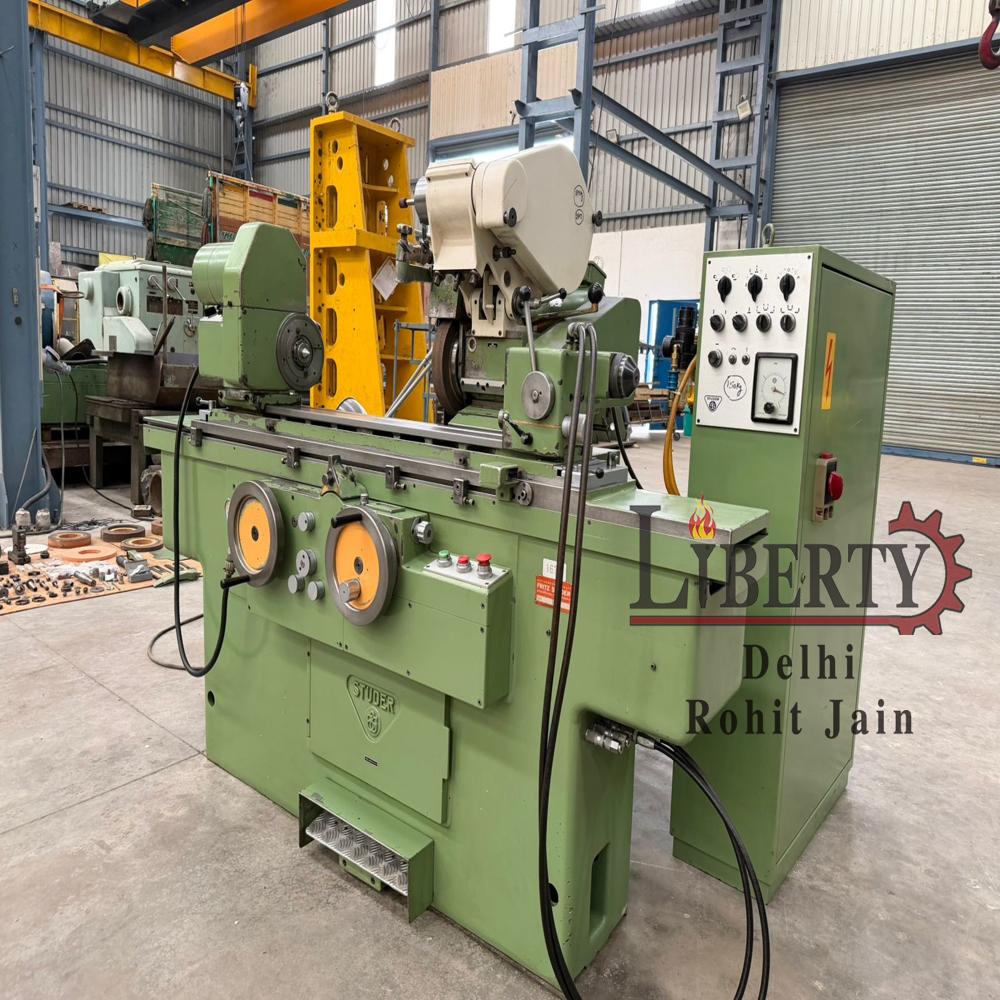

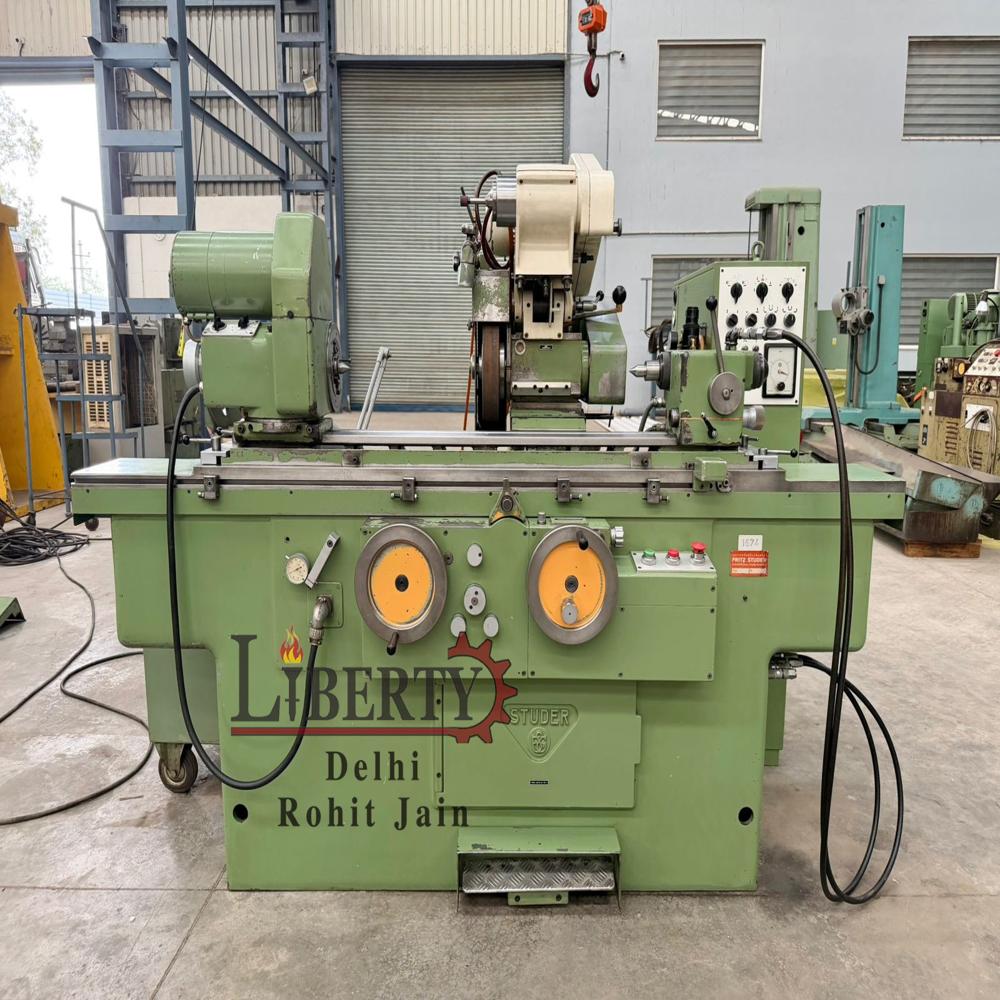

High-Precision Universal Cylindrical Grinding Machine made by Studer (Switzerland), Model RHU-750, available in excellent working condition. The machine is equipped with an Internal Grinding Attachment, making it suitable for both External & Internal Grinding Operations. The Max. Job Diameter is 250 mm and the Max. Job Length is 750 mm. It is a complete Auto-Cycle machine with features such as Auto-Cut, Auto-Compensation, Plunge Grinding, Delay, Spark-Out & Automatic Wheel Retraction. The machine is complete with Wheel Flanges, Wheel Dresser, Chuck, Magnetic Chuck, Coolant Tank, Coolant Pump & many other accessories. The Technical Specifications are as follows -

General Use
High Precision Grinding

Material
Cast Iron Base & Hardened Steel Components

Type
Floor Model

Capacity
Between Centers: 750 mm

Weight (kg)
Approx. 2700 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual / Hydraulic

Drive Type
Belt Driven

Grinding Diameter
Max. 220 mm

Grinding Length
Max. 750 mm

Spindle Speed
40-840 RPM

Grinding Wheel Size
400 mm diameter x 50 mm width

Voltage
380/415 V, 3 Phase

Dimension (L*W*H)
Approx. 2200 x 1500 x 1600 mm

Feature
High Precision, Universal Usage, Rigid Construction, Versatile Wheelhead

Color
Light Green

Center Height
110 mm

Rapid Approach and Retraction
Provided

Language of Operation Manual
English

Workpiece Weight Between Centers
Up to 150 kg

Surface Finish
Ra < 0.3 m

Tailstock
Quill Type with Dead / Live Center

Application
Tool Room, Production, Automotive and Aerospace Component Grinding

Swiveling Worktable
Available for Angular Grinding

Wheelhead Swiveling
+/- 90

Internal Grinding Spindle Speed
13500 RPM (Optional)

Coolant System
Provided

Lubrication
Centralized Automatic Lubrication

Taper Grinding
Up to 5

STUDER RHU-750 High Precision Universal Cylindrical Grinder Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About STUDER RHU-750 High Precision Universal Cylindrical Grinder

Make - Studer (Switzerland)

Model - RHU-750

Center Height - 125 mm

Max. Job Diameter - 250 mm

Max. Job Length - 750 mm

Grinding Wheel Size - 300 mm Diameter 50 mm Width

Least Count - 1 Micron (0.001 mm)

Internal Grinding Spindle Diameter - 100 mm

Max. Speed of Internal Grinding Spindle - 60,000 RPM

- Equipped with Internal Grinding Attachment.

- Machine can work in Complete Auto-Cycle Mode for both Shaft Grinding & Plunge Grinding.

- Features Delay, Hydraulic Tailstock, Auto-Cut & Auto-Compensation.

- Features Plunge Grinding, Spark-Out & Automatic Wheel Retraction.

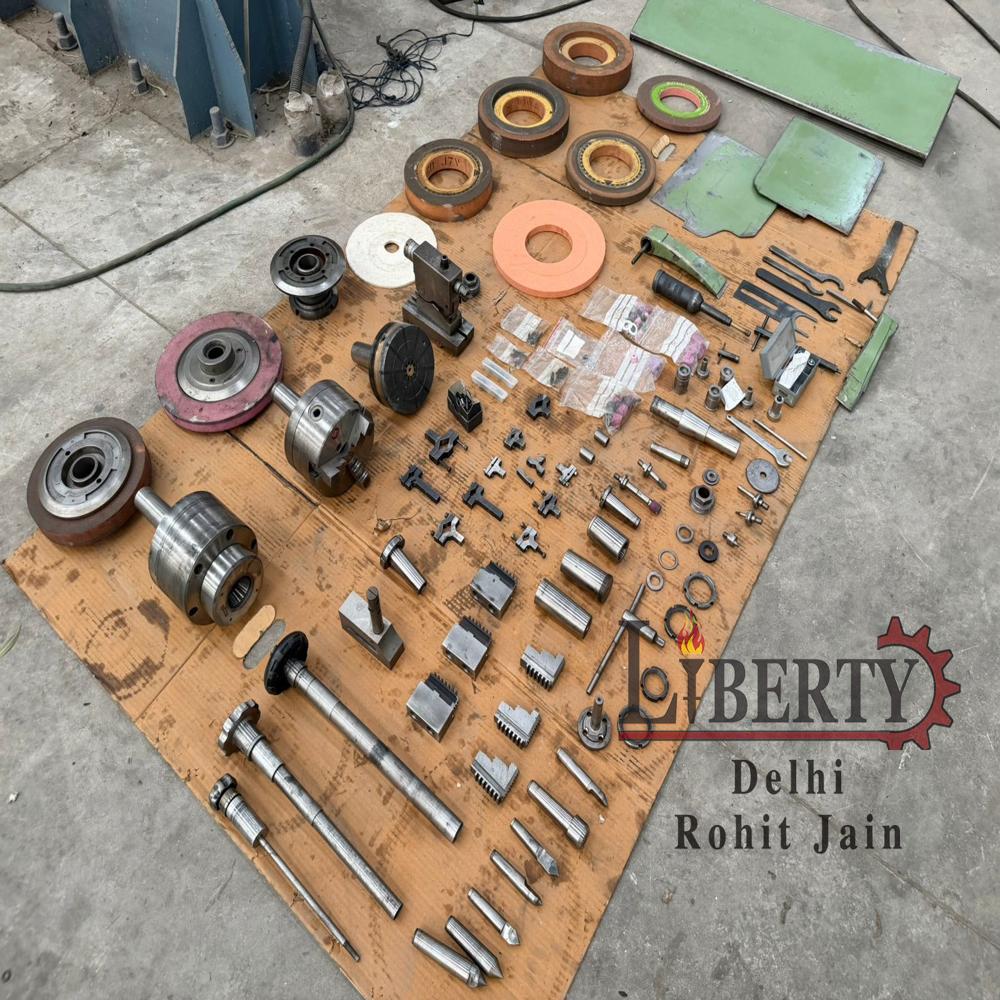

- Complete with Wheel Dresser, Wheel Flanges, Spare Wheels, Chuck & Magnetic Chuck.

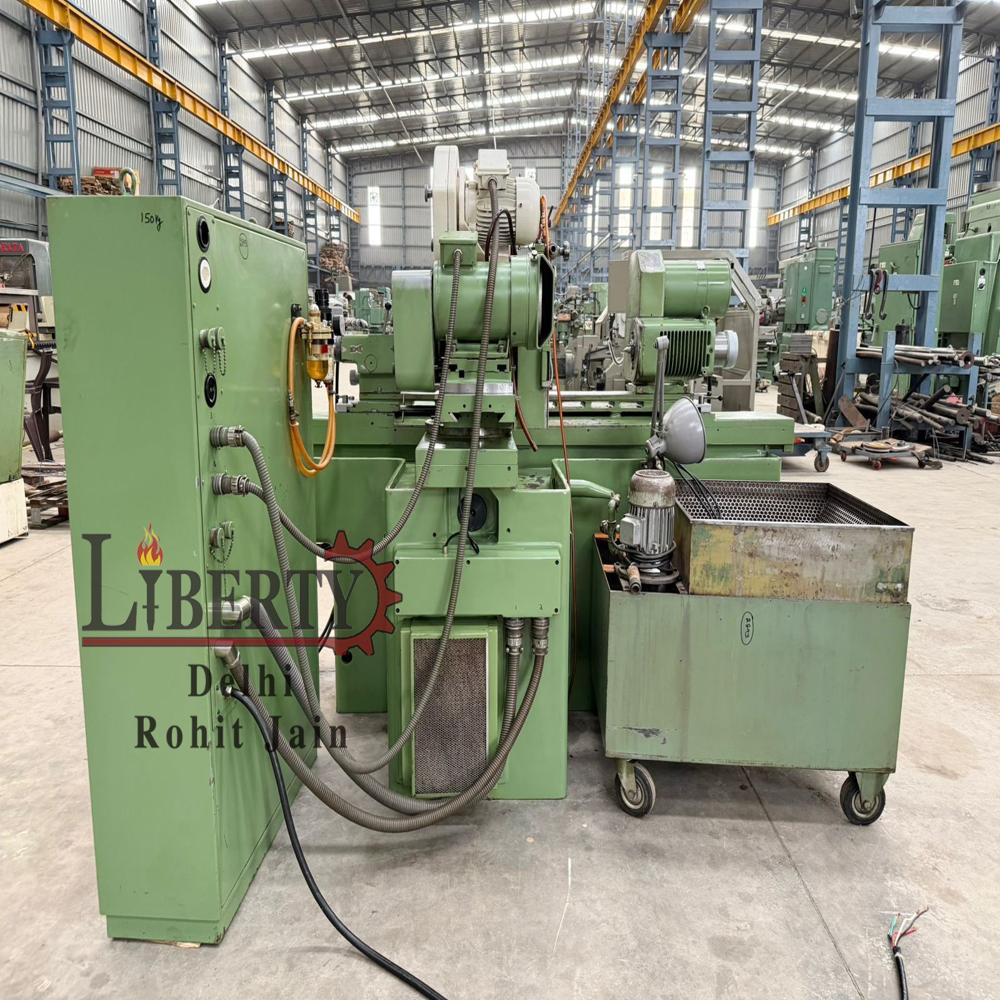

- Complete with Coolant Tank, Coolant Pump & many other accessories.

- Electrical Drawings are available.

- Machine is in Excellent Working Condition.

Video of The Machine -

https://youtu.be/z4UmCRNxddI

Exceptional Precision and Versatility

The RHU-750 excels in achieving high precision across cylindrical grinding tasks, whether for complex tooling or production workpieces. Its wheelhead's 90 swiveling and worktable adjustment allow for both straight and angular grinding, supporting a broad application spectrum in the tool room, automotive, and aerospace sectors.

Robust Construction for Lasting Performance

Constructed with a cast iron base and high-quality hardened steel components, the RHU-750 offers remarkable stability and minimal vibration during operation. Its design caters to rigorous industrial environments, ensuring consistent accuracy and reduced maintenance needs thanks to features like centralized automatic lubrication.

Advanced Features for User Convenience

The grinder's semi-automatic controls, rapid approach/retraction, and hydraulic/manual operation systems streamline the grinding process. Operator ease is supported with an English language manual, dependable safety, and an efficient coolant system, allowing hassle-free integration into existing workflows.

FAQ's of STUDER RHU-750 High Precision Universal Cylindrical Grinder:

Q: How does the STUDER RHU-750 achieve high-precision grinding results?

A: The grinder combines advanced features like a versatile wheelhead with 90 swiveling, a rigid cast iron base for stability, and centralized automatic lubrication. These ensure precise, repeatable movements and surface finishes as refined as Ra < 0.3 m.

Q: What types of workpieces and industries are suited for the RHU-750?

A: With a center height of 110 mm, capacity for workpieces up to 150 kg, and ability to process diameters up to 220 mm, the RHU-750 is ideal for tool rooms, automotive, aerospace, and production applications requiring accurate cylindrical, internal, and tapered grinding.

Q: When should I use the swiveling worktable and versatile wheelhead features?

A: These features are beneficial when grinding complex geometries that require angular or tapered surfaces, enabling you to adapt the setup for a wide variety of component profiles and specialty grinding tasks.

Q: Where is the RHU-750 best positioned for operation?

A: The grinder is designed as a floor model with approximate dimensions of 2200 x 1500 x 1600 mm. It's suitable for workshops with sufficient space, power supply (380/415V, 3 phase), and lifting capacity to accommodate its 2700 kg weight.

Q: What maintenance process does the machine require?

A: Thanks to centralized automatic lubrication, routine maintenance is simplified. Operators should still periodically check the lubrication system, hydraulic fluids, and coolant system, following the guidance provided in the English operation manual.

Q: How does the semi-automatic operation enhance usability and production efficiency?

A: Semi-automatic controls balance manual precision with hydraulic support, enabling repeatable, efficient setups while reducing manual fatigue and setup times, which is particularly valuable for small batch production and tool room work.

Q: What are the benefits of the RHU-750's robust construction materials?

A: Its cast iron base and hardened steel components minimize vibration and thermal distortion, preserving grinding accuracy over extended use and ensuring the longevity of both the machine and finished components.
