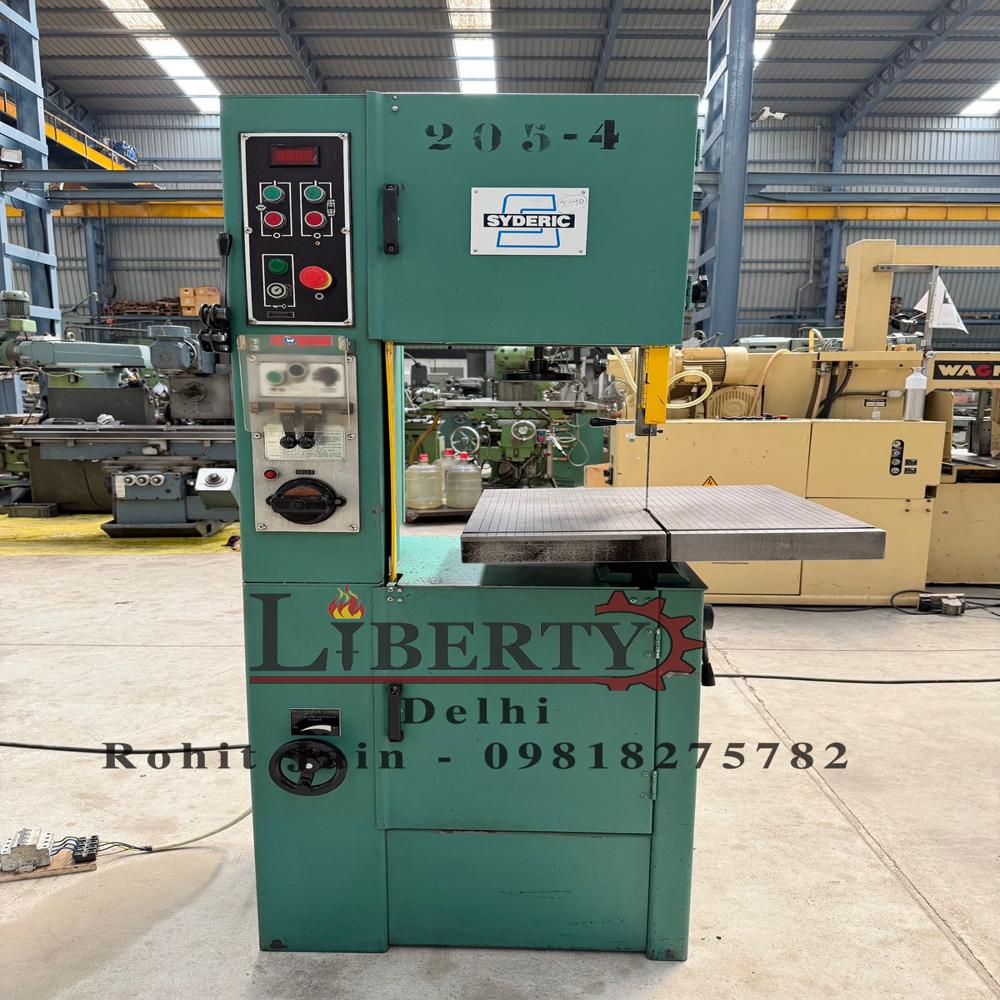

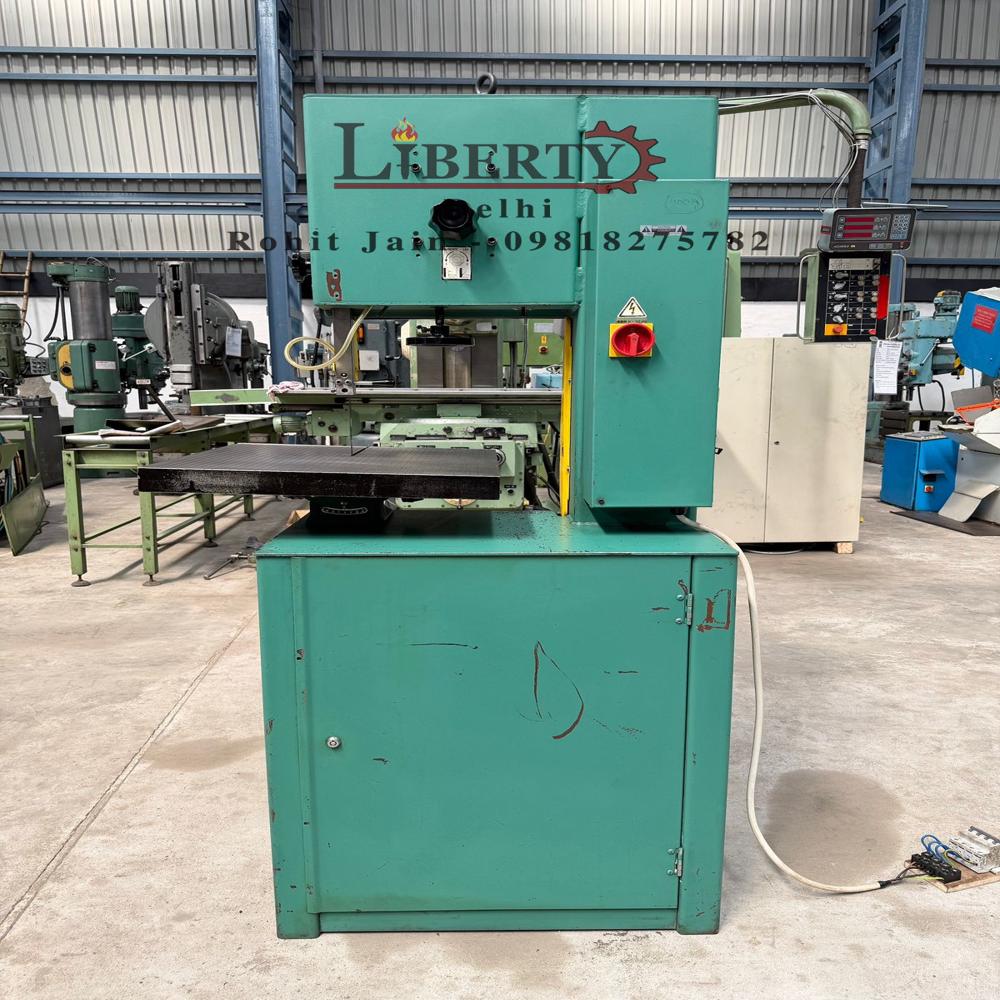

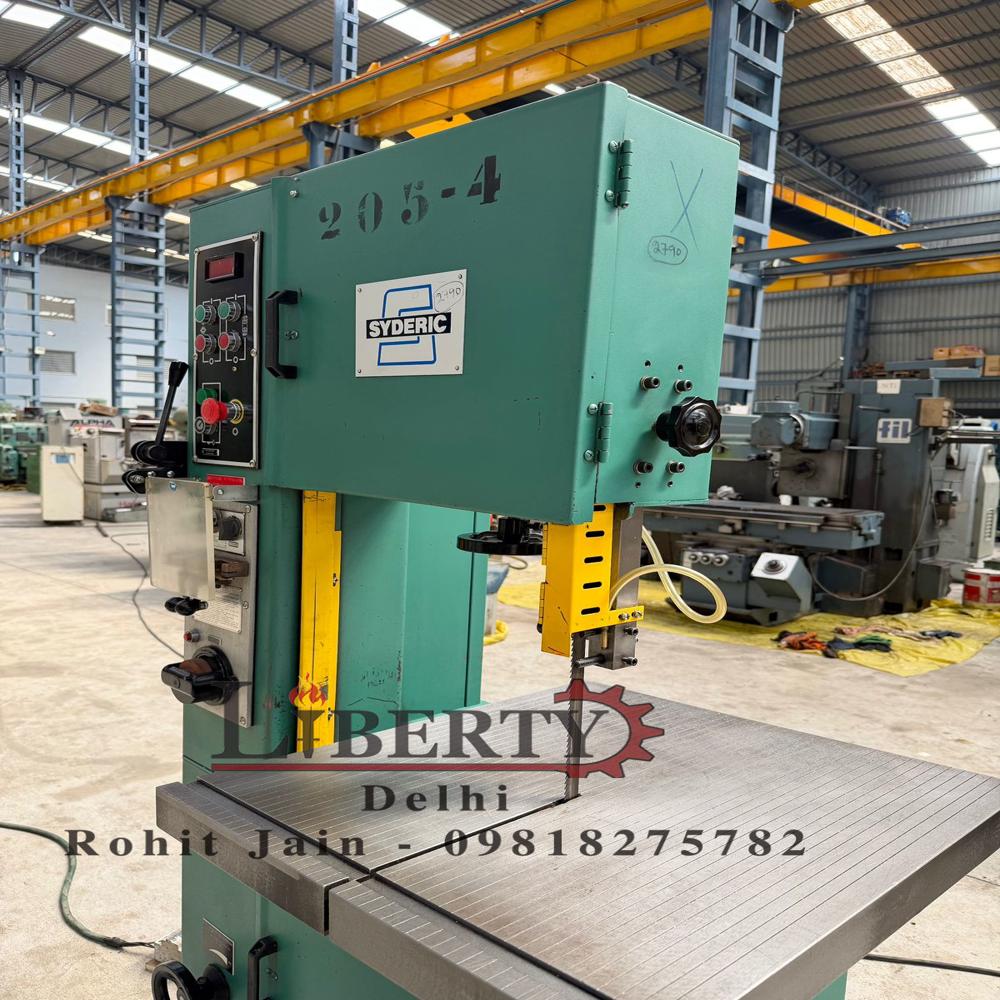

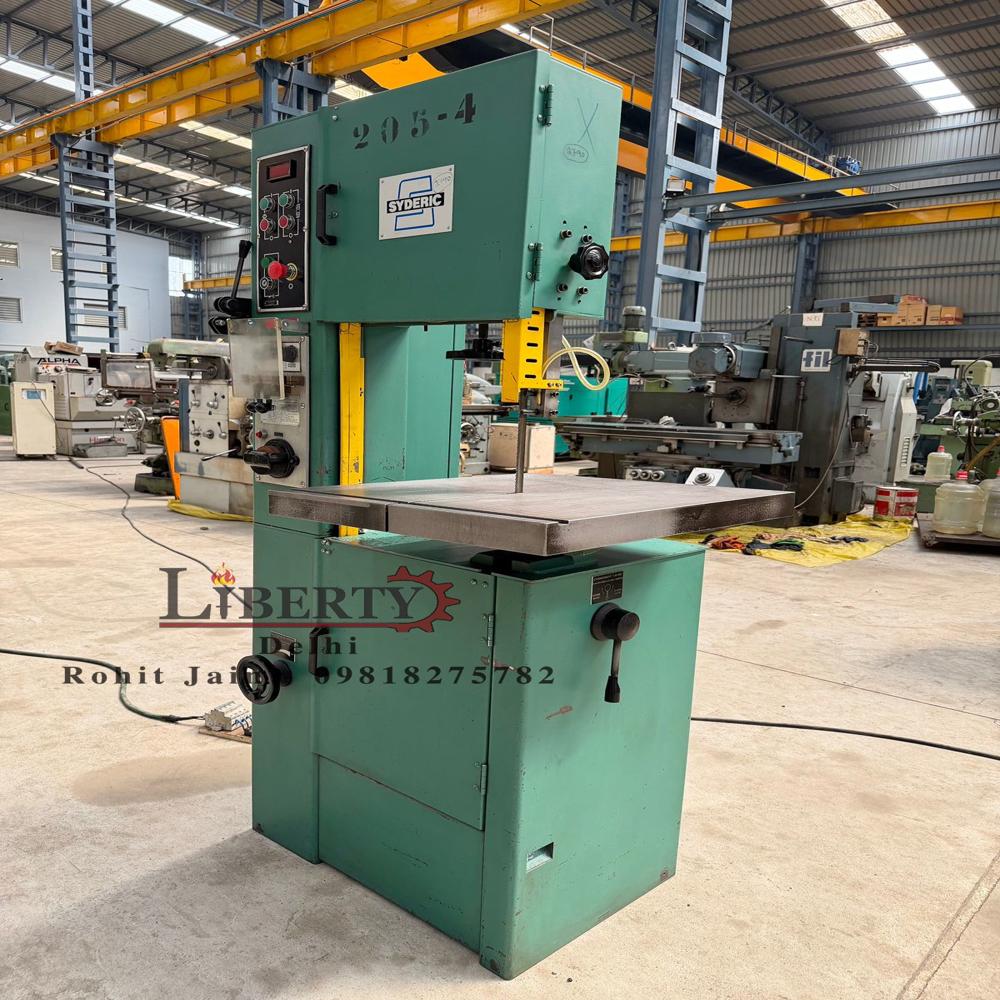

Syderic France SRF 25-40 Vertical Bandsaw Machine
Syderic France SRF 25-40 Vertical Bandsaw Machine
Syderic France SRF 25-40 Vertical Bandsaw Machine
Syderic France SRF 25-40 Vertical Bandsaw Machine
Syderic France SRF 25-40 Vertical Bandsaw Machine
Syderic France SRF 25-40 Vertical Bandsaw Machine
Syderic France SRF 25-40 Vertical Bandsaw Machine
Syderic France SRF 25-40 Vertical Bandsaw Machine

Syderic France SRF 25-40 Vertical Bandsaw Machine

Price 100000.0 INR/ Piece

MOQ : 1 Piece

Syderic France SRF 25-40 Vertical Bandsaw Machine Specification

  • Drive
  • Belt Drive
  • Machine Type
  • Vertical Bandsaw
  • Power Rating
  • 3 HP
  • Frame Type
  • Box Type Welded Structure
  • Production Capacity
  • High, batch/continuous
  • Features
  • Sturdy frame, precise feed, adjustable working table
  • Noise Level
  • 85 dB
  • Motor Power
  • 3 HP
  • Connectivity Options
  • No digital connectivity
  • Voltage
  • 415 V
  • Control System
  • Manual/Electric panel
  • Lubricating System
  • Manual lubrication
  • Model No
  • SRF 25-40
  • Accuracy
  • 0.1 mm (approx.)
  • Frequency
  • 50 Hz
  • Cooling System
  • Coolant Pump Provided
  • Operating Temperature
  • 5C to 50C
  • Product Type
  • Vertical Bandsaw Machine
  • Technology
  • Conventional
  • Power Source
  • Electric
  • Operating Type
  • Semi-Automatic
  • Power
  • 3 HP (approx.)
  • Surface Treatment
  • Painted
  • Dimension (L*W*H)
  • Approx. 1050 x 700 x 1900 mm
  • Weight (kg)
  • Approx. 500 kg
  • Color
  • Green
  • Usage & Applications
  • Metal and wood cutting
  • Table Size
  • Approx. 600 x 500 mm
  • Blade Length
  • Approx. 3200 mm
  • Blade Width Accepted
  • Up to 20 mm
  • Blade Speed
  • Variable, up to 1500 m/min
  • Throat Depth
  • Approx. 400 mm
  • Floor Space Required
  • Approx. 900 x 800 mm
  • Max Cutting Height
  • Approx. 250 mm
  • Main Spindle Speed
  • Variable by pulley change
  • Table Tilt
  • Up to 45
  • Electrical Safety
  • Protective Panel with Emergency Stop Switch


Syderic France SRF 25-40 Vertical Bandsaw Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 1 Piece Per Week
  • Delivery Time
  • 7 Days


About Syderic France SRF 25-40 Vertical Bandsaw Machine

Syderic (France) make Vertical Bandsaw Machine in excellent working condition. The model of the machine SRF 25-40 and the machine is with integrated blade welding and grinding system. The technical details are as follows -

Make - Syderic (France)
Model - SRF 25-40
Table Size - 600 mm x 500 mm
Max. Job Height - 250 mm
Throat Depth - 400 mm
Blade Width - 2 mm to 16 mm
Table Tilting (Left/Right) - +10 degree to -10 degree
Table Tilting (Forward/Backward) - +15 degree to -15 degree
- With integrated Blade Welding & Blade Grinding system.
- Electronic Display for blade speed.
- Machine is in excellent working condition.

Video of the Machine -


Versatile Cutting Capabilities

The SRF 25-40 bandsaw supports both metal and wood cutting tasks, providing flexibility for various manufacturing and workshop requirements. With a variable blade speed and an adjustable table that tilts up to 45 left or right, you can handle intricate cuts and accommodate a wide array of materials and thicknesses.


Safety and Operator Comfort

Safety is a priority with the inclusion of an emergency stop button and a durable blade guard. Additional features such as the robust box-type welded structure and efficient coolant pump ensure smooth operation while maintaining operator well-being. The machine operates within noise levels of 85 dB, making it suitable for extended use.


Precision and Efficiency

Benefit from highly accurate cuts with a precision of approximately 0.1 mm alongside high production capacity in both batch and continuous operations. The manually controlled feeding, reliable electric panel, and powerful 3 HP motor combine to offer consistent results and efficient throughput for demanding workloads.

FAQ's of Syderic France SRF 25-40 Vertical Bandsaw Machine:


Q: How does the variable speed control on the Syderic SRF 25-40 improve cutting performance?

A: The variable speed, controlled via a pulley system, allows you to adjust the blade speed between 20 and 1500 m/min. This flexibility lets you optimize performance for different materials, achieving cleaner cuts and extending blade life for both metal and wood applications.

Q: What safety features are integrated into the SRF 25-40 bandsaw machine?

A: The machine includes an emergency stop button and a sturdy blade guard to protect the operator. The solid frame also contributes to operational safety, reducing vibration and enhancing overall control during use.

Q: When should the manual lubrication system be used?

A: Manual lubrication should be performed according to the manufacturer's maintenance schedule or whenever you notice increased friction or noise. Regular lubrication extends component life and maintains reliable operation.

Q: Where is the Syderic SRF 25-40 ideally installed?

A: This bandsaw is suitable for industrial workshops, manufacturing plants, and woodworking shops. It requires a dedicated installation area of approximately 1.2 x 0.8 meters with stable electrical power (415 V, 50 Hz).

Q: What is the process for changing the cutting angle on the working table?

A: The working table can be tilted up to 45 to the left or right. To change the cutting angle, use the adjustment controls provided under the table, ensuring the table is securely locked in the desired position before operating the machine.

Q: How does the cooling system support cutting operations?

A: The built-in coolant pump circulates coolant from a 25-litre tank directly to the blade and workpiece, reducing heat generation and preventing material warping during prolonged cutting sessions.

Q: What are the main benefits of using this vertical bandsaw in production?

A: Notable benefits include high precision (up to 0.1 mm accuracy), consistent production capacity for batch or continuous cutting, safe and ergonomic operation, and adaptability for multiple material types, all contributing to enhanced workflow and reduced downtime.
