FMB Italy Automatic Programmable type Bandsaw Machine

Send Inquiry

Request To Call Back

FMB Italy Automatic Programmable type Bandsaw Machine

Name: FMB Italy Automatic Programmable type Bandsaw Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FMB Italy Automatic Programmable type Bandsaw Machine Specification

Control System
Programmable Logic Controller (PLC)

Power Rating
3.0 kW

Cooling System
Integrated Coolant Pump

Accuracy
0.2 mm per cut

Voltage
415 V (Three Phase)

Frequency
50 Hz

Features
Full Auto Cycle, Programmable Cutting Lengths, Robust Construction

Production Capacity
30 - 50 cuts/hour (repeated as per standards)

Operating Temperature
5C - 45C

Model No
FMB Italy (Specific model upon request)

Lubricating System
Automatic Lubricator

Connectivity Options
Operator Control Panel, PLC Input

Plastic Processed
N/A (For Metal Only)

Machine Type
Metal Bandsaw (Auto Programmable)

Drive
Gear Driven

Motor Power
Standard Equipped with 3 kW Main Motor

Noise Level
<75 dB

Frame Type
Heavy Duty Welded Steel Frame

Product Type
Automatic Programmable Bandsaw Machine

Technology
CNC-Based Cutting Technology

Power Source
Electric

Operating Type
Automatic

Power
3 - 5 HP (depending on model)

Pressure
Hydraulic Feed Pressure Adjustable

Surface Treatment
Paint Coated

Dimension (L*W*H)
Approx. 2100 x 1000 x 1500 mm (varies by model)

Weight (kg)
Approx. 1200 - 1500 kg

Color
Green/Orange

Usage & Applications
Industrial Metal Cutting, Fabrication, Tube/Bar Cutting

Blade Size
2700 x 27 x 0.9 mm

Programming
Multiple batch and length programming

Main Application Materials
Mild steel, stainless steel, aluminum, copper alloys

Operator Interface
Digital touch panel or button keypad

Safety Compliance
CE certified

Max Cutting Capacity (Square)
200 x 200 mm

Feed Length per Stroke
Maximum 600 mm (single stroke), repeatable

Coolant Tank Capacity
25 Litres

Blade Motor Speed
Variable (according to selected program)

Blade Tension
Manual/Automatic (Model dependent)

Transportability
Base with forklift channels

Material Loading
Roller conveyor

Cut-off Length Accuracy
0.2 mm

Max Cutting Capacity (Round)
220 mm

Vice Type
Hydraulic, sliding

Safety
Emergency stop, safety interlocks

Spare Parts Availability
Readily available through authorized dealer network

FMB Italy Automatic Programmable type Bandsaw Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About FMB Italy Automatic Programmable type Bandsaw Machine

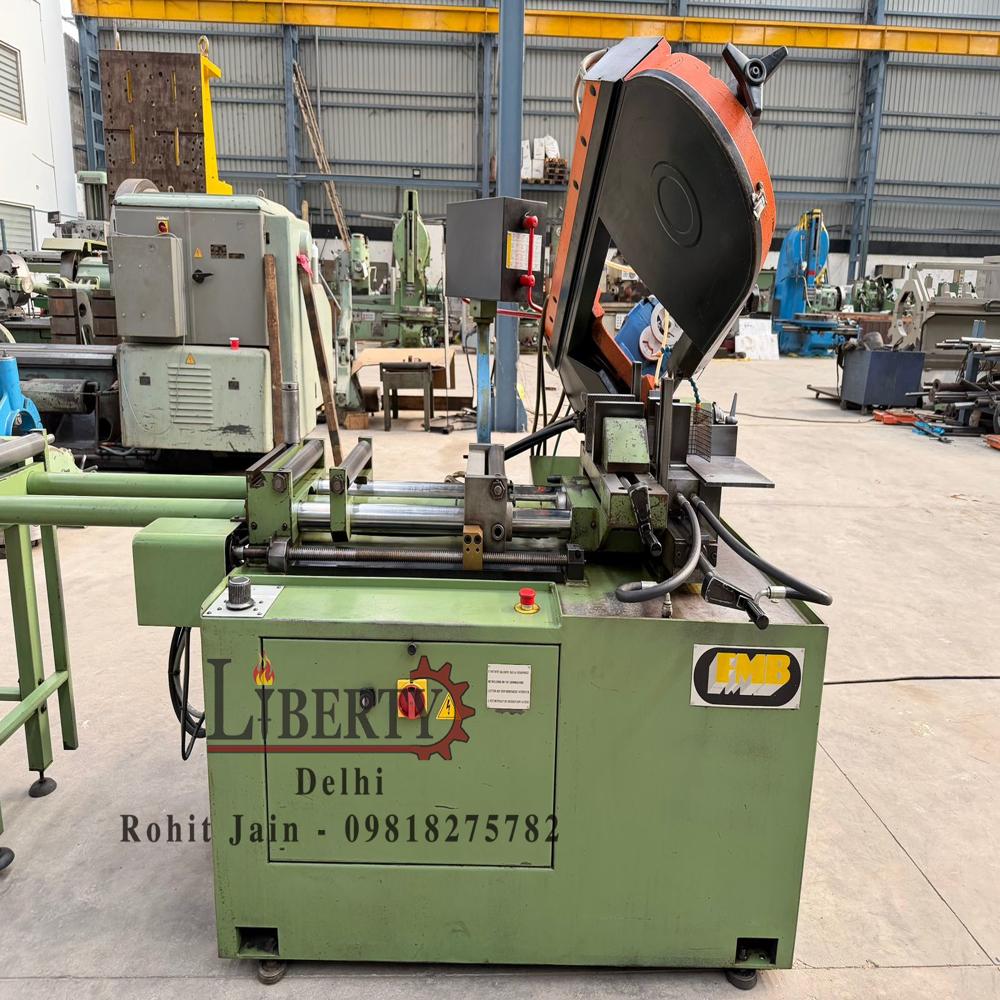

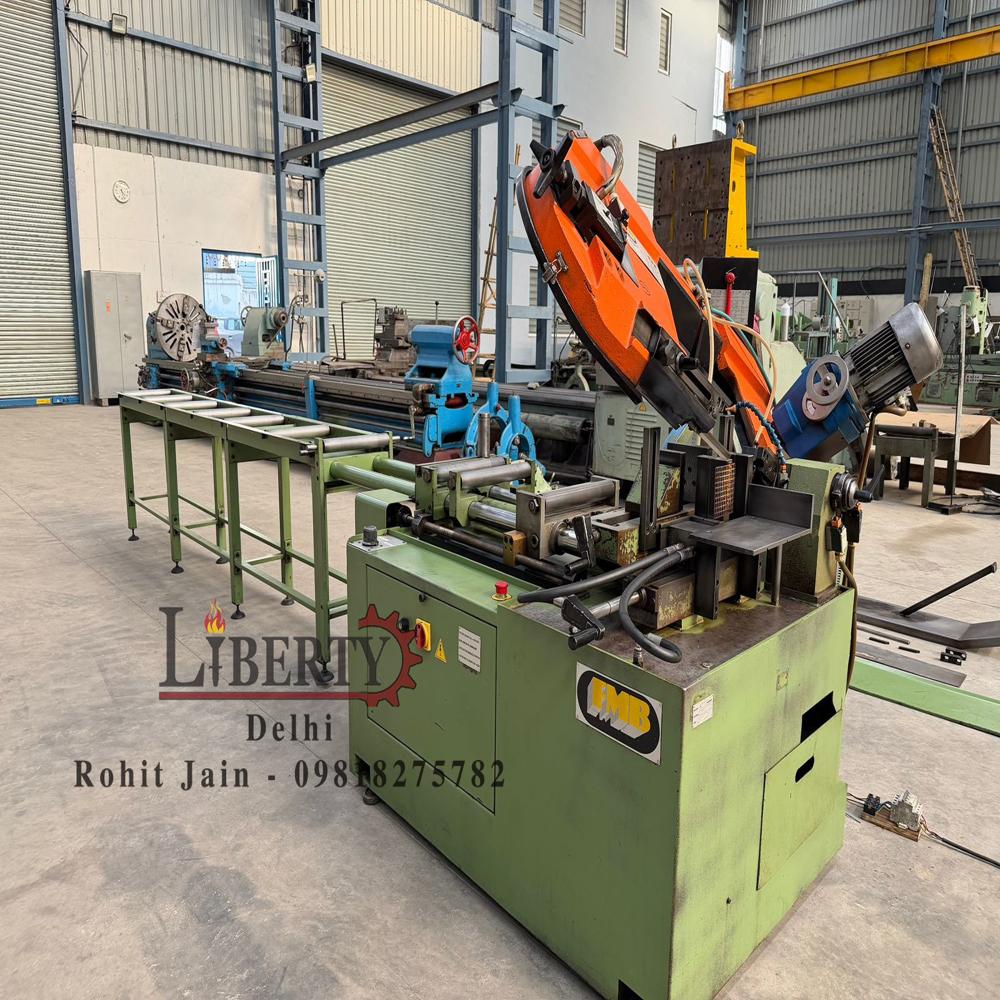

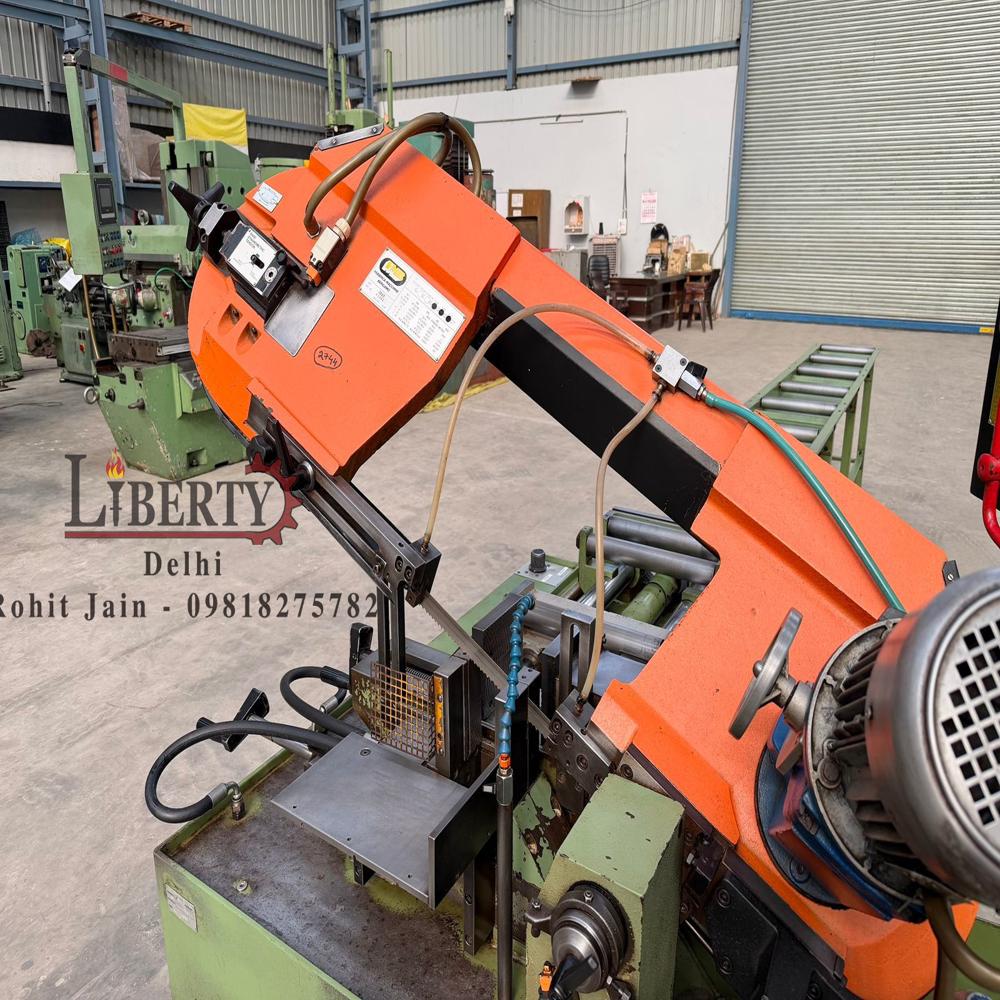

FMB (Italy) make Fully Automatic Programmable type Bandsaw Machine in excellent working condition. The machine's model is ZEUS and its cutting capacity for Round is 225 mm Diameter. The machine can operate in Fully Automatic Mode as well as in its Manual Mode. The technical details are as follows -

Make - FMB (Italy)

Model - ZEUS

Cutting Capacity (for Round) - 225 mm

Max. Travel for Auto-Feed Vice - 500 mm (single time)

Max. No. of Travels for Auto-Feed Vice - 40 Times

Blade Size - Length 3180 mm x Width 25 mm x Thickness 0.9 mm

Blade Speeds - 19 m/min to 100 m/min (Continuously Variable)

Blade Motor Power - 1.1 kW

Type - Programmable type ; Fully Automatic

- Can be used in Full Automatic Mode, Semi-Automatic Mode and in Manual Mode as well.

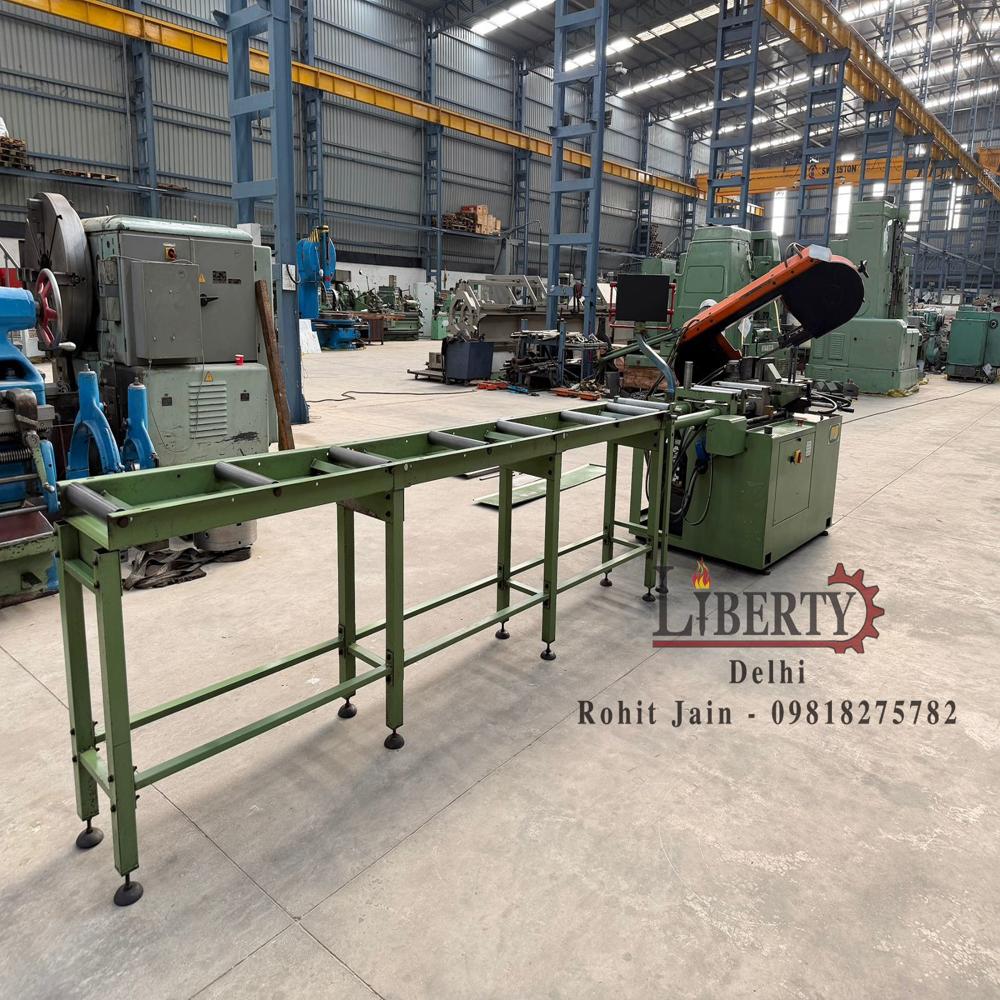

- Complete with Job Support Roller Conveyor, Coolant Tank, Coolant Pump, etc.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/XRmrI0YwXbc

Precision & Versatility

This bandsaw machine offers adjustable blade speed and programmable logic controller (PLC) operation, enabling you to optimize cutting for various metals and profiles. With flexible angle cutting capability (up to 60) and memory for multiple programs, it adapts to repeated or diverse production runs and delivers reliable, precise results.

Robust Industrial Design

Engineered with a heavy-duty welded steel frame and gear-driven system, the machine ensures stability, endurance, and minimal vibration during operation. Hydraulic vises provide consistent material clamping, and the variable speed drive adapts quickly to different job requirements without compromising efficiency or safety.

User-Friendly Operation & Safety

The digital display panel, emergency stop, blade guarding, and comprehensive interlocks put operators in control while prioritizing safety. Automated features-such as automatic lubrication, maintenance alerts, and integrated coolant-streamline both daily operation and routine care, reducing operator workload and minimizing downtime.

FAQ's of FMB Italy Automatic Programmable type Bandsaw Machine:

Q: How do I set up the bandsaw machine for different materials or cutting projects?

A: To set up the machine, select the desired cutting program through the digital PLC panel and adjust blade speed (10-90 m/min), blade tensioning (manual or automatic, as per model), and feed pressure to match the material. The system allows you to store multiple configurations, streamlining job changeovers.

Q: What benefits does the programmable cutting memory offer for production?

A: The machine's programmable memory saves multiple cutting programs, enabling rapid, accurate switching between jobs. This minimizes setup time, ensures repeatable results, and supports high-volume, mixed-batch production without manual re-entry of parameters.

Q: When should I use the hydraulic vises, and how do they improve accuracy?

A: Hydraulic vertical and horizontal vises should always be engaged for secure clamping during cuts. They stabilize the workpiece against movement or vibration, directly improving cutting precision and surface finish, especially on demanding or multi-cut jobs.

Q: Where is the maintenance indicator and how does the alert system work?

A: The maintenance indicator is integrated into the digital display via the PLC. It monitors system status in real-time and issues alerts for lubrication, service intervals, or potential issues, helping operators prevent unexpected downtime and extend machine life.

Q: What processes or tasks are best suited for the FMB Italy bandsaw machine?

A: This machine is ideal for industrial cutting of metal bars, tubes, and fabrication components requiring consistent, high-precision cuts. Common uses include metal stock preparation, tube and bar cutting, and repetitive high-volume industrial fabrication.

Q: How does the integrated safety system protect operators during machine use?

A: Safety features include an emergency stop, blade guarding, interlocks, and a digital display for monitoring critical parameters. These systems work together to prevent access to hazardous areas and halt operation quickly in an emergency, maximizing operator protection.
