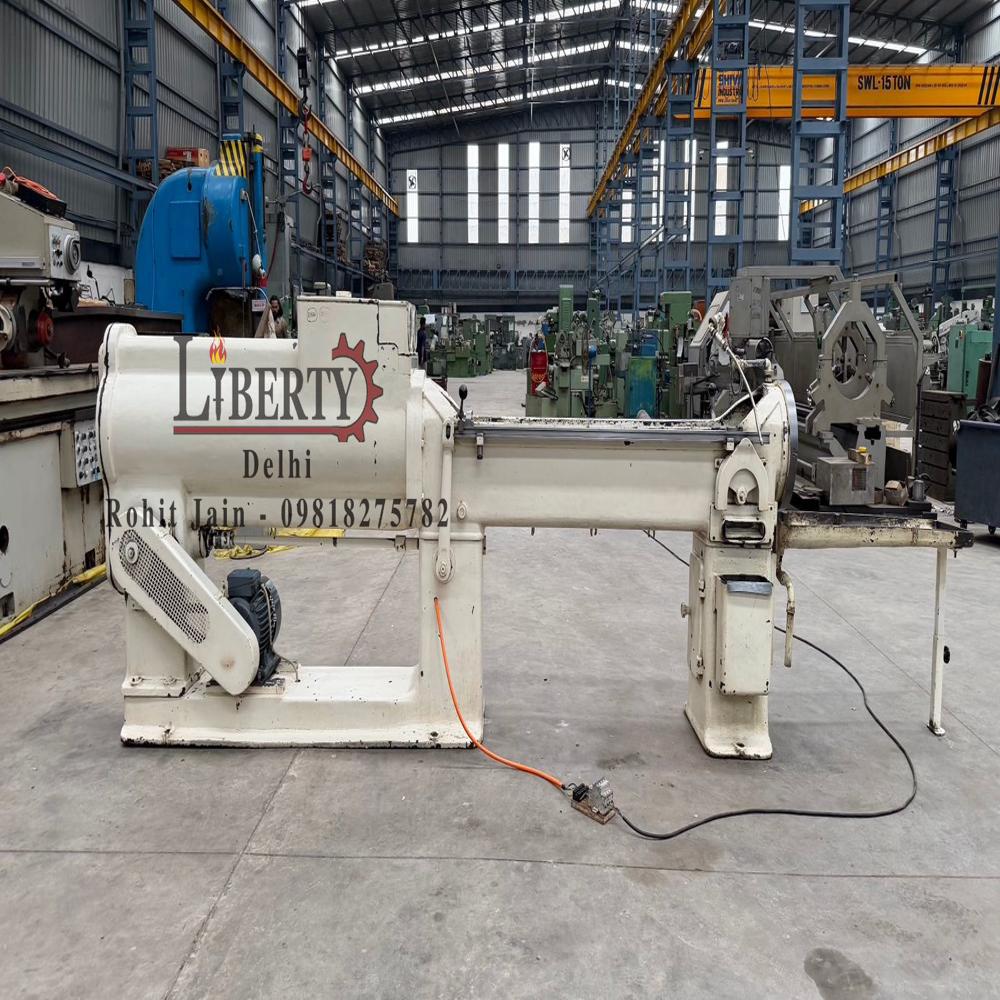

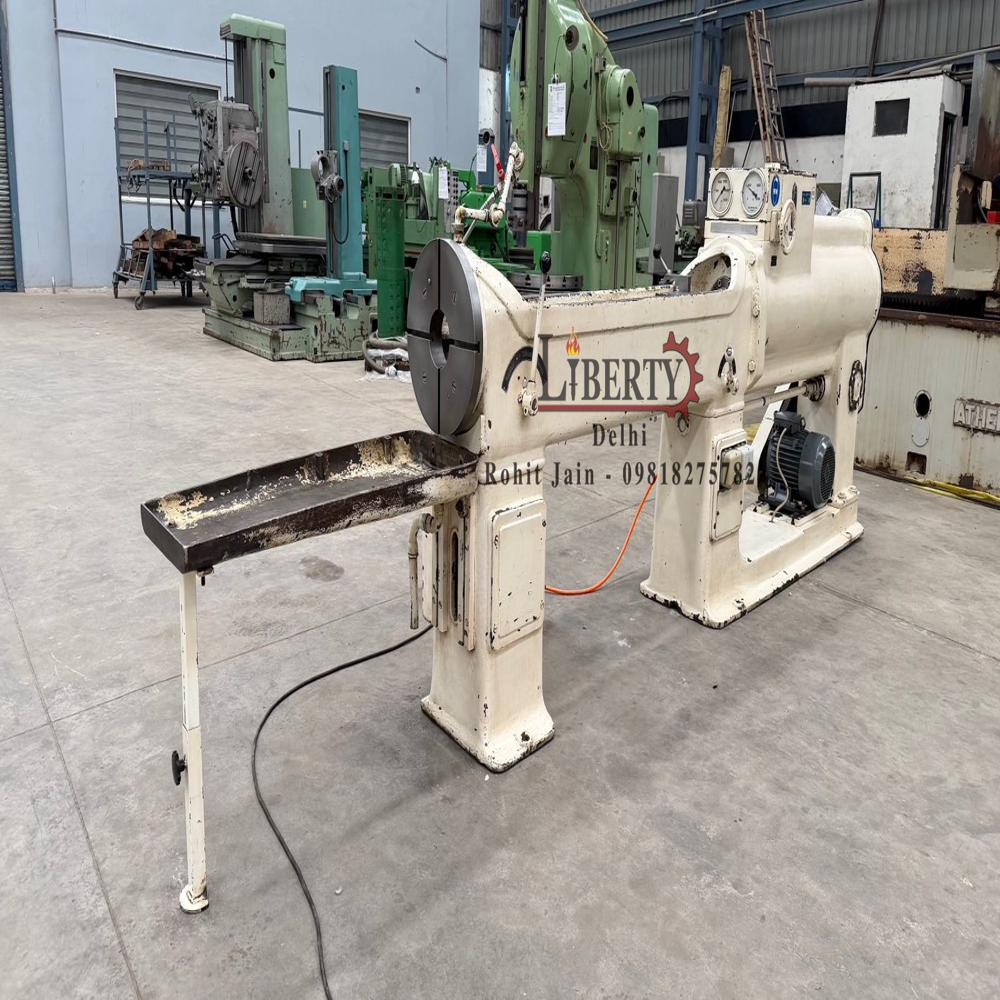

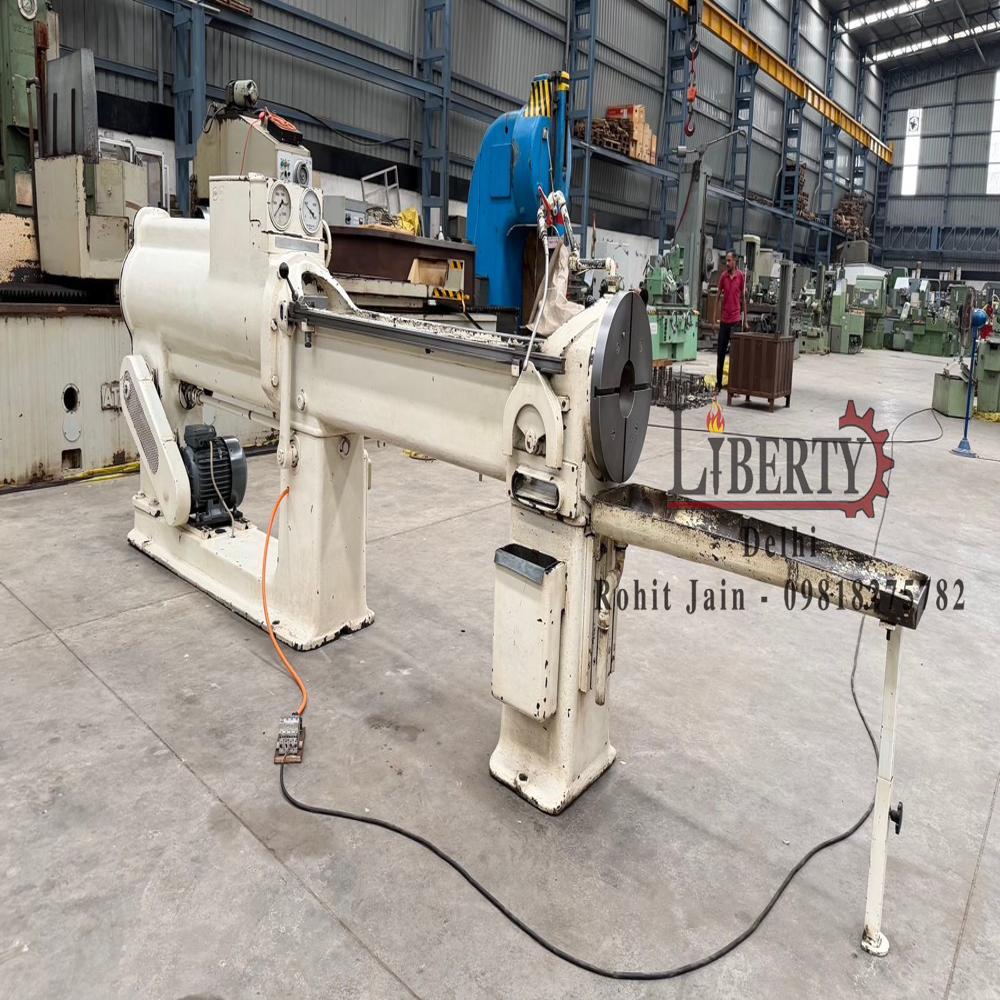

VOGL Germany Horizontal Pull-Type Broaching Machine

Name: VOGL Germany Horizontal Pull-Type Broaching Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VOGL Germany Horizontal Pull-Type Broaching Machine Specification

Features
Heavy-duty cast iron frame, precision drive, dual pressure gauges, large broaching capacity

Cooling System
Integrated coolant system

Noise Level
< 80 dB (estimated)

Operating Temperature
Ambient 5-45C

Motor Power
Approx. 5 HP

Production Capacity
Varies as per job (repeat for clarity)

Drive
Belt Driven

Connectivity Options
Not applicable/Standard electro-mechanical interface

Accuracy
High precision broaching, 0.01 mm (typical for VOGL machines)

Frame Type
One-piece cast structure

Control System
Manual and Electrical controls

Model No
VOGL Germany Horizontal Pull-Type

Frequency
50 Hz

Machine Type
Horizontal Pull-Type (repeat for clarity)

Lubricating System
Automatic lubrication

Voltage
415 V, 3 Phase (industrial standard)

Power Rating
Approx. 3.7 kW (estimated from motor)

Plastic Processed
Not applicable - designed for metals

Product Type
Horizontal Pull-Type Broaching Machine

Technology
Mechanical and Hydraulic

Power Source
Electric

Operating Type
Automatic/Semi-Automatic

Power
Approx. 5 HP (estimated based on motor size)

Pressure
Hydraulic, up to 150 bar (estimated)

Surface Treatment
Painted, Industrial Finish

Dimension (L*W*H)
Approx. 3200 x 800 x 1500 mm (estimated)

Weight (kg)
Approx. 2500 kg (estimated)

Color
Off-White/Cream

Usage & Applications
Internal/external broaching of metal components, keyways, splines, etc.

Max Pulling Force
Estimated 10-20 tons (typical for this class)

Foundational Mounting
Bolted to floor/surface for stability

Primary Material Worked
Ferrous & non-ferrous metals

Work Support
Adjustable height and position

Chuck Type
Front round flange chuck with radial slots

Machine Paint
Industrial grade enamel

Hydraulic Reservoir Capacity
Not specified; typical 50-80 liters for this size

Safety Controls
Manual emergency stop, mechanical lockout provision

Main Spindle Bore
Large bore, suitable for medium to heavy broaches

Gauges
Twin analog hydraulic pressure gauges

Table Length
Approx. 800 mm

Broach Stroke Length
Approx. 1200-1500 mm (estimated from bed size)

Working Speed
Variable; depends on hydraulic setting (typically 1 - 10 m/min)

VOGL Germany Horizontal Pull-Type Broaching Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About VOGL Germany Horizontal Pull-Type Broaching Machine

VOGL (Germany) make Horizontal Hydraulic Pull-Type Broaching Machine in excellent working condition. The machine has a maximum tonnage capacity of 15 Tons and a maximum stroke length of 1300 mm, making it suitable for a wide range of broaching applications. The machine is complete with numerous fixtures, a substantial quantity of spare broaches, and various accessories. The technical details are as follows -

Make - VOGL (Germany)

Max. Tonnage Capacity - 15 Tons

Max. Stroke Length - 1300 mm

Broach Pull Speeds - 0 to 8 m/min

Face Plate Diameter - 400 mm

Face Plate Bore - 120 mm

Type - Horizontal, Pull-Type, Hydraulic

Machine Weight - Approx. 3.7 Tons

- Provision for adjustment of maximum tonnage capacity.

- Complete with lots of spare Broaches (158 kg).

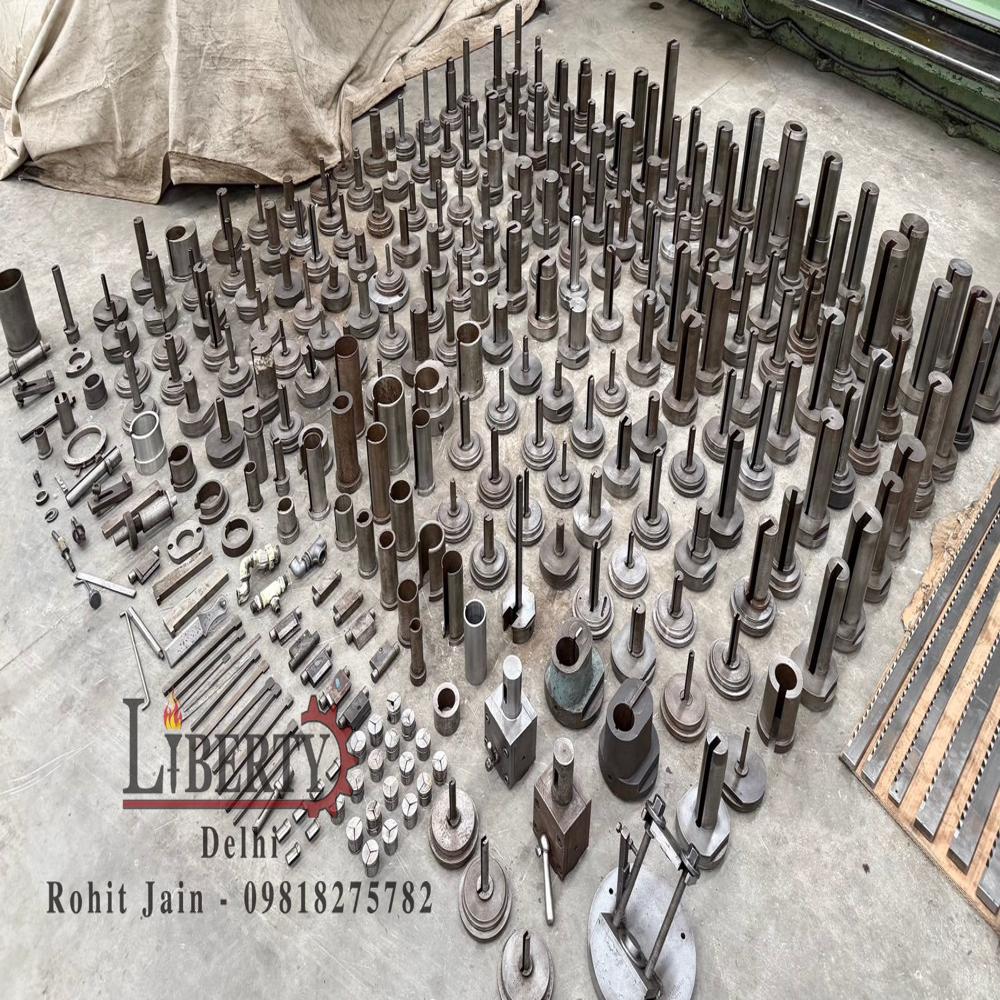

- Numerous Fixtures & many other accessories are available with the machine.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/GyHUUcx8gcU

Versatile Broaching for Industrial Applications

The VOGL Germany Horizontal Pull-Type Broaching Machine excels in internal and external machining tasks, such as forming keyways and splines in metal components. Its adaptable broach holder can handle multiple shank sizes, making it suitable for a wide range of job requirements in both small-batch and high-production environments.

User-Centric Operation and Safety

Equipped with integrated pressure gauges, control switches, and safety mechanisms including overload protection and an emergency stop, the machine ensures precise adjustments and operator safety. Its automatic lubrication and coolant systems contribute to minimal required maintenance and extended equipment lifespan.

Robust Construction and Reliable Performance

Designed with a one-piece cast iron frame and heavy-duty drive, the machine provides excellent stability and durability. The high-precision broaching system delivers up to 0.01 mm accuracy, supported by a hydraulic pressure system up to 150 bar, ensuring consistent results across diverse applications.

FAQ's of VOGL Germany Horizontal Pull-Type Broaching Machine:

Q: How is the VOGL Horizontal Pull-Type Broaching Machine installed and what are the foundation requirements?

A: Installation of the machine requires a robust industrial floor with a proper foundation to support its weight of approximately 2500 kg. A level, vibration-resistant base is essential for optimal alignment and performance.

Q: What types of broaching operations can this machine perform?

A: This machine is engineered for both internal and external broaching processes, enabling the production of keyways, splines, and precise profiles in metal workpieces with high repeatability.

Q: Where can I source spare parts and technical support for the VOGL Germany Broaching Machine?

A: Genuine spare parts and maintenance support are readily available via authorized VOGL suppliers and distributors, ensuring minimal downtime during production.

Q: What safety features does the machine offer during operation?

A: For operator protection, the machine includes overload protection, an emergency stop switch, and pressure gauges for real-time monitoring of the hydraulic system.

Q: How does the cooling and lubrication system benefit the broaching process?

A: The integrated coolant system and automatic lubrication reduce wear on cutting tools, keep operating temperatures stable, and enhance the longevity and accuracy of the machine.

Q: What are the maintenance requirements for the VOGL Horizontal Broaching Machine?

A: Designed for low-maintenance operation, the machine provides easily accessible service points and automatic lubrication, making routine upkeep quick and uncomplicated.

Q: What power and control systems are used on this model?

A: The broaching machine features a combination of manual and electrical controls, operates at 415V, 3-phase, 50 Hz, and uses a 5 HP electric motor with belt-driven technology for consistent, reliable output.
