WMW Germany 300 mm Diameter Precision Tilting Rotary Table

Send Inquiry

Request To Call Back

WMW Germany 300 mm Diameter Precision Tilting Rotary Table

Name: WMW Germany 300 mm Diameter Precision Tilting Rotary Table
Brand: Liberty Metal & Machines Private Limited
Price: 200000.0 INR
Availability: InStock

Price 200000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW Germany 300 mm Diameter Precision Tilting Rotary Table Specification

Frame Type
Heavy-duty cast iron frame

Features
Tilting capability, precise graduation, robust construction, T-slots

Lubricating System
Manual lubrication points

Operating Temperature
Ambient shop temperature

Machine Type
Rotary Table

Model No
Not Specified (WMW Germany - 300 mm Table)

Control System
Manual hand-wheel operation

Drive
Manual worm & gear

Accuracy
High precision (typically 5 arc seconds, as per WMW standards)

Noise Level
Low, manual operation

Product Type
Precision Tilting Rotary Table

Technology
Conventional Mechanical

Power Source
Manual

Operating Type
Manual

Surface Treatment
Painted finish coupled with ground steel table

Dimension (L*W*H)
Approx. 600x500x300 mm

Weight (kg)
Approx. 85 kg

Color
Industrial Green (Body), Metal (Table Surface)

Usage & Applications
Precision machining, tool room, milling, drilling operations

Table Top Format
T-slotted (4 slots)

Application Fitment
Fits on milling, boring, and drilling machines

Backlash Adjustment
Precision backlash mechanism

Graduation
360 with fine adjustment

Condition
Used, very good working condition

Tilting Range
0-90

Table Diameter
300 mm

Clamping System
High-precision clamping for both axes

Swivel/Lock Mechanism
Provided for both tilt and rotation

About WMW Germany 300 mm Diameter Precision Tilting Rotary Table

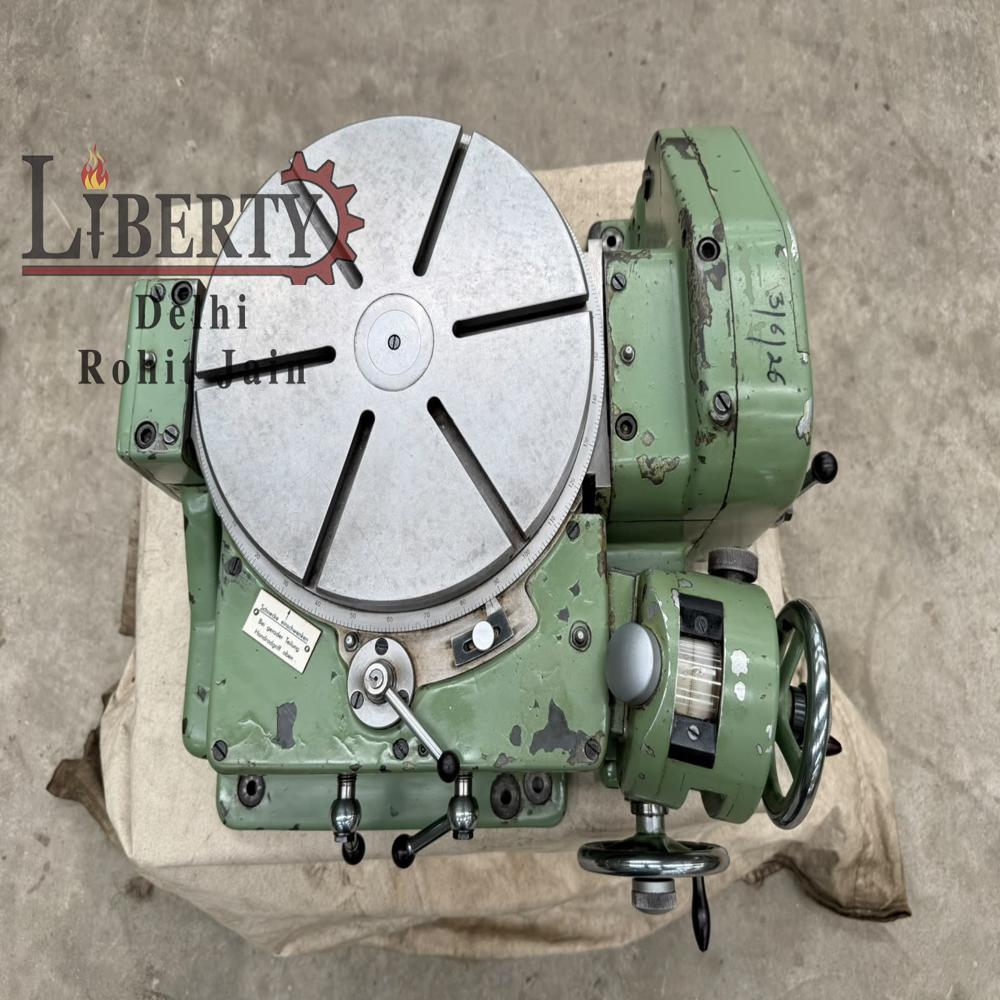

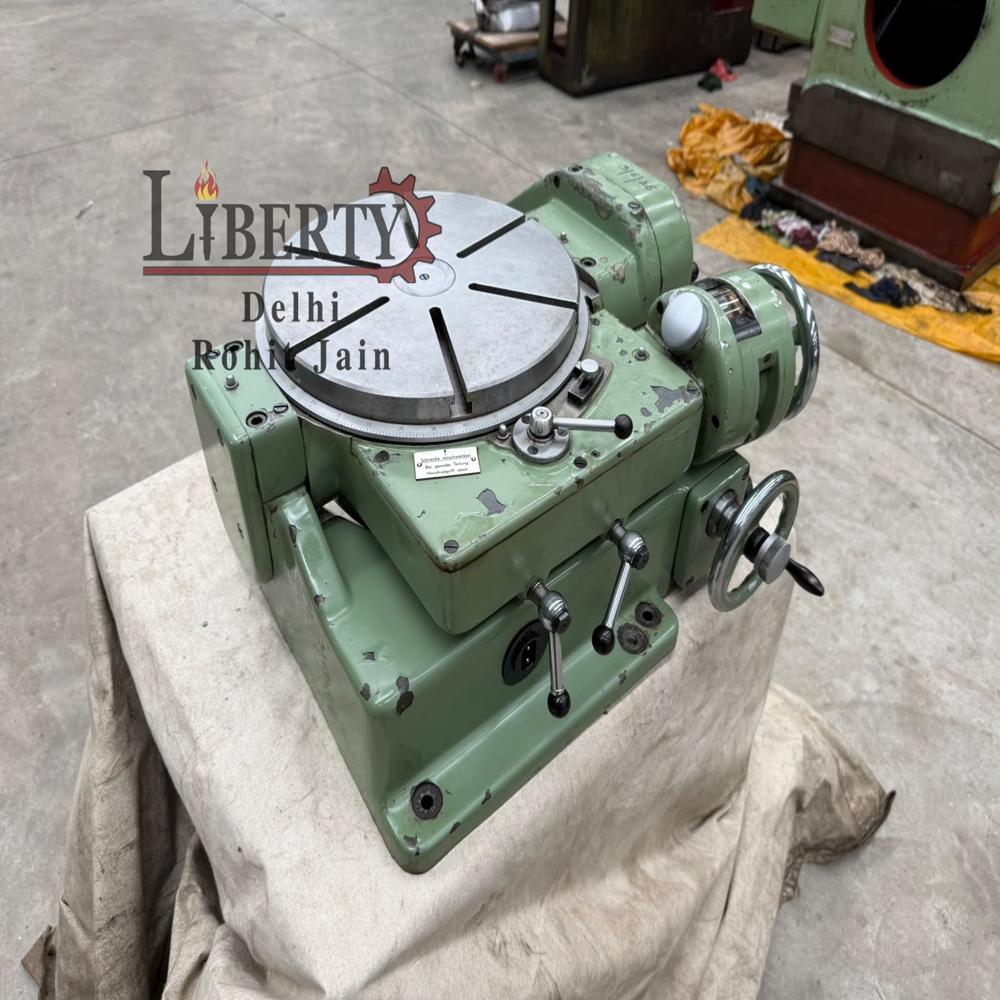

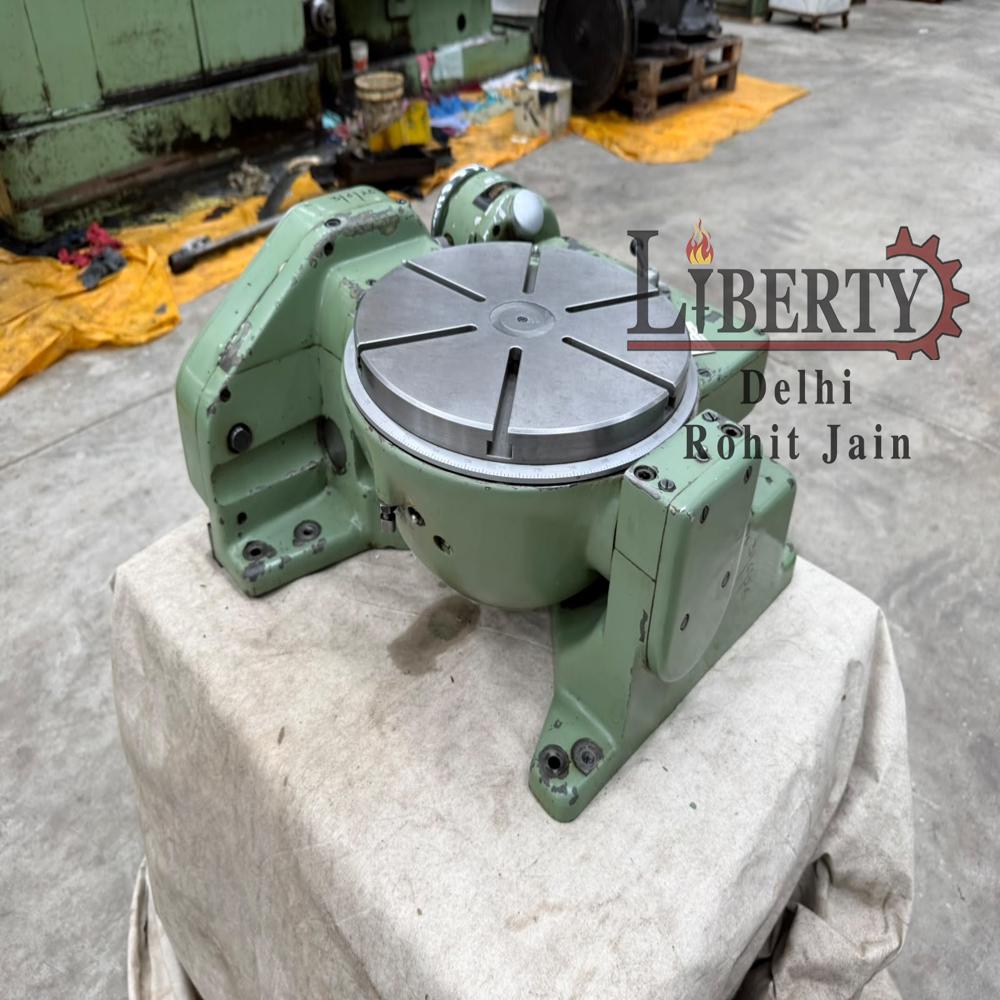

Precision Tilting Rotary Table manufactured by WMW (Germany), available in excellent working condition. It is a High-Precision Tilting Rotary Table featuring Micro-Feed Adjustment for both the Rotation and Tilt Axes, enabling highly accurate angular positioning. It features a Vernier Graduation with a Least Count of 2 Seconds of Arc for setting the Rotation Angle and is equipped with a 2-Micron Resolution Dial Gauge for precise Tilt Angle adjustment. It is ideally suited for boring holes and machining faces at compound angles on Jig Boring Machines, Milling Machines, Drilling Machines, and other similar machines. The technical details are as follows -

Make - WMW (Germany)

Table Diameter - 300 mm

Total Height of Table - 245 mm

Number of T-Slots - 6 Nos.

One Revolution of Handle - 2 degrees Rotation of Table

Tilt Angle Range - 0 degrees to 90 degrees

Vernier Graduation (Rotation Angle) - 2 Seconds of Arc

Approx. Table Weight - 110 kg

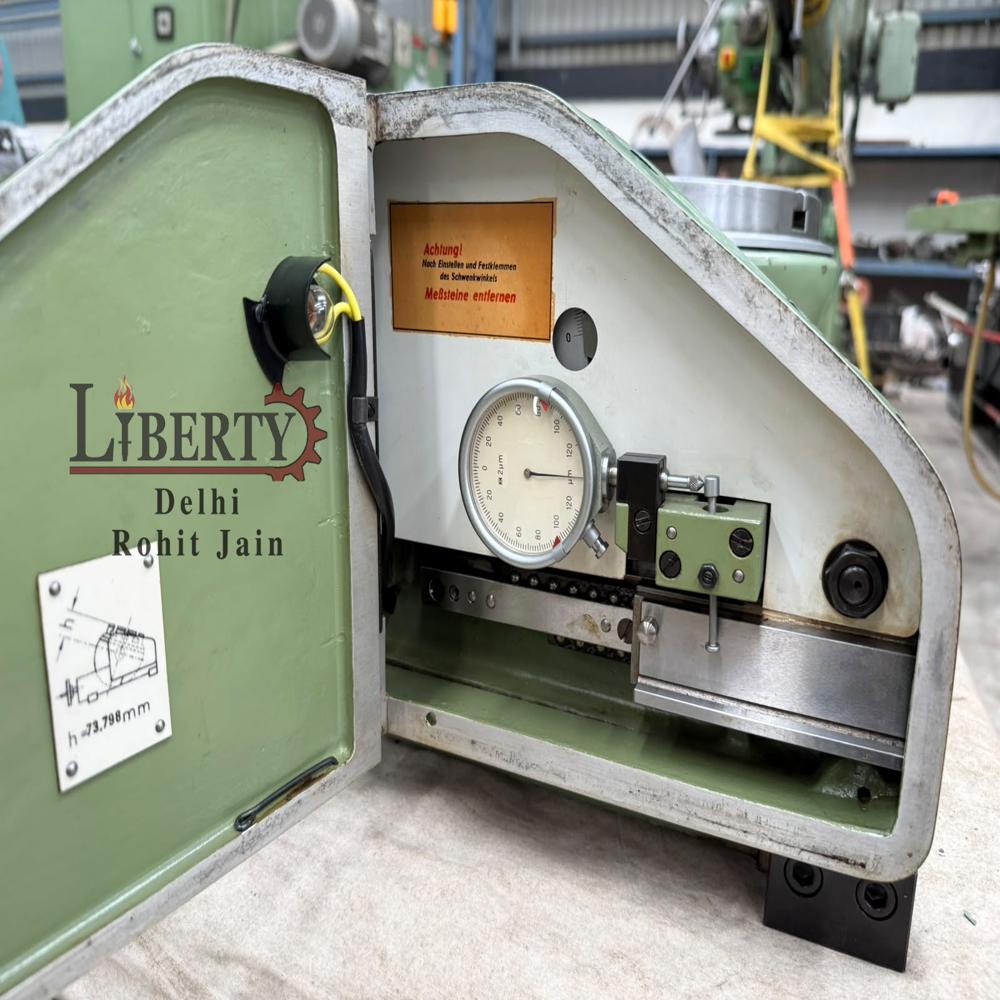

- Equipped with a Dial Gauge (of 2 Micron Resolution) for precise Tilt Angles Adjustment.

- Features Micro-Feed Adjustment for both the Rotation and Tilt Axes.

- Table is in excellent working condition.

Video of The Machine -

https://youtu.be/dPIdOZQifpk

Exceptional Accuracy for Demanding Jobs

Thanks to a high-precision backlash adjustment and graduation to 360 degrees, this rotary table offers outstanding angular accuracy-typically up to 5 arc seconds, meeting stringent WMW standards. The manual hand-wheel operation, paired with a robust clamping mechanism, ensures exact results in all tilting and rotary positions. This makes it perfectly suited for complex machining tasks requiring repeatable, fine adjustments.

Built to Withstand Intensive Use

The rotary table's heavy-duty cast iron frame and painted, ground-steel surfaces enhance its longevity and resistance to wear. With a stable build, industrial green finish, and ground metal table surface, it is engineered to operate efficiently in high-demand shop environments. Manual lubrication points provide straightforward upkeep, while the low-noise manual drive ensures minimal operational disturbance.

Versatility for Toolroom and Workshop

Designed for seamless fitment onto various milling, boring, and drilling machines, this tilting rotary table is highly adaptable. The T-slotted table accommodates diverse workpiece setups and fixtures, supporting a wide range of precision machining, tool room, or custom fabrication operations. Its tilting and locking mechanisms provide maximum positioning flexibility for intricate workpieces.

FAQ's of WMW Germany 300 mm Diameter Precision Tilting Rotary Table:

Q: How is the tilting and rotational position of the table adjusted and secured?

A: Both the tilt (0-90 degrees) and rotary (360 degrees) position of the table are set manually using precision hand-wheels. Secure locking and clamping systems are provided for each axis to hold the table firmly at the desired angle or rotation.

Q: What types of machines can this rotary table be fitted to?

A: This rotary table is designed to fit conventional milling, boring, and drilling machines. Its robust frame and mounting system make it compatible with most tool room and workshop machines that use rotary accessories.

Q: When would a tilting rotary table like this be beneficial?

A: The table is especially beneficial for machining tasks demanding angular cuts, multi-sided operations, or complex setups-such as in die making, component profiling, or precision drilling where both tilt and rotational adjustment are required.

Q: Where are the primary applications for this rotary table?

A: It is primarily used in precision workshops, tool rooms, and production settings that require exact alignment and machining flexibility, making it ideal for manufacturing, metalworking, and high-precision tooling.

Q: What is the process for setting up and operating the rotary table?

A: The operator manually mounts the table onto a compatible machine, secures the workpiece using the T-slots, adjusts tilt and rotation with the hand-wheels to the desired graduation, and locks each axis via the robust clamping levers. Manual lubrication points allow for routine maintenance.

Q: How does the precision backlash mechanism enhance operation?

A: The precision backlash adjustment reduces unwanted play in the worm and gear system, enabling fine, repeatable positioning. This ensures the table maintains high angular accuracy during machining tasks.
