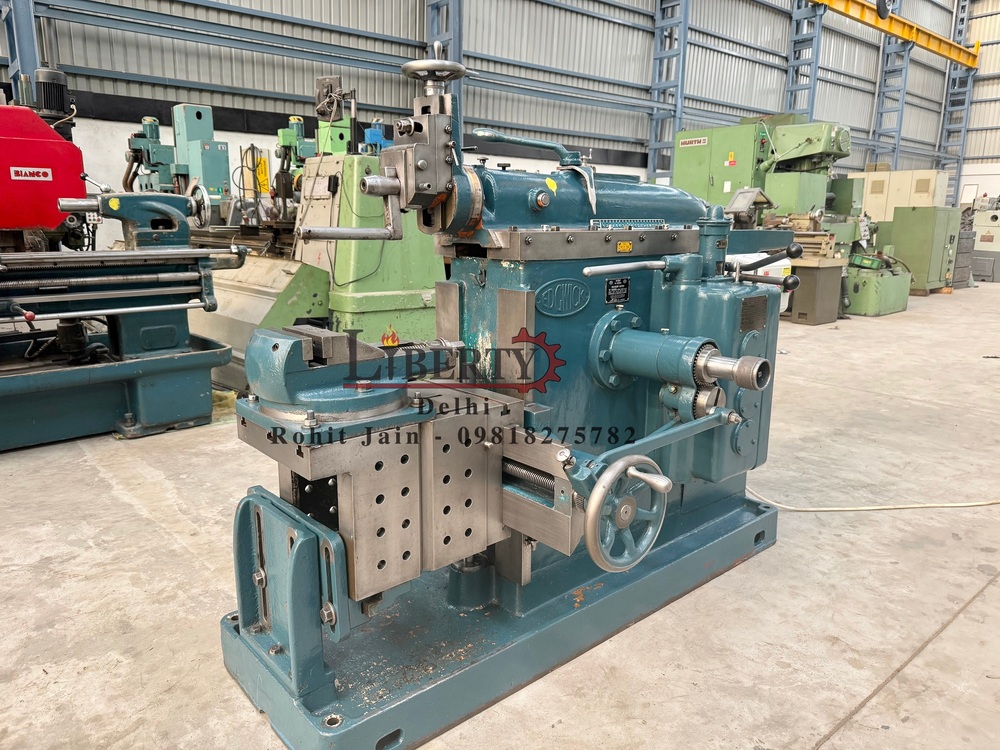

Edgwick England 500 mm Stroke Horizontal Shaper Machine
Edgwick England 500 mm Stroke Horizontal Shaper Machine

Edgwick England 500 mm Stroke Horizontal Shaper Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Edgwick England 500 mm Stroke Horizontal Shaper Machine Specification

  • Drive
  • Mechanical Crank Driven
  • Accuracy
  • High, within ±0.1 mm
  • Frequency
  • 50 Hz
  • Lubricating System
  • Manual / Centralized lubrication points
  • Motor Power
  • 2 HP
  • Operating Temperature
  • Ambient up to 40°C
  • Features
  • Adjustable Ram Stroke, Table Swivel, Tool Post, Vice, Feed Adjustment
  • Control System
  • Manual Controls with Feed Adjustment
  • Voltage
  • 415V, Three Phase
  • Power Rating
  • 2 HP
  • Model No
  • EDGWICK ENGLAND 500
  • Machine Type
  • Horizontal Shaper
  • Cooling System
  • Manual (Provision for coolant tray)
  • Noise Level
  • Low to moderate, < 80 dB
  • Production Capacity
  • 12-18 Pieces Per Hour
  • Frame Type
  • Heavy Duty Cast Iron
  • Product Type
  • Horizontal Shaper Machine
  • Technology
  • Conventional Mechanical
  • Power Source
  • Electric
  • Operating Type
  • Manual/Automatic Feed
  • Power
  • 2 HP
  • Pressure
  • Hydraulic - Not Applicable (Mechanical Drive)
  • Surface Treatment
  • Cast Iron Finish
  • Dimension (L*W*H)
  • Approx. 1800 x 700 x 1200 mm
  • Weight (kg)
  • Approx. 1000 kg
  • Color
  • Industrial Grey
  • Usage & Applications
  • Shaping and planing flat metal surfaces, slot cutting, gear rack machining
  • Number of Feeds
  • Multiple feed rates available
  • Maximum Table Travel (horizontal)
  • 610 mm
  • Main Construction Material
  • High grade cast iron
  • Swivelling Table
  • Available 90° both directions
  • Spindle Speed Range
  • Variable mechanical feed
  • Table Size
  • 620 mm x 300 mm
  • Max Workpiece Height (under Ram)
  • 305 mm
  • Maximum Table Travel (vertical)
  • 380 mm
  • Tool Holding Capacity
  • Standard shaper tool post
  • Ram Adjustment
  • 100 mm
  • Maximum Stroke Length
  • 500 mm
  • Safety Features
  • Overload protection, emergency stop
  • Vice Jaw Width
  • 190 mm
  • Floor Space Required
  • Approx. 2000 mm x 1000 mm


Edgwick England 500 mm Stroke Horizontal Shaper Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Edgwick England 500 mm Stroke Horizontal Shaper Machine

Make - Edgwick (England)

Max. Stroke Length - 500 mm

Stroke Rate - 10 strokes/min to 80 strokes/min

Table Size - 500 mm x 315 mm

- Automatic Vertical Feed Travels of the Tool Post.

- Automatic Feed Travels on the Cross Travel of Table.

- Complete with Rotating type Vice & many other accessories.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/4USpsstLffo



Precision Engineering for Advanced Metal Shaping

Delivering high-precision shaping and planing, the Edgwick England 500 Horizontal Shaper is tailored for industrial applications that demand accuracy within 0.1 mm. Its cast iron construction ensures stability during operation, while features like adjustable ram stroke and table swivel facilitate complex machining tasks with ease.


Built for Versatility and Operator Safety

With multiple feed rates, a swiveling table (90 in both directions), and a standard shaper tool post, this machine accommodates a variety of workpieces and operations. Enhanced safety is provided through overload protection and an emergency stop button, supporting a secure work environment.


Efficient Operation and Low Maintenance

The mechanical crank-driven design, combined with manual or centralized lubrication and provision for a coolant tray, ensures long service life and reduced maintenance intervals. Its electric 2 HP motor allows for efficient metal shaping, supporting production rates of 12-18 pieces per hour.

FAQ's of Edgwick England 500 mm Stroke Horizontal Shaper Machine:


Q: How is the Edgwick England 500 Horizontal Shaper Machine operated?

A: The machine features manual controls for operator-directed shaping, along with adjustable automatic feed options to handle repetitive or longer jobs efficiently. Feed rates are mechanically variable, allowing precise control over cutting speed and finish.

Q: What types of applications can this shaper handle?

A: This shaper is ideal for shaping and planing flat metal surfaces, cutting slots and grooves, and machining gear racks. It's extensively used in fabrication shops, maintenance workshops, and manufacturing plants where precise metalwork is required.

Q: When should the ram stroke and table adjustments be utilized?

A: Ram stroke and table adjustments should be used when working with varied workpiece sizes or when specific machining angles are needed. The adjustable ram stroke helps optimize cutting length, while the swiveling table accommodates complex and angled cuts.

Q: Where can the Edgwick 500 Horizontal Shaper be installed?

A: It requires a floor space of approximately 2000 mm x 1000 mm and an ambient operating temperature up to 40C. Suitable for industrial environments, the machine must be placed on a level floor within reach of a 415V, three-phase power supply.

Q: What are the benefits of choosing this model over similar machines?

A: The Edgwick England 500 provides high machining accuracy (0.1 mm), robust construction, variable feed rates, safety features such as overload protection and emergency stop, and flexible usage options-making it a preferred choice for industries requiring precision and reliability.

Q: How is routine maintenance performed on this shaper machine?

A: Routine maintenance includes lubricating moving parts via manual or centralized points, checking mechanical components for wear, ensuring coolant provision in the tray, and verifying that all safety features, like the emergency stop, are functional.
