Magnaghi Italy Horizontal Broaching Machine

Send Inquiry

Request To Call Back

Magnaghi Italy Horizontal Broaching Machine

Name: Magnaghi Italy Horizontal Broaching Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Magnaghi Italy Horizontal Broaching Machine Specification

Model No
Magnaghi HBM-30

Features
Heavy-duty frame, high precision guides, quick-change broach holders

Connectivity Options
Optional Industry 4.0 (Ethernet)

Noise Level
<80 dB

Drive
Hydraulic

Accuracy
±0.02 mm

Operating Temperature
5°C to 45°C

Frame Type
Hardened steel weldment

Frequency
50 Hz

Power Rating
7.5 kW

Motor Power
7.5 kW

Lubricating System
Automatic central lubrication

Production Capacity
50-120 pieces/day

Cooling System
Integrated coolant tank

Voltage
400V

Machine Type
Horizontal Broaching

Control System
Digital PLC

Product Type
Horizontal Broaching Machine

Technology
Broaching Technology

Power Source
Electric

Operating Type
Semi-Automatic

Power
Approx. 7.5 kW

Pressure
Customizable; up to 30 Tons

Surface Treatment
High-precision surface ground

Dimension (L*W*H)
Approx. 4800mm x 900mm x 1200mm

Weight (kg)
Approx. 3200 kg

Color
Industrial Grey

Usage & Applications
Internal, external, and surface broaching for automotive, aerospace, and tool-room industries

Machine Finish
Anti-corrosive epoxy paint

Maintenance Interval
Recommended every 1000 hours

Complies With
CE, ISO 9001 Standards

Max Broach Diameter
Up to 50 mm

Broaching Travel Control
Digital encoder

Table Length
1200 mm

Operating Panel
Touch screen

Packing Details
Wooden crates with fumigation

Broaching Puller
Precision hardened steel

Electrical Protection
Overload and phase failure protection

Safety Features
Emergency stop, safety interlock

Max Component Length
1200 mm

Oil Tank Capacity
75 Liters

Stroke Length
1000-1500 mm (configurable)

Service Support
On-site installation & training

Broach Holder Type
Rapid-change cartridge

Hydraulic System Pressure
210 bar

Tool Change Time
<5 min

Magnaghi Italy Horizontal Broaching Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

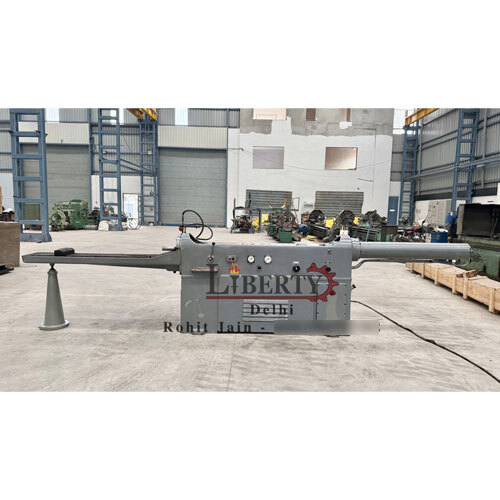

About Magnaghi Italy Horizontal Broaching Machine

Make - Magnaghi (Italy)

Tonnage Capacity - 8 Tons

Stroke Length - 1200 mm

Type - Pull Type ; Hydraulic

- Total of 167 pcs (125 kg) of different types of Broaches available as spare.

- With lots of accessories like Fixtures, Arbours etc.

- Complete with Coolant Tank and Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/OQhJ3TS3sLE

Versatility and Precision in Broaching

With its configurable stroke length and rapid-change cartridge holders, the Magnaghi HBM-30 adapts to a wide array of internal, external, and surface broaching applications. The digitally controlled broaching travel ensures repeatable accuracy, making it indispensable for precise component finishing in industries requiring tight tolerances.

Robust Safety and Operator Comfort

Operator safety is paramount: the machine offers emergency stop, safety interlock, and comprehensive electrical protection. The touch screen operating panel simplifies user interaction, while noise levels are kept below 80 dB, maximizing operator comfort in busy workshops.

Long-Term Reliability and Easy Maintenance

Constructed on a heavy-duty, anti-corrosive frame with high-precision guides, the HBM-30's integrated lubrication and cooling systems extend the service life of core components. Maintenance is straightforward, with intervals recommended every 1000 hours, reducing downtime and optimizing productivity.

FAQ's of Magnaghi Italy Horizontal Broaching Machine:

Q: How does the Magnaghi HBM-30 ensure high-precision broaching operations?

A: The HBM-30 utilizes high-precision guides, a digital encoder for broaching travel, and a PLC-based control system, ensuring an accuracy of 0.02 mm for consistent, repeatable results in demanding industrial applications.

Q: What is the process for changing broach tools on this machine?

A: The machine uses a rapid-change cartridge broach holder, allowing tool changes in under 5 minutes. This system streamlines setup, reduces downtime, and supports frequent tooling adjustments for various broaching tasks.

Q: When should routine maintenance be performed on the HBM-30 broaching machine?

A: Routine maintenance is recommended every 1000 operating hours. The machine's automatic central lubrication and integrated coolant system simplify routine care, while service support includes on-site installation and training.

Q: Where can this broaching machine be installed and what are its space requirements?

A: With overall dimensions of approximately 4800mm x 900mm x 1200mm, the HBM-30 is suitable for factories and manufacturing units with adequate floor space. Packing in wooden crates ensures safe transportation and installation at your site.

Q: What are the benefits of the integrated safety and electrical protection features?

A: Emergency stops, safety interlocks, and overload protection minimize risks to operators and equipment. These safeguards maintain compliance with CE and ISO 9001 standards, supporting reliable, secure operation.

Q: How is component quality maintained during high-volume production?

A: The heavy-duty frame, digital travel control, and high-precision guiding systems ensure each component remains within the tightly specified tolerances (0.02 mm), supporting batch consistency from 50 to 120 pieces per day.

Q: What types of applications is the Magnaghi HBM-30 best suited for?

A: The HBM-30 excels in internal, external, and surface broaching tasks for automotive, aerospace, and tool-room sectors, thanks to its configurable stroke, robust frame, and high production capacity.
