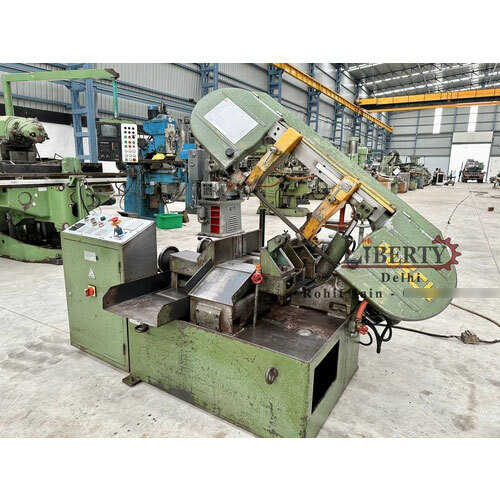

Rusch Germany 250 mm Fully Automatic Bandsaw Machine

Send Inquiry

Request To Call Back

Rusch Germany 250 mm Fully Automatic Bandsaw Machine

Name: Rusch Germany 250 mm Fully Automatic Bandsaw Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rusch Germany 250 mm Fully Automatic Bandsaw Machine Specification

Frequency
50 Hz

Drive
Gear Driven

Machine Type
Automatic Bandsaw

Voltage
415V AC, 3 Phase

Connectivity Options
Manual/PLC Interface

Accuracy
±0.2 mm

Operating Temperature
5°C to 45°C

Features
Automatic Feeding, Auto Material Clamp, Emergency Stop

Lubricating System
Automatic Lubrication

Control System
PLC Controlled

Power Rating
3.5 HP

Frame Type
Robust Welded Steel

Production Capacity
Up to 70 cuts/hour

Model No
250 mm

Noise Level
Less than 80 dB

Cooling System
Integrated Coolant Tank

Motor Power
3 kW

Product Type
Fully Automatic Bandsaw Machine

Technology
German Technology

Power Source
Electric

Operating Type
Fully Automatic

Power
3 kW

Pressure
Hydraulic

Surface Treatment
Powder Coated

Dimension (L*W*H)
1900 x 800 x 1350 mm

Weight (kg)
700 kg

Color
Grey & Yellow

Usage & Applications
Metal Cutting, Industrial Manufacturing

Cutting Angle
Straight Cutting (90° only)

Blade Size
3150 x 27 x 0.9 mm

Clamping Type
Hydraulic Double Vise

Phase Sequence Relay
Yes

Max Stock Feed Length Per Stroke
500 mm

Main Motor Type
Three Phase Induction

Blade Speed
18-80 m/min (variable)

Hydraulic Tank Capacity
45 L

Minimum Cutting Length
10 mm

Display
Digital Operation Panel

Electrical Protection
IP54 Rated

Number of Feed Rates
Multiple (Stepless)

Material Handling System
Roller Table Infeed & Outfeed

Maximum Cutting Diameter
250 mm

Safety Mechanisms
Overload Protection, Safety Covers

Blade Tensioning
Manual/Automatic

Rusch Germany 250 mm Fully Automatic Bandsaw Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Rusch Germany 250 mm Fully Automatic Bandsaw Machine

Make - Rusch (Germany)

Model - AS-250

Cutting Capacity (for Round) - 250 mm

Max. Job Length for Auto-Feed - 1000 mm

Type - Fully Automatic ; Hydraulic.

- Hand-Wheel Control for adjusting Stock Length.

- Complete with Job Supports and many spare Blades etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/FfhqA6IqtP0

Precision and Efficiency in Metal Cutting

The Rusch Germany 250 mm Fully Automatic Bandsaw is designed for optimized industrial metal cutting, leveraging German engineering for accuracy and dependable performance. Its hydraulic double vise and gear drive system enable precise, high-speed operations, while the PLC-controlled display simplifies setup and monitoring. Automatic feeding and material clamping further increase productivity and operational safety.

Advanced Safety and Automation Features

Safety is paramount with overload protection, safety covers, emergency stop, and phase sequence relay features. The IP54-rated electrical protection, robust welded steel frame, and auto material clamping offer peace of mind during heavy-duty operation. The machine's automatic lubrication and integrated coolant tank support long-term, maintenance-friendly use.

FAQ's of Rusch Germany 250 mm Fully Automatic Bandsaw Machine:

Q: How does the Rusch Germany 250 mm Bandsaw Machine maintain precise cutting accuracy?

A: This bandsaw uses a PLC-controlled digital operation panel combined with a robust gear drive and hydraulic double vise clamping system, achieving cutting accuracy within 0.2 mm and consistent results throughout high-volume operations.

Q: What materials and applications is this bandsaw suitable for?

A: The machine is specifically engineered for metal cutting in industrial manufacturing settings. Its powerful 3 kW three-phase induction motor and variable blade speed support a wide range of metals and heavy-duty fabrication tasks.

Q: When should the blade speed be adjusted, and what is its range?

A: Blade speed-ranging from 18 to 80 m/min (stepless adjustment)-should be tailored to the material being cut: lower speeds for harder metals, higher speeds for softer metals. The digital display facilitates easy adjustments for optimal results.

Q: Where is the Rusch Germany 250 mm Bandsaw commonly used?

A: It's widely utilized in metal fabricating plants, manufacturing industries, and workshops that require efficient, high-capacity straight cutting operations on various metal stock up to 250 mm diameter.

Q: What is the process for material handling and feeding with this machine?

A: The bandsaw features roller table infeed and outfeed systems for smooth material transfer. Automatic feeding and hydraulic clamping ensure secure positioning and efficient, hands-free operation, increasing throughput and safety.

Q: How does this machine benefit operators in terms of safety and ease of use?

A: Operators benefit from advanced safety mechanisms such as overload protection, safety covers, emergency stop features, and a digital control panel for intuitive operation. Its quiet operation (<80 dB) and ergonomic build further enhance user comfort and safety.
