Emapp Italy 300-AF Fully Automatic Bandsaw Machine

Send Inquiry

Request To Call Back

Emapp Italy 300-AF Fully Automatic Bandsaw Machine

Name: Emapp Italy 300-AF Fully Automatic Bandsaw Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Emapp Italy 300-AF Fully Automatic Bandsaw Machine Specification

Voltage
415V AC, 3 Phase

Machine Type
Fully Automatic Bandsaw

Control System
PLC Controlled

Frame Type
Heavy-duty rigid frame

Frequency
50/60 Hz

Drive
Gearbox drive

Lubricating System
Automatic lubrication system

Power Rating
3.5 HP

Motor Power
3 kW

Accuracy
0.1 mm

Operating Temperature
5C to 45C

Features
Automatic feeding, high efficiency, safety guards, user-friendly interface

Production Capacity
Up to 400 mm per minute (cutting speed)

Cooling System
Integrated coolant system

Model No
EMAPP 300-AF

Noise Level
Below 75 dB

Connectivity Options
Yes, Ethernet & USB ports

Product Type
Fully Automatic Bandsaw Machine

Technology
European Technology

Power Source
Electric

Operating Type
Automatic

Power
3 kW

Pressure
Hydraulic, adjustable

Surface Treatment
Powder Coated

Dimension (L*W*H)
2100 mm x 1000 mm x 1400 mm

Weight (kg)
1100 kg

Color
Grey & Orange

Usage & Applications
Industrial metal cutting, fabrication workshops, manufacturing plants

Ambient Humidity
35%-85% RH

Material Capacity (Rectangular)
300 mm x 220 mm

Safety Features
Emergency stop, safety interlocks

Cutting Angles
0 (straight cut)

Coolant Tank Capacity
40 Liters

Recommended Material
Ferrous and non-ferrous metals

Blade Speed
18-85 m/min (variable)

Maximum Cutting Diameter
300 mm

Operator Skill Level
Semi-skilled to skilled

Standard Accessories
Saw blade, toolkit, operation manual

Main Motor
3 kW / 4 HP

Hydraulic Tank Capacity
50 Liters

Minimum Cutting Length
5 mm

Power Consumption
3.5 kW (max)

Installation Type
Floor mounted

Saw Blade Size
3660 x 34 x 1.1 mm

Maintenance Requirement
Low, easy access to components

Coolant Pump Motor
0.09 kW

Feed Stroke
0-600 mm, multiple stroke

Vice Type
Hydraulic, automatic clamping

Working Speed
Variable, adjustable via control panel

Hydraulic Motor
0.55 kW

Material Capacity (Round)
300 mm

Display Type
Digital (for feed & batch count)

Emapp Italy 300-AF Fully Automatic Bandsaw Machine About

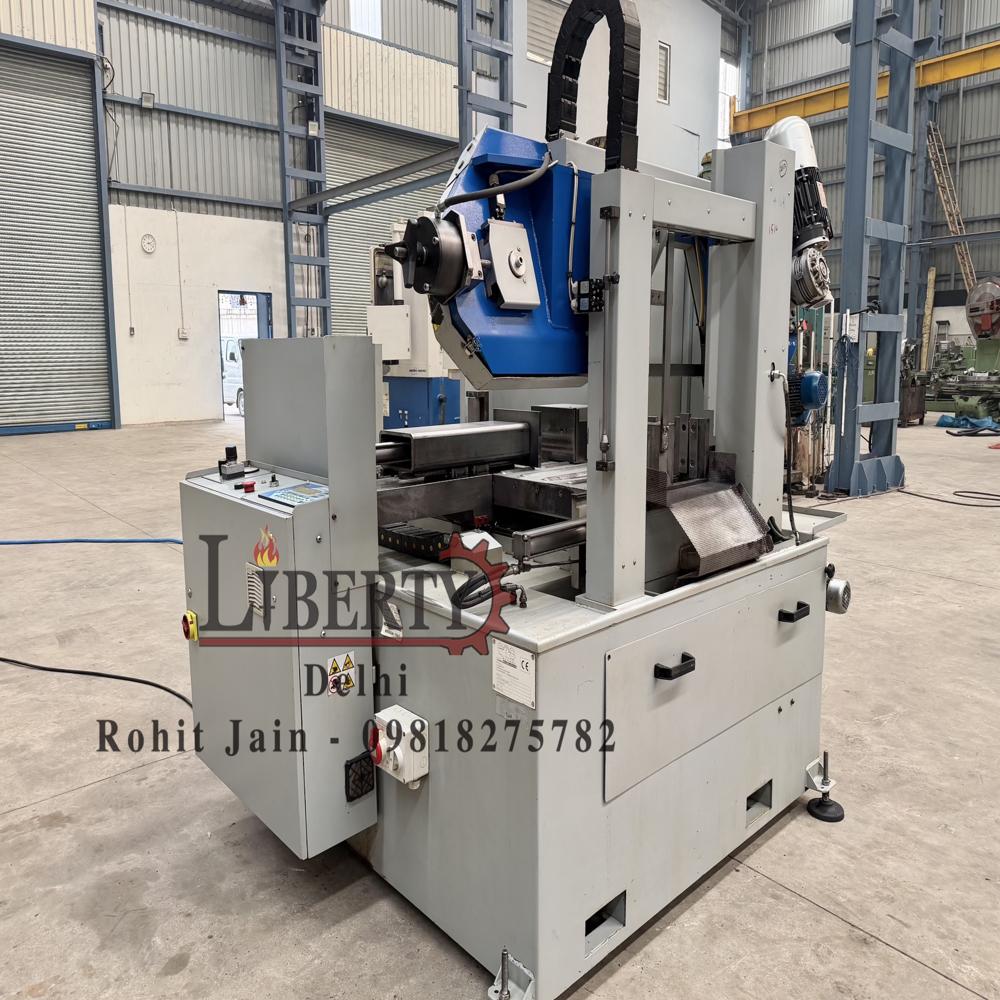

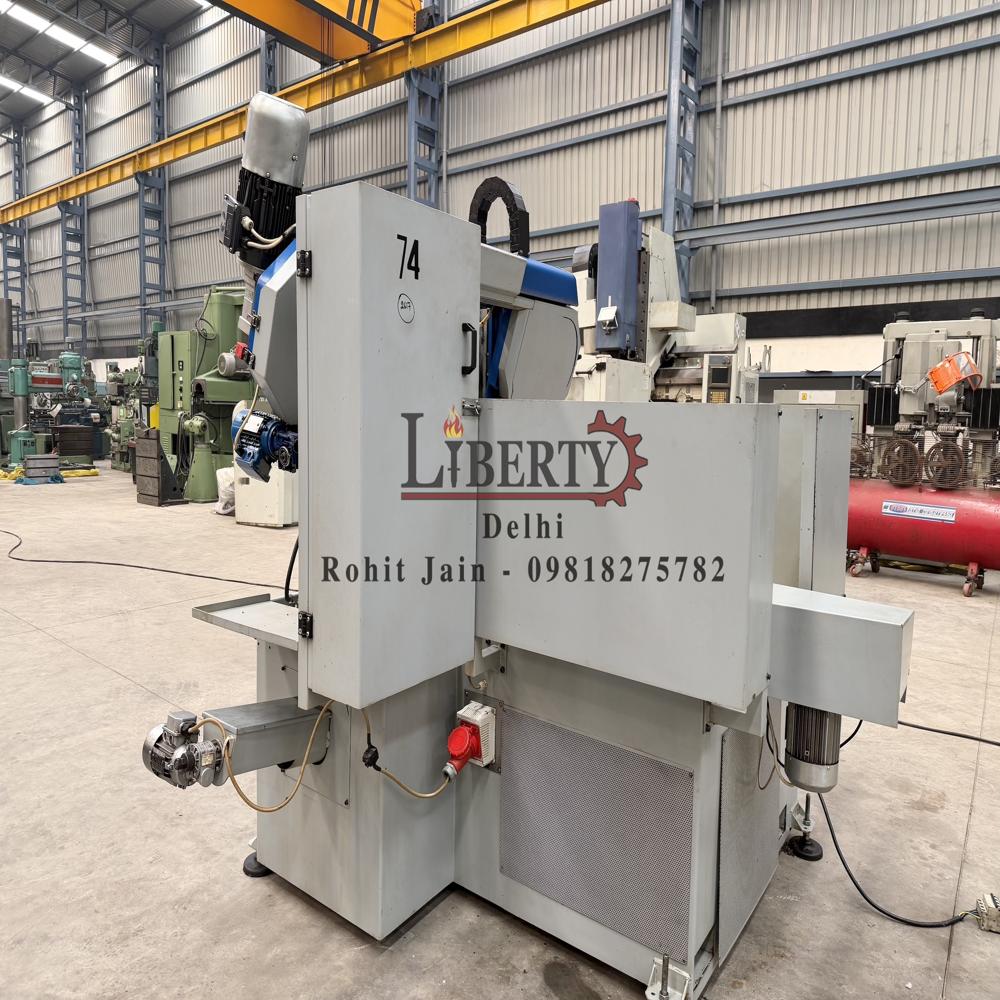

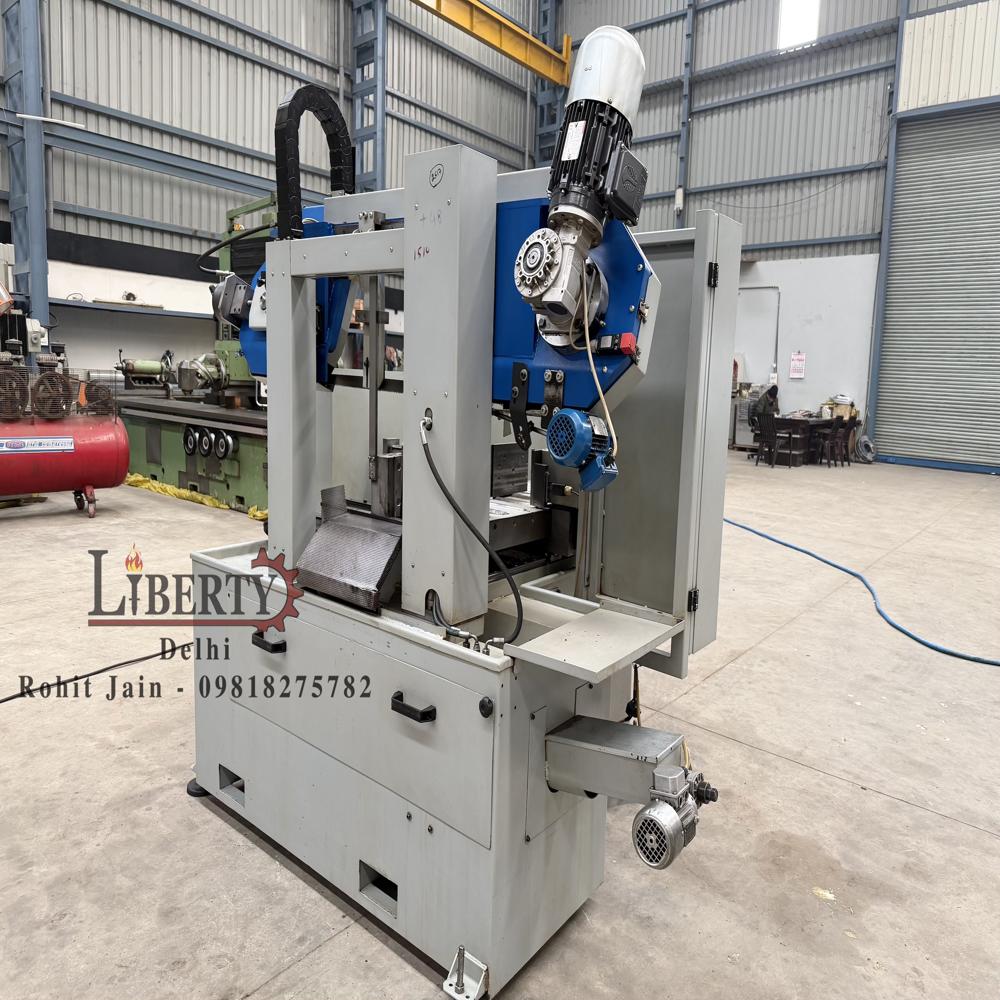

Emapp (Italy) make Fully Automatic Bandsaw Machine in excellent working condition. The model of the machine is 300-AF and the Cutting Capacity for Round is 300 mm Diameter. The machine can work in complete Full-Automatic Mode as well as in Manual Mode. The technical details are as follows -

Make - Emapp (Italy)

Model - 300-AF

Cutting Capacity (for Round) - 300 mm

Max. Travel for Auto-Feed Vice - 600 mm (single time)

Max. No. of Travels for Auto-Feed Vice - 16 Times

Blade Size - Length 3830 mm x Width 34 mm x Thickness 1.10 mm

Blade Speeds - 40 m/min - 80 m/min

Blade Motor Power - 1.5 kW

Year of Make - 2016

Type - Fully Automatic

- Can be used in Full Automatic Mode, Semi-Automatic Mode and in Manual Mode as well.

- Complete with Coolant Tank, Coolant Pump, Chip Conveyor etc.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/8ntyCqda8VI

Advanced European Technology

Incorporating cutting-edge European technology, the Emapp Italy 300-AF provides unmatched performance for demanding metal cutting tasks. The automatic feeding mechanism, PLC control, and digital interface simplify operation, while adjustable hydraulic pressure and variable blade speed enhance versatility and precision. This is a perfect choice for users seeking reliability and modernized industrial solutions.

Operator Safety and Ease of Maintenance

Safety is prioritized with emergency stops, safety interlocks, and robust safety guards, ensuring protected operation. Designed for low maintenance, the machine provides easy access to components and features an automatic lubrication system, contributing to reduced downtime and smooth performance in rigorous work environments.

FAQ's of Emapp Italy 300-AF Fully Automatic Bandsaw Machine:

Q: How does the Emapp Italy 300-AF automatic bandsaw enhance productivity in industrial cutting?

A: This bandsaw boosts productivity through its fully automatic feeding, adjustable cutting speeds, and PLC-controlled operation. With minimal operator intervention, it can achieve rapid, accurate cuts up to 400 mm per minute, making it ideal for high-volume manufacturing and fabrication tasks.

Q: What types of materials can be processed with this machine?

A: The Emapp Italy 300-AF is designed for cutting both ferrous and non-ferrous metals, making it suitable for steel, aluminum, copper, and similar industrial materials.

Q: When is it necessary to adjust the blade speed and hydraulic pressure?

A: Blade speed and hydraulic pressure adjustments are recommended depending on the material type and cross-section being cut. Tougher metals and larger profiles may require lower speeds and higher pressure for optimal results and blade longevity.

Q: Where is the optimal installation location for this bandsaw machine?

A: This model is floor-mounted and best suited for spacious, well-ventilated areas within fabrication workshops or manufacturing plants where industrial-grade electrical supply (415V, 3 Phase) is available.

Q: What maintenance steps are required to keep the machine running efficiently?

A: Regularly check and refill the hydraulic and coolant tanks, inspect blade condition, and ensure automatic lubrication is functioning. The machine is designed for straightforward maintenance with easy-access panels for component inspection.

Q: How can operators ensure safe usage of the bandsaw?

A: Operators should utilize all safety features, such as emergency stops, safety interlocks, and guarding. Proper training on operation and adherence to safety protocols are also essential for minimizing risks during operation.

Q: What are the main benefits of using the Emapp Italy 300-AF over manual bandsaws?

A: The primary advantages include increased cutting accuracy (up to 0.1 mm), automatic feeding and clamping, reduced manual handling, higher production speeds, improved safety, and lower maintenance requirements, resulting in greater efficiency and reliability in industrial environments.
