Kaltenbach Germany HDM-750 Heavy-Duty Circular Sawing Machine

Send Inquiry

Request To Call Back

Kaltenbach Germany HDM-750 Heavy-Duty Circular Sawing Machine

Name: Kaltenbach Germany HDM-750 Heavy-Duty Circular Sawing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kaltenbach Germany HDM-750 Heavy-Duty Circular Sawing Machine Specification

Features
Automatic material feed, Heavy duty construction, Carbide tipped blade, Fast and efficient operation

Noise Level
< 80 dB

Operating Temperature
5C to 45C

Motor Power
15 kW

Lubricating System
Centralized lubrication

Voltage
400 V

Control System
PLC Controlled

Model No
HDM-750

Cooling System
Integrated coolant system

Power Rating
15 kW

Accuracy
0.1 mm per 1000 mm cut

Machine Type
Fully Automatic Circular Sawing Machine

Frequency
50 Hz

Connectivity Options
Remote diagnostics via Ethernet

Drive
Hydraulic/mechanical

Frame Type
Rigid welded steel

Production Capacity
Upto 400 mm section per minute

Product Type
Heavy-Duty Circular Sawing Machine

Technology
High-Performance German Technology

Power Source
Electric

Operating Type
Semi-Automatic

Power
15 kW

Pressure
Hydraulic Operation

Surface Treatment
Powder Coated

Dimension (L*W*H)
3200 x 1800 x 2200 mm

Weight (kg)
4250 kg

Color
Blue & Grey

Usage & Applications
Metal cutting, Steel fabrication, Industrial manufacturing

Electrical Protection
Overload and short-circuit protection

Cutting Angle
90 (standard), optional mitre cutting

Min Cutting Length
10 mm

Transportability
Forklift slots and lifting eyes

Maximum Cutting Diameter
250 mm round, 400 x 180 mm rectangular

Safety
Equipped with CE standard safety covers

Recommended Materials
Ferrous and non-ferrous metals

Blade Diameter
750 mm

Material Clamping
Hydraulic vice

Display
Digital display for length and angle

Blade Rotation Speed
12-120 RPM (variable)

Operator Interface
Touch panel with multi-language support

Maintenance
Low-maintenance design with easy service access

Blade Cooling
Flood coolant system

Feed System
Automatic material feeder with length stop

About Kaltenbach Germany HDM-750 Heavy-Duty Circular Sawing Machine

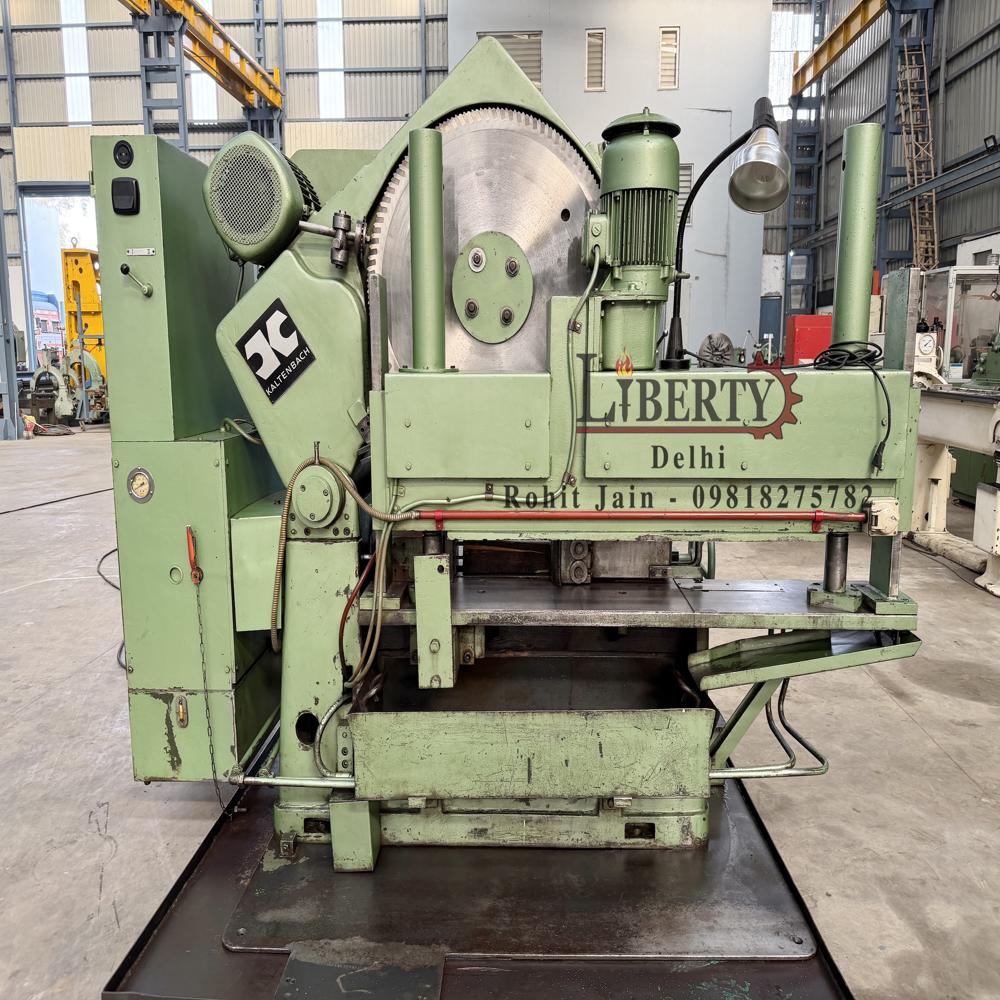

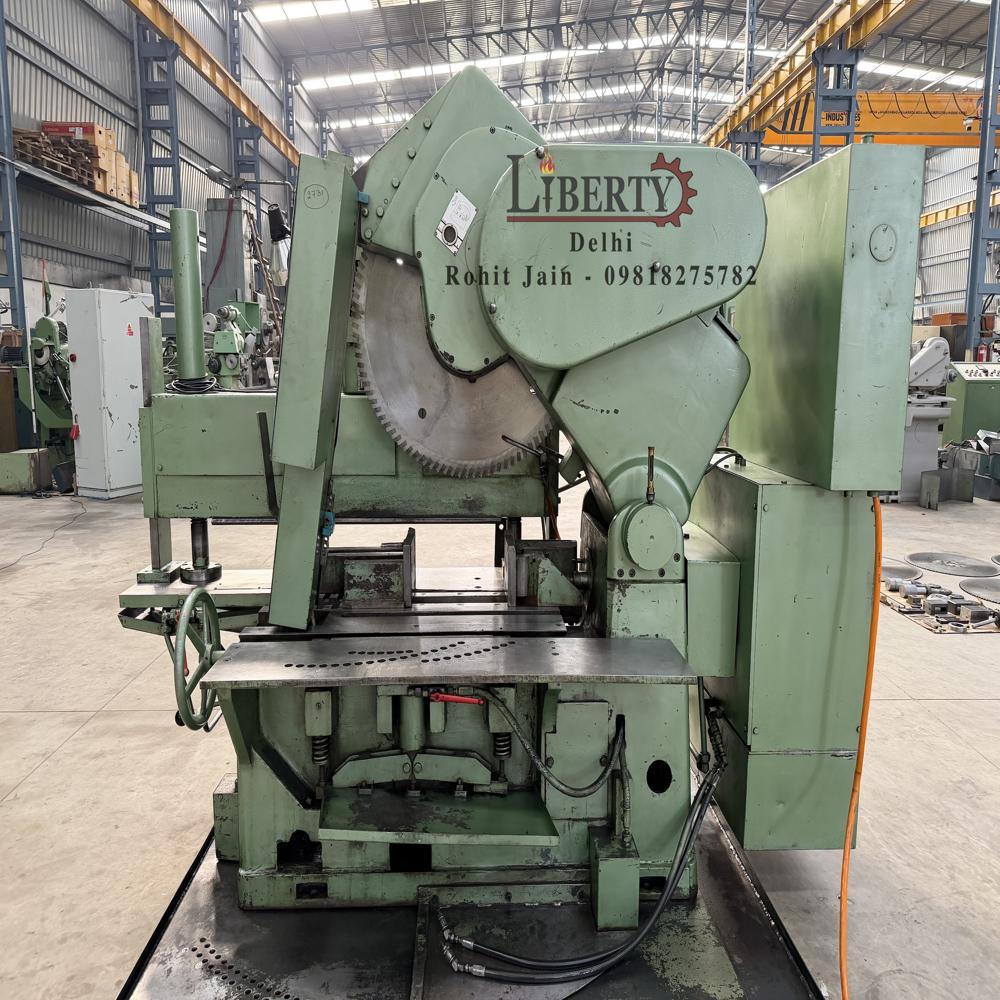

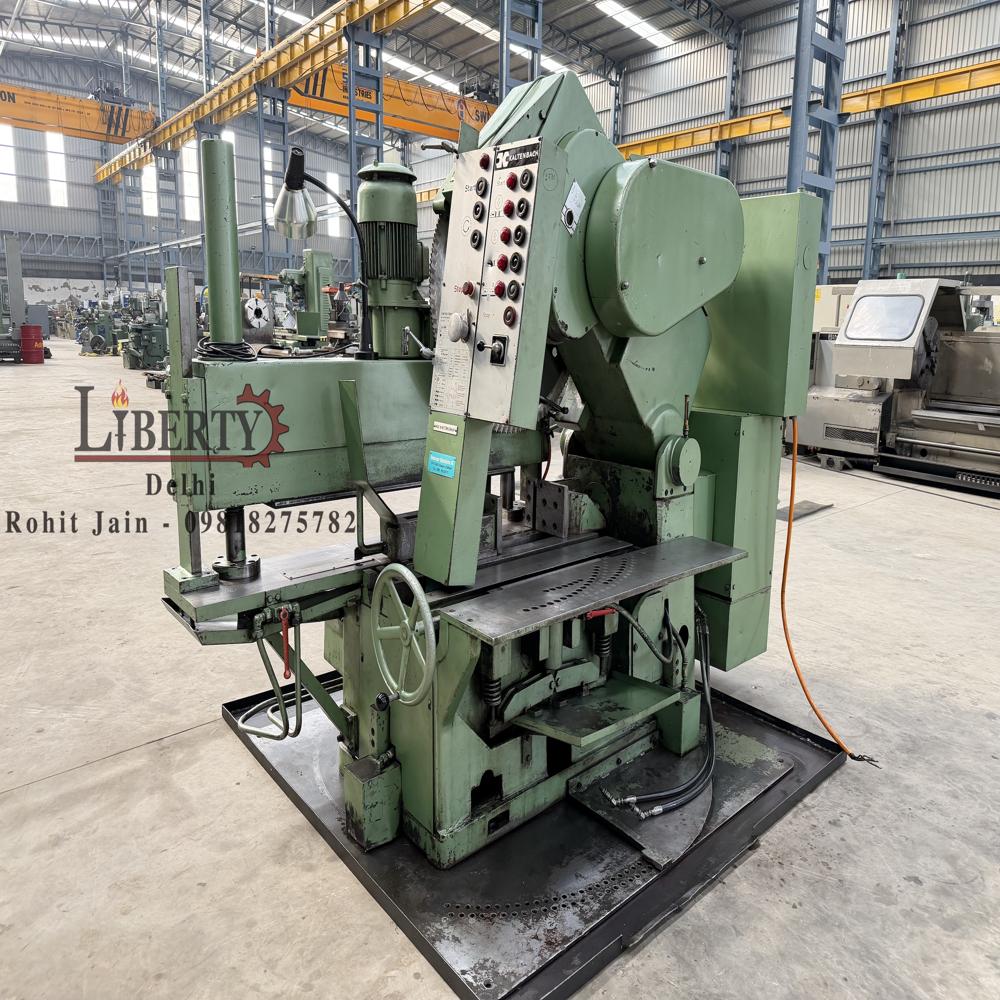

Kaltenbach (Germany) make Heavy-Duty Circular Sawing Machine in excellent working condition. The model of the machine is HDM-750 and its Maximum Cutting Capacity for Solid Round is 220 mm. The machine has the capability for angular (mitre) cutting. The technical details are as follows -

Make - Kaltenbach (Germany)

Model - HDM-750

Max. Circular Saw Blade Diameter - 800 mm

Max. Cutting Capacity for Round - 220 mm

Max. Cutting Capacity for Square - 190 mm

Cutting Capacity for U & I Profile - 400 mm x 150 mm

Cutting Speeds - 10 m/min and 20 m/min

Weight of the Machine - 3.820 Tons (Approximately)

- Machine is with provision for Angular (mitre) cutting.

- Machine is suitable for Mild-Steel as well as Hard-Steel.

- Automatic Clamping of both the Clamping Vices (Front & Back).

- Complete with many spare Circular Blades & other accessories.

- Electrical drawings of the machine are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/VCu043_Aj5s

Unmatched Cutting Versatility and Precision

With a blade diameter of 750 mm and hydraulic clamping, the HDM-750 offers high-precision cutting for both round and rectangular metals. The digital display and variable-speed control allow operators to achieve an accuracy of 0.1 mm per 1000 mm cut, making it a superb choice for demanding industrial applications.

Intuitive and Safe Operator Experience

The machine's touch panel, multi-language support, and digital readouts streamline operation. CE-standard safety covers, overload protections, and a low noise level under 80 dB deliver a secure and comfortable working environment. Maintenance is simplified through its easy-access, low-maintenance design.

Engineered for Performance and Longevity

Powered by a 15 kW motor and robust PLC-based control, the HDM-750 meets high production demands. Forklift slots and lifting eyes enable easy transport within manufacturing settings. High-performance German technology ensures durability and consistent results shift after shift.

FAQ's of Kaltenbach Germany HDM-750 Heavy-Duty Circular Sawing Machine:

Q: How does the automatic material feeder work on the HDM-750?

A: The automatic material feeder on the HDM-750 uses a length stop and digital control to position and advance materials with minimal manual intervention. This ensures highly repeatable cuts and boosts overall productivity.

Q: What types of materials can be cut with this sawing machine?

A: The HDM-750 is built to cut both ferrous and non-ferrous metals, including steel and aluminum, making it versatile for a wide range of industrial and metal fabrication applications.

Q: When should the flood coolant system be used during operation?

A: It is recommended to operate the integrated flood coolant system at all times when cutting to maintain optimal blade temperature, improve cutting efficiency, and prolong blade life.

Q: Where is the HDM-750 suitable for installation and use?

A: This sawing machine is designed for use in industrial settings such as metalworking shops, steel fabrication plants, and manufacturing facilities, where high accuracy and heavy-duty cutting are required.

Q: What is the process for adjusting the cutting length and angle?

A: Cutting length and angle adjustments are managed easily through the machine's digital display and touch panel interface. The automatic feeder uses set parameters, and mitre cutting angles are available as an optional feature.

Q: How does the machine ensure operational safety?

A: Safety is achieved through CE-standard covers, overload and short-circuit electrical protections, and low-noise operation. The ergonomic touch panel also minimizes operator errors and enhances workflow security.

Q: What are the benefits of the centralized lubrication and low-maintenance design?

A: The centralized lubrication system significantly reduces maintenance intervals and component wear, ensuring consistent performance. The low-maintenance design permits quick service access, minimizing downtime and operating costs.
