Price 100000.0 INR/ Piece

MOQ : 1 Piece

Elmec Italy 320 mm Diameter Manual Rotary Indexing Table Specification

  • Accuracy
  • High indexing accuracy (typical of Elmec)
  • Frame Type
  • Heavy duty cast iron housing
  • Control System
  • Manual
  • Drive
  • Manual
  • Noise Level
  • Low (manual operation)
  • Features
  • Precision ground T-slots, easy index setting, durable construction
  • Lubricating System
  • Manual grease lubrication
  • Operating Temperature
  • Ambient workshop conditions
  • Model No
  • Elmec Italy 320 mm
  • Machine Type
  • Manual Rotary Table
  • Product Type
  • Rotary Indexing Table
  • Technology
  • Conventional
  • Power Source
  • Manual
  • Operating Type
  • Hand Operated
  • Surface Treatment
  • Hardened and Ground
  • Dimension (L*W*H)
  • Approx. 450 mm x 380 mm x 120 mm
  • Weight (kg)
  • Approx. 55-65 kg
  • Color
  • Green/Black with metal finish
  • Usage & Applications
  • Precision dividing, milling, drilling & machining centers
  • Application Suitability
  • Suitable for milling, drilling, and fabrication workshops
  • Working Speed
  • Depends on operator
  • Top Plate T-Slots
  • 4 T-slots for clamping
  • Condition
  • Used/Excellent condition
  • Locking Mechanism
  • Positive mechanical clamp for rotation
  • Mounting
  • Designed for horizontal and vertical mounting
  • Graduation and Vernier
  • Degree graduation, vernier for fine adjustment
  • Material Construction
  • High tensile cast iron with precision ground top
  • Handwheel
  • Precision handwheel with lock


Elmec Italy 320 mm Diameter Manual Rotary Indexing Table Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 1 Piece Per Week
  • Delivery Time
  • 7 Days


About Elmec Italy 320 mm Diameter Manual Rotary Indexing Table

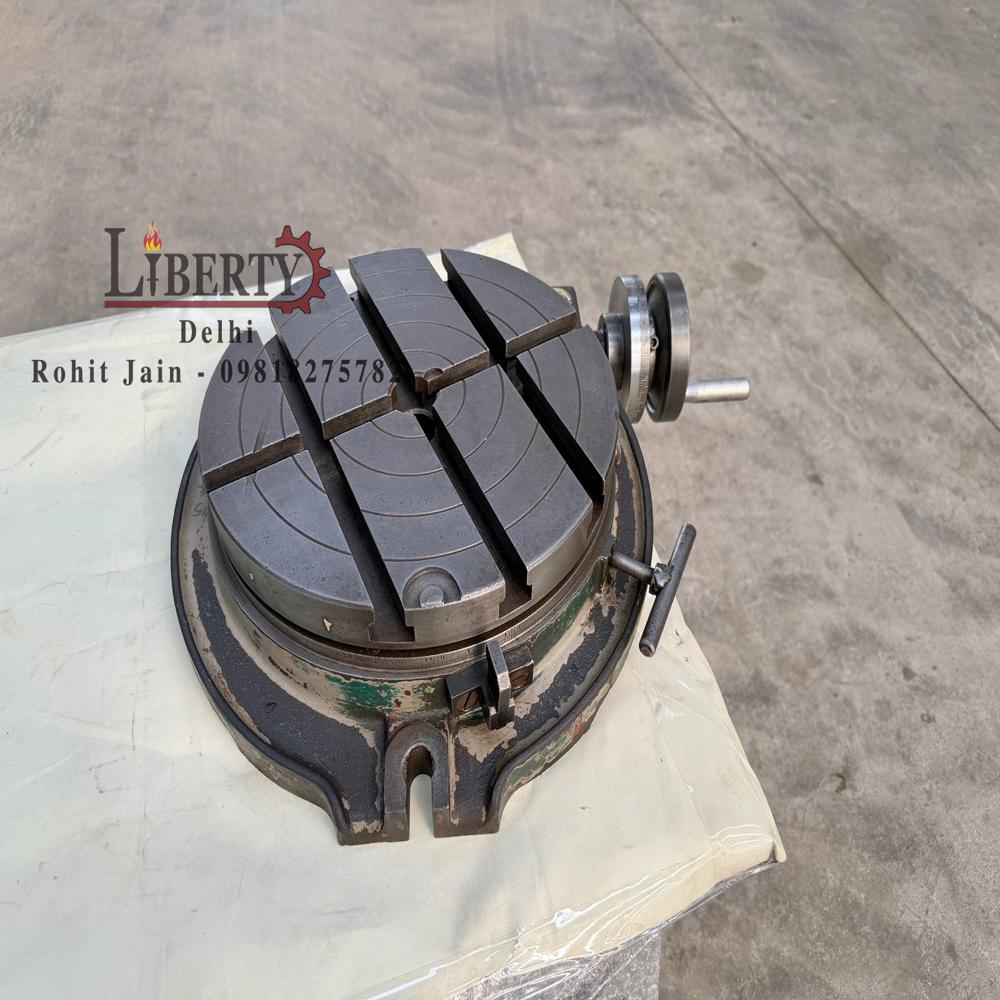

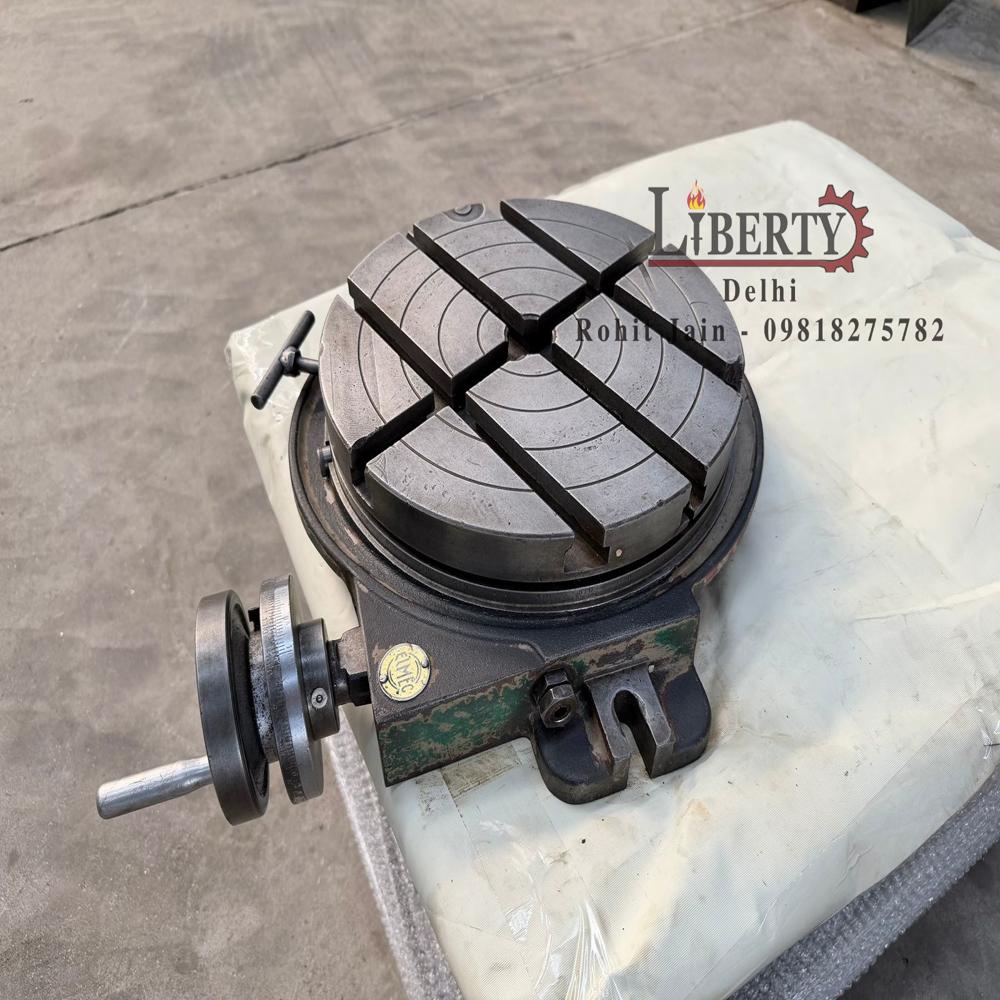

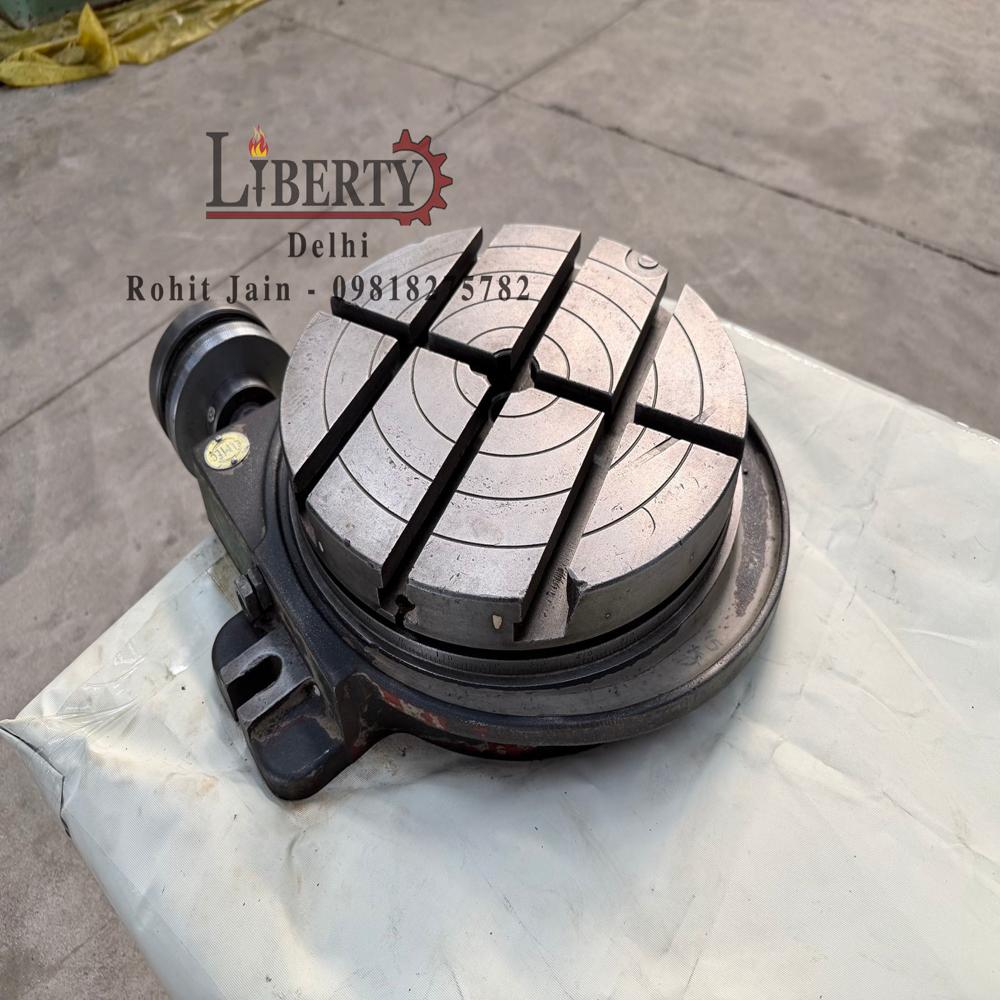

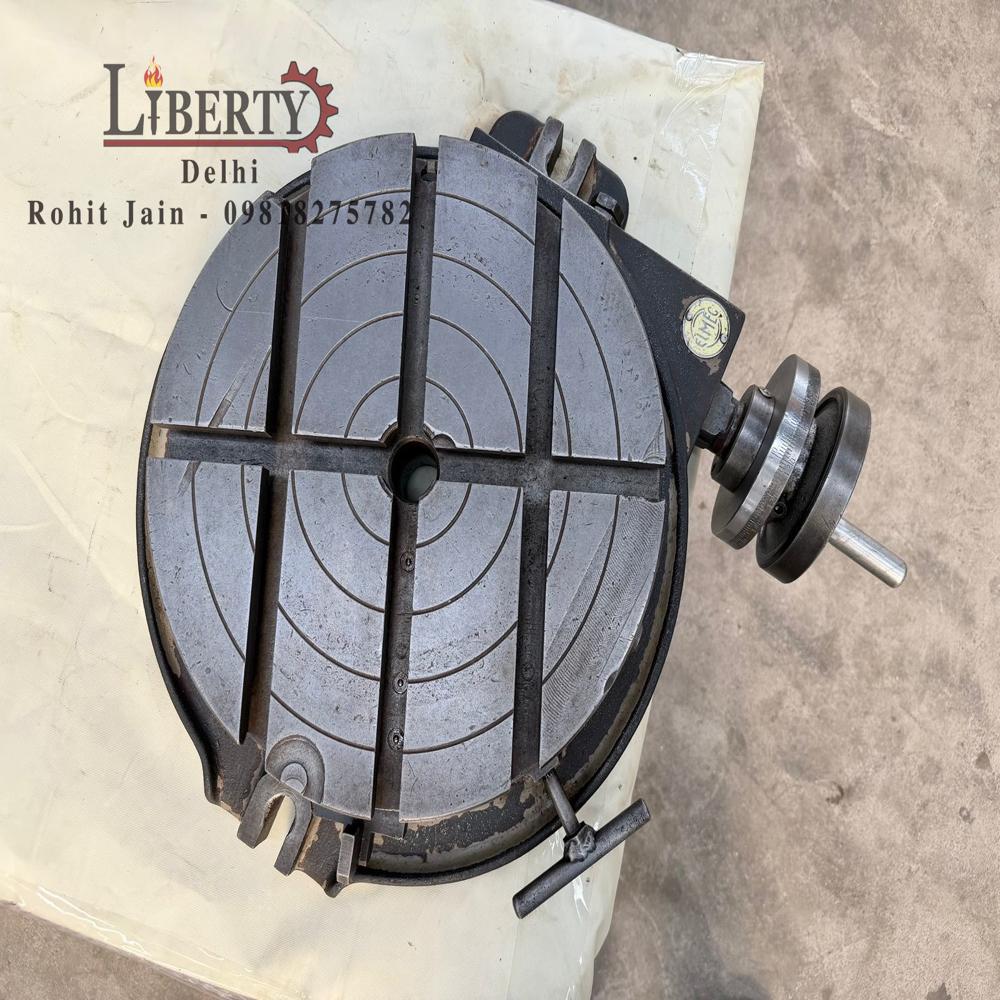

Manual Rotary Indexing Table made by Elmec (Italy) in excellent working condition. The Table Diameter is 320 mm and the total Height of the Table is 110 mm. The technical details are as follows -

Make - Elmec (Italy)
Table Diameter - 320 mm
Height of Table - 110 mm
No. of T Channels - 8 Slots
One Rotation of Handle - 3 degree Rotation of Table
One Rotation of Table - 120 Rotation of Handle
- It is in excellent condition.

Video of The Machine -


Precision Engineering for Demanding Applications

Crafted by Elmec Italy, this rotary indexing table features a meticulously ground surface and precisely machined T-slots. Designed for high-accuracy dividing, milling, and drilling, it meets the demands of precision machining centers and workshops. The degree-graduated vernier guarantees correct indexing every time.


Robust Construction and Adaptability

Built from heavy-duty cast iron, the table delivers exceptional durability and stability. The standard backplate accommodates various chucks, while the manual drive and handwheel allow for controlled, smooth operation. This table is optimized for horizontal use, with adaptability for vertical applications if needed.


Low Maintenance, User-Friendly Use

The table's manual grease lubrication system keeps maintenance requirements minimal. Occasional greasing ensures longevity without complex servicing. Its manual operation generates low noise, and the ergonomic handle design makes precision adjustments straightforward and comfortable.

FAQ's of Elmec Italy 320 mm Diameter Manual Rotary Indexing Table:


Q: How is the Elmec Italy 320 mm rotary indexing table operated?

A: This rotary indexing table is operated manually using a precision handwheel. The user rotates the table to the desired position and locks it in place with the T-bolt and nut clamping system.

Q: What types of machining tasks can this rotary table handle?

A: The table is designed for precision dividing, milling, drilling, and general machining applications. Its high indexing accuracy and robust construction make it suitable for demanding tasks in workshops and CNC centers.

Q: When should the table be lubricated, and what maintenance is required?

A: Periodic greasing is recommended to ensure smooth operation and longevity. Maintenance requirements are generally low-just regular cleaning and greasing according to the manual.

Q: Where can I mount this rotary indexing table for best results?

A: It is primarily designed for horizontal use on milling machine beds or workbenches but can be adapted for vertical applications when needed, enhancing flexibility in your workshop setup.

Q: What are the benefits of the degree-graduated vernier and heavy-duty cast iron frame?

A: The degree-graduated vernier enables precise indexing for accurate machining, while the cast iron frame ensures stability, vibration damping, and extended service life during heavy-duty use.

Q: How much weight can the rotary table support during operation?

A: The Elmec Italy 320 mm rotary indexing table can typically handle loads up to 150 kg, making it suitable for most medium to large workpieces. Always refer to the product manual for exact figures as setup and configuration can influence capacity.
