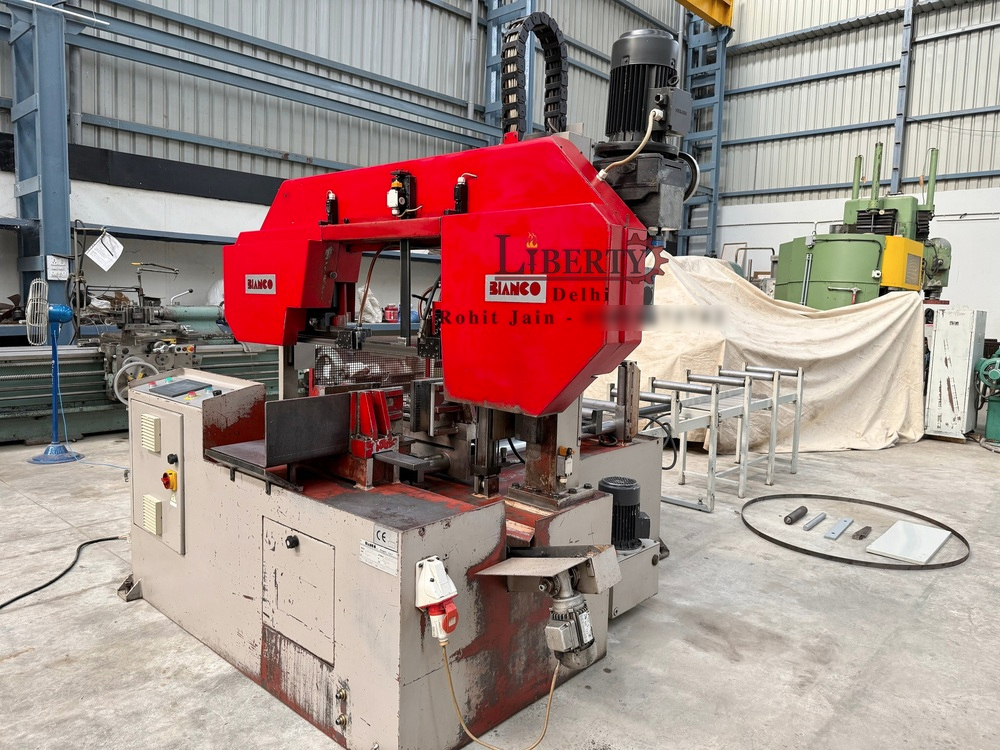

Bianco Italy 320 mm Fully Automatic Bandsaw Machine

Send Inquiry

Request To Call Back

Bianco Italy 320 mm Fully Automatic Bandsaw Machine

Name: Bianco Italy 320 mm Fully Automatic Bandsaw Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Bianco Italy 320 mm Fully Automatic Bandsaw Machine Specification

Operating Temperature
5°C to 50°C

Connectivity Options
Operator control panel, PLC connectivity

Model No
320 FA

Frequency
50 Hz

Drive
V-belt drive with gearbox

Features
Robust frame, automatic feeding, programmable cutting length, high cutting speed, safety interlocks

Machine Type
Fully automatic horizontal bandsaw

Noise Level
Low noise operation

Cooling System
Integrated coolant tank and pump

Production Capacity
One cut up to 320 mm diameter

Frame Type
Heavy-duty solid frame

Voltage
400 V (Three Phase)

Motor Power
4 kW

Power Rating
4 kW

Control System
PLC controlled

Plastic Processed
Not applicable (Designed for metal processing)

Lubricating System
Automatic lubrication system

Accuracy
High precision, close tolerance

Product Type
Fully Automatic Bandsaw Machine

Technology
Cutting-edge Italian technology

Power Source
Electric

Operating Type
Fully Automatic

Power
4 kW

Pressure
Hydraulic operation, user-adjustable pressure

Surface Treatment
Powder coated, rust-resistant

Dimension (L*W*H)
Approx. 1900 x 1250 x 1400 mm

Weight (kg)
1200 kg (approx.)

Color
Industrial Grey/Blue

Usage & Applications
Metal cutting, manufacturing, industrial workshops, fabrication units

Saw Feed
Hydraulic feed

WorkingÂ Speed
15 to 90 m/min (variable)

Hydraulic Tank Capacity
40 Litres

Recommended Material
Mild steel, alloy steel, stainless steel, non-ferrous metals

Operator Interface
Touch screen digital interface

Blade Guide
Carbide and bearing guides

Cutting Range
90°: 320 mm round, 310 x 320 mm rectangular

Main Motor
4 kW high efficiency

Installation
Professional installation required

CE Certification
Yes (CE Marked for safety & standards)

Coolant Tank Capacity
60 Litres

Safety Features
Emergency stop, safety covers, overload protection

Service Support
On-site authorized service

Cut Tolerance
±0.2 mm

Spare Parts Availability
Readily available in India

Number of Programs
Up to 100 cutting programs

Material Clamping
Hydraulic vise

Blade Speed
Variable, 15-90 m/min

Blade Size
3760 x 34 x 1.1 mm

Cycle Time
As low as 35 seconds/cut (material dependent)

Bianco Italy 320 mm Fully Automatic Bandsaw Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Bianco Italy 320 mm Fully Automatic Bandsaw Machine

Make - Bianco (Italy)

Model - 320-CNC 90 degree

Cutting Capacity (for Round) - 320 mm

Cutting Capacity (for Square) - 320 mm x 320 mm

Max. Travel for Auto-Feed Vice - 800 mm (single time)

Max. No. of Travels for Auto-Feed Vice - 4 Times

Blade Size - Length 4550 mm x Width 34 mm x Thickness 1.1 mm

Blade Speeds - 18 m/min to 100 m/min

Blade Motor Power - 2.2 kW

Type - Fully Automatic ; equipped with PLC & HMI.

- Can be used for Manual, Semi-Automatic & Full Automatic Mode.

- Stock Length adjustment is Automatic through HMI, Motor & Encoder on Lead-Screw.

- Equipped with new Delta make PLC & HMI.

- Complete with Coolant Tank, Pump, Chip Conveyor, Job Conveyor Table etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Wb5qZY_97Dk

Precision & Efficiency for Metal Cutting

Designed for the demands of modern workshops and fabrication units, the Bianco Italy 320 FA delivers exceptional accuracy and efficient throughput. With a variable blade speed of 15-90 m/min and cycle times as low as 35 seconds per cut (material dependent), this fully automatic bandsaw maximizes productivity while maintaining a tight cut tolerance of 0.2 mm. Its programmable control and hydraulic systems streamline operations, minimizing user intervention.

Robust Construction & Advanced Technology

Constructed with a heavy-duty solid frame, this bandsaw is built to withstand rigorous industrial use. The machine utilizes a 4 kW high-efficiency motor, advanced PLC control, and reliable V-belt drive with a gearbox for smooth operation. Safety features, such as emergency stop, overload protection, and safety covers, are integrated for operator safety and compliance with CE standards.

User-Friendly Interface & Support

Operators benefit from an intuitive touch screen digital interface, providing easy access to up to 100 cutting programs and real-time control of the machine. Professional installation and readily available spare parts in India ensure long-term support, with the added advantage of on-site authorized service. With a rust-resistant, powder-coated surface, and automatic lubrication, routine maintenance is simplified.

FAQ's of Bianco Italy 320 mm Fully Automatic Bandsaw Machine:

Q: How does the Bianco Italy 320 FA ensure precise and consistent cuts?

A: The bandsaw achieves high precision through PLC-controlled operation, carbide and bearing blade guides, and a rigid heavy-duty frame. These features maintain blade alignment and minimize vibration, resulting in a close tolerance of 0.2 mm on every cut.

Q: What materials can be processed with this fully automatic bandsaw machine?

A: This model is suitable for cutting mild steel, alloy steel, stainless steel, and non-ferrous metals, making it versatile for various industrial and manufacturing applications.

Q: When is professional installation necessary for the 320 FA bandsaw?

A: Professional installation is required upon delivery to ensure all operational, hydraulic, electrical, and safety systems are correctly set up and calibrated. This helps guarantee optimal machine performance and safety.

Q: Where can I obtain spare parts and after-sales service for this bandsaw in India?

A: Spare parts for the Bianco Italy 320 FA are readily available from authorized suppliers and distributors in India. On-site service is provided by trained technicians to support maintenance and repairs.

Q: What is the operational process for using the 320 FA bandsaw?

A: After installation, operators can select cutting programs through the touch-screen interface, adjust blade speed between 15-90 m/min, and set hydraulic pressure as needed. The machine then handles material clamping, feeding, and cutting automatically, ensuring efficient and repeatable results.

Q: How does the automatic lubrication system benefit machine operation?

A: The integrated automatic lubrication system ensures consistent blade and moving part lubrication, reducing wear and tear, minimizing maintenance needs, and extending component life for prolonged machine reliability.

Q: What are the main safety features of the Bianco Italy 320 mm bandsaw?

A: Key safety elements include an emergency stop button, protective safety covers, and overload protection. These features help safeguard operators during use and fully comply with CE safety standards.
