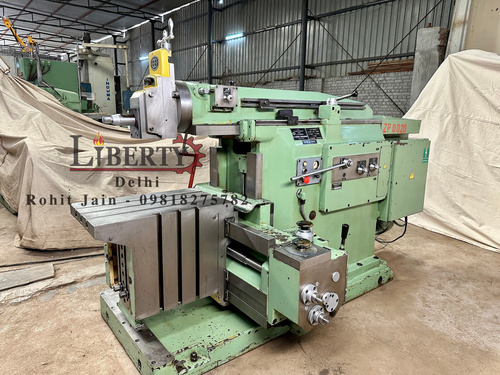

Atlas Germany Heavy Duty Horizontal Shaper Machine
Atlas Germany Heavy Duty Horizontal Shaper Machine

Atlas Germany Heavy Duty Horizontal Shaper Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Atlas Germany Heavy Duty Horizontal Shaper Machine Specification

  • Power Rating
  • 3.7 kW
  • Lubricating System
  • Automatic lubrication
  • Drive
  • Gear Driven
  • Accuracy
  • ±0.02 mm
  • Operating Temperature
  • 5°C to 45°C
  • Model No
  • Atlas Germany SH-2000
  • Voltage
  • 415 V
  • Noise Level
  • < 80 dB
  • Motor Power
  • 5 HP
  • Frequency
  • 50 Hz
  • Production Capacity
  • 20 pcs/day
  • Machine Type
  • Heavy Duty Horizontal Shaper
  • Control System
  • Manual/Automatic Switch
  • Features
  • Heavy duty cast iron frame, Hardened gears, Adjustable stroke length
  • Frame Type
  • Rigid Cast Iron
  • Cooling System
  • Integrated coolant system
  • Connectivity Options
  • No external connectivity
  • Product Type
  • Heavy Duty Horizontal Shaper Machine
  • Technology
  • Conventional Mechanical
  • Power Source
  • Electric
  • Operating Type
  • Automatic
  • Power
  • 5 HP
  • Surface Treatment
  • Painted
  • Dimension (L*W*H)
  • 2200 mm x 1100 mm x 1500 mm
  • Weight (kg)
  • 2100 kg
  • Color
  • Industrial Grey
  • Usage & Applications
  • Metal shaping, slotting and keyway cutting
  • Maximum Table Travel (Vertical)
  • 350 mm
  • Operator Skill Level
  • Intermediate to Experienced
  • Safety Features
  • Overload protection, Emergency stop button
  • Power Requirement
  • Three Phase
  • Maximum Table Travel (Horizontal)
  • 800 mm
  • Main Spindle Speed
  • Variable (Low/High) settings
  • Number of Feed Rates
  • 6
  • Maximum Stroke Length
  • 600 mm
  • Table Size
  • 900 mm x 380 mm
  • Spare Parts Availability
  • Available
  • Maintenance Interval
  • Every 6 months
  • Tool Head Rotation
  • 60°
  • Installation Type
  • Onsite Assembly
  • Shipment Condition
  • Fully assembled or knockdown


Atlas Germany Heavy Duty Horizontal Shaper Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Atlas Germany Heavy Duty Horizontal Shaper Machine

Make - Atlas (Germany)

Max. Stroke Length - 500 mm

Stroke Rate - 16 strokes/min to 182 strokes/min

Feed Travel Rate - 0 mm/stroke to 4 mm/stroke

Table Size - 435 mm x 355 mm

Tilting Table Size - 410 mm x 340 mm

- Automatic Feed Travels of the Tool Post.

- Automatic Feed Travels on the Cross & Vertical Table Movement.

- Tilting type Table for Taper Machining Operations.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/eBhPuEWE2OA



Precision Engineering for Demanding Applications

With a sturdy cast iron frame and hardened gears, the Atlas Germany SH-2000 excels in heavy-duty shaping, offering 0.02 mm accuracy. Its adjustable stroke and gear-driven technology provide adaptability for diverse metalworking tasks, making it ideal for slotting and keyway operations in manufacturing plants and workshops.


Ease of Operation and Safety Assured

Operators benefit from ergonomic controls, manual/automatic switchable operation, and an intuitive on-site assembly process. Comprehensive safety features, including overload protection and an emergency stop button, ensure secure use. Intermediate to experienced machinists can confidently run the SH-2000 with minimal noise (<80 dB) and reliable cooling and lubrication.


Low Maintenance, High Productivity

Routine maintenance is required only every six months, with spare parts readily available to minimize downtime. The integrated coolant and automatic lubrication systems prolong the machine's lifespan while its production capacity (up to 20 pieces per day) meets the demands of busy manufacturing settings.

FAQ's of Atlas Germany Heavy Duty Horizontal Shaper Machine:


Q: How is the Atlas Germany SH-2000 Heavy Duty Horizontal Shaper Machine installed?

A: The Atlas Germany SH-2000 can be installed through onsite assembly, and it is shipped either fully assembled or in a knockdown condition, based on customer requirements. Professional assistance is recommended for setup to ensure optimal operation and safety compliance.

Q: What is the recommended operator skill level for using this shaper machine?

A: This machine is designed for intermediate to experienced operators, ensuring effective and safe usage due to its professional-grade features and manual/automatic controls.

Q: When should regular maintenance be performed on the Atlas SH-2000?

A: It is advised to conduct routine maintenance every six months. Regular servicing, lubrication checks, and coolant system inspections ensure consistent performance and longevity. Spare parts are readily available to support timely upkeep.

Q: Where can the SH-2000 be effectively used?

A: The SH-2000 is ideal for industrial environments such as manufacturing plants and large workshops, particularly for tasks like precise metal shaping, slotting, and keyway cutting, where heavy-duty and reliable machinery is essential.

Q: What are the main safety features integrated into the machine?

A: Key safety elements include overload protection to prevent machine damage, an emergency stop button for instant shutdown, and automatic lubrication to reduce mechanical wear and operator intervention.

Q: How does the integrated cooling and lubrication system benefit the machine's operation?

A: An automatic lubrication system ensures all moving parts are consistently oiled, reducing friction and wear. The integrated coolant system keeps temperatures stable, enhancing both performance and component lifespan during extended operations.

Q: What is the process for switching between manual and automatic modes?

A: Operators can easily switch between manual and automatic operation via the built-in control system. This flexibility allows for adaptability to specific job requirements and user preferences, supporting efficiency for diverse metalworking tasks.
