Tiger Italy 1800 mm x 450 mm Heavy Duty Universal Milling Machine

Name: Tiger Italy 1800 mm x 450 mm Heavy Duty Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Tiger Italy 1800 mm x 450 mm Heavy Duty Universal Milling Machine Specification

General Use

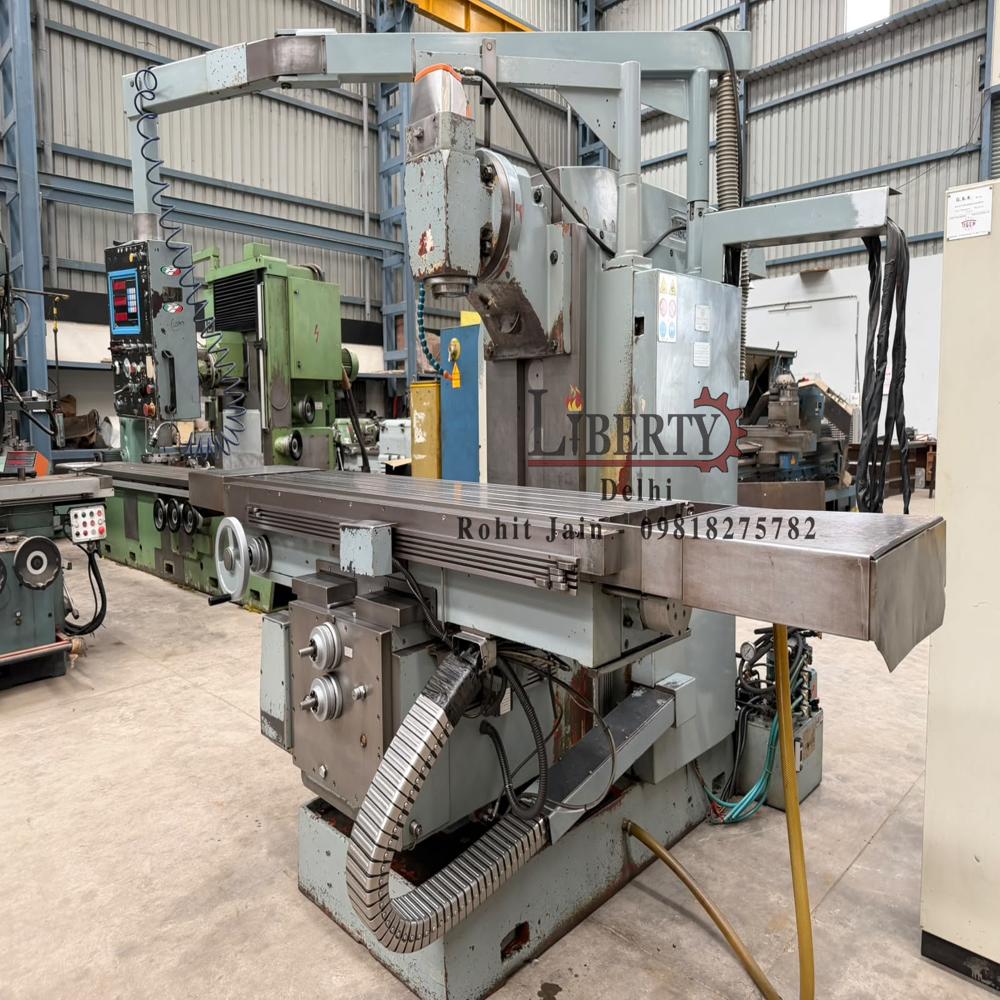

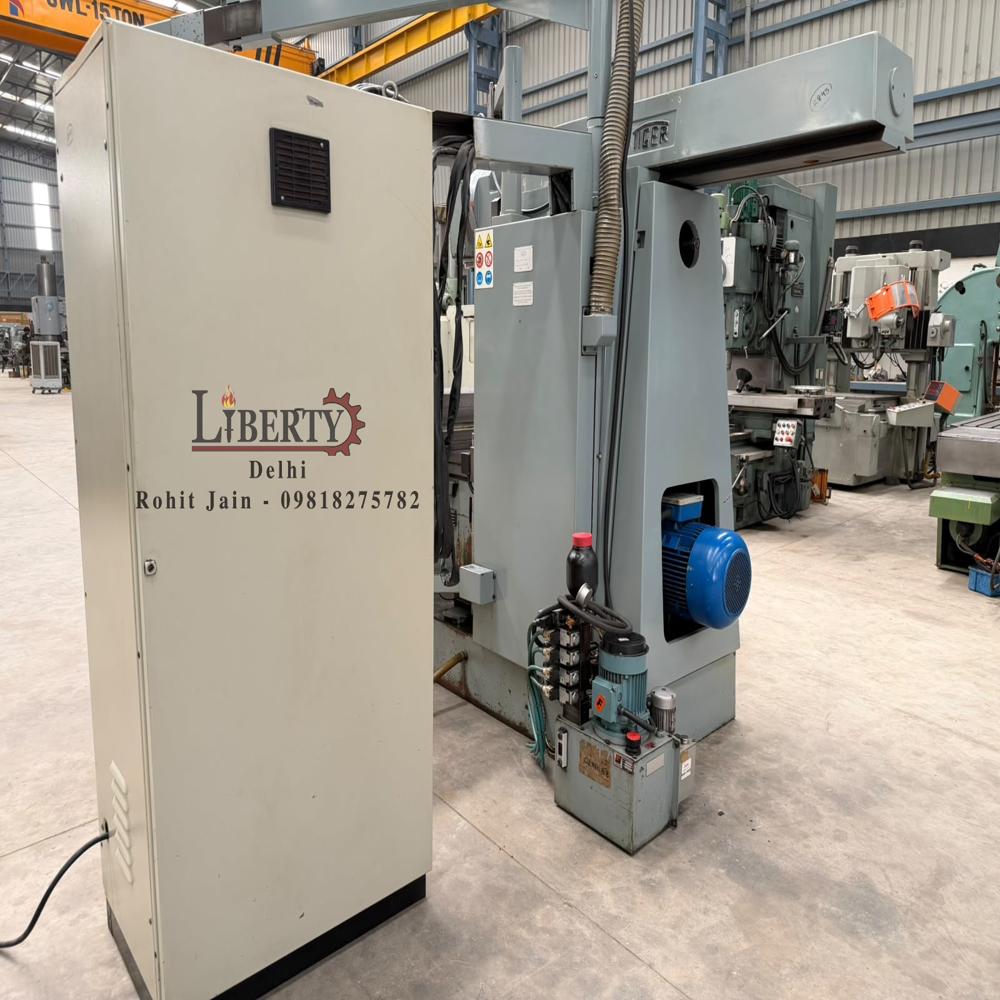

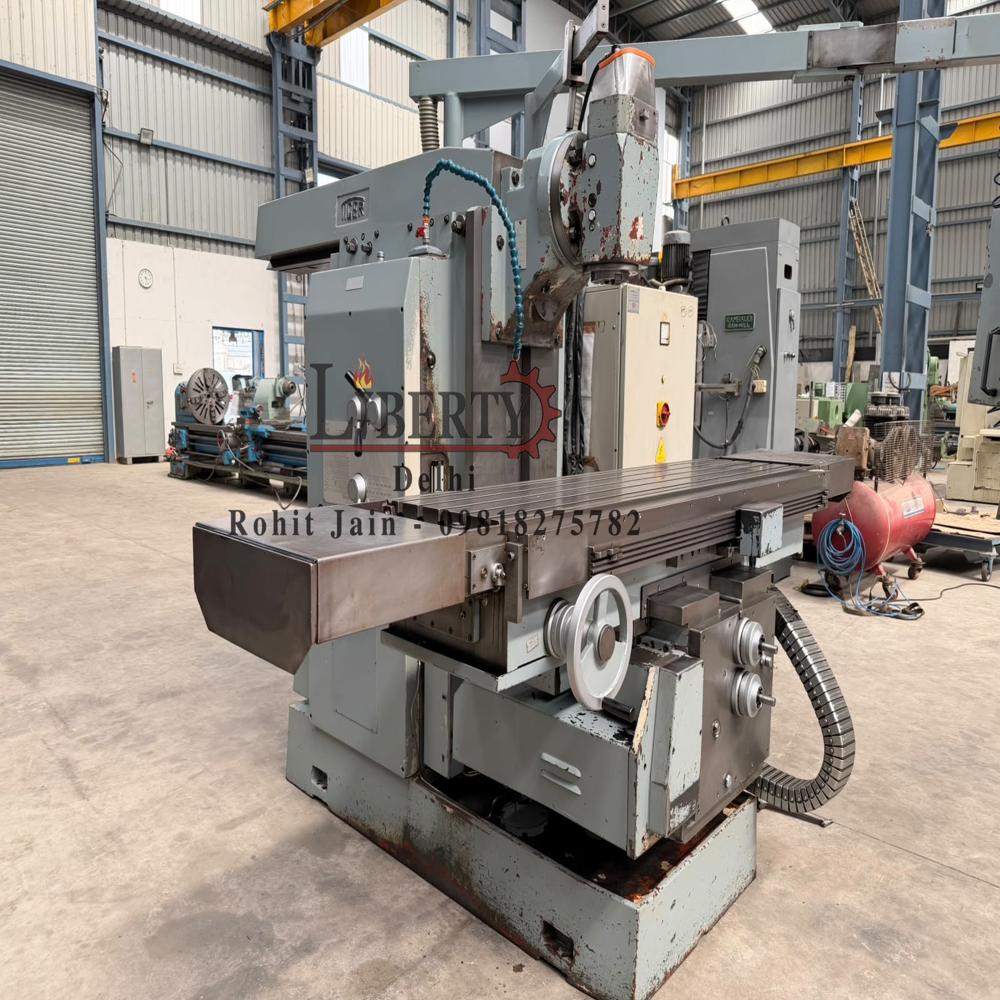

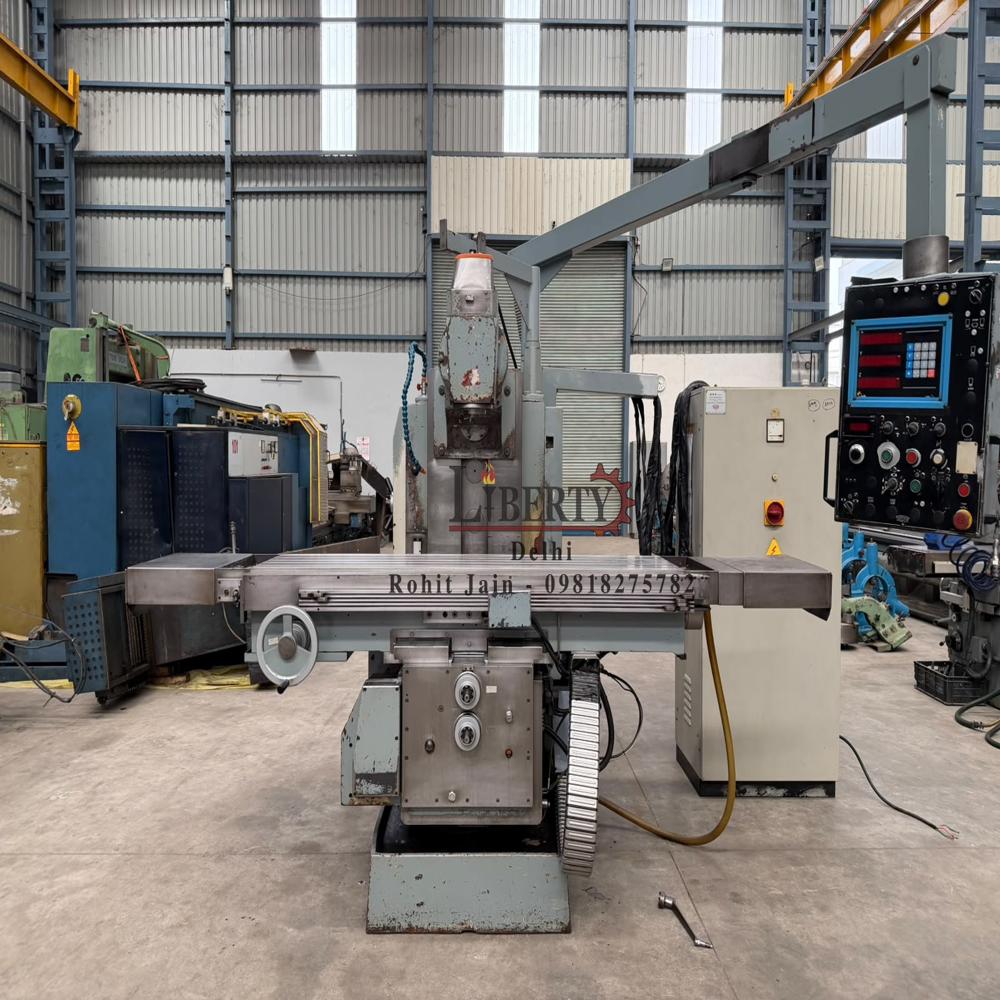

Universal Milling Machine made by Tiger (Italy), Model FP-170, available in excellent working condition. This is a heavy-duty universal milling machine with an ISO-50 spindle, a table size of 1800 mm 450 mm, and a powerful 15 kW spindle motor. It is equipped with a Parking-Type Vertical Milling Head, making it suitable for both Horizontal and Vertical Milling operations. The machine also features Automatic Hydraulic Tool Clamping and Automatic Hydraulic Locking of the X, Y & Z axes. The technical details are as follows -

Tiger Italy 1800 mm x 450 mm Heavy Duty Universal Milling Machine About

Make - Tiger (Italy)

Model - FP-170

Table Size - 1800 mm x 450 mm

XYZ Travel - 1500 mm 400 mm 500 mm

Spindle Taper - ISO-50

Spindle Speed Range - 22 to 1400 RPM

Table Feed Rates - 10 to 1560 mm/min (Infinitely Variable)

Spindle Motor Power - 15 kW

Approx. Machine Weight - 6.40 Tons

- Suitable for both Horizontal and Vertical Milling operations.

- Equipped with Parking-Type Vertical Milling Head.

- Automatic Hydraulic Locking of X, Y & Z Axes.

- Automatic Hydraulic Tool Clamping.

- Equipped with a 3-Axis DRO.

- Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/TlTuveS-dlo

Heavy-Duty Performance for Precise Machining

The Tiger FP-170 Universal Milling Machine is engineered to handle tough materials and complex machining tasks. With its powerful 15 kW spindle motor and large ISO-50 spindle, it delivers consistent results, even under prolonged heavy-duty operation. The sturdy construction ensures high accuracy and reliability, making it suitable for industrial environments where precision matters most.

Versatile Horizontal and Vertical Milling

Featuring a parking-type vertical milling head, the FP-170 seamlessly transitions between horizontal and vertical milling operations. This flexibility allows users to tackle a wide range of machining processes with a single machine-saving floor space and maximizing productivity. The large table and automatic hydraulic clamping also streamline workpiece setup and changeovers.

FAQ's of Tiger Italy 1800 mm x 450 mm Heavy Duty Universal Milling Machine:

Q: How does the automatic hydraulic tool clamping system work on this milling machine?

A: The Tiger FP-170 is equipped with an automatic hydraulic tool clamping system, which securely fastens the tool to the spindle using hydraulic force. This system enables quicker tool changes and ensures a strong, reliable grip, reducing setup time while enhancing machining safety and efficiency.

Q: What materials can be processed with the Tiger FP-170 Universal Milling Machine?

A: Thanks to its heavy-duty construction, robust spindle, and powerful 15 kW motor, the FP-170 is capable of machining a broad spectrum of materials-including steel, cast iron, aluminum, and various alloys-making it versatile for general engineering and heavy-duty applications.

Q: When is it advantageous to use both the horizontal and vertical milling features?

A: Utilizing both milling orientations offers maximum flexibility in handling a variety of tasks. Horizontal milling is ideal for removing large amounts of material or shaping heavy workpieces, while vertical milling excels at precision drilling, slotting, and face milling-optimizing productivity based on your project's requirements.

Q: Where can the Tiger FP-170 be installed for optimum results?

A: For peak performance, the FP-170 should be installed in a well-ventilated industrial workshop or plant with a solid, level floor. Adequate space should be available, especially given the machine's large size and table dimensions, to accommodate both operator movement and material handling.

Q: What is the process for clamping and locking the axes during machining?

A: The machine utilizes an automatic hydraulic system to clamp and lock its X, Y, and Z axes. When activated, hydraulic pressure secures the table and head, ensuring stability and precise positioning during milling. This feature enhances both machining accuracy and operator safety.

Q: How does this machine benefit manufacturers and traders?

A: Manufacturers and traders benefit from the FP-170's versatility, efficiency, and durability. Its combination of horizontal and vertical milling, automated systems, and heavy-duty features reduces downtime, increases productivity, and ensures consistent quality-allowing users to meet demanding production schedules and diverse customer requirements.
