TOS BHE 023 Heavy Duty Cylindrical Grinder Machine

Name: TOS BHE 023 Heavy Duty Cylindrical Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS BHE 023 Heavy Duty Cylindrical Grinder Machine Specification

Product Type
Heavy Duty Cylindrical Grinder Machine

General Use
Precision external and internal grinding of cylindrical surfaces

Material
Cast Iron, Alloy Steel Components

Type
Cylindrical Grinder

Capacity
Maximum grinding length: 1500 mm

Weight (kg)
Approx. 4500 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Conventional (Manual Control Panel)

Drive Type
Electric Motor Driven

Grinding Diameter
Max. 320 mm

Grinding Length
Max. 1500 mm

Spindle Speed
40 to 600 rpm (Variable)

Grinding Wheel Size
400 mm (Diameter) x 50 mm (Width)

Voltage
415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
3400 mm x 1600 mm x 1800 mm

Feature
Heavy-duty cast iron bed, High rigidity, High precision

Color
Machine Grey/Green

Surface Finish Achievable
Ra 0.2 m

Table Swivel
Up to 7

Lubrication
Automatic centralized lubrication system

Coolant System
Provided

Internal Grinding Attachment
Optional

Chuck Size
Standard 3 Jaw Chuck, 200 mm

Power Consumption
Approx. 7 kW

Max. Workpiece Weight Between Centers
300 kg

Workpiece Center Height
200 mm

Tailstock Quill Travel
60 mm

Model Number
BHE 023

Hydraulic System
Integrated for table and wheelhead movement

Noise Level
<75 dB

Wheelhead Swivel
30

Table Longitudinal Travel
1600 mm

TOS BHE 023 Heavy Duty Cylindrical Grinder Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

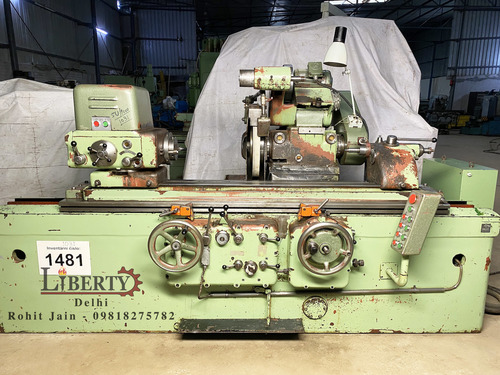

TOS BHE 023 Heavy Duty Cylindrical Grinder Machine About

Make - TOS - Hostivar (Czech Republic)

Model - BHE-023

Center Height - 205 mm

Max. Diameter of Job - 400 mm

Max. Length of Job - 1500 mm

Grinding Wheel Size - Diameter 750 mm x 100 mm Width

Least Count - 1 Micron (0.001 mm)

Work-Head Speed - 18 rpm to 560 rpm (Continuously Variable)

- Equipped with a special Face Grinding Attachment.

- Equipped with a 2-Axis Digital Read-Out (DRO).

- Machine can work in complete Auto-Cycle Mode.

- Features like Delay, Auto-Slow, Plunge Grinding, Rapid Travel of Table, Dressing Cycle etc.

- Features like Auto-Cut, Auto-Compensation, Super Finishing (Spark-Out) etc.

- Joy-stick model ; One of the latest series of conventional machines made by TOS.

- With many Job Steadies, many Wheel Dressers, etc.

- Complete with magnetic coolant filtration unit, tank and pump.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/nQ0HWtOTthU

Exceptional Precision and Heavy-Duty Performance

With its robust cast iron bed and alloy steel components, the TOS BHE 023 ensures minimal vibration and lasting durability. The variable spindle speeds (40-600 rpm) and swiveling table (7) allow for versatile grinding operations, ideal for both precision and heavy-duty applications in manufacturing.

Integrated Hydraulic and Lubrication Systems

Smooth operation is guaranteed by the integrated hydraulic system for table and wheelhead movement, while the automatic centralized lubrication keeps all critical components functioning optimally. These features enhance machine lifespan and operational reliability, reducing maintenance requirements.

Outstanding Surface Finish and Flexibility

Achieve superior finishes with an impressive Ra value of 0.2 m. The machine supports both external and internal grinding (the latter with optional attachment), and accommodates workpieces up to 300 kg and 1500 mm in length, catering to a wide range of industrial tasks.

FAQ's of TOS BHE 023 Heavy Duty Cylindrical Grinder Machine:

Q: How does the TOS BHE 023 ensure precision during grinding operations?

A: The machine incorporates a heavy-duty cast iron bed and high-rigidity components, which minimize vibrations and maintain stability. Variable spindle speed control and accurate table/wheelhead movements, supported by an integrated hydraulic system, assure precise grinding for both external and internal surfaces.

Q: What types of workpieces can be processed on this cylindrical grinder?

A: The TOS BHE 023 is designed to handle cast iron and alloy steel components with a center height of up to 200 mm and a maximum weight of 300 kg between centers. Its grinding capacity includes lengths up to 1500 mm and diameters up to 320 mm, making it suitable for a diverse range of industrial parts.

Q: When is the internal grinding attachment required, and how can it be added?

A: The internal grinding attachment is optional and should be added when processing parts with internal cylindrical surfaces. This accessory can be easily integrated into the machine, increasing its versatility for specialized grinding tasks.

Q: Where is the TOS BHE 023 commonly used?

A: This grinder is utilized in workshops, manufacturing plants, and maintenance facilities engaged in precision machining of cylindrical and shaft components. It is widely exported from the Czech Republic and favored by manufacturers, importers, and suppliers requiring high-performance grinding solutions.

Q: What is the process for adjusting the table and wheelhead during operation?

A: Adjustment is managed via the conventional manual control panel, allowing operators to swivel the table up to 7 and the wheelhead 30. Movement is hydraulically assisted, ensuring smooth and precise transitions when setting up grinding angles or repositioning the workpiece.

Q: How does the machine benefit users in terms of surface finish and operational efficiency?

A: The TOS BHE 023 delivers a remarkable surface finish of Ra 0.2 m and features automatic lubrication to minimize manual maintenance. The integrated coolant system keeps grinding temperatures stable, contributing to both durability of the machine and quality of finished components.
