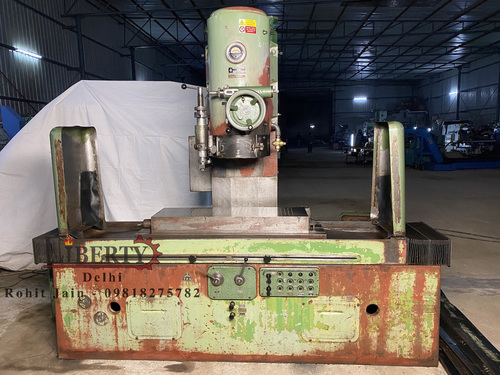

TOS Czech 300 mm x 1000 mm Vertical Surface Grinder

Name: TOS Czech 300 mm x 1000 mm Vertical Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech 300 mm x 1000 mm Vertical Surface Grinder Specification

Model
TOS Czech 300x1000

Rotation
Single Direction

Product Type
Vertical Surface Grinder

General Use
Precision vertical surface grinding for metalworking and engineering industries

Material
Cast Iron Body, Steel Components

Type
Vertical

Capacity
Max workpiece 1000 mm length

Weight (kg)
Approx. 4000 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
No

Control System
Manual

Table Size
300 mm x 1000 mm

Table Slide Way
Hardened and ground double V guideways

Magnetic Chuck Size
300 mm x 1000 mm

Grinding Wheel Size
Diameter: 300 mm

Grinding Wheel Speed
1450 RPM

Grinding Length
1000 mm

Floor Space
Approx. 3000 mm x 2200 mm

Spindle Speed
1450 RPM

Power
7.5 kW

Voltage
415 V / 3 Phase

Dimension (L*W*H)
Approx. 3000 mm x 2200 mm x 2000 mm

Feature
Rigid Structure, High Precision, Low-Vibration Operation

Color
Industrial Green/Grey

Noise Level
< 80 dB(A)

Main Motor Drive
Direct via V-belt

Vertical Movement of Grinding Head
350 mm

Operator Panel
Front-mounted manual controls

WorkingSpeed
Variable, manually controlled

Surface Finish Achievable
Achieves Ra 0.4 m

Max Distance from Table Surface to Spindle Center
500 mm

Coolant System
Provided

Lubrication System
Centralized automatic lubrication

Chuck Type
Electromagnetic

Table Cross Movement (manual/power)
400 mm

TOS Czech 300 mm x 1000 mm Vertical Surface Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS Czech 300 mm x 1000 mm Vertical Surface Grinder

Make - TOS (Czech Republic)

Model - BPV 300

Magnet Size - 300 mm x 1000 mm

Segmented Wheel Cup Diameter - 315 mm

No. of Segments - 8 pcs.

Max. Height of Job - 400 mm

- With Automatic Depth Adjustment "Auto-Cut".

- With Coolant Tank, Pump and Splash Guards.

- Operating Manuals and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/CDdqUFPHlgw

Precision and Durability

Built with a robust cast iron body and high-quality steel components, the grinder is engineered for stability and longevity. Its hardened and ground double V guideways facilitate smooth and precise table movement, ideal for demanding industrial environments. These features combine to offer a low-vibration operation, minimizing potential wear and maximizing accuracy over extended use.

Efficient Lubrication and Cooling

The centralized automatic lubrication system ensures that all critical moving parts operate with minimal friction, extending the machine's lifespan. Coupled with a provided coolant system, these mechanisms help maintain optimal working conditions and thermal stability, even during prolonged grinding tasks.

Operator-Friendly Control Panel

Front-mounted manual controls grant the operator easy and intuitive command of all grinding functions. The variable speed adjustment allows for customized working speeds to suit specific grinding requirements, making it suitable for both skilled workers and routine industrial use.

FAQ's of TOS Czech 300 mm x 1000 mm Vertical Surface Grinder:

Q: How does the TOS Czech 300x1000 Vertical Surface Grinder achieve a surface finish of Ra 0.4 m?

A: The grinder employs precise table movement on hardened double V guideways, direct V-belt motor drive, and stable electromagnetic chucking. Combined with a well-maintained lubrication and coolant system, these features minimize vibration, allowing for consistently high-quality, fine surface finishes up to Ra 0.4 m.

Q: What is the process for operating this surface grinder?

A: Operation involves mounting the metal workpiece on the electromagnetic chuck, setting necessary grinding parameters via the manual front-mounted controls, and adjusting the table movement (manual/power as needed) and speed. The machine grinds using its vertically mounted wheel, with all lubricating and cooling needs managed automatically.

Q: When should the coolant and lubrication systems be checked or serviced?

A: While the lubrication system is centralized and automatic, periodic inspection is recommended according to the manufacturer's maintenance schedule. The coolant system should be checked before each session and topped up or serviced as needed to prevent overheating and ensure optimal grinding performance.

Q: Where is the optimal use environment for the TOS Czech 300x1000 Vertical Surface Grinder?

A: This grinder is best suited for precision metalworking shops, engineering facilities, and manufacturing plants dealing with large, high-tolerance components. It requires a stable, well-ventilated workspace with adequate floor space (approx. 3m x 2.2m) to accommodate the machine and its operational radius.

Q: What benefits does the electromagnetic chuck provide during grinding?

A: The electromagnetic chuck ensures firm and stable holding of the workpiece during grinding, which enhances safety, accuracy, and repeatability of surface finishes. It allows fast clamping and unclamping, reducing setup times and overall operational downtime.

Q: How is table movement achieved and controlled on this grinder?

A: Table movement is facilitated by both manual and powered cross mechanisms, utilizing double V guideways for smooth sliding. Operators can adjust and control table travel up to 400 mm using front panel manual controls, which offers flexibility for complex grinding tasks.

Q: What are the advantages of the centralized automatic lubrication system?

A: Centralized automatic lubrication delivers consistent lubrication to all key parts, minimizing friction and wear. This proactive system reduces maintenance needs, enhances machine longevity, and supports sustained precision in grinding operations.
