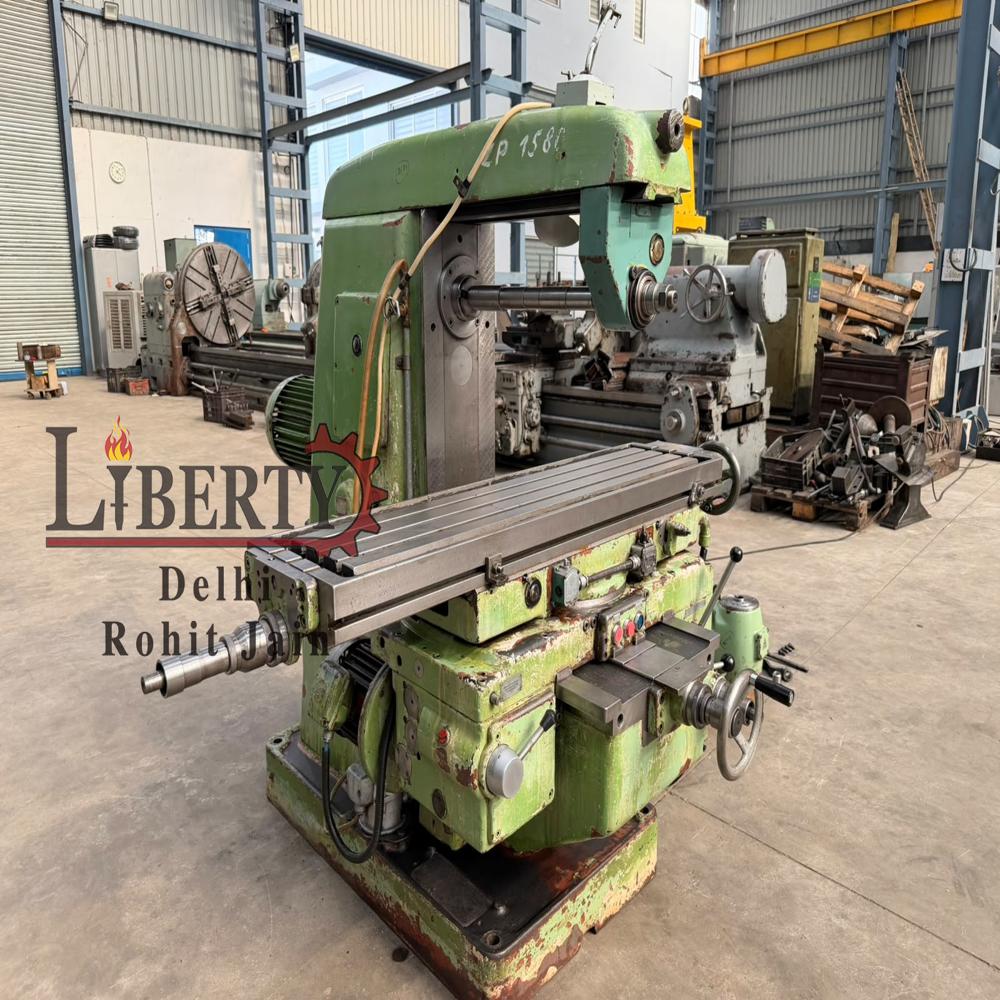

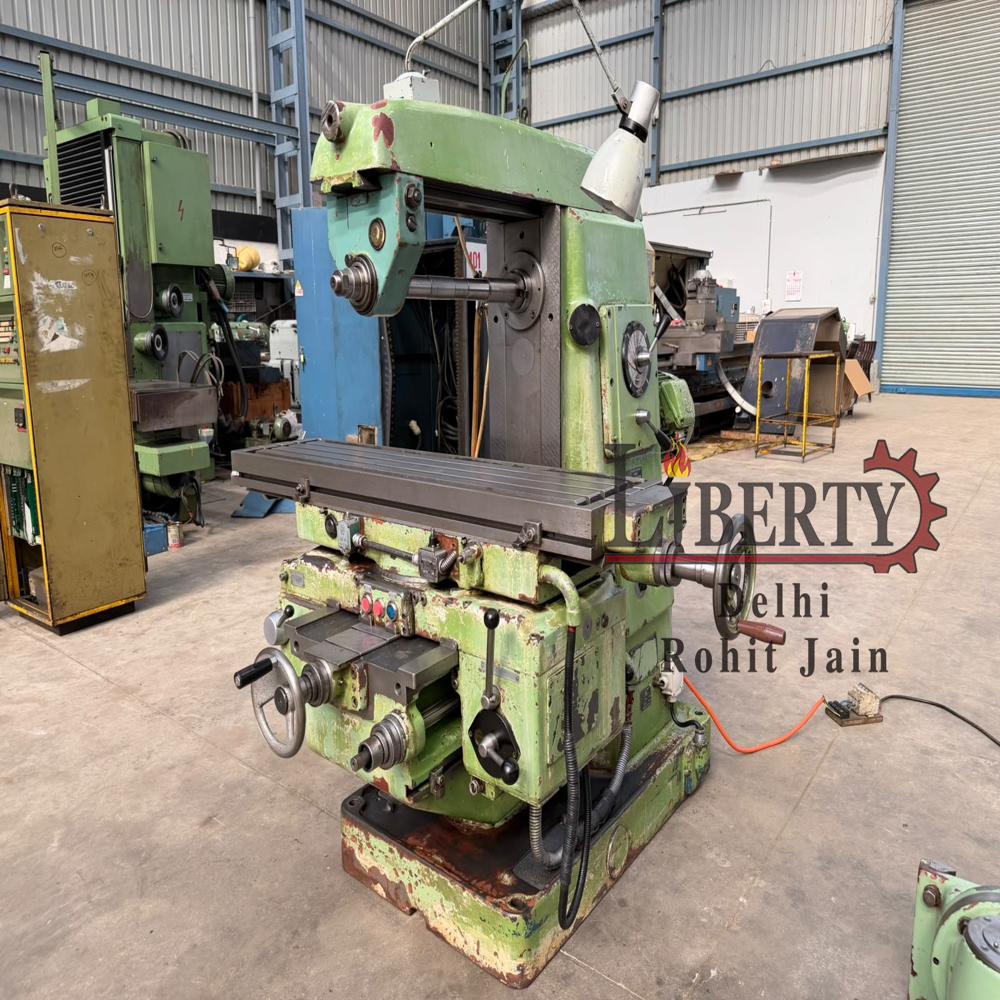

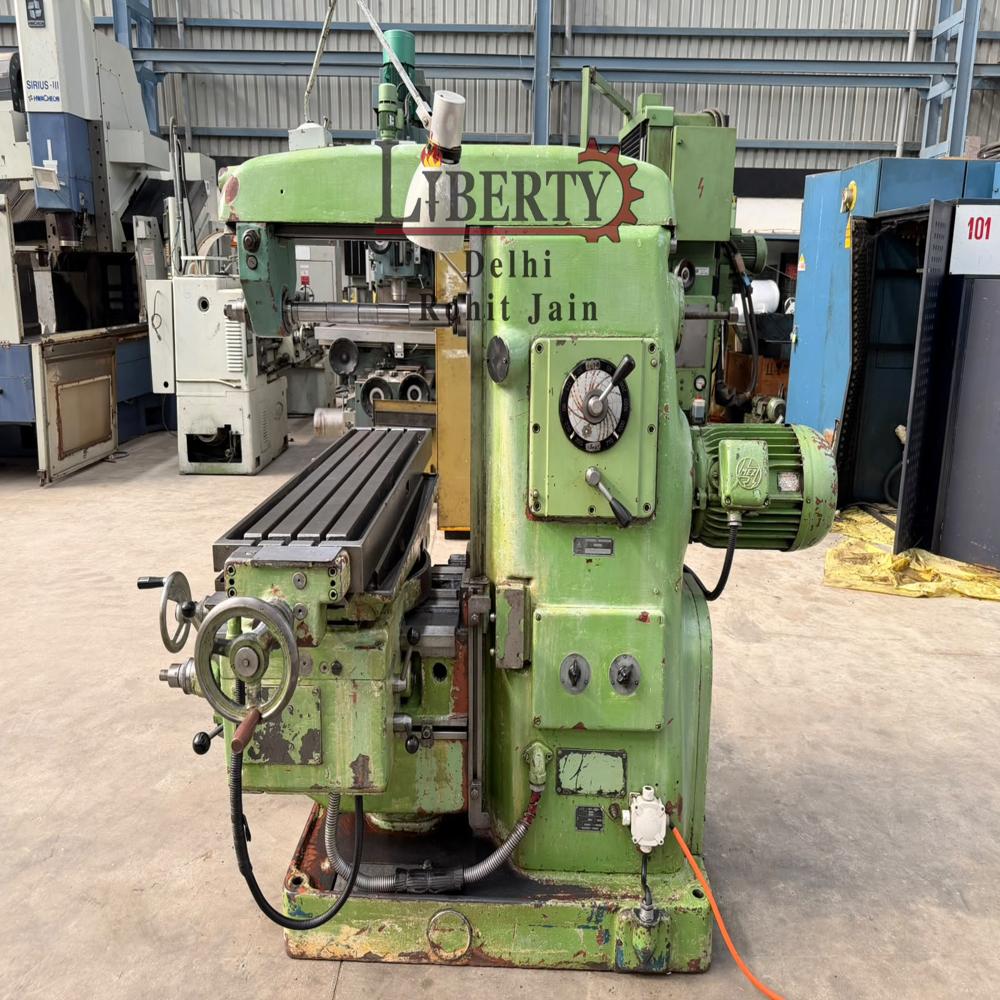

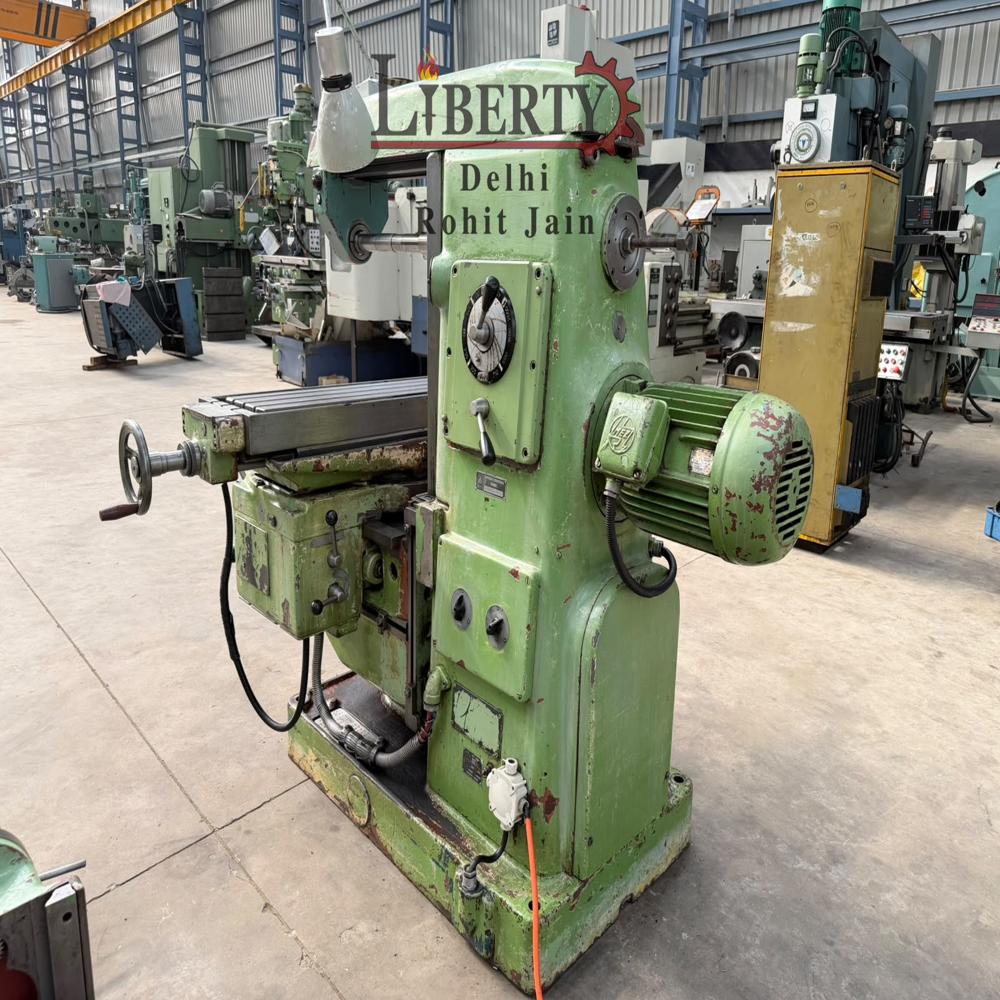

TOS Czech FA3U 1250 mm x 300 mm Universal Milling Machine

Send Inquiry

Request To Call Back

TOS Czech FA3U 1250 mm x 300 mm Universal Milling Machine

Name: TOS Czech FA3U 1250 mm x 300 mm Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 42500.0 INR
Availability: InStock

Price 42500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech FA3U 1250 mm x 300 mm Universal Milling Machine Specification

Rotation
360 Table Swivel

Model
FA3U

Product Type
Universal Milling Machine

General Use
Universal Milling Machine manufactured by TOS (Czech Republic), Model FA3U, available in excellent working condition. The machine has a 1250 mm 300 mm Table Size and is complete with an Arbour and Bracket for Horizontal Milling Operations as well as a Vertical Milling Head. The Vertical Milling Head can be mounted on the machine, allowing it to perform both Vertical and Horizontal Milling Operations. The technical details are as follows -

Material
Cast Iron & Steel

Type
Horizontal & Universal

Capacity
Max. Table Load: 300 kg

Weight (kg)
~2200 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual Control

Table Size
1250 mm x 300 mm

Table Slide Way
Box Slideways

Floor Space
Approx. 2100 mm x 1900 mm

Spindle Speed
32 - 1600 RPM (variable, 18 steps)

Power
5.5 kW (main motor)

Voltage
415 V (Three Phase)

Dimension (L*W*H)
Approx. 2100 x 1900 x 1750 mm

Feature
Swiveling Table, Rigid Body, Multiple Feeds

Color
Green

Main Drive Motor
5.5 kW (approx. 7.5 HP)

Coolant Pump
Yes, Integrated

Longitudinal Travel (X Axis)
900 mm

Cross Travel (Y Axis)
300 mm

Spindle Taper
ISO 40

Overarm Diameter
105 mm

Table Swivel
45

Working Speed
Feeds: 22 mm/min to 1120 mm/min

Rapid Traverse
Yes

Vertical Travel (Z Axis)
420 mm

Number of Feeds
18

Quill Travel
80 mm

About TOS Czech FA3U 1250 mm x 300 mm Universal Milling Machine

Make - TOS (Czech Republic)

Model - FA3U

Table Size - 1250 mm x 300 mm

XYZ Travels - 750 mm x 250 mm x 375 mm

Spindle Taper - ISO-40

Spindle Speed Range - 45 to 2000 RPM

Table Feed Rate Range - 14 to 900 mm/min

Table Swivel Range - +45 degree to -45 degree

Spindle Motor Power - 4.0 kW

Approx. Machine Weight - 1.93 Tons

- Complete with Arbour and Bracket for Horizontal Milling Operations.

- Complete with Vertical Milling Head.

- Equipped for both Vertical and Horizontal Milling Operations.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/lwNquyWBFsw

Versatility for Precision Milling

The TOS FA3U Universal Milling Machine stands out for its ability to handle both vertical and horizontal milling tasks. Thanks to its detachable vertical head and horizontal arbour, it transitions seamlessly between operations, making it suitable for producing complex components in a wide variety of industries. Its 45 swiveling table enhances precision and flexibility for angular machining applications.

Robust Construction & Optimal Performance

Built with a rigid cast iron and steel body, the TOS FA3U ensures stability during demanding operations and supports up to 300 kg table load. The 5.5 kW main drive motor delivers consistent power, while box slideways guarantee durable and smooth table movement. Integrated coolant systems ensure tool longevity and help maintain part quality during extended runs.

FAQ's of TOS Czech FA3U 1250 mm x 300 mm Universal Milling Machine:

Q: How is the TOS FA3U Milling Machine operated and controlled?

A: The TOS FA3U is operated manually with a mechanical control system, allowing operators to select feed and spindle speeds using physical levers and dials. It is not CNC-controlled, thus requiring skilled machinists for operation.

Q: What are the benefits of having both vertical and horizontal milling capabilities in one machine?

A: This dual-functionality allows users to perform a greater range of milling tasks, from flat and angular surfaces to slots and keyways, making the machine highly adaptable for custom or complex components in one setup.

Q: When should the vertical milling head be used versus the horizontal arbour?

A: Use the vertical milling head for applications that require end mills, drilling, or precise slotting and counterboring. The horizontal arbour is optimal for slab milling, heavy material removal, or when using special horizontal cutters.

Q: Where can this milling machine be installed for optimal use?

A: Due to its size (approx. 2100 x 1900 mm floor area and 2200 kg weight) and power requirements (415V, three-phase), it is best suited for installation in industrial machine shops or manufacturing facilities with suitable floor space and power supply.

Q: What is the maximum table load and why is this important?

A: The machine supports a maximum table load of 300 kg. This capacity ensures that heavy workpieces can be securely machined without compromising precision, stability, or the longevity of the machine.

Q: How does the integrated coolant pump enhance the machining process?

A: The integrated coolant pump maintains the cutting tool and workpiece at optimal temperatures during prolonged milling, reducing tool wear and helping to achieve a superior finish quality.
