TOS Czech FGSV-50 Heavy Duty Vertical Milling Machine

Name: TOS Czech FGSV-50 Heavy Duty Vertical Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech FGSV-50 Heavy Duty Vertical Milling Machine Specification

Rotation
Vertical spindle rotation

Model
FGSV-50

Product Type
Heavy Duty Vertical Milling Machine

General Use

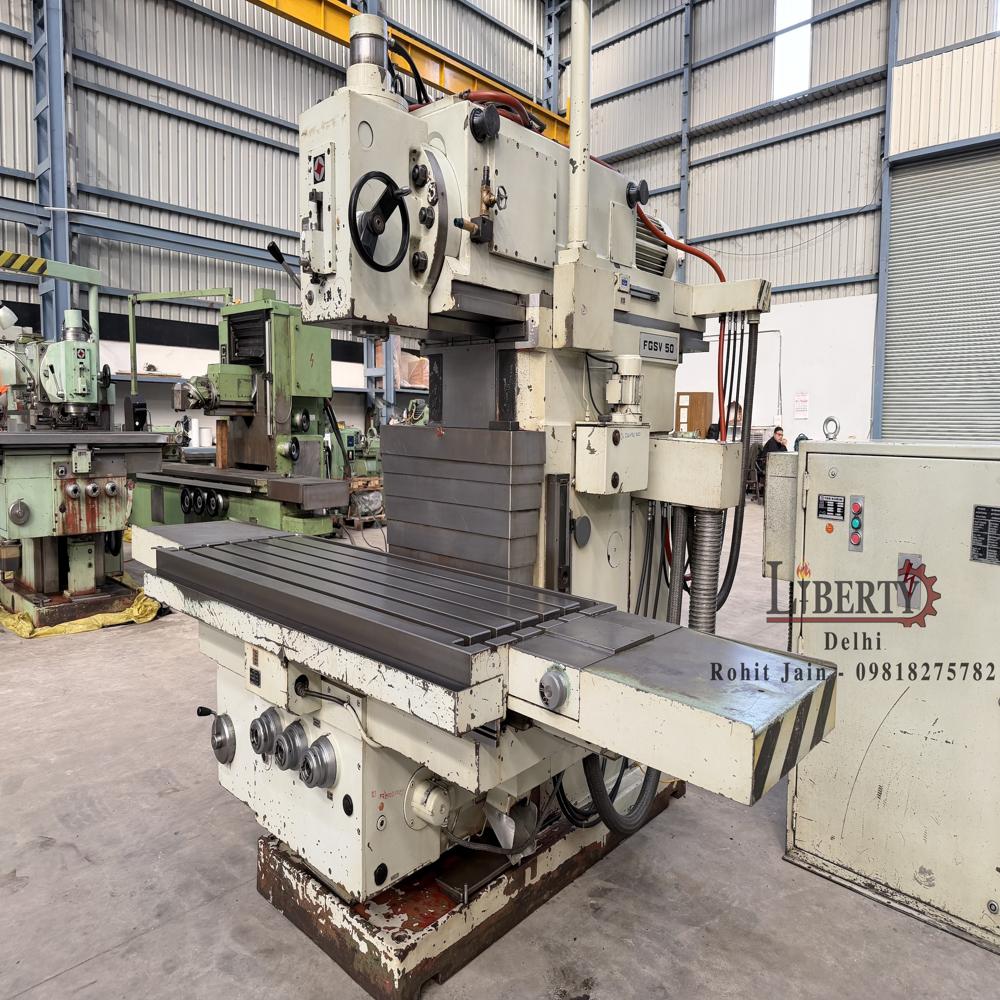

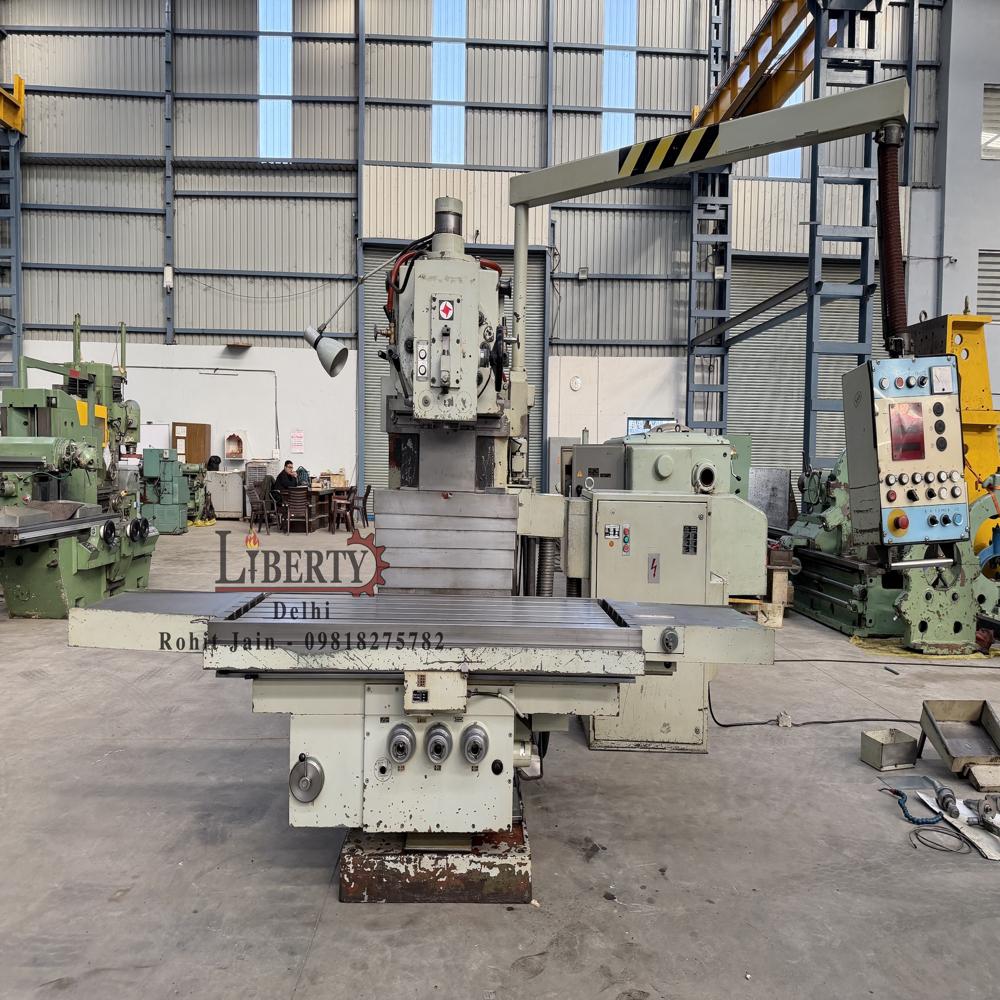

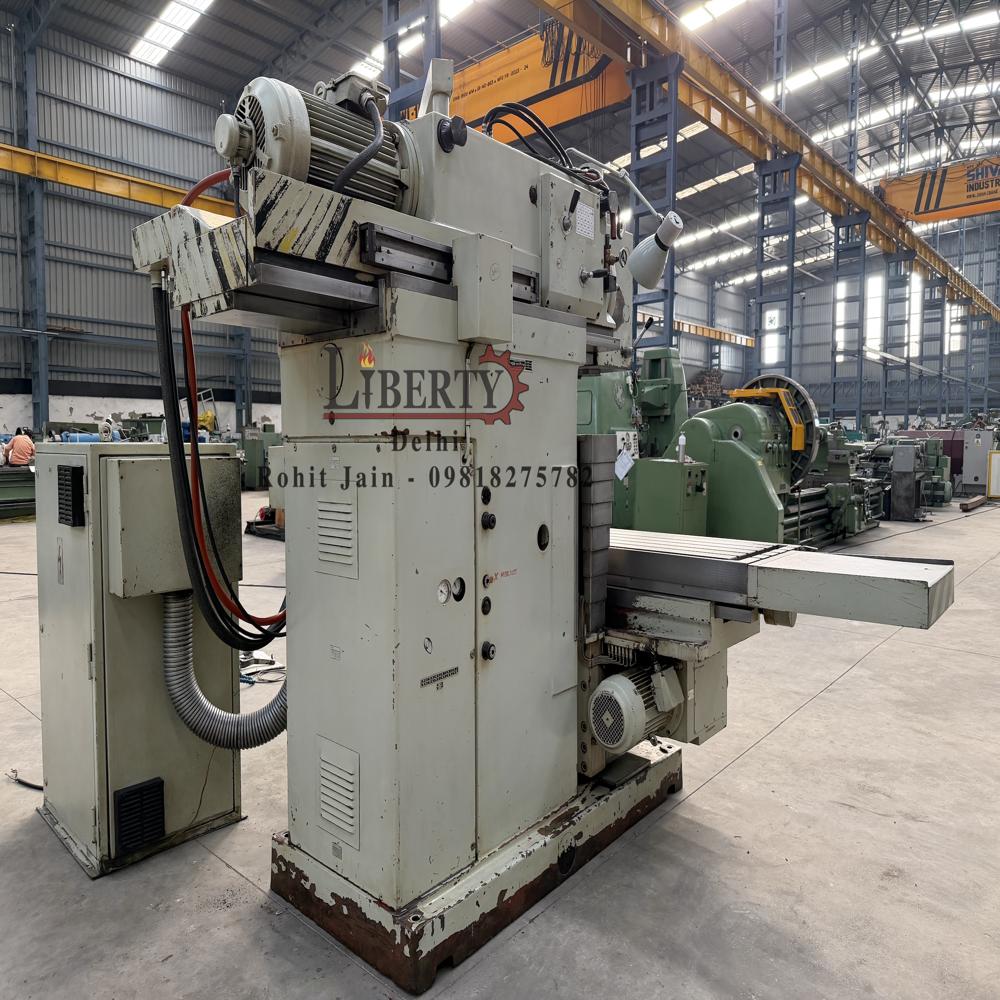

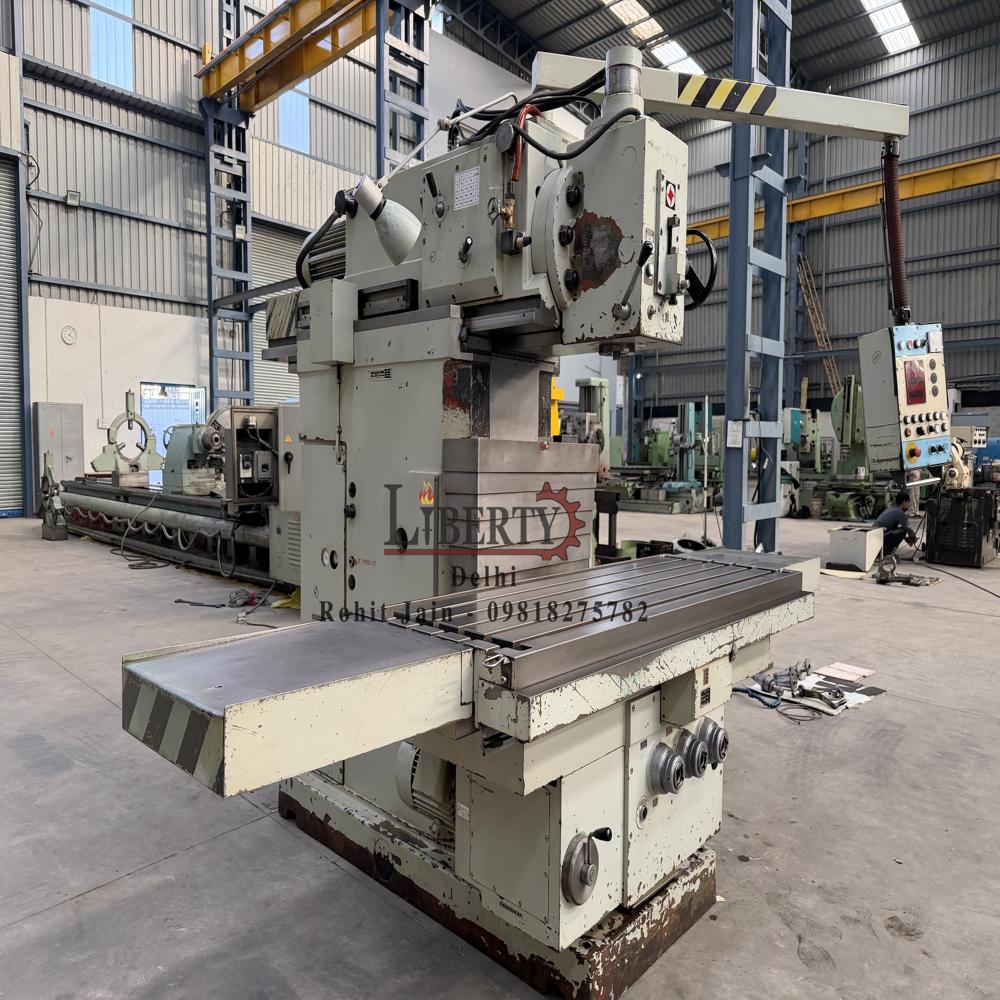

Heavy-Duty Pure Vertical Milling Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is FGSV-50 and the Table Size is 1800 mm x 630 mm. The machine has a special feature of Automatic Up & Down Movement by 0.5 mm. The technical details are as follows -

Material
Cast iron frame and hardened steel gears

Type
Vertical Milling

Capacity
Suitable for large and precision milling jobs

Weight (kg)
Approx. 4500 kg

Computerized
No

Automatic
Semi-automatic (manual & power feeds)

CNC Or Not
Not CNC

Control System
Conventional (Manual controls)

Table Size
1800 mm x 400 mm

Table Slide Way
Precision ground box ways

Floor Space
Approx. 2900 mm x 2500 mm

Spindle Speed
30 - 1600 rpm (variable, multiple steps)

Power
10 HP main motor

Voltage
380-415V, 3 Phase

Dimension (L*W*H)
Approx. 2900 mm x 2500 mm x 2600 mm

Feature
Built-in vertical head, rigid structure, high precision

Color
Industrial grey

Spindle Taper
ISO 50

Table Load Capacity
2000 kg

Number of Feeds
18

Main Motor Power
15 HP

Applications
Milling of steel, cast iron, and non-ferrous metals

Vertical Head Swivel
45 degrees

Rapid Traverse Rate
2500 mm/min

T-slots (no./size / distance)
5 / 22mm / 100mm

Lubrication System
Centralized automatic

Coolant System
Fitted

Travel (X/Y/Z)
1600mm / 430mm / 450mm

Max. distance spindle nose to table
610 mm

Feed Range
6 to 800 mm/min

Working Speed
Adjustable via mechanical feed

TOS Czech FGSV-50 Heavy Duty Vertical Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About TOS Czech FGSV-50 Heavy Duty Vertical Milling Machine

Make - TOS (Czech Republic)

Model - FGSV 50

Table Size - 1800 mm x 630 mm

XYZ Travel - 1400 mm x 690 mm x 500 mm

Spindle Speeds - 45 rpm to 1400 rpm

Spindle Taper - ISO 50

Feed Travel Rates - 10 mm/min to 1800 mm/min

Spindle Motor Power - 15.0 kW

Weight of Machine - 6.90 tons (Approx)

- Feature of Automatic Up & Down Travel of Table by 0.5 mm.

- With Automatic Hydraulic Clamping of the Tool-Holder.

- It is a Heavy-Duty Pure Vertical Milling Machine.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/b7wQW5wvmBo

Engineered for Heavy Duty Precision

With its rigid structure, high-precision surface finish, and built-in vertical head, the TOS Czech FGSV-50 stands out as a reliable choice for demanding machining applications. The cast iron frame and hardened steel gears ensure long-term durability, while the powerful 10 HP main motor delivers consistent performance for both small and large milling jobs.

Versatile and Efficient Operations

Designed for tool rooms and heavy engineering environments, the FGSV-50's semi-automatic controls, power feed mechanisms, and integrated coolant system enhance operational efficiency. Rapid traverse and automatic table movement streamline workflow, making this milling machine suitable for high-production environments without compromising on precision or quality.

FAQ's of TOS Czech FGSV-50 Heavy Duty Vertical Milling Machine:

Q: How is the TOS Czech FGSV-50 vertical milling machine operated?

A: The FGSV-50 is operated using conventional manual controls and includes both manual and power feed mechanisms. It features rapid traverse and automatic up and down table movement (0.5 mm steps) for enhanced efficiency during milling operations.

Q: What types of projects is the FGSV-50 suitable for?

A: This milling machine is designed for tool rooms, workshops, and heavy engineering tasks. Its large table size, high-precision surface finish, and robust frame make it ideal for both large-scale and intricate milling jobs that require stable and accurate performance.

Q: When should I use the integrated coolant system?

A: The integrated coolant system should be used during prolonged or high-speed milling operations to manage heat dissipation, protect tools and workpieces, and maintain the desired surface finish quality.

Q: Where can the FGSV-50 be installed optimally?

A: Given its considerable floor space requirement (approx. 2900 mm x 2500 mm) and weight (approx. 4500 kg), the FGSV-50 is best installed in industrial workshops, heavy engineering plants, or advanced tool rooms with reinforced flooring and sufficient space for large-scale machining projects.

Q: What benefits does the automatic vertical movement provide?

A: The automatic up and down movement of the table by 0.5 mm allows precise, incremental adjustments during milling, improving accuracy and reducing operator fatigue, particularly in repetitive or complex machining processes.

Q: How does the FGSV-50 ensure high-precision milling?

A: High-precision is achieved through its rigid cast iron frame, precision ground box ways, high-quality ISO 50 spindle, and robust construction, all of which minimize vibration and maintain alignment during milling operations.
