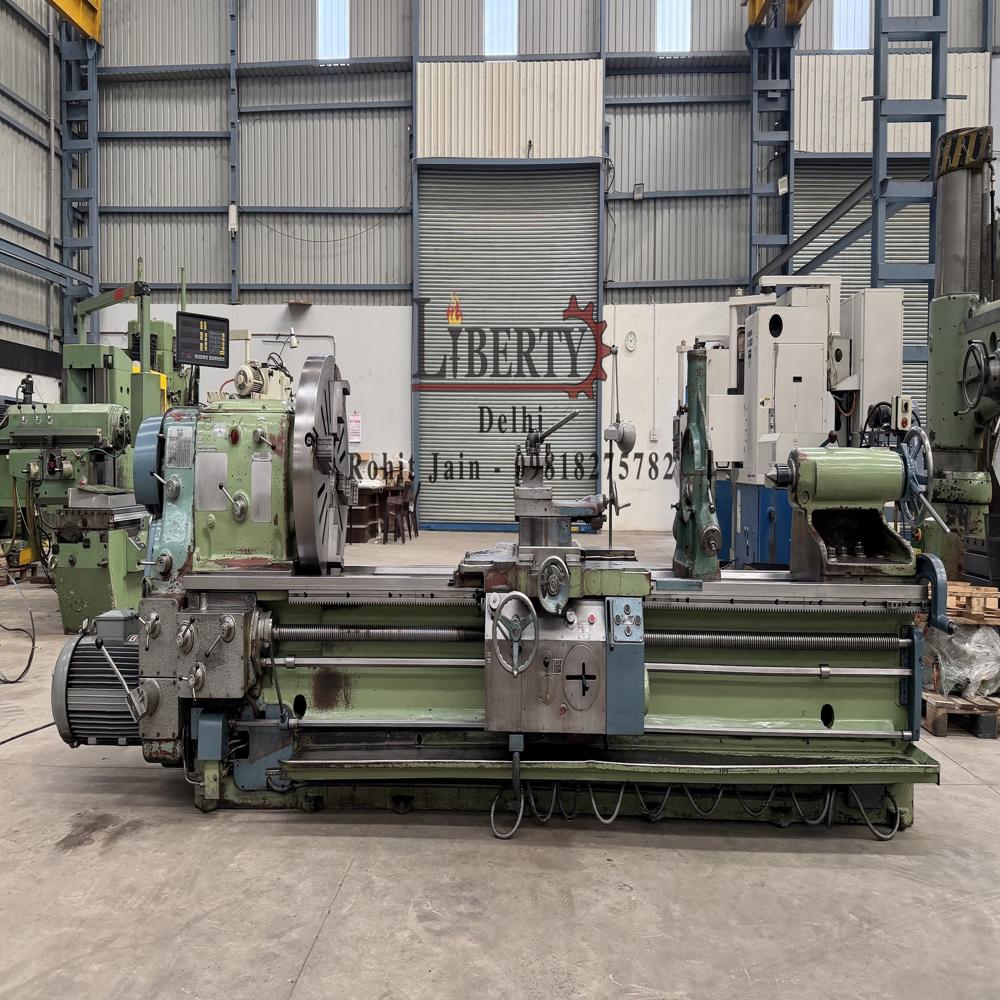

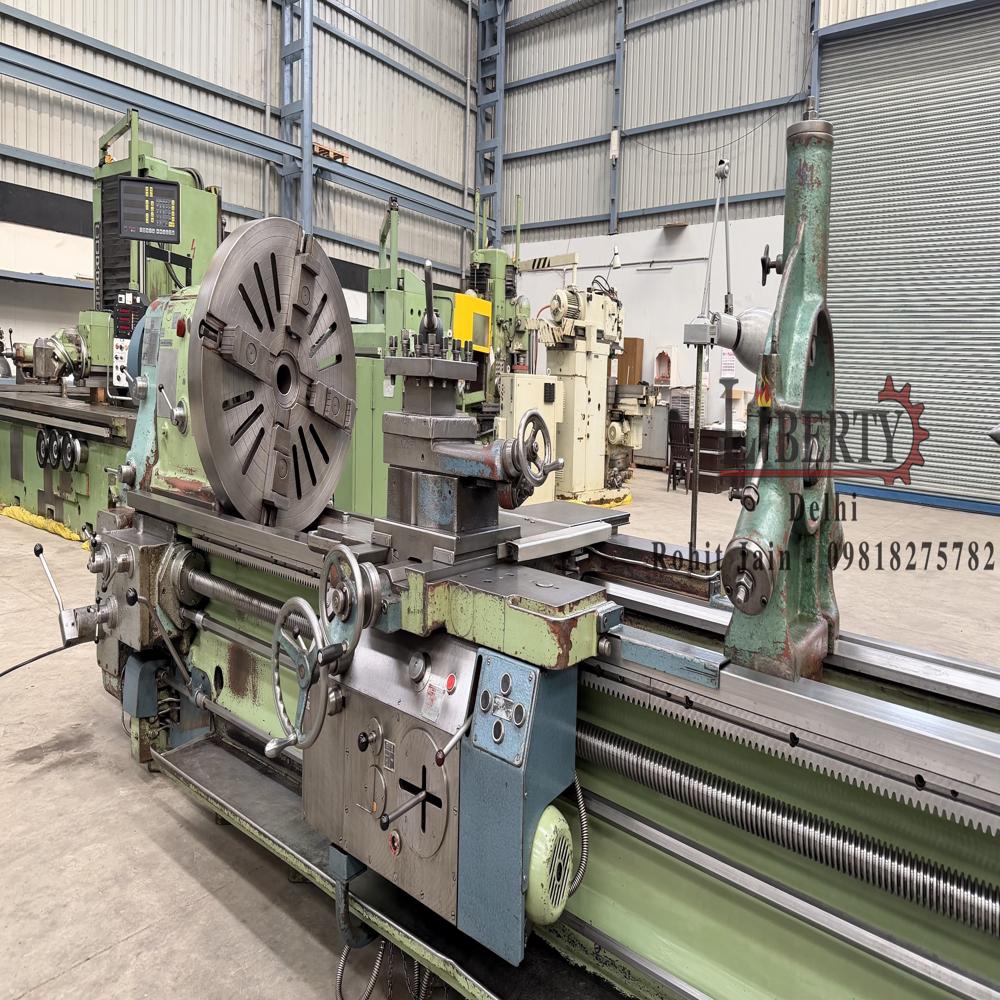

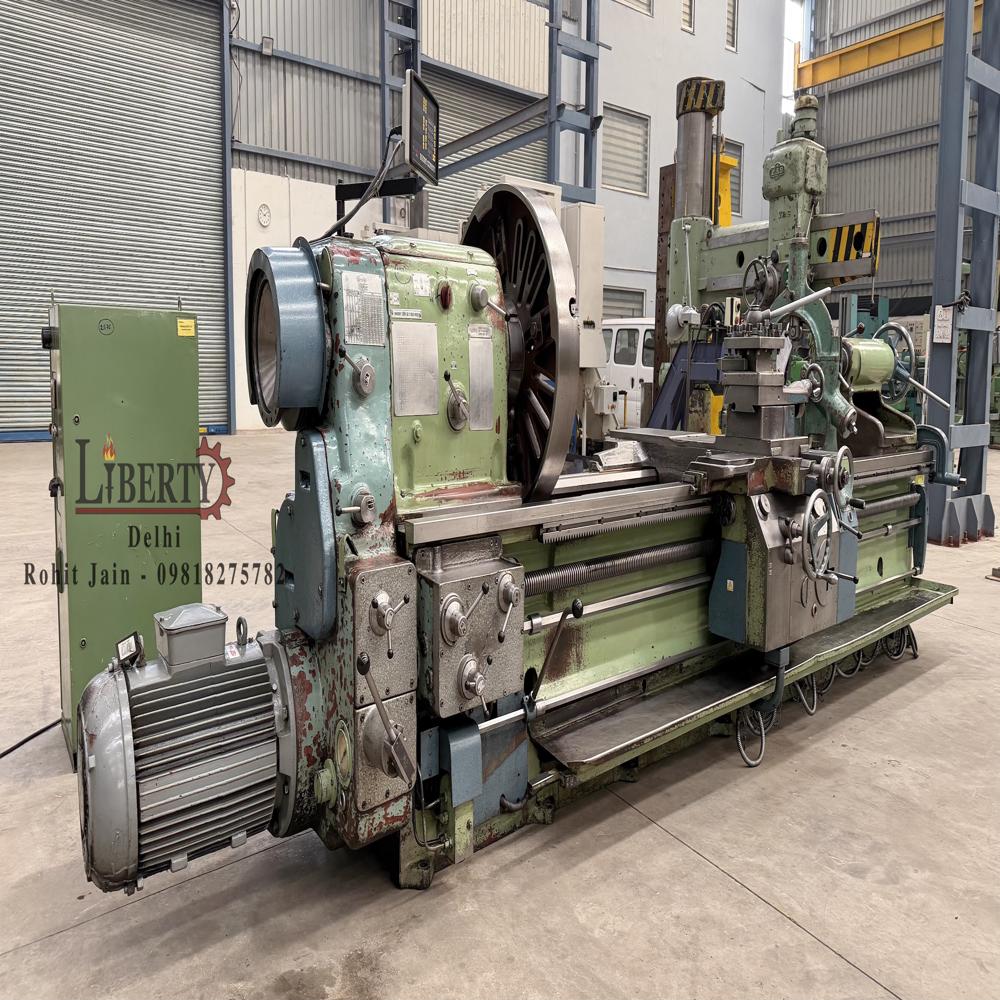

TOS Czech SU-80A x 2750 mm Heavy Duty Lathe Machine

Send Inquiry

Request To Call Back

TOS Czech SU-80A x 2750 mm Heavy Duty Lathe Machine

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech SU-80A x 2750 mm Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Heavy Duty Lathe Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is SU-80A and the Max. Job Length is 2750 mm. It is a Heavy Duty type Lathe having Bed Width of 700 mm and the Center Height of 405 mm. The technical details are as follows -

Cutting Thickness
Depends on tool and material; typical for heavy duty lathes

Cutting Speed
12.5-1600 rpm (range) depending on gear selection

CNC Or Not
No (Conventional Lathe)

Automatic Grade
Manual

Control System
Manual

Max. Swing Diameter
800 mm

Voltage
415 V, 3 Phase, 50 Hz

Weight (kg)
Approx. 8000 kg

Dimension (L*W*H)
Approx. 5000 x 2000 x 1750 mm

Capacity
Max. Job Length: 2750 mm

Feature
Heavy duty, precision ground bed, large bed width, robust Czech build

Color
Standard Machine Grey

Number of Feed Rates
Wide range, machine-specific

Spindle Nose
Camlock, standardized

Bed Width
700 mm

Model
SU-80A

Max. Distance Between Centers
2750 mm

Center Height
405 mm

Tailstock Travel
250 mm

Application
Heavy-duty industrial turning operations

Tailstock Quill Diameter
105 mm

Machine Condition
Excellent working condition

Spindle Bore
105 mm

About TOS Czech SU-80A x 2750 mm Heavy Duty Lathe Machine

Make - TOS (Czech Republic)

Model - SU-80A

Center Height - 405 mm

Max. Length of Job - 2750 mm

Max. Job Diameter over Cross-Slide - 495 mm

Max. Job Diameter over Bed - 800 mm

Spindle Speeds - 6.7 rpm to 1000 rpm

Bed Width - 700 mm

Chuck Diameter - 850 mm

Spindle Bore - 70 mm

Swing Diameter near Chuck - 880 mm

- Complete with Job Steady, Coolant Tank & Pump.

- Complete with Boring Bars, Centers, & many other accessories.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/fa8w33wiahI

Robust Performance for Heavy-Duty Applications

The SU-80A is specifically engineered to handle large, challenging workpieces in environments demanding reliability and precision. Its reinforced structure, wide bed, and substantial center height allow users to tackle industrial projects that standard lathes cannot manage. Ideal for manufacturers, exporters, and large-scale traders, it is an excellent fit for those who require high-performance turning equipment.

Flexible Operation and Wide Range of Functions

With manual controls and a comprehensive selection of feed rates, this lathe empowers operators with versatility for a wide variety of materials and jobs. The spindle speed is adaptable between 12.5 and 1600 rpm, accommodating multiple machining and cutting tasks. Its standardized spindle nose and robust tailstock enhance both efficiency and safety.

FAQ's of TOS Czech SU-80A x 2750 mm Heavy Duty Lathe Machine:

Q: How do I use the TOS Czech SU-80A lathe for heavy-duty turning operations?

A: To use the SU-80A for heavy-duty turning, securely mount your workpiece between centers or on a chuck, set the desired spindle speed (between 12.5 and 1600 rpm) according to the material, and select the appropriate feed rate. All adjustments are made manually, enabling precise control during operation. Ensure cutting tools are properly installed and maintained for optimal performance.

Q: What types of materials and applications are suitable for this machine?

A: The SU-80A is ideal for turning large and heavy components made from steel, iron, aluminum, or similar metals. Its heavy-duty capabilities make it perfect for applications in manufacturing, metal fabrication, and repair shops, particularly where high precision and robust operation are needed.

Q: What are the benefits of the wide bed width and center height on this lathe?

A: The 700 mm bed width and 405 mm center height allow for excellent stability and support when machining oversized or irregular workpieces. These features minimize vibration, improve cutting accuracy, and increase safety when handling demanding industrial jobs.

Q: When should I perform maintenance on the SU-80A to ensure continued performance?

A: Routine maintenance should be carried out based on machine usage. It is advisable to regularly check lubrication points, inspect moving components, and ensure all fasteners are secure. Periodic cleaning and alignment verification help maintain precision and extend the machine's lifespan.

Q: Where is the TOS SU-80A manufactured and why does its origin matter?

A: The SU-80A is manufactured in the Czech Republic by TOS, renowned for quality engineering and robust machine-tool construction. Czech manufacturing is recognized for durability, ensuring long-lasting performance even in intense industrial environments.

Q: How does the manual control system affect the machining process?

A: The manual control system offers operators greater flexibility and direct control over each step of the machining process. This is especially valuable for complex jobs or custom applications where experience and skill enhance the precision and finish of the workpiece.

Q: What safety precautions should be followed when operating this lathe?

A: Operators should always wear appropriate personal protective equipment, ensure all guards and safety devices are in place, check that the workpiece is securely mounted, and avoid wearing loose clothing. Before use, verify that the selected speeds and feeds are suitable for the job.
