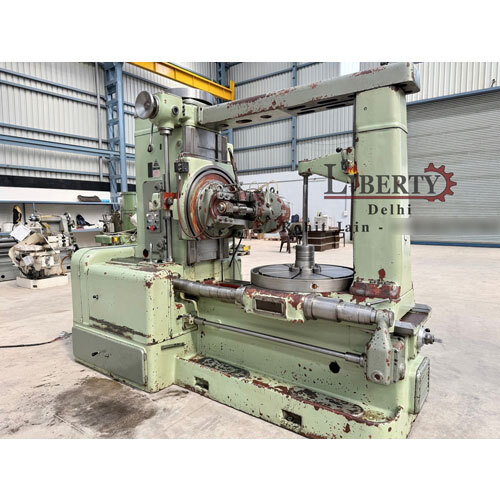

TOS FO - 10 Gear Hobbing Machine

Name: TOS FO - 10 Gear Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS FO - 10 Gear Hobbing Machine Specification

Power
7.5 kW

Machine Type
Gear Hobbing Machine

Output
Up to 500 gears per shift

Capacity
Max. Gear Diameter 1000 mm

Color
Green

Voltage
400 V

Dimension (L*W*H)
2410 mm x 1370 mm x 1615 mm

Used For
Gear Cutting and Hobbing

Weight
Approx. 4200 kg

Condition
Used

Feature
High Precision, Robust Construction

Table Bore Diameter
125 mm

Max Module
10

Table Speed
3.6 - 36 rpm

Center Distance Between Work and Hob
25 mm - 650 mm

Min Module
1

Electrical Supply
3 Phase

Machine Base
Heavy Duty Cast Iron

Feed Range
0.25 to 3.5 mm/rev

Hob Shaft Diameter
40 mm

Safety Features
Emergency Stop, Overload Relay

Coolant System
Integrated

Quick Change Gear Ratio
Available

Hob Slide Travel
Up to 395 mm

Spindle Speed Range
Up to 400 rpm

Max Hob Diameter
160 mm

Clamping Table
Hydraulic

TOS FO - 10 Gear Hobbing Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS FO - 10 Gear Hobbing Machine

Make - TOS (Czech Republic)

Model - FO-10

Max. Module - 10 Modules

Max. Gear Diameter - 1000 mm

Max. Width of Gear - 400 mm

Table Diameter - 850 mm

Max. Hob Cutter Size - Diameter 170 mm x 180 mm Length

Hob Speeds - 20 rpm to 125 rpm

Max. Gear Diameter (With Tail-Stock) - 750 mm

- Complete with accessories like Change Gears, Job Supports, etc.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/VLtBmYdzyDk

Versatile Gear Cutting Performance

The TOS FO - 10 adapts to a wide range of gear sizes, accommodating workpieces with center distances from 25 mm up to 650 mm. Its max module of 10 and quick-change gear ratio feature support varied production demands, making it ideal for both small batch and large volume gear manufacturing.

Robust Construction and Integrated Systems

Engineered with a heavy-duty cast iron base, the TOS FO - 10 guarantees vibration-free operation and prolonged machine life. The integrated coolant and hydraulic clamping table contribute to smooth operation, precision, and superior gear quality.

Superior Output and Efficiency

Capable of producing up to 500 gears per shift, this gear hobbing machine delivers outstanding productivity. With maximum reliability, quick setup features, and a powerful 7.5 kW motor, it stands out as a productivity multiplier in competitive industrial environments.

FAQ's of TOS FO - 10 Gear Hobbing Machine:

Q: How does the TOS FO - 10 ensure high precision during gear cutting?

A: The TOS FO - 10 Gear Hobbing Machine features a robust cast iron base, hydraulic clamping table, and an integrated coolant system, all of which combine to minimize vibration and maintain consistent machining accuracy throughout the gear cutting process.

Q: What range of gear sizes and modules can the machine handle?

A: This machine accommodates gear modules from 1 to 10, with center distance between work and hob adjustable from 25 mm to 650 mm. It can handle gears up to 1000 mm in diameter, making it highly versatile for various industrial applications.

Q: When is the quick-change gear ratio feature most beneficial?

A: The quick-change gear ratio feature is especially advantageous during frequent production changeovers, reducing downtime and enabling manufacturers to efficiently switch between different gear specifications.

Q: Where can the TOS FO - 10 be used most effectively?

A: The TOS FO - 10 is ideal for use in gear manufacturing plants, automotive workshops, and industrial environments that demand high-volume, high-precision gear production. Its robust construction supports intensive, round-the-clock operations.

Q: What is the process for operating the machine safely?

A: Operators should follow standard start-up procedures, utilize the hydraulic clamping table for secure work-holding, ensure proper lubrication with the integrated coolant system, and always be aware of the emergency stop and overload relay for enhanced safety.

Q: How does the integrated coolant system improve usage?

A: The integrated coolant system continuously lubricates and cools the work area, reducing tool wear, enhancing surface finish, and contributing to the longevity of both the machine and cutting tools.

Q: What are the key benefits of using the TOS FO - 10 Gear Hobbing Machine?

A: Users benefit from its high output rate (up to 500 gears per shift), exceptional build quality, precise gear production, quick setup times, and comprehensive safety features, making it a strategic investment for any gear manufacturing operation.
