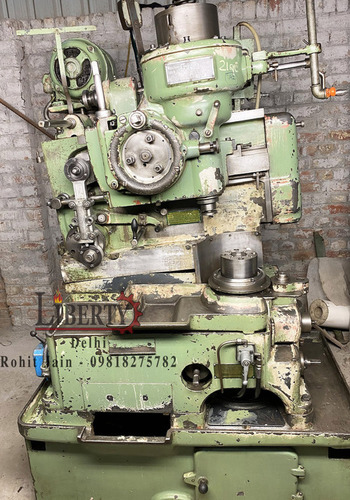

TOS OH-6 Gear Shaper Machine with Rack Cutting Attachment

Send Inquiry

Request To Call Back

TOS OH-6 Gear Shaper Machine with Rack Cutting Attachment

Name: TOS OH-6 Gear Shaper Machine with Rack Cutting Attachment
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS OH-6 Gear Shaper Machine with Rack Cutting Attachment Specification

Output
Precision gear and rack shaping

Weight
Approx. 4200 kg

Capacity
Module up to 6, Max workpiece dia. 630 mm

Feature
Rack cutting attachment for versatile gear profiles

Color
Industrial Grey

Voltage
415 V

Power
Main motor 4.5 kW

Used For
Cutting internal and external gears, including racks

Condition
Used

Dimension (L*W*H)
2330 x 1800 x 2350 mm (approx)

Machine Type
Gear Shaper Machine with Rack Cutting Attachment

Rack Length Capability
Up to 1 meter (with attachment)

Noise Level
<80 dB

Machine Floor Area
4.2 m²

Accessories
Rack cutting attachment, change gears, standard accessories

Maximum Cutting Diameter
630 mm

Tool Fitting
Standard shaper cutters

Table Diameter
600 mm

Maximum Workpiece Height
160 mm

Number of Strokes per Minute
32 - 160 rpm (variable)

Lubrication System
Integrated automatic lubrication

Maximum Stroke
130 mm

Application Materials
Steel, cast iron, alloys

Control
Conventional manual

Spindle Bore
140 mm

Work Table Adjustment
Adjustable for helical gear cutting

TOS OH-6 Gear Shaper Machine with Rack Cutting Attachment Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS OH-6 Gear Shaper Machine with Rack Cutting Attachment

Make - TOS (Czech Republic)

Model - OH-6

Max. Module Capacity - 6 Modules

Max. Gear Diameter - 500 mm

Max. Stroke Length - 110 mm

Max. Rack Cutting Length - 450 mm

Stroke Rate - 50 strokes/min to 315 strokes/min

Spindle Diameter - 78 mm

Height between Table to Spindle Body - 235 mm

- Complete with its Change Gears.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/L9xp4OWkTvA

Precision Gear and Rack Manufacturing

Engineered for accuracy, the TOS OH-6 Gear Shaper excels in producing both internal and external gears, as well as straight racks using the included rack cutting attachment. Its robust design and adjustable table allow for versatile gear profiles and helical cutting, supporting a wide variety of industrial applications.

User-Friendly Performance and Safety

Featuring a conventional manual control interface, operators can efficiently manage variable stroke rates and settings, making the machine suitable for diverse job demands. The integrated automatic lubrication system promotes durability, while a noise level below 80 dB enhances operator safety and comfort during prolonged use.

Adaptable to Multiple Materials

Designed to work with steel, cast iron, and various alloys, the TOS OH-6 provides flexibility for manufacturers, exporters, and suppliers. Its capacity for handling sizeable workpieces and producing precision gears makes it an asset for both small-scale and large-scale production environments.

FAQ's of TOS OH-6 Gear Shaper Machine with Rack Cutting Attachment:

Q: How is the rack cutting function utilized on the TOS OH-6 Gear Shaper?

A: The machine comes equipped with a rack cutting attachment that enables precise shaping of straight racks up to 1 meter in length. Operators simply install the attachment and adjust settings according to rack specifications for high-accuracy production.

Q: What types of workpieces can be machined with this gear shaper?

A: The TOS OH-6 easily shapes internal and external gears as well as racks from steel, cast iron, and alloy materials, supporting workpieces up to 630 mm in diameter and 160 mm in height.

Q: When is it ideal to use the adjustable worktable feature?

A: The adjustable worktable is particularly useful when cutting helical gears. By modifying the table settings, users can achieve precise gear angles and profiles that align with specific engineering requirements.

Q: Where is the TOS OH-6 Gear Shaper most commonly employed?

A: This machine is extensively used in precision engineering workshops, gear manufacturing units, and industrial plants. It is suitable for exporters, importers, manufacturers, suppliers, and traders seeking reliable gear and rack production capabilities.

Q: What is the process for changing between gear and rack cutting operations?

A: To switch between gear and rack cutting, the operator installs the required attachment (for racks) or utilizes standard shaper cutters (for gears), adjusts the machine settings, and selects the appropriate gears and cutting speeds. The manual control system provides ease in transitioning between tasks.

Q: How does the integrated lubrication system benefit the user?

A: The machine's automatic lubrication system ensures smooth operation and extends the lifespan of moving components by continuously supplying optimal lubrication, reducing maintenance intervals and potential breakdowns.

Q: What are the main benefits of using the TOS OH-6 Gear Shaper Machine?

A: Key benefits include precise gear and rack manufacturing, versatility across materials, flexible adjustment for specialized gear profiles, low operational noise, and ease of use due to its manual controls and included accessories.
