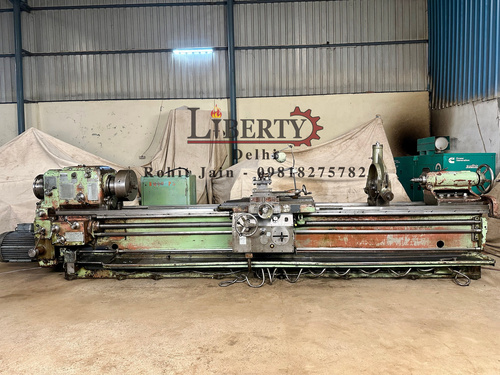

TOS SU 63A - 3500 mm Heavy Duty Lathe Machine

Name: TOS SU 63A - 3500 mm Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 26000 INR
Availability: InStock

Price 26000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS SU 63A - 3500 mm Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
High-grade Cast Iron and Steel

Cutting Thickness
Up to 25 mm (depending on tool and material)

Cutting Speed
Variable, up to 1250 RPM

CNC Or Not
No, Conventional

Automatic Grade
Semi-Automatic

Control System
Manual with Mechanical Controls

Max. Swing Diameter
630 mm

Voltage
415 V, 3 Phase

Weight (kg)
Approximately 6300 kg

Dimension (L*W*H)
5350 mm x 1500 mm x 1550 mm

Capacity
HighDesigned for large workpieces

Feature
Heavy Duty, Precision, Rigid Construction

Color
Green

Cross Slide Travel
410 mm

Lead Screw Diameter
40 mm

Tailstock Quill Travel
250 mm

Model
SU 63A

Distance Between Centers
3000 mm

Spindle Bore
105 mm

Bed Length
3500 mm

Spindle Nose
Camlock

Chuck Size
400 mm

Application
Turning, Facing, Thread Cutting, Boring

Headstock Type
Geared

Power Requirement
7.5 kW

Carriage Travel
3000 mm

Coolant System
Provided

Lubrication
Centralized

TOS SU 63A - 3500 mm Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS SU 63A - 3500 mm Heavy Duty Lathe Machine

Make - TOS (Czech Republic)

Model - SU 63 A / 3500

Center Height - 315 mm

Max. Length of Job - 3500 mm

Max. Diameter of Job over Bed - 630 mm

Max. Diameter over Cross-Slide - 360 mm

Spindle Speeds - 8 rpm to 1180 rpm

Bed Width - 565 mm

Chuck Diameter - 400 mm

Spindle Bore - 60 mm

- Complete with 3-point steady rest.

- With Motorised Rapid Travels on the Carriage & Cross-Slide.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/ghkrpkNXjoo

Precision and Heavy Duty Performance

Designed to deliver high-precision results, the TOS SU 63A lathe ensures stability and accuracy when handling large workpieces. Its robust structure, rigid construction, and high-capacity specifications make it an excellent choice for industrial sectors that demand reliability and performance in machining operations.

Versatile Machining Capabilities

With a bed length of 3500 mm and diverse application support, this lathe effortlessly performs turning, facing, thread cutting, and boring. The 400 mm chuck size, variable speed up to 1250 RPM, and centralized coolant and lubrication systems enable seamless machining processes, boosting productivity and prolonging machine life.

FAQs of TOS SU 63A - 3500 mm Heavy Duty Lathe Machine:

Q: How is the TOS SU 63A - 3500 mm lathe machine operated?

A: The SU 63A lathe is manually controlled through mechanical levers and switches. It is a conventional lathe, not CNC-based, and requires an experienced operator for precision machining tasks.

Q: What materials can be processed with this lathe?

A: This lathe, built with high-grade cast iron and steel, is suitable for machining a wide range of materials, including various metals used for heavy-duty industrial applications.

Q: When should you use this lathe machine for industrial applications?

A: This machine is ideal when you require high-capacity machining of large or heavy workpieces, especially for operations like turning, facing, thread cutting, and boring in manufacturing, export, and supplier environments.

Q: Where can the TOS SU 63A heavy duty lathe be installed?

A: It can be installed in workshops, manufacturing plants, and tooling centers requiring large bed length and high precision. Suitable for industries in the Czech Republic and internationally.

Q: What is the process for variable cutting speeds on this lathe?

A: Variable cutting speeds, up to 1250 RPM, are achieved using manual controls and the geared headstock, allowing the operator to adjust speed based on material and cutting requirements.

Q: How does the centralized lubrication system benefit the SU 63A lathe?

A: The centralized lubrication system ensures consistent distribution of lubricant to critical components, enhancing longevity, reducing wear, and supporting smoother operation during heavy-duty tasks.
