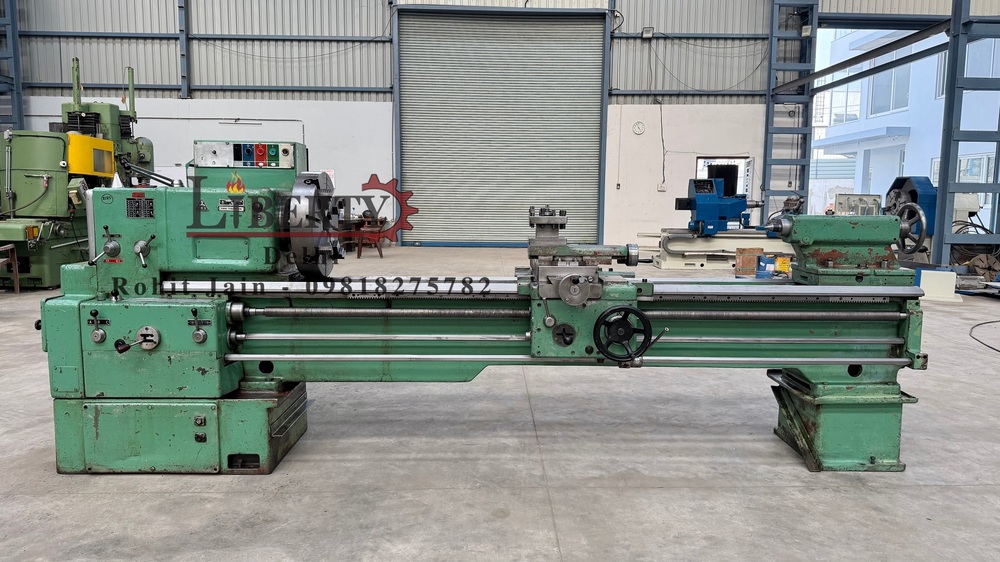

TOS Czech SN-55 x 2000 mm Lathe Machine
TOS Czech SN-55 x 2000 mm Lathe Machine

TOS Czech SN-55 x 2000 mm Lathe Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

TOS Czech SN-55 x 2000 mm Lathe Machine Specification

  • Product Type
  • Heavy Duty Lathe Machine
  • Material
  • High-grade cast iron
  • Cutting Thickness
  • Up to 25 mm (depending on material/operation)
  • Cutting Speed
  • Longitudinal feed speed: 0.021.12 mm/rev
  • CNC Or Not
  • No (Conventional Lathe)
  • Automatic Grade
  • Manual
  • Control System
  • Manual
  • Max. Swing Diameter
  • 560 mm over bed
  • Voltage
  • 415 V, 3 phase, 50 Hz
  • Weight (kg)
  • Approx. 2750 kg
  • Dimension (L*W*H)
  • 3300 mm x 1200 mm x 1500 mm (approx)
  • Capacity
  • 2000 mm between centers
  • Feature
  • High precision, rigid structure, easy operation
  • Color
  • Green / Grey (Standard)
  • Thread Cutting Imperial
  • 256 TPI
  • Thread Cutting Metric
  • 1120 mm
  • Distance Between Centers
  • 2000 mm
  • Tailstock Quill Travel
  • 200 mm
  • Leadscrew Thread
  • 6 mm pitch
  • Spindle Nose
  • Camlock D1-6
  • Swing Over Cross Slide
  • 340 mm
  • Swing in Gap
  • 800 mm
  • Spindle Bore
  • 72 mm
  • Tailstock Quill Diameter
  • 75 mm
  • Application
  • Turning, facing, threading, boring, drilling
  • Coolant Pump
  • Fitted as standard
  • Spindle Speed Range
  • 181800 RPM (various steps)
  • Bed Width
  • 355 mm
  • Main Motor Power
  • 7.5 HP


TOS Czech SN-55 x 2000 mm Lathe Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About TOS Czech SN-55 x 2000 mm Lathe Machine

Make - TOS (Czech Republic)

Model - SN-55

Center Height - 285 mm

Length of Job - 2000 mm

Max. Diameter of Job over Bed - 560 mm

Max. Diameter of Job over Cross-Slide - 320 mm

Max. Diameter of Job over Gap-Bed - 800 mm

Bed Width - 450 mm

Chuck Diameter - 500 mm

Spindle Speeds - 10 rpm to 1000 rpm

Spindle Bore - 62 mm

Max. Job Length in Gap - 310 mm

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/MpOaGR2w9eE



Exceptional Versatility and Precision

The SN-55 x 2000 mm lathe offers a wide range of machining capabilities thanks to its large swing diameters (560 mm over bed, 800 mm in gap) and 72 mm spindle bore. It is ideal for turning, facing, threading (metric 1-120 mm, imperial 2-56 TPI), and boring across different materials, all with high precision and ease of operation.


Robust Build and User-Friendly Design

Crafted from high-grade cast iron, the SN-55 ensures a rigid structure, minimizing vibration for consistently accurate results. Operators benefit from intuitive manual controls and a spacious working area. A standard fitted coolant pump further simplifies operation, supporting longevity for both tools and machine.

FAQ's of TOS Czech SN-55 x 2000 mm Lathe Machine:


Q: How is the TOS Czech SN-55 x 2000 mm Lathe Machine operated and controlled?

A: This lathe operates manually and is not CNC-controlled. Operators use handwheels and levers to control all operations, making it suitable for skilled machinists who prefer hands-on control for turning, threading, facing, and drilling.

Q: What types of materials can be machined with this lathe?

A: Thanks to its high-grade cast iron build and powerful 7.5 HP motor, the SN-55 can machine a variety of materials, including steel, aluminum, brass, and cast iron. Cutting thickness can reach up to 25 mm, depending on the material and operation.

Q: When should I use the bed gap feature for swing in gap (800 mm)?

A: The bed gap feature is essential when working with larger workpieces that require additional swing diameter. Activate the gap for jobs that exceed the standard bed swing of 560 mm but remain within the maximum gap swing of 800 mm.

Q: Where is this lathe typically used?

A: The SN-55 x 2000 mm lathe is commonly found in manufacturing plants, tool rooms, workshops, and heavy industries where high precision and versatility are crucial for production and maintenance tasks.

Q: What processes can I perform with this machine?

A: You can perform turning, facing, threading (both metric and imperial), boring, and drilling. The manual feed system enables precise longitudinal and cross feeds, supporting both rough and fine machining.

Q: How does the built-in coolant pump benefit users?

A: The factory-fitted coolant pump reduces heat build-up, extends tool life, and improves the finish of machined parts. This enhances operational efficiency and ensures consistently high-quality results.

Q: What are the main benefits of choosing the SN-55 x 2000 mm over other manual lathes?

A: Key advantages include a large working capacity (2000 mm between centers), high precision, rugged construction for durability, ease of manual operation, and a comprehensive spindle speed range (18-1800 RPM), making it suitable for a wide variety of machining applications.
