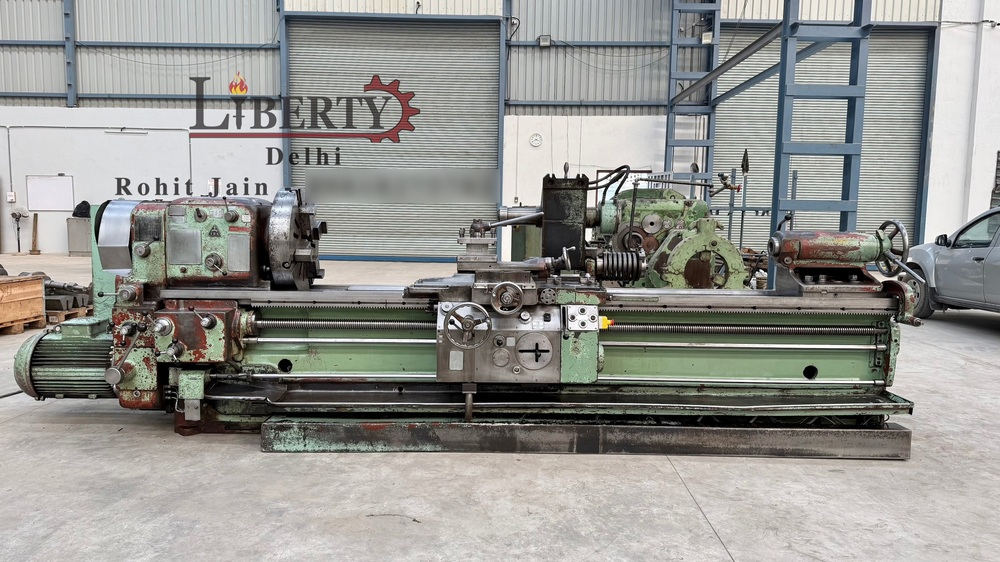

About TOS SU63A / 2750 Heavy Duty Lathe Machine
Make - TOS (Czech Republic)
Model - SU-63A
Center Height - 315 mm
Max. Length of Job - 2750 mm
Max. Diameter of Job over Bed - 630 mm
Max. Diameter over Cross-Slide - 360 mm
Spindle Speeds - 8 rpm to 1180 rpm
Bed Width - 565 mm
Chuck Diameter - 650 mm
Spindle Bore - 60 mm
Swing Diameter near Chuck - 700 mm
- Equipped with a special Deep Hole Drilling Attachment.
- Equipped with Taper Turning Attachment.
- Complete with a 3-point steady rest, boring bars, etc.
- Equipped with Coolant Tank, Tray & Pump.
- With Motorised Rapid Travels on the Carriage & Cross-Slide.
- Operating Manual and Electrical Drawings are available.
- Machine is in excellent working condition.
Video of The Machine -
https://youtu.be/lbCrI8wU2WM
Superior Build and PrecisionCrafted with a cast iron body and a hardened bed, the TOS SU63A / 2750 lathe offers exceptional rigidity and long-term accuracy. Its substantial 415 mm bed width and full-length splash guard enhance user safety and ensure consistent machining performance. This combination supports high-precision outcomes for every turning project.
Versatile Performance for Complex TasksWith a maximum swing diameter of 630 mm over the bed and an 880 mm swing in the gap, this lathe accommodates various workpiece sizes. The extensive traveling capacities of the cross and top slides, along with a 7.5 kW motor, support robust operations for threading, facing, and fine turning, making it a versatile solution in manufacturing environments.
User-Friendly and Reliable OperationThe TOS SU63A / 2750 operates on a manual control system, providing hands-on precision for skilled machinists. Its ergonomic layout, clear controls, and semi-automatic features help streamline workflow without sacrificing user control, reliability, or safety during repetitive or intricate tasks.
FAQ's of TOS SU63A / 2750 Heavy Duty Lathe Machine:
Q: How does the TOS SU63A / 2750 lathe benefit heavy-duty machining operations?
A: The TOS SU63A / 2750 lathe is built for heavy-duty tasks, offering a rigid cast iron frame, a powerful 7.5 kW motor, and generous swing and travel dimensions. Its hardened and ground bed ensures durability and precision, making it suitable for handling large components and sustained industrial workloads.
Q: What materials can this lathe machine process, and what is the maximum cutting thickness?
A: Primarily designed for metalworking, the TOS SU63A / 2750 can machine a wide variety of ferrous and non-ferrous metals. The maximum cutting thickness is up to 12 mm, depending on the material's properties and the specific application.
Q: Where can this lathe machine be installed and used?
A: With its robust build and weight of approximately 5500 kg, this lathe is best suited for industrial workshops, manufacturing facilities, or machine shops with the necessary space and 415 V, 50 Hz, 3 phase electrical supply.
Q: What is the typical process for setting up and operating this lathe?
A: Installation involves securing the lathe on a stable foundation, connecting it to the power supply, and ensuring lubrication and alignment. Operation is manual, with the machinist adjusting feeds, speeds, and tool positioning to perform various turning, facing, and threading tasks.
Q: When should the bed and slideways be maintained or inspected?
A: For optimal performance and longevity, regular inspection and lubrication of the bed and slideways are recommended-preferably before each shift or according to the workload intensity. This helps preserve accuracy and prevents premature wear.
Q: What are the key usage features that enhance operator safety and efficiency?
A: Key features include a full-length splash guard to protect the operator from debris, a heavy-duty tailstock for stable support, and a hardened and ground bed for precision. Ergonomic controls and clear markings also contribute to safer, more efficient workflow.
