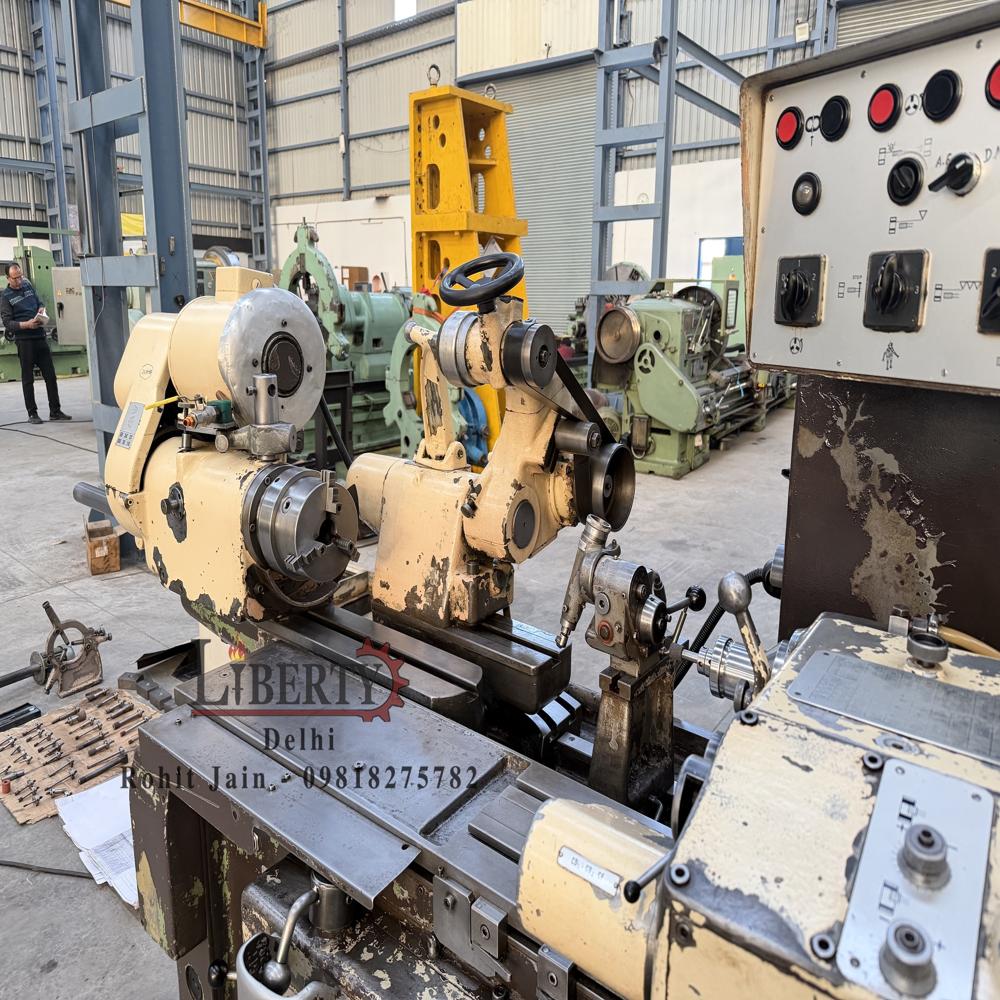

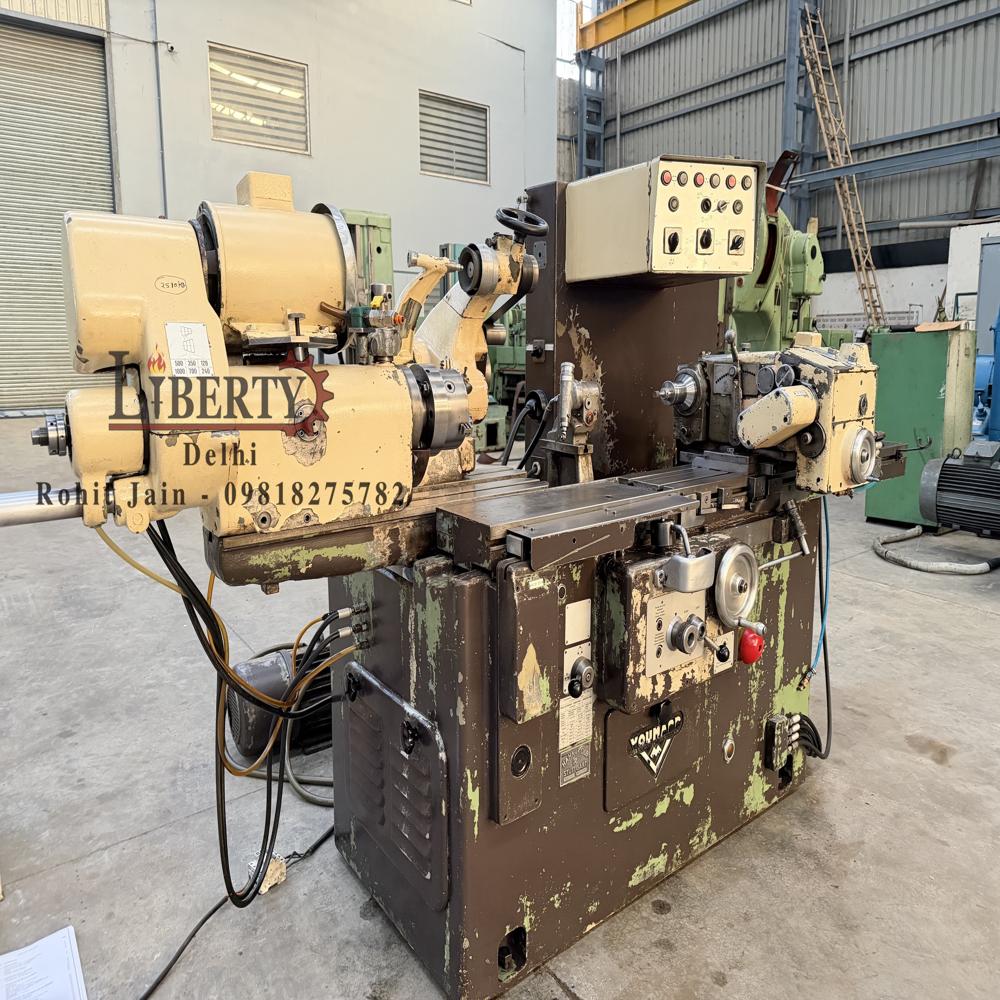

Voumard Switzerland Type 5AP Internal Grinding Machine

Name: Voumard Switzerland Type 5AP Internal Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Voumard Switzerland Type 5AP Internal Grinding Machine Specification

Rotation
Multi-Speed Spindle Rotation

Model
5AP

Product Type
Internal Grinding Machine

General Use
Voumard (Switzerland) make Internal Grinding Machine in excellent working condition. The model of the Machine is Type 5AP and Internal Diameter Grinding Range is from 5 mm to 200 mm. The machine is complete with its Face Grinding Attachment. It is an Auto-Cycle type machine having Features of Rough Cut, Finish Cut, Automatic Hydraulic Wheel Dresser, etc. The technical details are as follows -

Material
Cast Iron Base, Steel Components

Type
Voumard Switzerland Type 5AP

Capacity
Up to 300 mm Workpiece Length

Weight (kg)
Approx. 2200 kg

Computerized
No

Automatic
Semi-Automatic/Manual

CNC Or Not
Not CNC (Conventional)

Control System
Manual with Electrical Panel

Table Size
Approx. 800 x 250 mm

Table Slide Way
Vibration Damping Hardened Slideways

Grinding Wheel Size
Up to 250 mm Diameter

Grinding Wheel Speed
18000-60000 RPM

Grinding Length
Approx. 300 mm

Floor Space
Approx. 2.0 x 1.2 m

Fuel Tank Capacity
Coolant tank approx. 50 liters

Spindle Speed
Upto 60000 RPM (Internal Spindle)

Power
3.5 kW (Main Motor)

Voltage
415 V, 50 Hz, 3 Phase

Dimension (L*W*H)
Approx. 2000 x 1200 x 1700 mm

Feature
High Precision, Anti-Vibration Structure

Color
Brown and Cream

Applications
Cylinder bores, precision bushings, tool room, maintenance workshops

Working Speed
Manual feed and adjustment

Machine Condition
Used, Good Working

Max Distance Between Centers
Approx. 300 mm

Installation Required
Flat leveled floor, 3-phase connection

Make
Voumard

Coolant System
Integrated coolant tank and pump

Accessories
Standard with spindle, arbors, electricals

Noise Level
<80 dB (when in good condition)

Accuracy
Upto 2 micron (depending on condition and setup)

Lubrication
Centralized lubrication system

Workhead Speed
Variable, upto 400 RPM

Max Swing Over Table
Approx. 200 mm

Electrical Cabinet
Mounted with front panel controls

Voumard Switzerland Type 5AP Internal Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Voumard Switzerland Type 5AP Internal Grinding Machine

Make - Voumard (Switzerland)

Model - Type 5AP

Grinding Diameter Range - 5 mm to 200 mm

Center Height - 180 mm

Maximum Swing Diameter of Job - 360 mm

Maximum Grinding Depth - 250 mm

Maximum Table Stroke - 600 mm

Work-Head Speeds - 120 rpm to 1000 rpm

Work-Head Swivel Angle - 0 degree to 90 degree

Maximum Job Length - 500 mm

- Equipped with Face Grinding Attachment.

- Features like Rough Cut, Finish Cut, Hydraulic Wheel-Dresser, etc.

- Complete with Steady, many Quills, Coolant Tank & Pump, etc.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/KSGC0fkY6Ks

Precision Engineering for Versatile Grinding

The Voumard Type 5AP is built with precision in mind. Its robust construction and hardened slideways reduce vibration for exceptional accuracy. This internal grinding machine accommodates a range of workpiece diameters and includes easily adjustable tailstock settings, delivering reliable performance for intricate grinding tasks.

Comprehensive Features for Enhanced Utility

Operators benefit from variable feed rates (manual or automatic), a hydraulic chuck for secure clamping, and a powerful recirculating coolant system. With its centralized lubrication and micrometric tailstock adjustments, the 5AP offers smooth, precise motion and longer-lasting components.

Flexible Operation and Accessories

The 5AP supports both manual and semi-automatic operation, controlled via a user-friendly electrical panel. Supplied with essential accessories, including internal spindle holders and multiple grinding wheels, it adapts to diverse internal grinding requirements. A compact footprint fits most workshop layouts while preserving work efficiency.

FAQ's of Voumard Switzerland Type 5AP Internal Grinding Machine:

Q: How is the Voumard Type 5AP Internal Grinding Machine operated?

A: The machine is controlled through a manual electrical panel and can operate both in semi-automatic and manual modes. It supports variable feed rates, allowing operators to adjust settings for rough or fine grinding according to their requirements.

Q: What is the grinding capacity of this machine?

A: The Voumard 5AP can internally grind diameters ranging from 5 mm up to 200 mm, with a maximum grinding length of approximately 300 mm, making it suitable for a wide variety of components.

Q: What benefits does the hydraulic chuck provide?

A: The hydraulic chuck ensures secure and stable clamping of workpieces, enhancing safety and guaranteeing consistent precision during grinding operations. This feature is especially valuable for high-precision manufacturing.

Q: Where is the Voumard 5AP typically used?

A: The 5AP is commonly utilized in toolrooms, precision engineering workshops, manufacturing facilities, and by suppliers requiring high-accuracy internal grinding capabilities for metal components.

Q: How is the machine maintained?

A: Maintenance is facilitated by centralized automatic lubrication, which ensures critical components receive consistent oiling. The machine also includes a recirculating coolant system to prevent overheating and preserve both the workpiece and grinding wheel.

Q: What accessories come with the Voumard 5AP?

A: The machine is supplied with internal spindle holders, several grinding wheels, a control cabinet, and a face grinding attachment, allowing for flexible optimization to different tasks.
