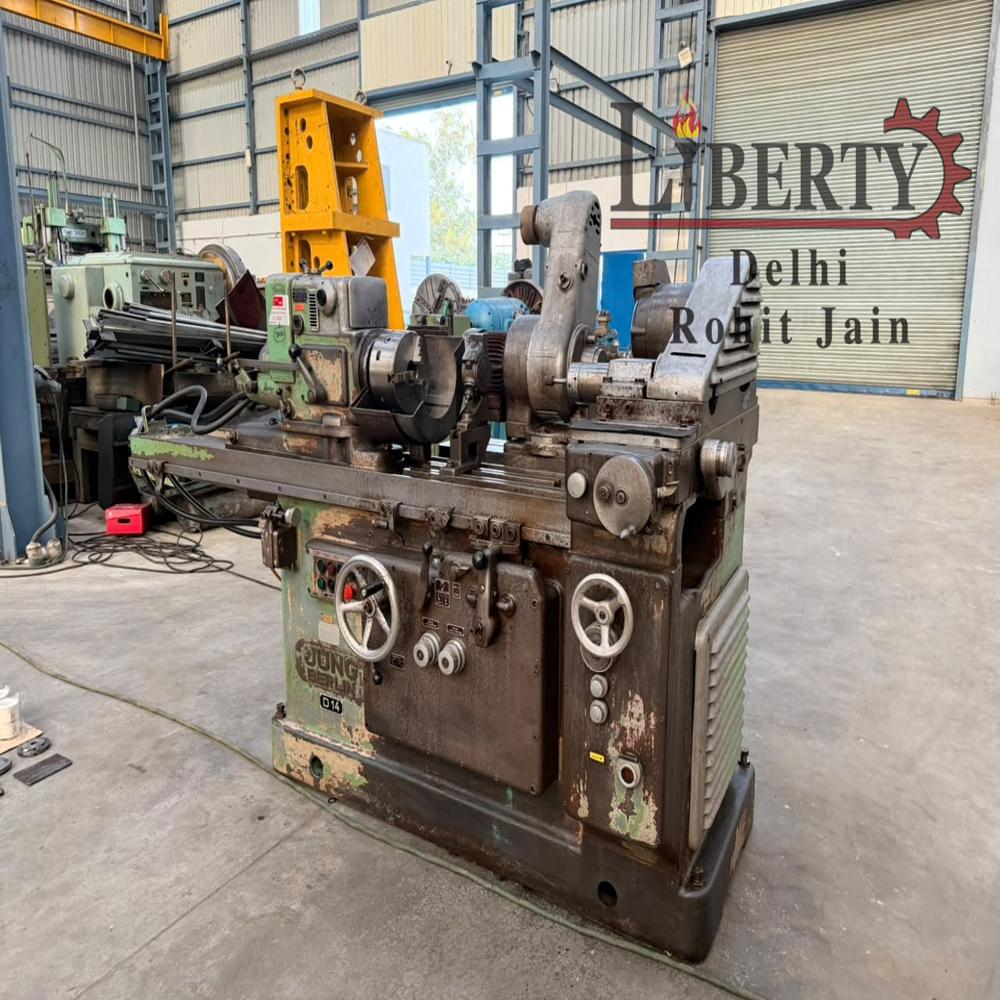

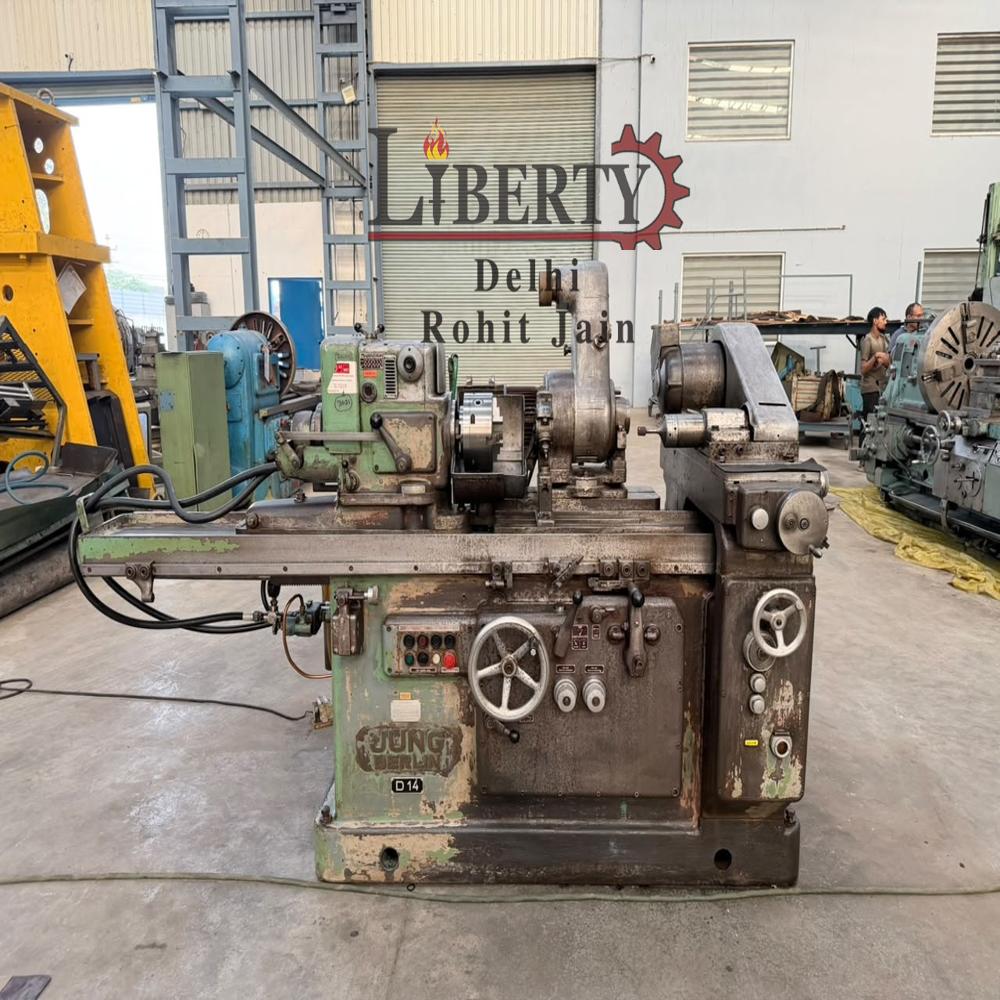

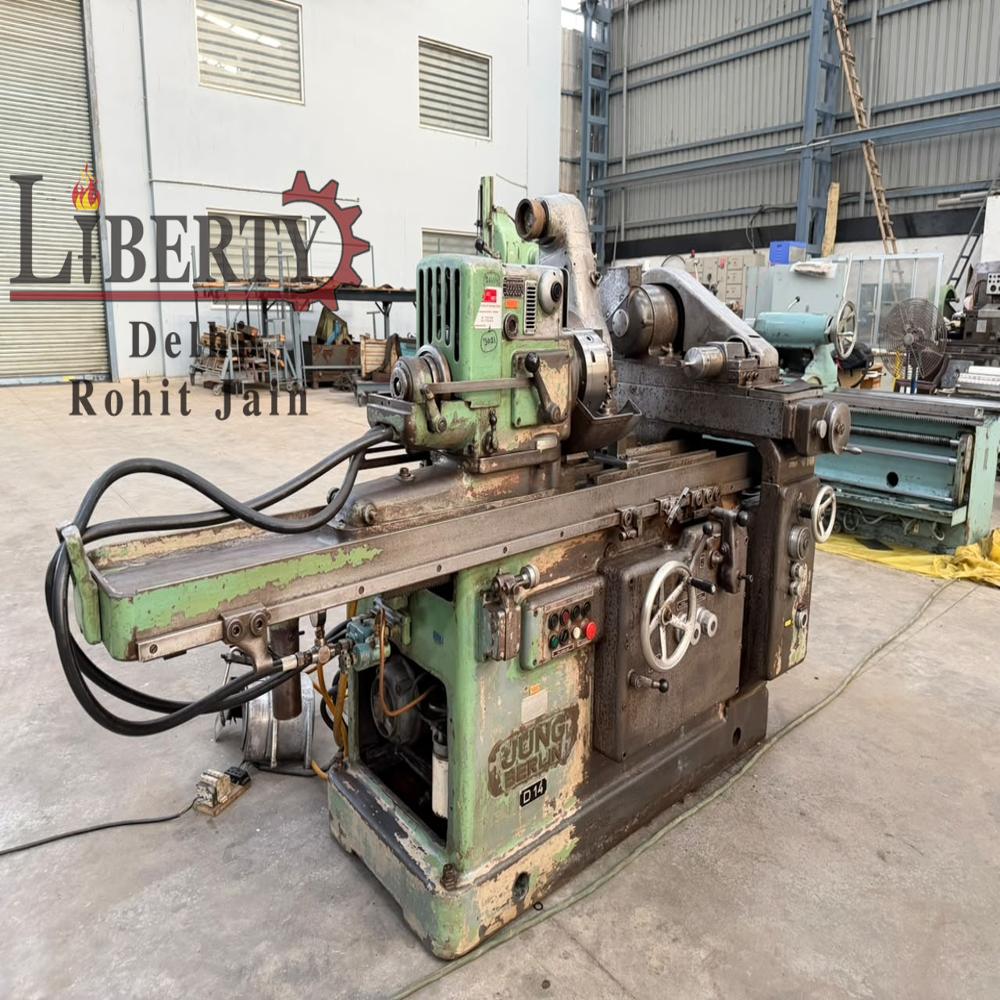

Send InquiryJung Germany D14 Internal & Face Grinding Machine
Price 60000.0 INR/ Piece
MOQ : 1 Piece
Jung Germany D14 Internal & Face Grinding Machine Specification
- Model
- D14
- Product Type
- - Equipped with Automatic Hydraulic Wheel Dresser. - Equipped with Face Grinding Attachment. - Features Automatic Depth Adjustment (Auto-Cut). - Features Hydraulic Clamping and Unclamping Arrangement for the Job. - Complete with Spare Internal Grinding Wheels and Operating Manual. - Machine is in excellent working condition.
- General Use
- Internal & Face Grinding Machine manufactured by Jung (Germany), Model D14, available in excellent working condition. The machine has a Maximum Job Swing Diameter of 425 mm, an Internal Grinding Diameter Range of 8 mm to 150 mm, and a Maximum Internal Grinding Depth of 150 mm. The machine is equipped with an Automatic Hydraulic Wheel Dresser and is complete with Face Grinding Attachment. It features Automatic Depth Adjustment (Auto-Cut), Automatic Return to Initial Position after Completion of the Grinding Cycle, Provision for Hydraulic Clamping and Unclamping of the Job, and Workhead Swivelling for Taper Grinding Applications. The technical details are as follows -
- Material
- Cast Iron
- Capacity
- 2.70 Tons Ton/day
- Automatic
- Yes
- CNC Or Not
- Normal
- Table Size
- Grinding Length
- 425 mm
- WorkingSpeed
- 10,750 RPM Approximately
- Feature
- High Performance
- Warranty
- no
About Jung Germany D14 Internal & Face Grinding Machine
Make - Jung (Germany)
Model - D14
Max. Job Swing Diameter - 425 mm
Internal Grinding Diameter Range - 8 mm to 150 mm
Max. Internal Grinding Depth - 150 mm
Max. Job Swing Diameter inside Cover - 290 mm
Max. Distance between Chuck & Spindle Support - 675 mm
Rotation of Workhead - 0 degree to 30 degree
Least Count - 2 Microns (0.002 mm)
Internal Grinding Spindle Diameter - 85 mm
Chuck Diameter - 200 mm
Internal Grinding Spindle Rotation Speed - 10,750 RPM Approximately
Workhead Rotation Speed Range - 96 to 568 RPM
Approx. Weight of the Machine - 2.70 Tons
- Equipped with Automatic Hydraulic Wheel Dresser.
- Equipped with Face Grinding Attachment.
- Features Automatic Depth Adjustment (Auto-Cut).
- Features Hydraulic Clamping and Unclamping Arrangement for the Job.

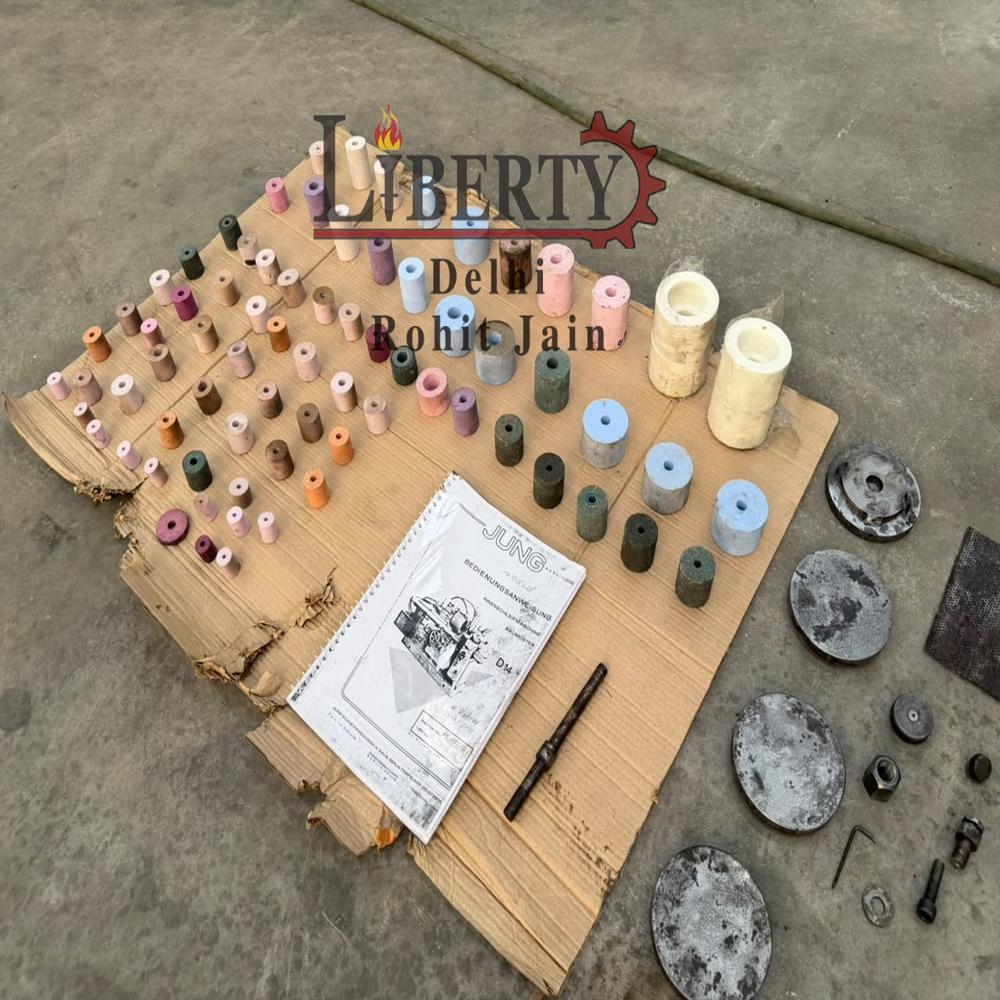

- Complete with Spare Internal Grinding Wheels and Operating Manual.
- Machine is in excellent working condition.
Video of The Machine -
