TOS BDE-5-350 Heavy Duty Internal Grinding Machine

Send Inquiry

Request To Call Back

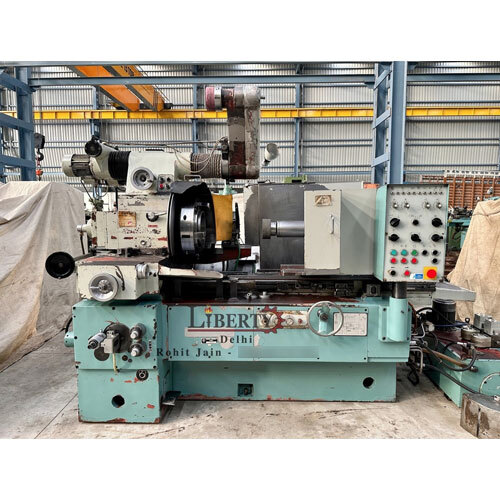

TOS BDE-5-350 Heavy Duty Internal Grinding Machine

Name: TOS BDE-5-350 Heavy Duty Internal Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS BDE-5-350 Heavy Duty Internal Grinding Machine Specification

Rotation
Spindle Rotation Both Directions

Model
BDE-5-350

Product Type
Internal Grinding Machine

General Use
Heavy Duty Internal Grinding

Material
Cast Iron Body

Type
Heavy Duty

Capacity
350 mm

Weight (kg)
Approx. 3500 kg

Computerized
No

Automatic
No

CNC Or Not
No

Control System
Manual

Table Size
1850 x 600 mm

Table Slide Way
V-Flat & Flat Guideway

Magnetic Chuck Size
350 mm

Grinding Wheel Size
250 mm

Grinding Wheel Speed
Up to 2200 rpm

Grinding Length
350 mm

Floor Space
2300 x 1600 mm

Spindle Speed
1400, 2200 rpm (2 speed)

Power
7.5 kW (Main Motor)

Voltage
415 V

Dimension (L*W*H)
Approx. 2300 x 1600 x 1800 mm

Feature
Rugged Construction, Precision Grinding, Easy Operation

Color
Blue & Grey

Noise Level
< 80 dB

Coolant System
Included

Installation Requirement
Leveled Rigid Foundation

Machine Accuracy
±0.002 mm

Maximum Workpiece Weight
150 kg

Lubrication System
Centralized

Drive Type
Direct Drive

Chuck Type
3-Jaw Chuck

Electrical Supply
3 Phase

Maximum Workpiece Diameter
350 mm

TOS BDE-5-350 Heavy Duty Internal Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS BDE-5-350 Heavy Duty Internal Grinding Machine

Make - TOS (Czech Republic)

Model - BDE-5-350

Max. Swing Diameter of Job - 700 mm / 600 mm

Max. Grindable Internal Diameter - 350 mm

Maximum Table Stroke - 500 mm

Spindle Diameter - 125 mm

Work-Head Speeds - 63 rpm to 315 rpm

Hydraulic Chuck Diameter - 470 mm

Max. Distance between Chuck & Spindle Support - 1000 mm

Grinding Wheel Spindle Motor - 10 kW

- Equipped with Face Grinding Attachment.

- Feature of Hydraulic Rapid Travel of the Work-Head.

- Feature of complete Automatic Cycle Working.

- Equipped with a Hydraulic Wheel Dresser.

- Equipped with Hydraulic Work-Head Chuck.

- Complete with Magnetic Coolant Filtration Unit, Coolant Tank and Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/MLesvkcx-as

Precision and Rugged Design

The TOS BDE-5-350 internal grinding machine stands out for its robust cast iron body and heavy-duty construction, ensuring durability under rigorous use. With its precision engineering, the machine delivers grinding accuracy within 0.002 mm, making it suitable for industries demanding high-quality internal surfaces and tight tolerances on large and complex parts.

Flexible Operation and Ease of Use

Designed with a manual control system and a three-jaw chuck, the TOS BDE-5-350 allows for straightforward setup and operation. It accommodates various cylindrical workpieces and provides spindle rotation in both directions, enhancing versatility for diverse grinding applications while remaining accessible for experienced machinists.

Comprehensive System Integration

Equipped with an efficient coolant system and centralized lubrication, the machine ensures prolonged tool life and reliable operation. Key features like direct drive spindle, dual spindle speeds, and a spacious working table facilitate consistent performance for heavy-duty internal grinding, all within a compact floor space.

FAQ's of TOS BDE-5-350 Heavy Duty Internal Grinding Machine:

Q: How is the TOS BDE-5-350 installed and what foundations are required?

A: The TOS BDE-5-350 should be set up on a leveled, rigid foundation to support its 3,500 kg weight and maintain precision. Installing on a stable base ensures minimal vibration and optimal machine performance during heavy-duty grinding operations.

Q: What types of workpieces can the machine accommodate, and what is its maximum capacity?

A: This machine can handle cylindrical workpieces up to 350 mm in diameter and weighing as much as 150 kg. Its sturdy 3-jaw chuck and table are designed for large, heavy components typically found in industrial manufacturing and repair.

Q: Where is the TOS BDE-5-350 commonly used?

A: The machine is widely used in manufacturing environments that require precise internal grinding of large components, such as automotive, heavy machinery production, and repair workshops. Its heavy-duty capability makes it ideal for demanding applications.

Q: What is the grinding process on this machine, and how is accuracy maintained?

A: Grinding is achieved using a 250 mm wheel and manual controls, with the direct drive spindle running at selectable 1400 or 2200 rpm. Precision guideways, centralized lubrication, and an integrated coolant system all help maintain grinding accuracy of 0.002 mm throughout the process.

Q: How does the coolant and lubrication system benefit machine operation?

A: The included coolant system prevents overheating, preserving workpiece integrity and wheel life. Centralized lubrication minimizes friction and wear on key moving parts, promoting consistent performance and reducing maintenance frequency.

Q: What are the main usage benefits of this internal grinding machine?

A: Key advantages include high precision, robust construction, reliable manual operation, and suitability for heavy workpieces. It enables consistent internal surface finishing and dimensional accuracy for complex industrial parts, without the need for CNC control.

Q: When should maintenance be performed, and what routine steps are recommended?

A: Routine machine maintenance should follow the manufacturer's guidelines. Operators should regularly check lubrication levels, inspect the coolant system, clean grinding debris, and ensure guideways are free from contamination to sustain optimal performance.
