Fortuna Germany Internal & Face Grinding Machine

Name: Fortuna Germany Internal & Face Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fortuna Germany Internal & Face Grinding Machine Specification

Model
Fortuna Germany

Rotation
Spindle rotation for internal/face grinding

Product Type
Internal & Face Grinding Machine

General Use

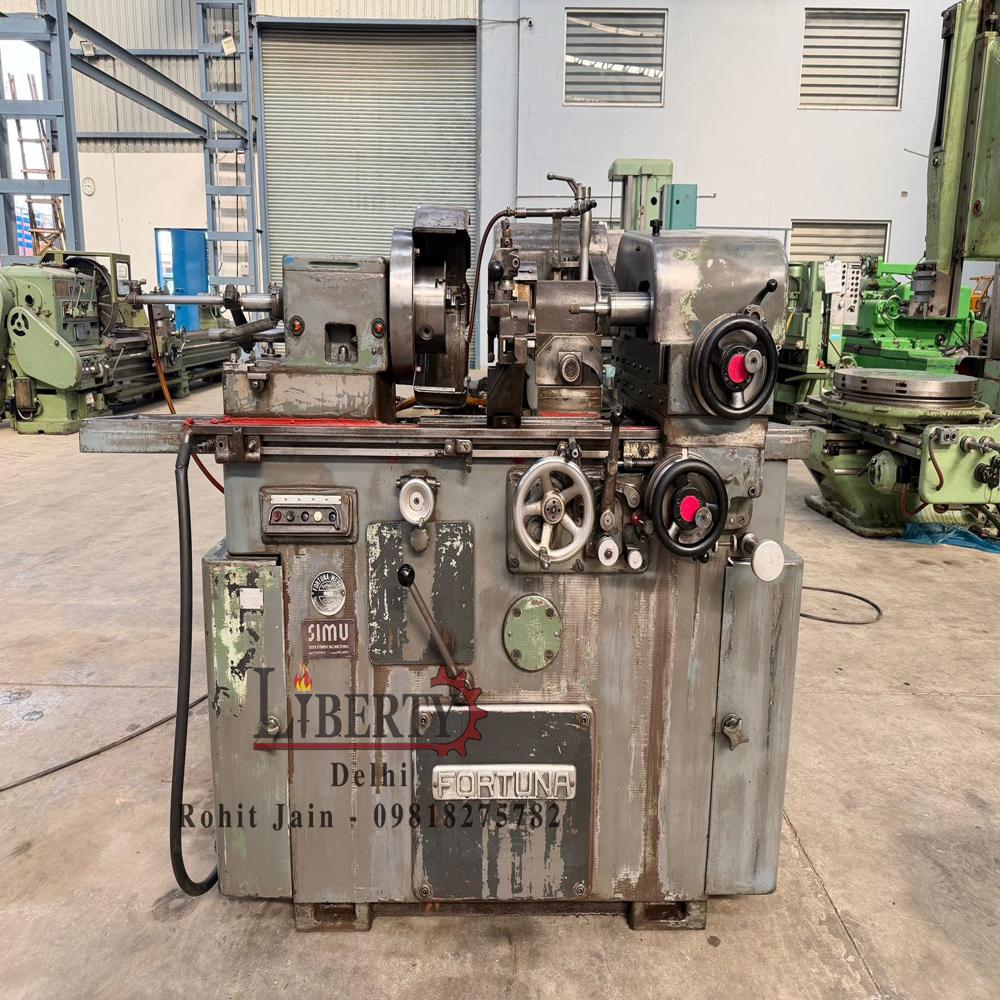

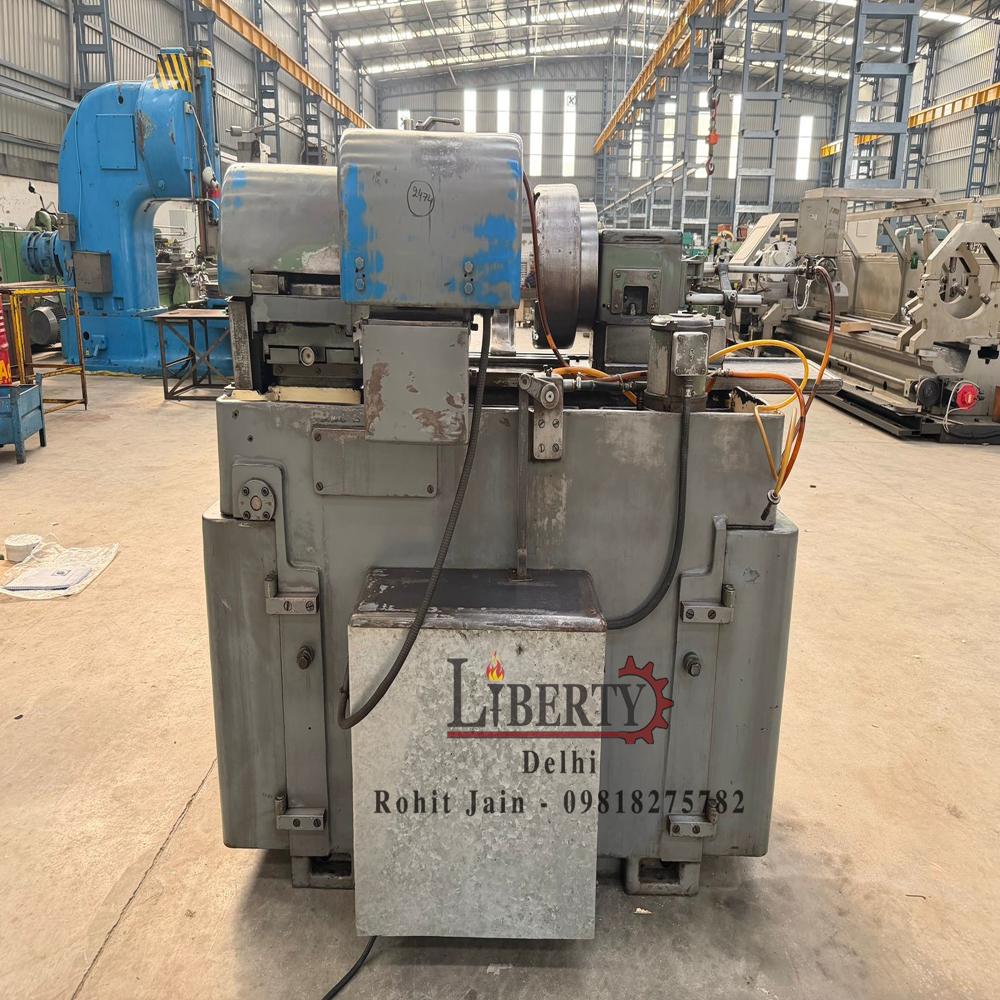

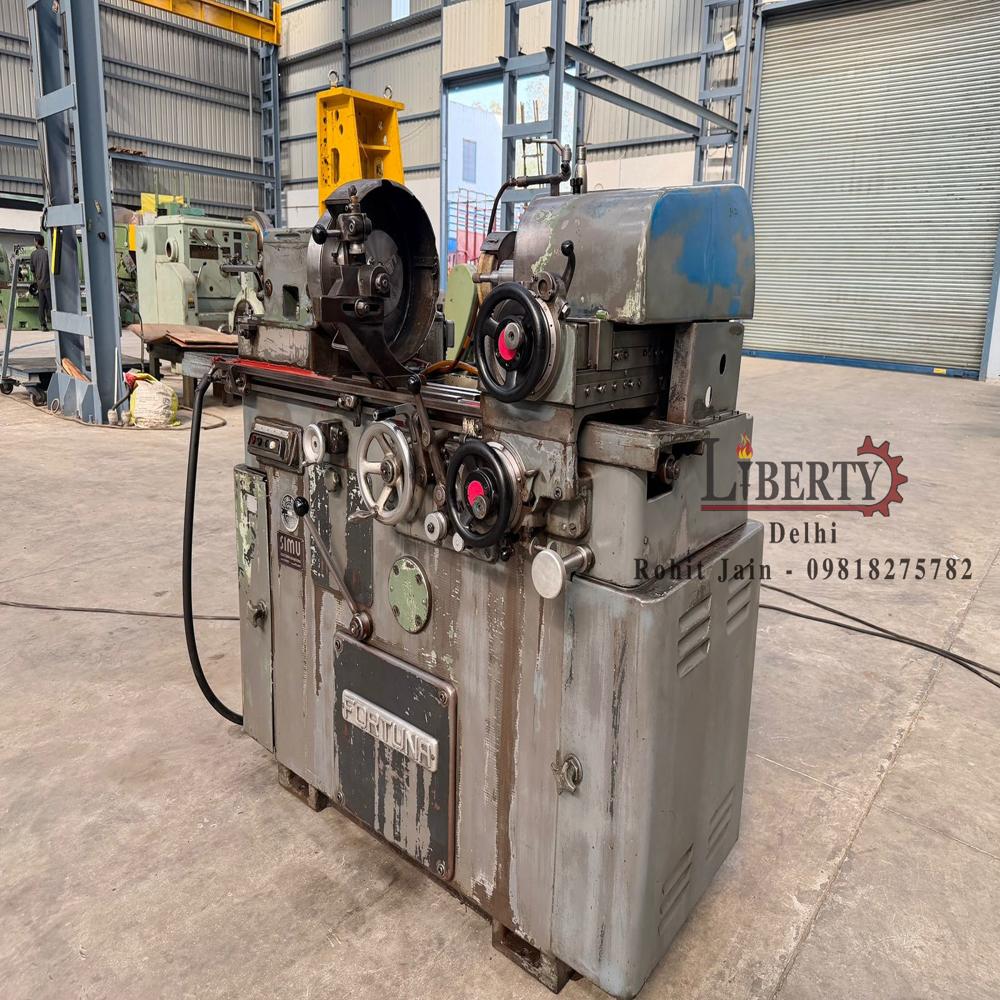

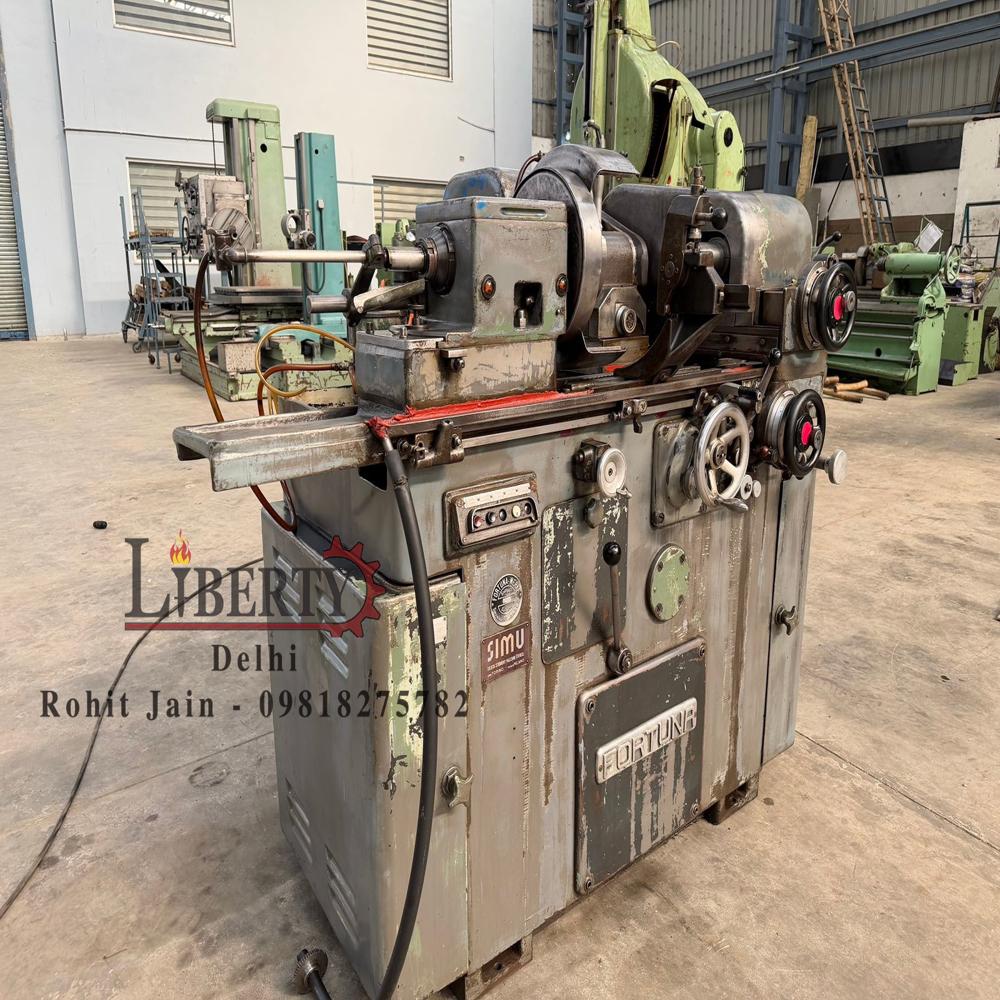

Fortuna (Germany) make Internal & Face Grinding Machine in excellent working condition. It is a Hydraulic type machine with Maximum Job Swing Diameter is 350 mm. The machine is complete with lots of NEW Grinding Wheels, Magnetic Chuck, Quills, and other accessories. The technical details are as follows -

Material
Cast iron base, steel components

Type
Rotary Grinder

Capacity
Suitable for medium-duty workshop use

Weight (kg)
2200 kg (approximate)

Computerized
No

Automatic
No, manually operated

CNC Or Not
No, Conventional

Control System
Manual Control Wheels and Levers

Table Size
Approx. 600 x 300 mm

Table Slide Way
V and flat ways

Magnetic Chuck Size
Standard (Specific size not mentioned)

Grinding Wheel Size
Approx. 200 mm diameter

Grinding Wheel Speed
1800 RPM (approximate)

Grinding Length
Up to 200 mm

Floor Space
1700 x 1200 mm

Fuel Tank Capacity
N/A (Electric operation)

Spindle Speed
2500 RPM (approximate)

Power
3 HP

Voltage
415V, 3 Phase

Dimension (L*W*H)
1700 x 1200 x 1400 mm

Feature
Heavy-duty, precision grinding, robust construction

Color
Industrial Green / Grey

Wheel Dressing Attachment
Included

Wheel Head Movement
Automatic & manual both

Noise Level
Depend on operation; Industrial range

Max Workpiece Diameter
200 mm

Handwheel Graduation
0.01 mm

Work Light
Fitted

Accuracy
High-precision (micron level)

Condition
Used, functional

Chuck Type
3-jaw or 4-jaw chuck compatible

Lubrication System
Centralized

Max Workpiece Length
250 mm

Brand Origin
Germany

Installation Type
Floor mounted

Working Speed
Up to 12000 RPM

Coolant System
Integral with recirculation pump

Fortuna Germany Internal & Face Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Fortuna Germany Internal & Face Grinding Machine

Make - Fortuna (Germany)

Max. Diameter of Job - 350 mm

Max. Ground-able Internal Diameter - 170 mm

Table Longitudinal Travel - 300 mm

Max. Distance between Chuck to Spindle Support - 480 mm

Rotation of Work-Head - +20 degree to -10 degree

Work-Head Speeds - 80 rpm to 435 rpm

Least Count of the Machine - 5 Microns

Internal Grinding Spindle Diameter - 60 mm

Face Grinding Wheel Diameter - 160 mm

Chuck Diameter - 160 mm

- Equipped with Face Grinding Attachment.

- Equipped with a Wheel Dressing Unit.

- Feature of Automatic Depth Adjustment "Auto-Cut".

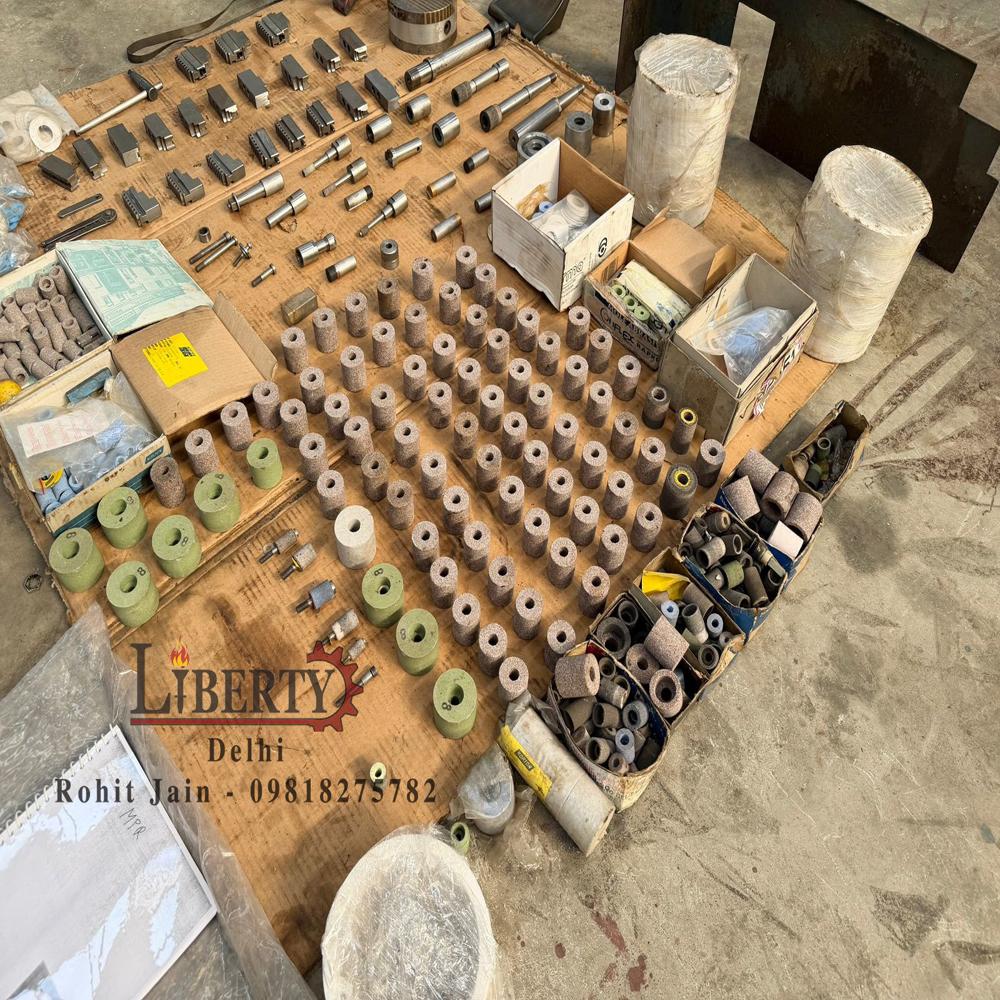

- With lots of NEW spare Grinding Wheels, Quills, Magnetic Chuck etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/-5WwPdSvF_g

Precision & Versatility for Industrial Grinding

The Fortuna Internal & Face Grinding Machine provides high-precision grinding capabilities for various industrial needs. Its variable speed, sturdy construction, and specialized accessories support diverse applications, from tool room projects to automotive components. Operators benefit from easy manual adjustments and a reliable coolant system that extends grinder and tool life. This well-maintained machine is designed for seamless integration into any medium-duty workshop.

Enhanced Operator Safety & Convenience

Safety is a top priority with the Fortuna grinder. Industrial-grade guards, an emergency stop feature, and a stable, floor-mounted base ensure secure operation. Centralized/manual lubrication and integrated recirculation coolant systems simplify maintenance. The user-friendly manual controls and accessories provide efficiency, helping operators achieve precise results while maintaining comfort and safety.

FAQ's of Fortuna Germany Internal & Face Grinding Machine:

Q: How is the working speed adjusted on the Fortuna grinding machine?

A: The working speed of the Fortuna Internal & Face Grinding Machine is manually controlled, allowing operators to set the optimal speed for different materials and grinding requirements via manual control wheels and levers.

Q: What types of applications is this grinding machine best suited for?

A: This machine excels in tool rooms, automobile workshops, and manufacturing environments where precise internal and face grinding of machine components is required. Its versatility makes it suitable for medium-duty tasks involving various materials.

Q: When should routine maintenance be performed on this machine?

A: Routine maintenance, such as lubricating with the centralized/manual system and checking the coolant recirculation, should be performed after every major usage and as indicated in the maintenance guidelines to ensure optimal performance and longevity.

Q: Where should the Fortuna grinding machine be installed for best results?

A: Install this machine on a stable, level floor in a well-ventilated workshop with appropriate three-phase electrical connections. Its floor-mounted, robust base ensures minimal vibration and maximum safety during operation.

Q: What is the process for changing the grinding wheels or face plates?

A: Turn off the power and use the provided maintenance tools to carefully remove and replace grinding wheels or face plates. Always follow recommended safety precautions to avoid injury during handling and installation.

Q: How does the coolant system benefit the grinding process?

A: The integrated recirculation coolant system minimizes heat build-up, extends the life of the grinding wheels, and helps achieve superior surface finish (up to 2 microns), protecting both the workpiece and the machine components during prolonged operation.
